ABRASIVE SHOT BLAST SYSTEM

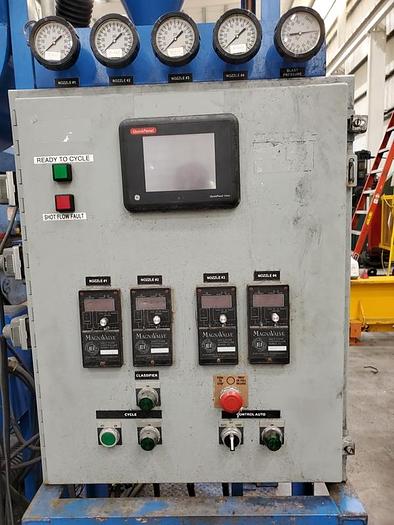

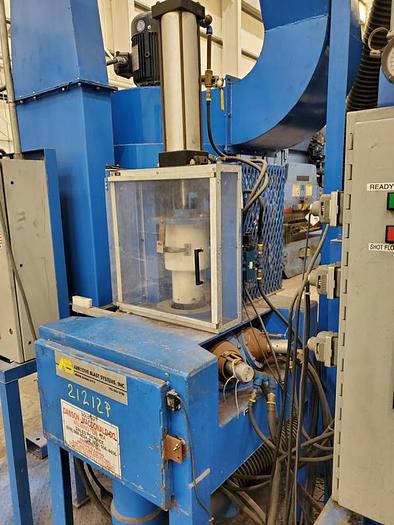

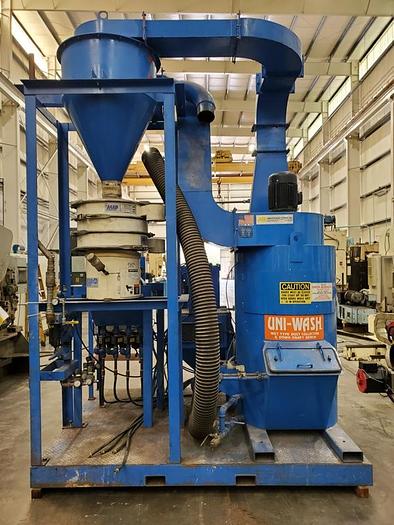

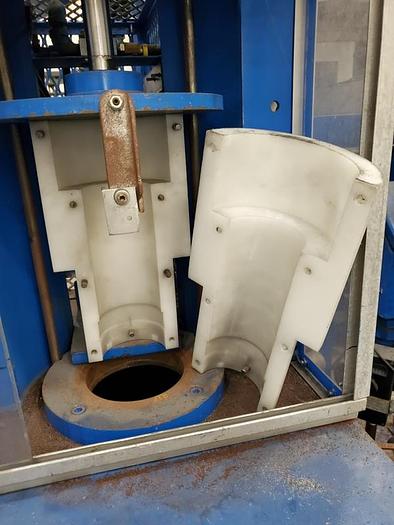

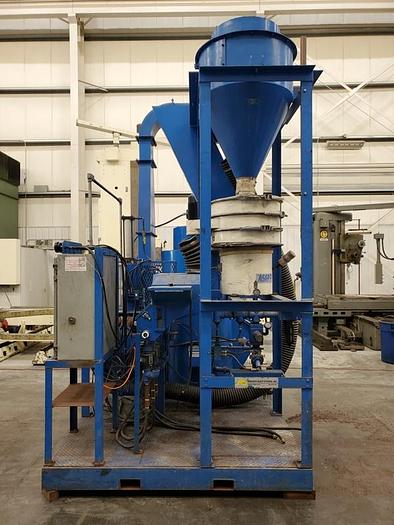

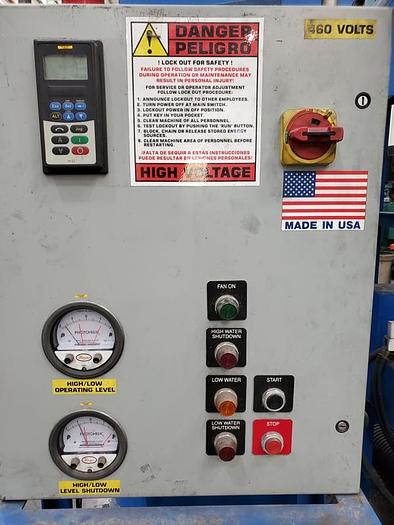

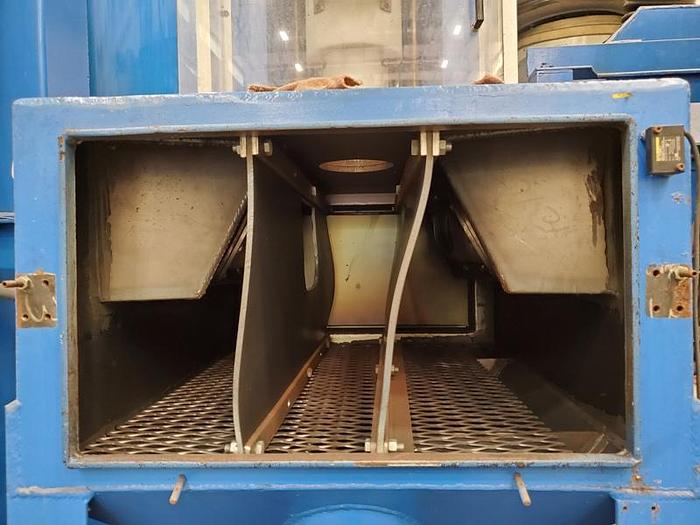

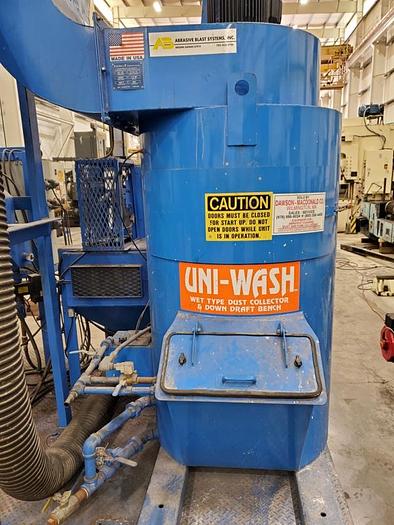

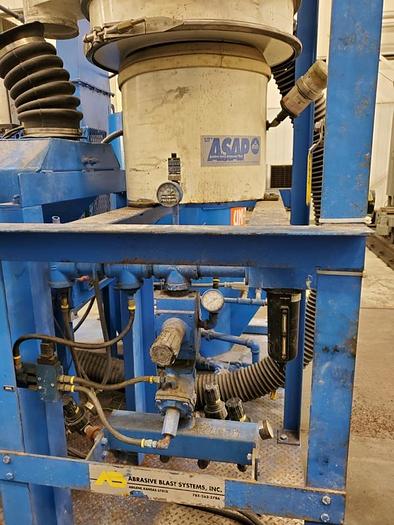

ABRASIVE SHOT BLAST SYSTEM PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $24,500.00 HMC Stock # 21212-P Machine Serial No.: 300802 Machine Model No.: Unknown New Date: June 2012 Cabinet: Access Doors: Front and Back Clamp Type Doors Ventilation: Hair Felt Filter Lighting: None Rubber Lining: Walls and Curtains Mechanism: Positioning Cylinder Blast Nozzles: (4) 3/8" Long Venturi Tungsten Carbide Blasting Pressure: 15-90 psi Shot Blast Chamber Size: 23" Wide x 13-3/4" High, But Has Nozzle Intrusions Shot Blast Chamber Door Opening: 19-1/2" Wide x 11-1/4" High Reclaiming System: Cyclone: 1600 CFM Rubber Lined Classifier: 24" 2 Screen Storage Hoppers Capacity: 3.0 Cu. Ft. Recommended Abrasive: CCW14 Steel Shot Abrasive Capacity: 750 Lbs. Feed Valve: (4) Magna Valve with FC Controller Sweco Vibro Energy Round Separator Separates solid from liquids, segregates smaller particles from larger particles and removes foreign materials. Model # ZS24C444PTLWC, Unit # ZS24C-01-004652 1/2 HP Explosion Proof Classifier Motor Uni-Wash Down Draft Bench Dust Collector: Capacity: 1600 CFM Style: Wet Type Filter Monitor: Magnehelic Gauge Exhauster: 7-1/2 HP, 3 Phase, 60 Cycle, 480 Volts, 3450 RPM TEFC, 213T Frame Supply Requirements: Compressed Air: 1-1/2" NPT Supply Line, 200 CFM @ 90 psi Electric: 480 Volts, 3 Phase, 60 Hertz EQUIPPED WITH: OEM Operation Manual with Electrical and Pneumatic Schematics (4) Shot Blast Head (4) Magna-Valve Shot Controllers All Components are Mounted on a Common Steel Platform Base Overall Size: Machine: 98" LR x 75" FB x 142" High (fully assembled, not on blocks) Unit can be dismantled into 2 basic pieces plus some duct work for easy trucking Dismantled Sizes: Main Unit: 98" LR x 75" FB x 99" High Secondary Unit is Sweco Tower: 32" x 44" x 135" Long Laid Over Total Machine Weight Fully Assembled: 5,000 Lbs. Can be Hauled on One Flat Bed Truck Taking Up 18 Feet of Truck Space
