MAKINO SNC64 CNC VERTICAL MACHINING CENTER

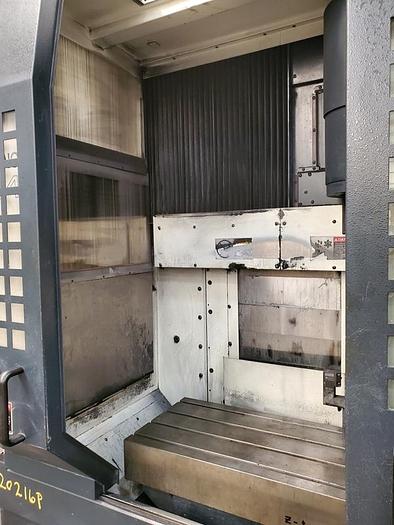

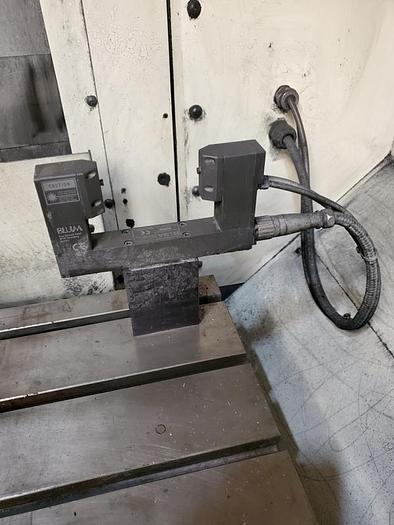

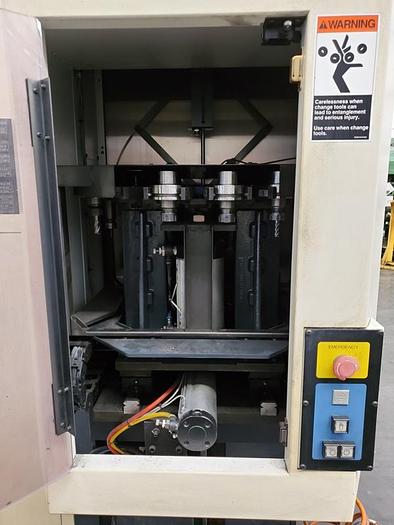

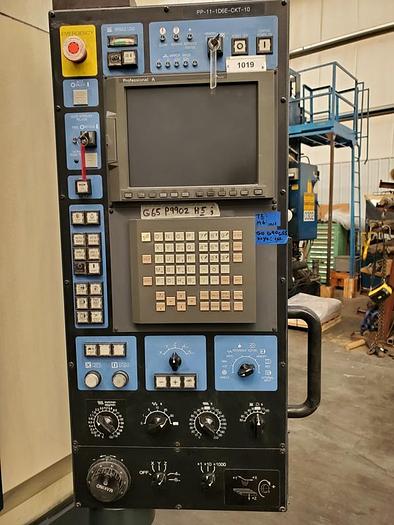

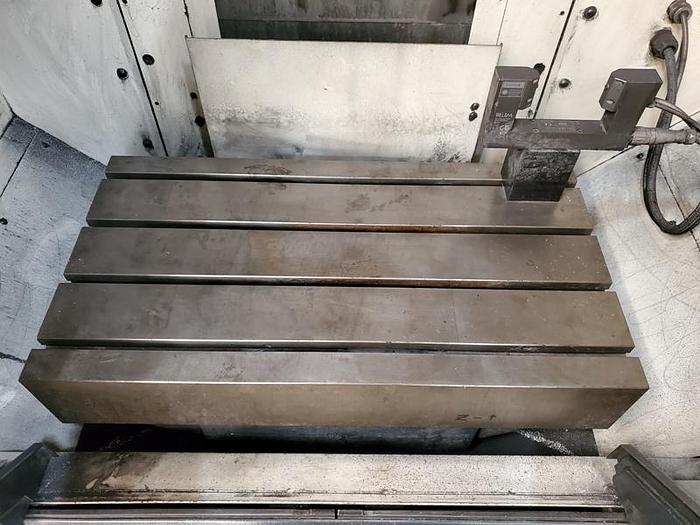

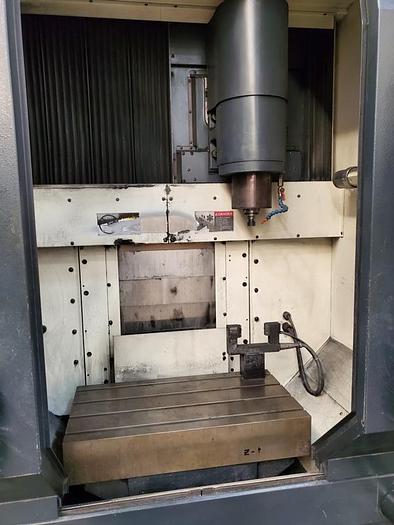

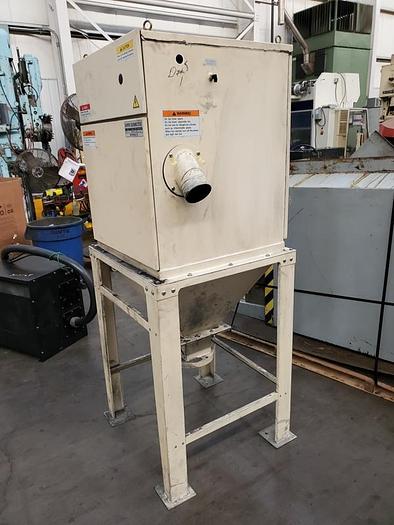

MAKINO SNC64 CNC GRAPHITE VERTICAL MACHINING CENTER PRICE: Loaded on Truck, Our Warehouse, York, PA …… $24,500.00 HMC Stock # 20216-P Machine Serial No.: 528 Machine Model No.: SNC64-A15 New Date: July 2000 Table Size: 29.5" x 15.7" Maximum Table Load: 550 Lbs. X-Axis Travel: 23.622" Y-Axis Travel: 15.748" Z-Axis Travel: 15.748" (is up acting table) Spindle Nose to Table Top: 9.8" to 25.6" Spindle Speeds: Up to 25,000 RPM Spindle Taper: HSK 63 Main Motor (30 min. / cont.): 7.5 / 5 HP Rapid Traverse (X, Y & Z): 630 IPM Cutting Feed Rate (X, Y & Z): 315 IPM EQUIPPED WITH: Z-Axis is Table Movement Up and Down, NO Spindle Travel Enclosed and Differentially Pressurized Machining Zone AC Axis Servo Motors Fanuc Makino Professional A CNC Control Sintokogio Super Dusmic Series FX III Graphite Extraction Unit with Collector Dankin Inverter Spindle Oil Chiller Tool Changer Positions: 15 RS232 25 Pin Com Port and 110 Volt Outlet Compact Card Slot at CRT Axis Selector Control Switch for: X – Y – Z - 4th - 5th Blohm Table Mounted Tool Measuring Device (2) High Pressure Coolant Pumps Electrical Multi-Tap Transformer for 3 Phase, 60 Hz, 480 Volt Input to 208 Volt Output Compressed Air Required for Operation OEM Parts, Operation and Programming Manuals Machine is in Very Good Condition with Low Operating Hours Spindle Motor Rating: 15/11 KW (20 / 15 HP) Overall Size for Trucking: Machine: 88" LR x 110.5" FB x 102" High (on 4" blocks) x Est. 10,000 Lbs. Dust Hopper Collector: 30" x 29" x 74" High Electrical Transformer: 19" x 27" x 25" High Coolant Pump Unit: 24" x 18" x 37" High Royal Filter Mist Unit: 17" Diameter x 27" Long Oil Cooler: 24" x 25" x 50" High Total Estimated Weight: 14,000 Lbs. See Machine Details online at: http://www.hildebrandmachinery.com/20216-makinovmcspecifications.pdf
