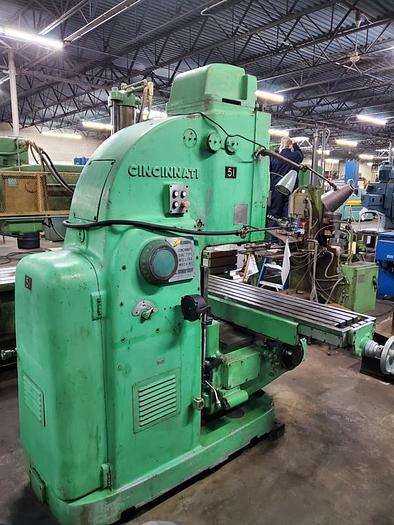

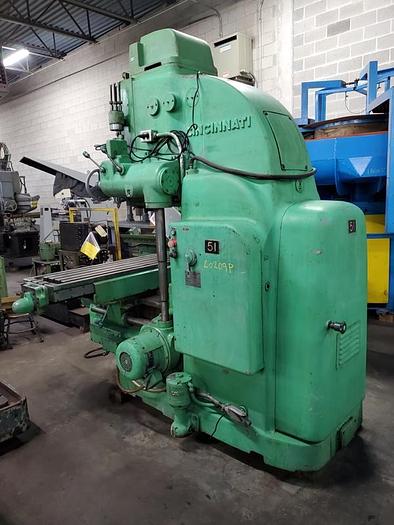

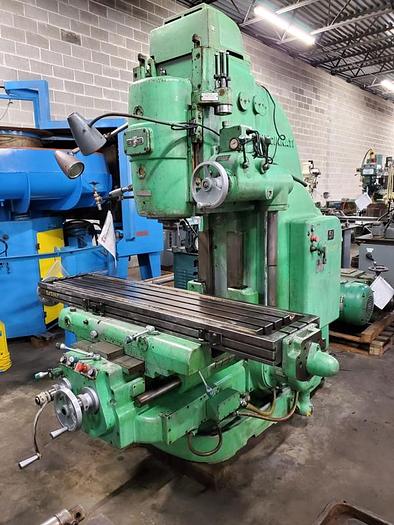

CINCINNATI DIAL TYPE VERTICAL MILL

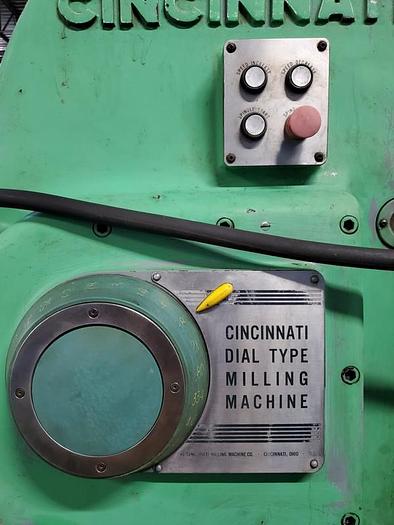

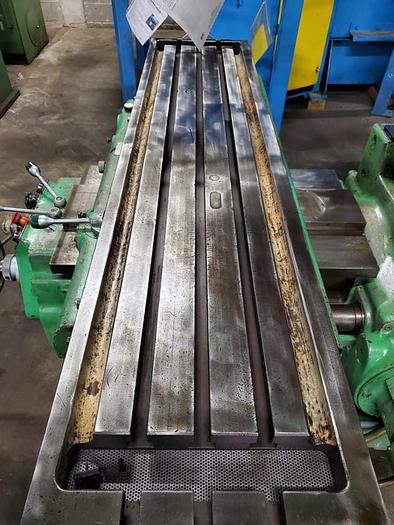

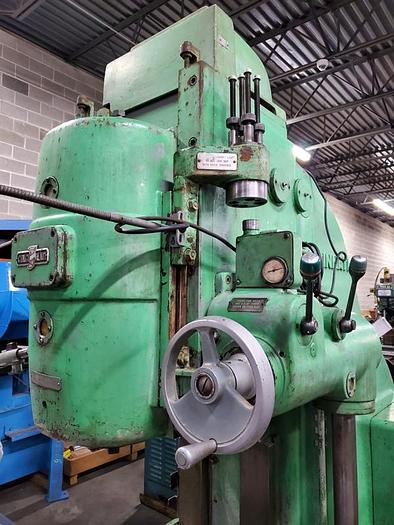

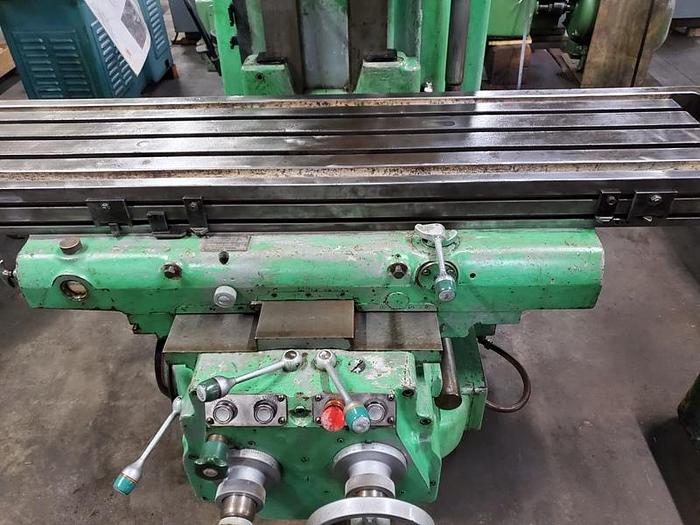

CINCINNATI DIAL TYPE VERTICAL MILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00 HMC Stock # 20209-P Serial No.: 4A3V5T-3 Model No.: 315-16 DT New: 1967 Table Size: 71-3/4" x 16-1/4" Table Working Surface: 63-1/2" (3) T-Slots: 3/16" Longitudinal Table Travel: 34" Cross Table Travel: 16" Vertical Table Travel: 20" Distance Spindle to Table Top: 3/4" to 16" Throat Distance: 18" Spindle Taper: #50 (24) Spindle Speeds: 16 to 1600 RPM (32) Feeds: 3/8 to 90 IPM (Table and Cross) 3/16 to 45 IPM (Vertical) Rapid Travels: 150 IPM (Longitudinal and Cross) 75 IPM (Vertical) EQUIPPED WITH: (2) Adjustable Vertical Knee Feed Stops (4) Adjustable Table Feed Stops Soft Saddle Ways in Good Condition Table Climb Milling Feature Bijur Central Way Lubrication System Front Operational Controls Power Up - Down Feed of Head 4-Position Turret Type Head Down Feed Stop System with Dial Indicator Power Rapid Traverse to All Axes (1) Manual Tool Draw Bar Satin Chrome Graduated Dial on Each Axis Manual Knee Crank Handle ELECTRICAL: 15 HP Spindle Motor 5.5 HP Feed Motor 1/10 HP Coolant Motor Wired for 3 Phase, 60 Cycle, 208/220/440 Volts Overall Size: 91" LR x 98" FB x 101" High on 4" Blocks x 12,100 Lbs.
