DALLAS SERVO ROLL FEED

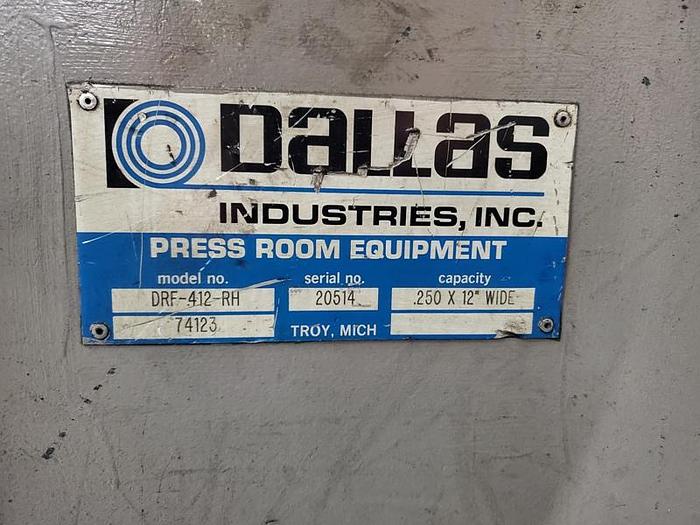

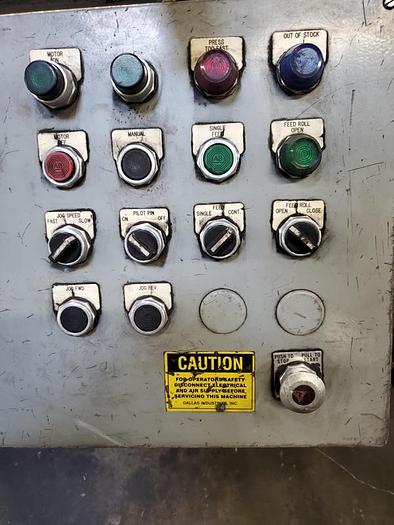

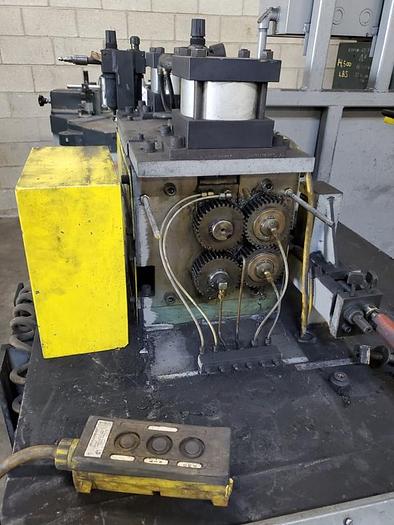

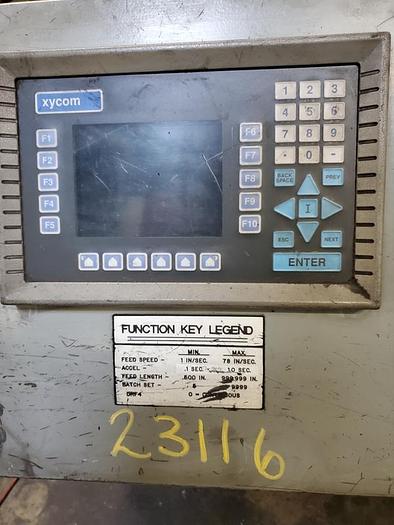

DALLAS SERVO ROLL FEED PRICE: Loaded on Truck, Our Warehouse, York, PA … $1,500.00 AS IS HMC Stock # 23116 Machine Serial No.: 20514 Machine Model No.: DRF-412-RH / 74123 New Date: Unknown The CRT screen for the control is barely visible but other functionality of the machine is working. Standard Specifications: Maximum Coil Width: 12" Maximum Coil Thickness at Full Width: 1/4" Mild Steel (4) 4" Diameter Feed Rolls, (2) Upper (2) Lower Air Operated Upper Servo Feed Roll Lift Cabinet Base Mounted Hand Crank Entry Stock Width Edge Guides Remote Pendant Control For Jog Forward And Reverse Feed Roll Speed: 1" Per Second Minimum to 78" Per Second Feed Length: ½" Minimum to 999.000 Inch Maximum Control Panel Features: Motor: On - Off Press: Too Fast Out of Stock Manual Single Feed Feed Roll Open Jog: Speed Fast – Slow Pilot: Pin On – Off Feed: Single – Continuous Feed Roll: Open – Closed Jog Forward – Jog Reverse Electrical Schematics Wired For 3 Phase 60 Hz 240 / 480 Volts Presently Test Run on 220 Volts Has a 6 KVA Multi Tap Transformer 480 Delta to 240 Delta Overall Size: 62" LR x 65" FB x 70" High x ??? Lbs.
