DISA GOFF ROTARY BLAST MACHINE

DISA GOFF ROTARY BLAST MACHINE

$24,500 (USD)

orCall 717-846-2600

Description

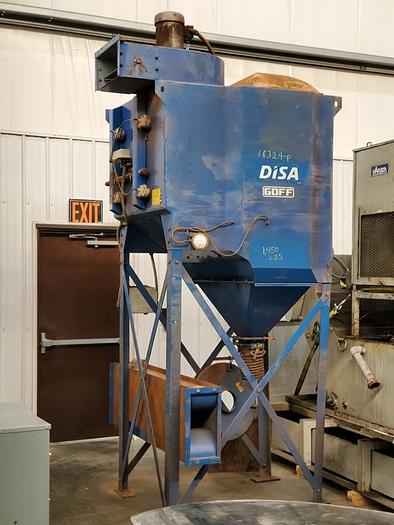

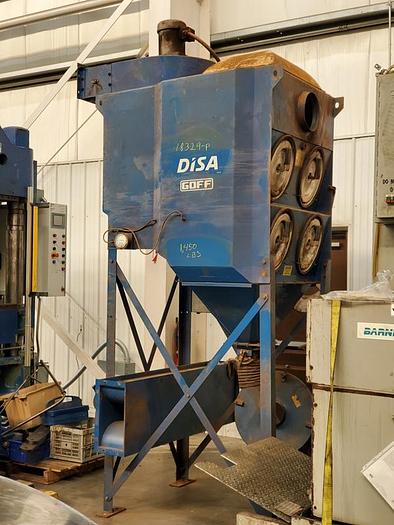

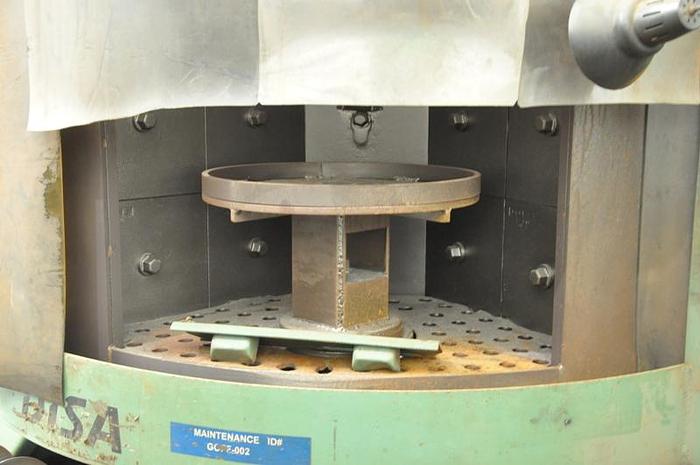

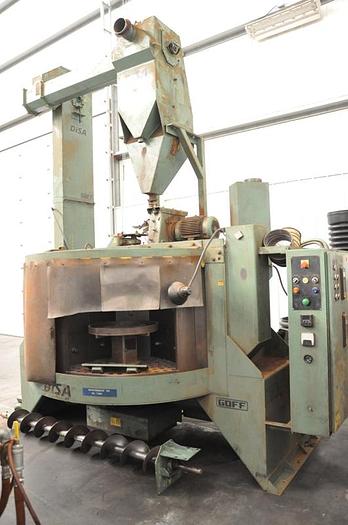

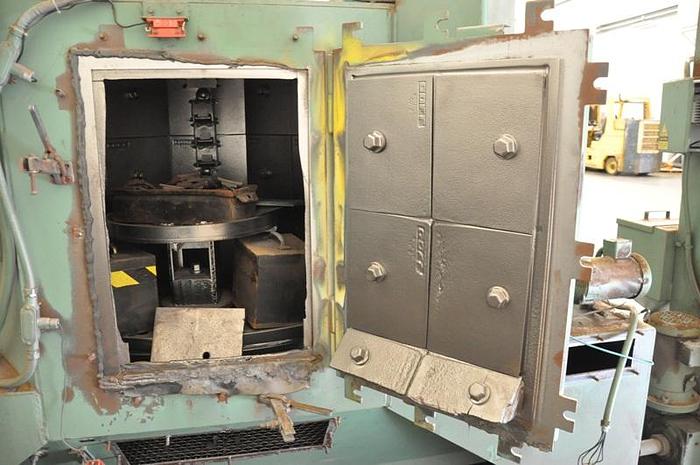

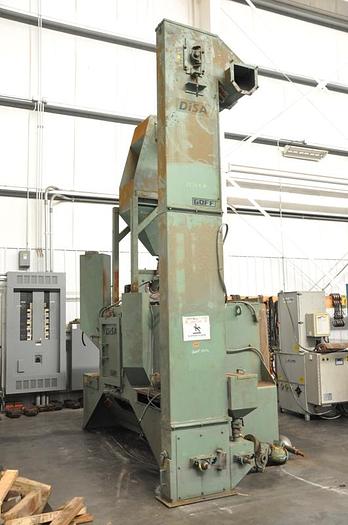

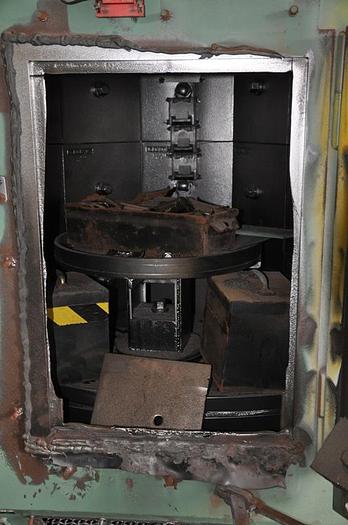

DISA GOFF ROTARY BLAST MACHINE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $24,500.00 HMC Stock No. 18329-P Machine Serial No. 06721-50-7060 Machine Model No. 72-5-22 New Date: 2006 There is a 72" diameter work chamber with 5 abrasive resistant tables rotating independently thru the blast chamber. Abrasive is fed into the direct drive blast wheel. The blast wheel revolves at 3600 RPM throwing the abrasive at the part to be blasted at high velocity. The abrasive passes thru the screening in the floor of the cabinet where it is conveyed via auger to the shot elevator. The elevator transports the abrasive to the separator. The separator removes contaminants from the abrasive and deposits the clean abrasive into the abrasive storage hopper. The hopper has the capacity to store enough of the clean abrasive to maintain an even flow to the blast wheel. The dust and contaminants are drawn out of the separator and into the dust collector system for disposal. (1) Blast Wheel: 15 HP, 12" Diameter, Direct Drive Distance from Main Table to Blast Wheel Opening: 31" 11-1/2" Diameter of the Base of the 5 Rotating Tables Presently there are Fixtures Mounted to these Tables that are 22" Diameter x 13-1/4" High Replaceable Manganese Wear Plates in Blast Area Open Load and Unload Station in the Front and Rear Blast Station with Door Operator Control Panel with Allen Bradley Power Flex 70 PLCs Disa/Goff Dust Collector, Serial No. 2166941-1, Model No. DF02-4 5 HP, Wired 3 Phase, 60 Cycle, 208-460 Volts (4) Cartridge Type Filters with Air Pulse Cleaning and Magnehelic Gauge 10" Diameter Air Intake Duct Discharge Hopper on the Bottom with Lid to Fit a 55 Gallon Drum 7" Diameter Discharge Hole Overall Dimensions: 5-1/2' L x 4' W x 140" H (Standing Up) Machine Overall Dimensions without Dust Collector: 13-1/2' L x 8' W x 178" H

Specifications

Model72-5-22
ConditionUsed
Stock Number18329
Size72" DIA. TABLE
