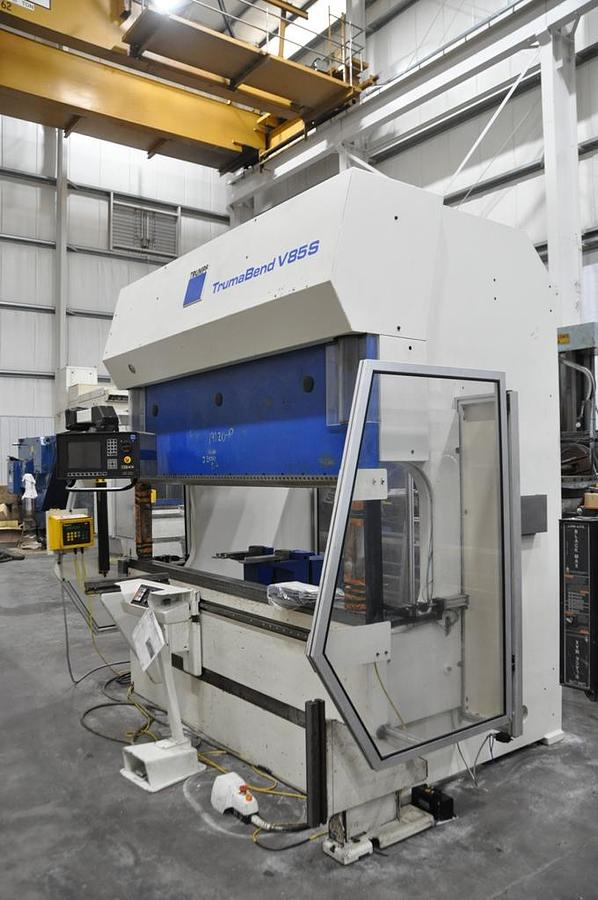

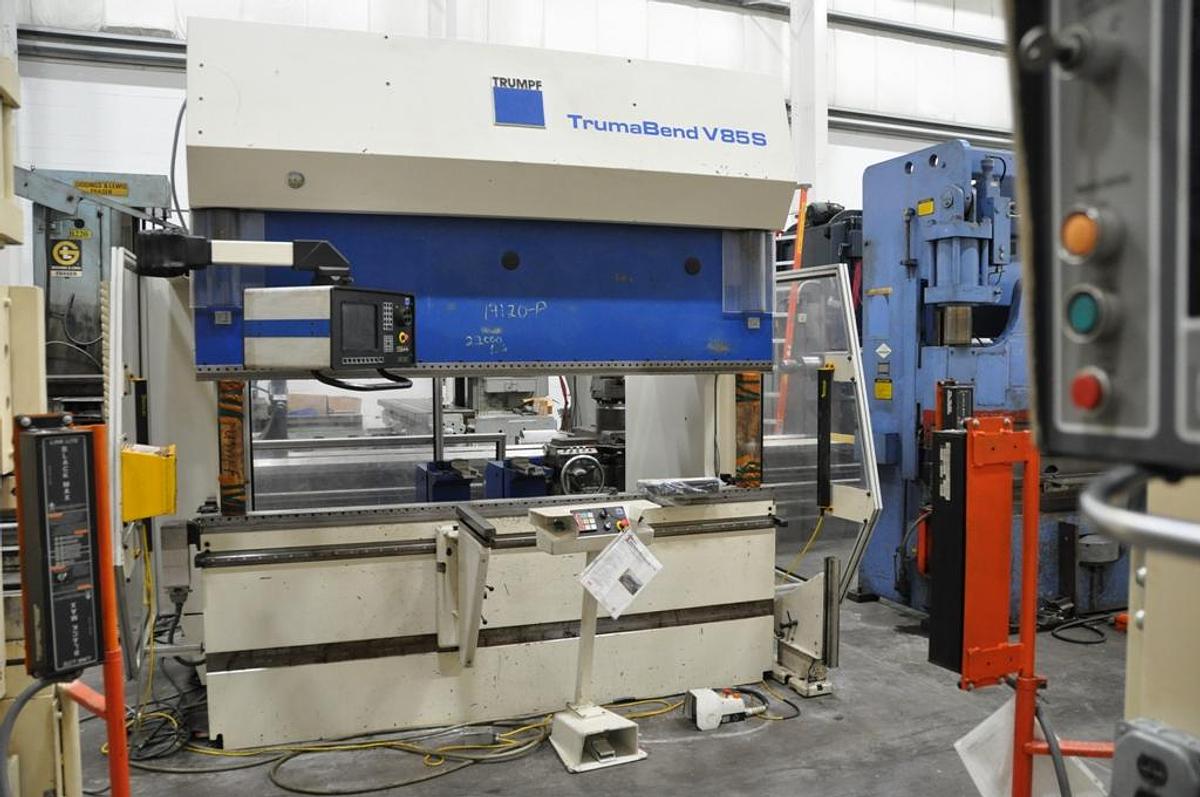

TRUMPF HYDRAULIC PRESS BRAKE

$55,500 (USD)

orCall 717-846-2600

Description

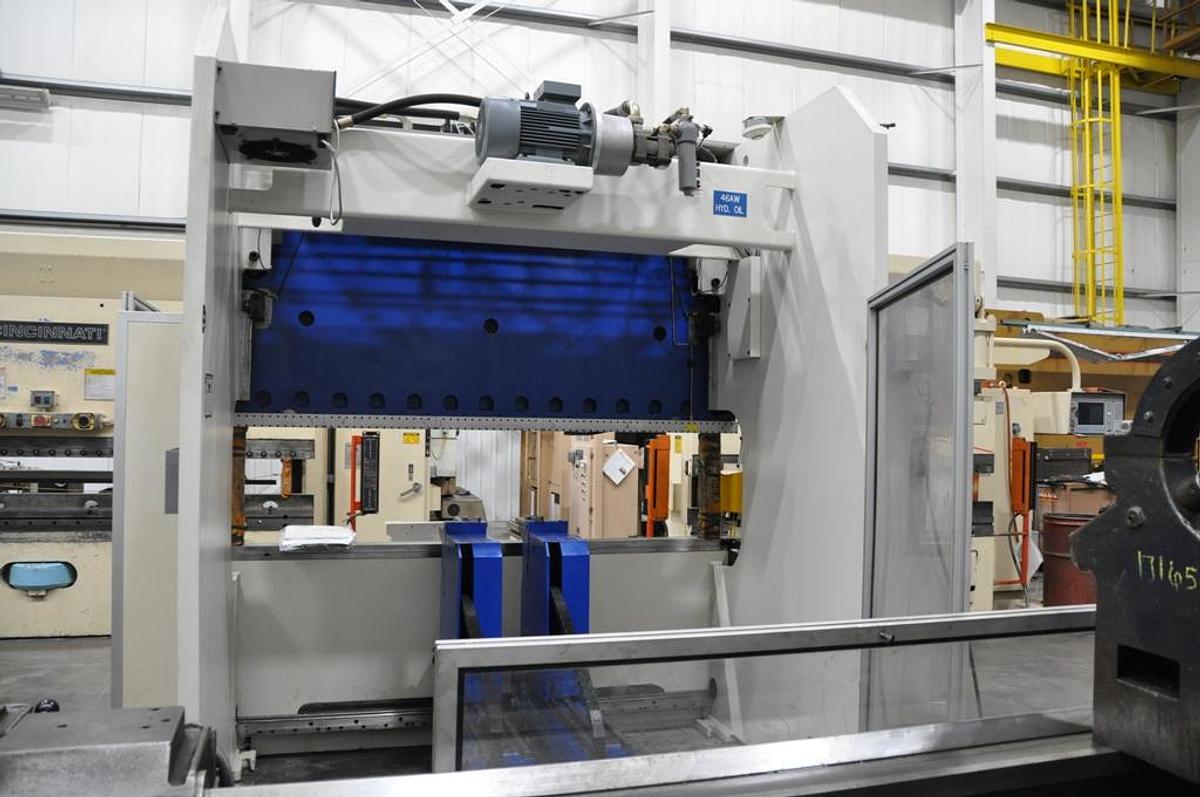

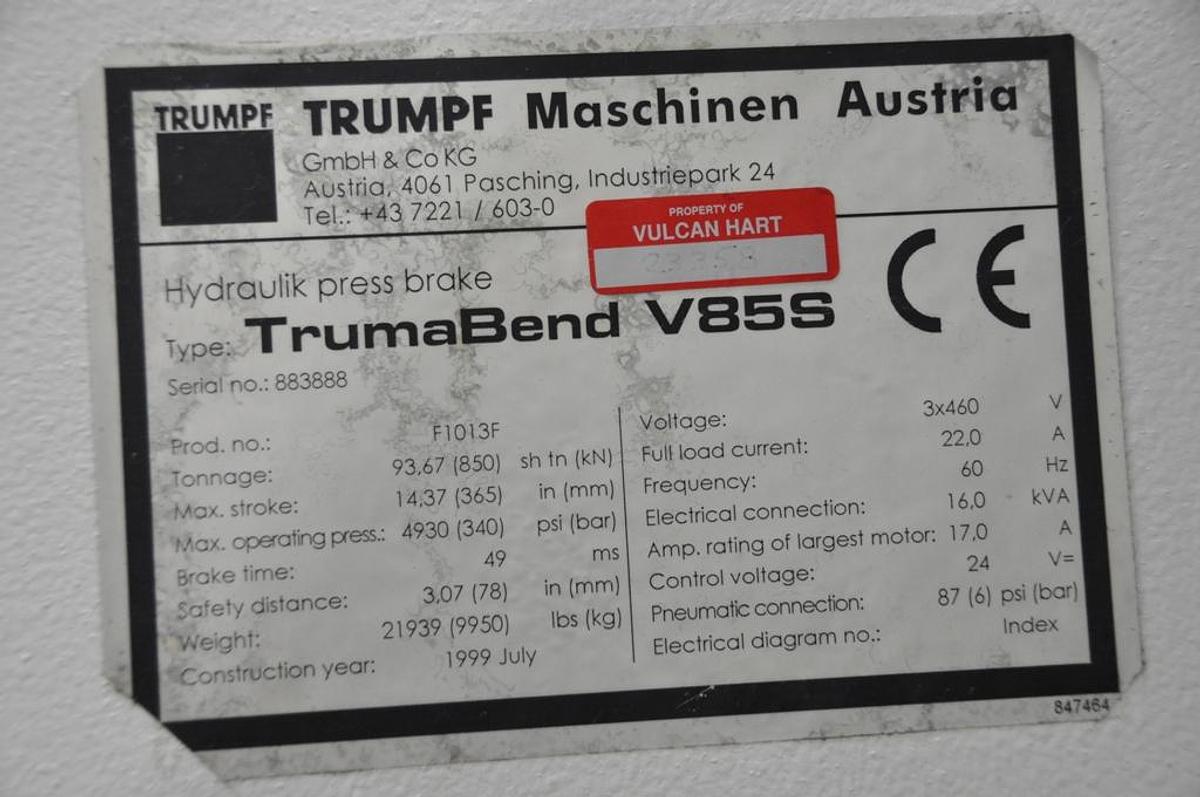

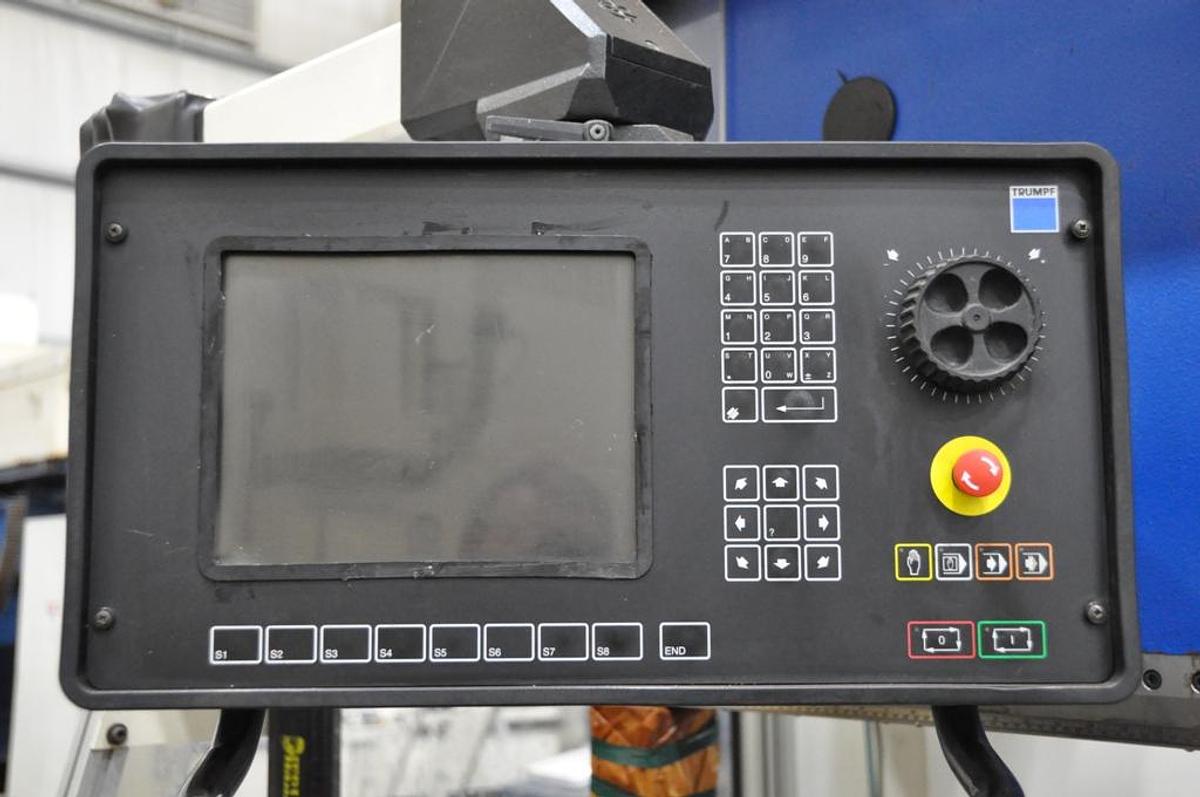

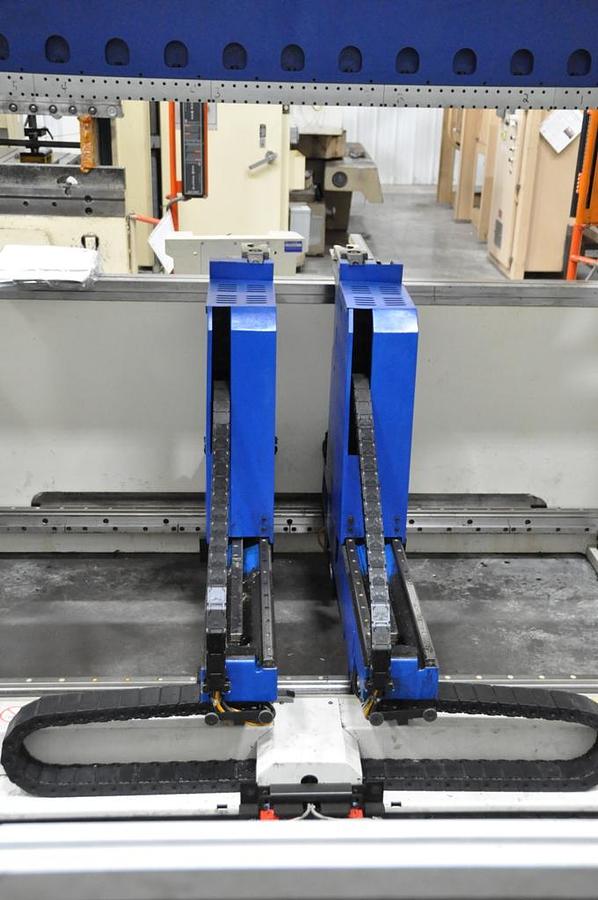

100" X 93 TON TRUMPF HYDRAULIC PRESS BRAKE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $55,500.00 HMC Stock #19120-P Machine Serial No.: 883888 Machine Model No.: Truma Bend V85S New Date: 1999 Rated Tonnage: 93.67 Tons Bed Length: 100" Distance Between Frames: 89" Stroke: 14.37" (365 mm) Maximum Bed-Press Beam Distance: 25" Open Height: 21" Throat: 16" Width of Bed: 4.75" Ram: Y Axis (Y1, Y2) Rapid Speed: 472" Per Minute Operating Speed: 2" to 24" Per Minute Return Speed: 320" Per Minute EQUIPPED WITH: Delem Control 6-Axis Back Gage X1, X2 X Axis Travel: 23.6" Maximum Distance in X: 33.5" Maximum Speed of X Axis: 1200" Per Minute R1, R2 Travel of R Axis: 9.8" Maximum Speed of R Axis: 710" Per Minute Z1, Z2 Maximum Speed of Z Axis: 1900" Per Minute Program Controlled Lower Tool Adjustment (I-Axis) Hardened Lower Tool Holder Self-Centering Upper Tool Holder Power Clamping to Upper Tool (2) Back Gage Finger Support Surfaces Controlled Beam Inclination Crowning (2) Adjustable Sheet Support Arms Light Curtains 15 HP Main Motor Oil Capacity: 53 Gallons Overall Size: 126" LR x 83" FB x 114" H x 22,000 Lbs.

Specifications

ModelTRUMA BEND V85S
ConditionUsed
Stock Number19120
Size093 TON X 100"
