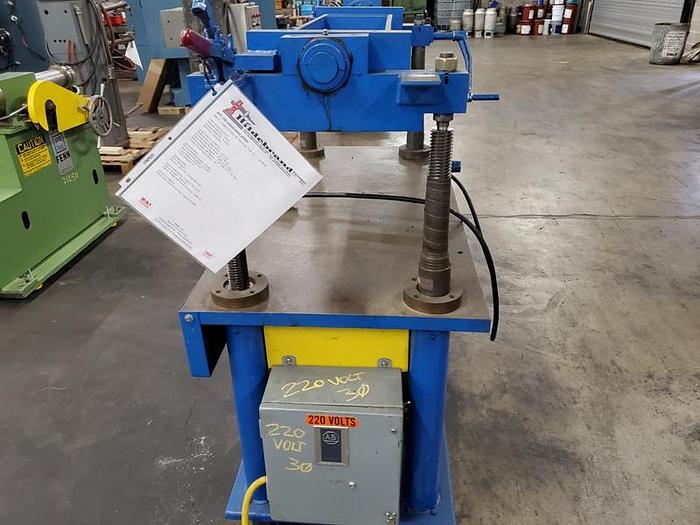

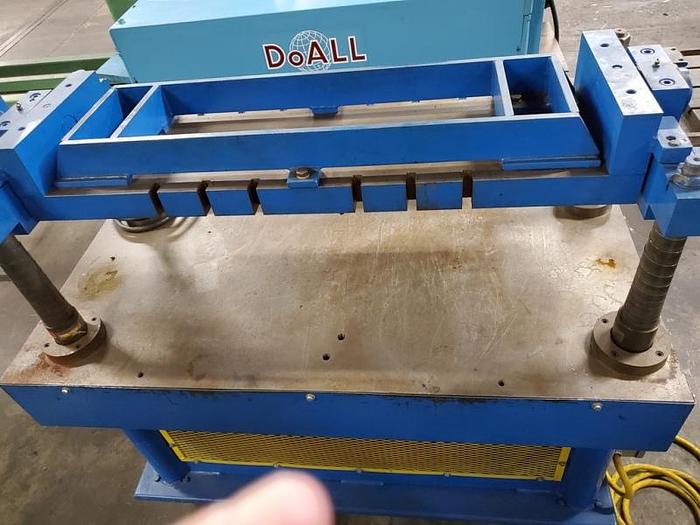

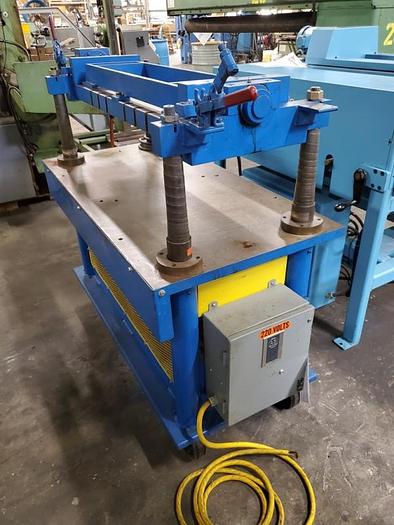

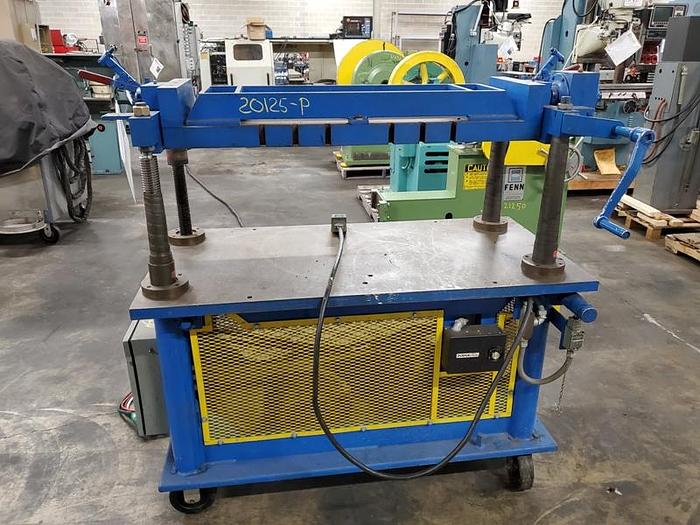

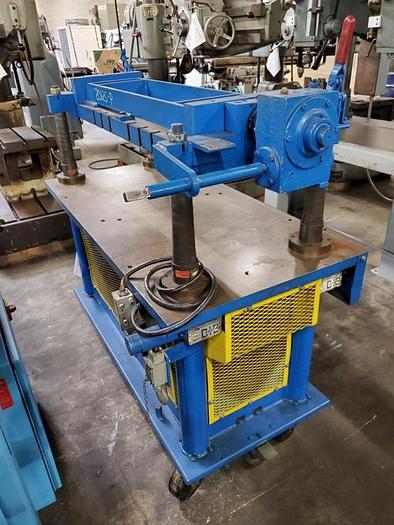

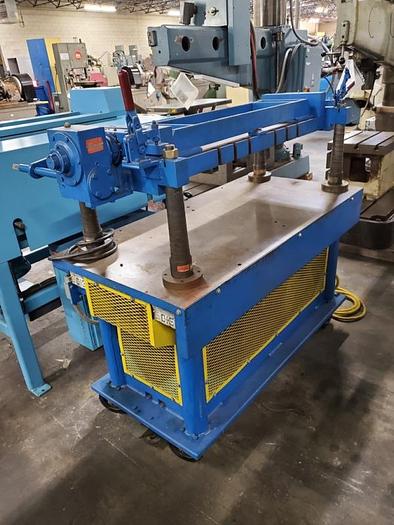

MTC DIE HANDLER/FLIPPER

MTC DIE HANDLER/FLIPPER PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00 HMC Stock # 20125-P Machine Serial No.: 27535 Machine Model No.: E-4436 New Date: Unknown Load Capacity: 2,500 Lbs. Working Area Upper Platen: 12" x 38" Working Area Center Platen: 26" x 30-1/2" Platen Clearance 0 Degrees: 9" Min. to 27" Max. Platen Clearance 180 Degrees: 3-1/4" Min. to 24-1/4" Max. Vertical Travel Upper Platen: 21" Elevating Ratio: Hand Crank/High Speed: 1/8 IPR Hand Crank/Low Speed: 1/16 IPR Center Platen to Floor: 32" Caster Diameter: 6" Equipped With: Power Elevation Electrics: 220 Volts, 3 Phase, 60 Cycle Approx. Dimensions: 4' LR x 3' FB x 4' H Approx. Weight: 1,650 Lbs. Approx. Weight with Power Elevation: 1,900 Lbs. Excellent Condition Replacement Value New Today, Approx. $16,800
