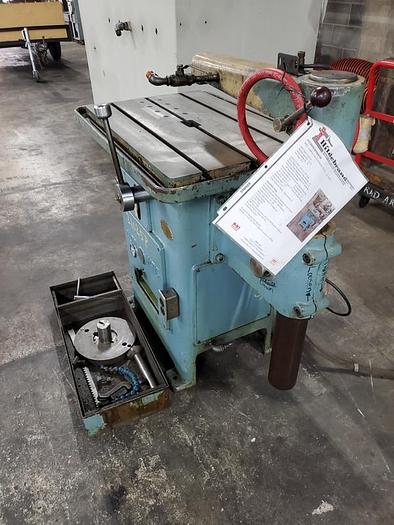

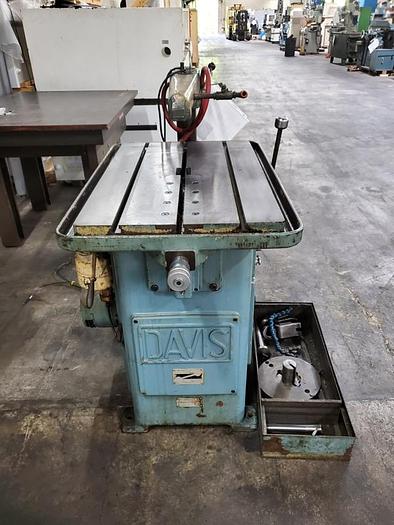

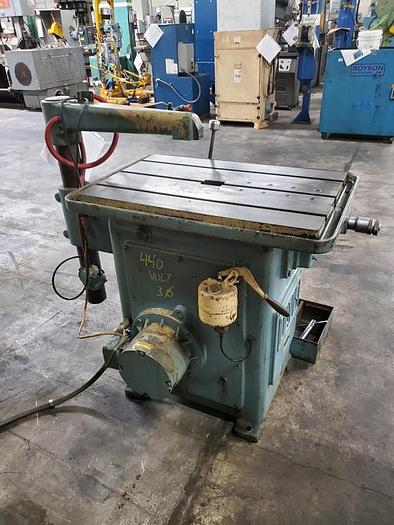

DAVIS KEYSEATER

DAVIS KEYSEATER

$11,500 (USD)

orCall 717-846-2600

Description

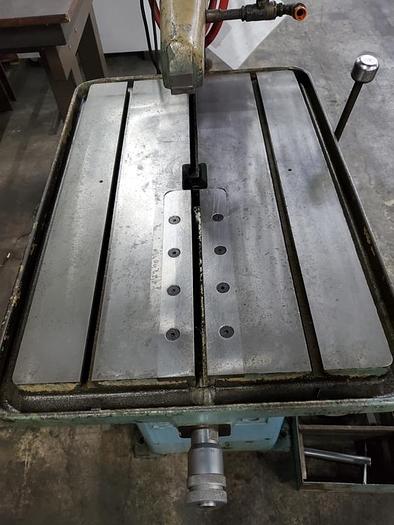

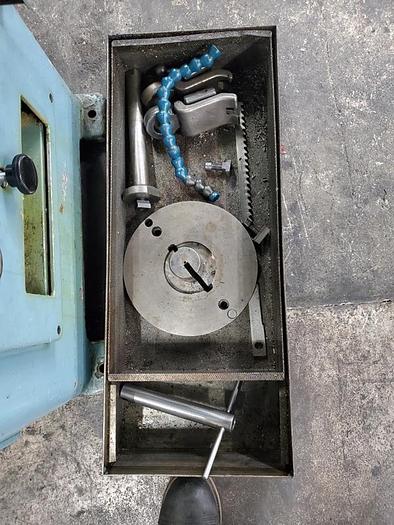

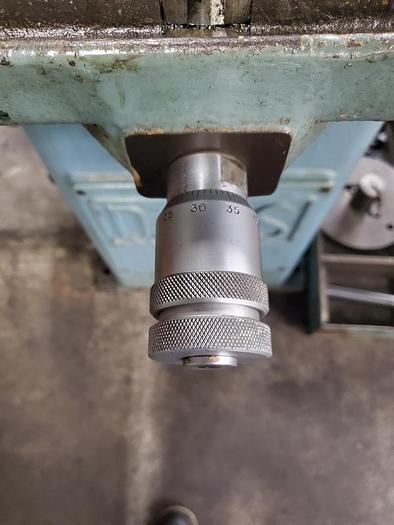

#15 DAVIS KEYSEATER PRICE: Loaded on Truck, Our Warehouse, York, PA …… $11,500.00 HMC Stock # 21025- P Machine Serial No.: 15-171 Machine Model No.: 15 New Date: 1971 Capacity in Steel: 1/16" to 1-1/2" Wide Throat Depth from Face of Cutter Arm Post: 19" Maximum Work Height from Table Surface: 12" *Throat Depth of 22" & Work Height of 18" Can be Had with Special Parts from Mfgr. Maximum Length of Cut with 3/4" High Pushing Plate: 16" Long Cutter = 4" 24" Long Cutter = 12" 20" Long Cutter = 8" 30" Long Cutter = 18" Table Size: 20" x 31" with (3) T-Slots & Coolant Trough Table Movement: 1-1/2" Cutter Stroke: 4-1/2" Cutter Strokes Per Minute: Approximately 42 EQUIPPED WITH: Air Operated Table Feed with Adjustable Pressure Control Micrometer Adjustable Table / Feed Stop Control Switch for: Job - Hand - Auto Operation Coolant Switch for: On - Off Manual Table Movement Via Hand Lever (1) Cutter Bushing (1) Bushing Plate (1) 5/16" Cutter (1) Quick Clamp 2 HP Motor, Wired for 3 Phase, 60 Cycle, 208-220-440 Volt Operation Presently Wired for 3 Phase, 440 Volts Coolant Pump and Pan Overall Size Machine and Components: Machine: 37" L-R x 56" F-B x 35" High (With Arm Down) x 1,250 Lbs.

Specifications

Model15
ConditionUsed
Stock Number21025
Size1/16" TO 1-1/2"
