$950 (USD)

orCall 717-846-2600

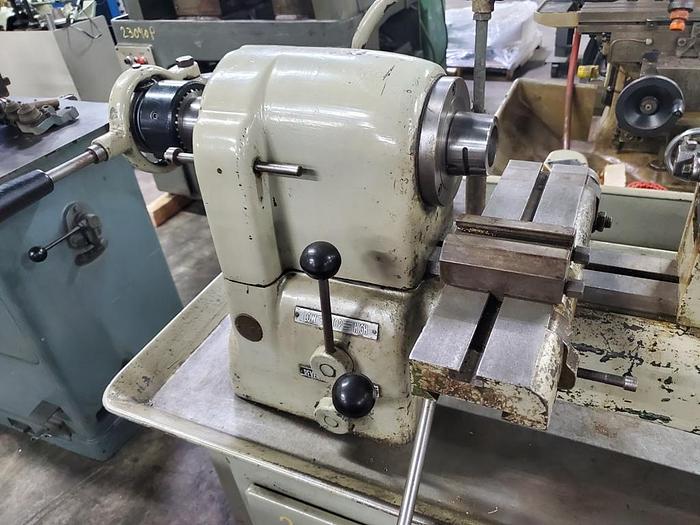

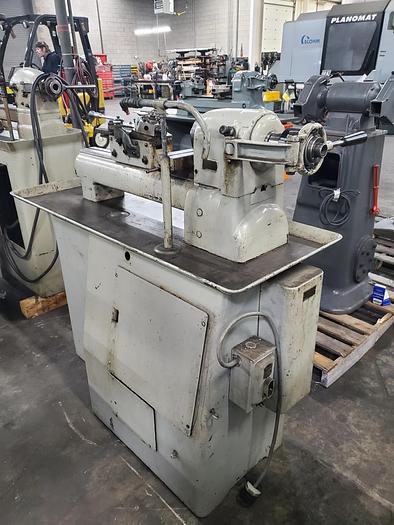

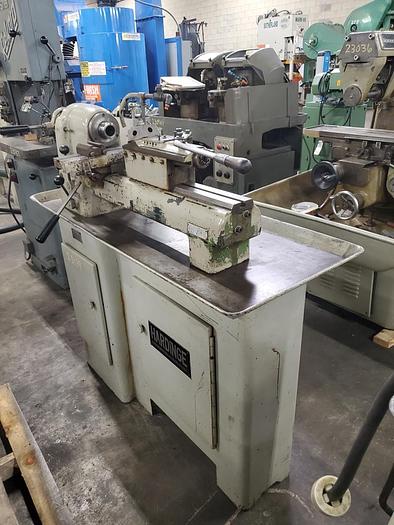

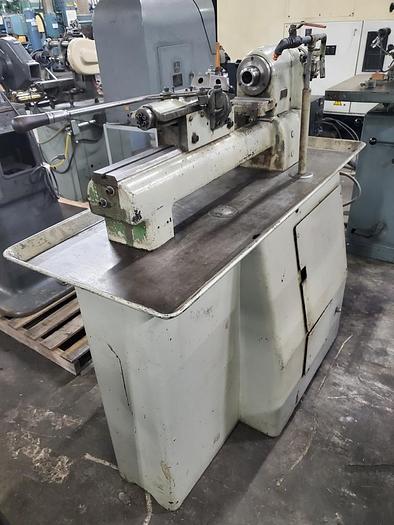

HARDINGE DV-59 SECOND OPERATION LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $950.00

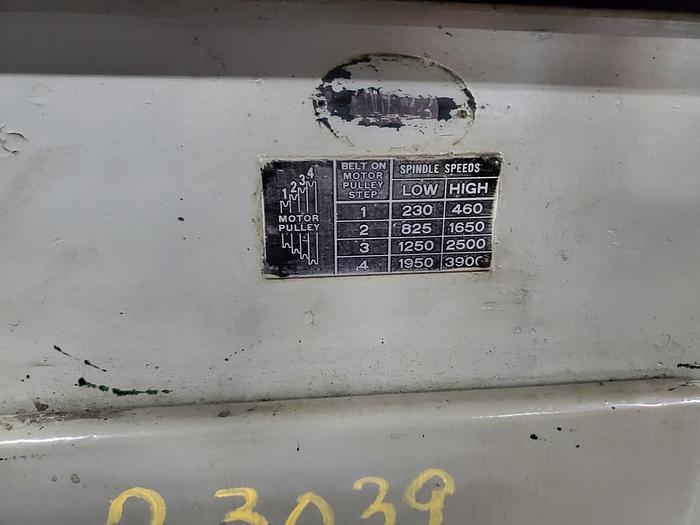

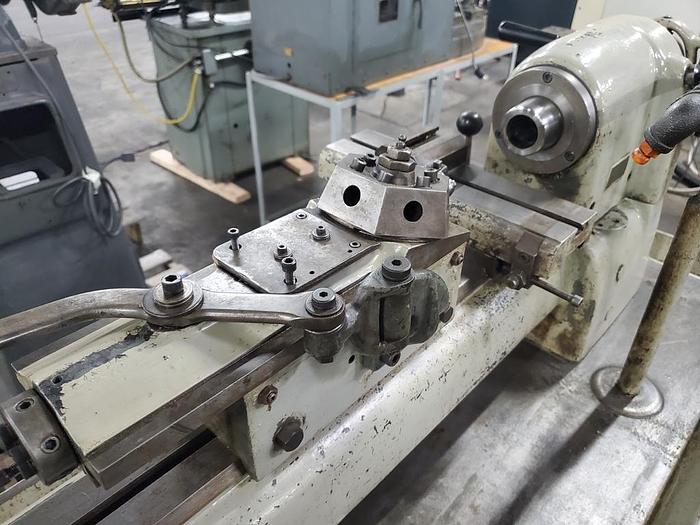

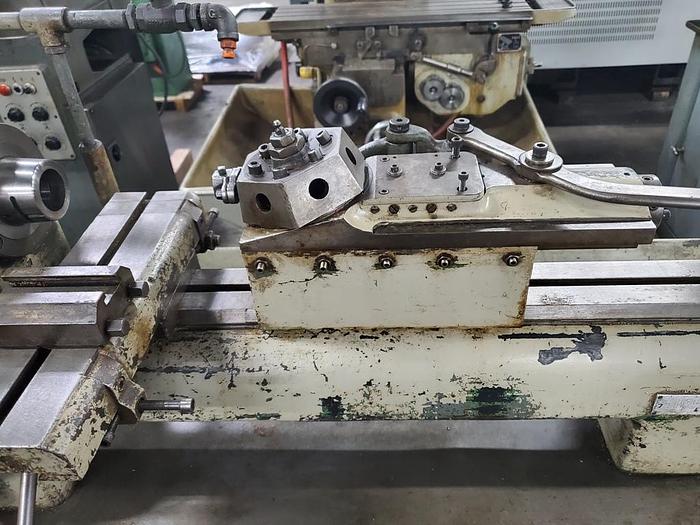

THERE WAS A TURRET ON THIS MACHINE BUT WAS FOUND TO BE MISSING PARTS AND THE TURRET WAS THROWN AWAY. PHOTOS TO BE UPDATED HMC Stock # 23039 Machine Serial No.: 59-14874 Machine Model No.: DSM59 New Date: 1954 Swing Over the Bed: 9" Bed Length: 30" Hardinge Taper Spindle Nose with Internal Taper to Accept 5C Collets Spindle Hole: 1-1/4" Spindle Capacity with Standard 5C Collets (None Supplied): 1-1/16" Round, 7/8" Hex., 3/4" Square Bed Turret Ram Stroke: 3-1/2" Diameter of Bed Turret Holes: 5/8" 6 Position Bed Turret Adjustable Stops Maximum Distance from Spindle Nose to Turret Face: 16" (8) Spindle Speeds: 230 to 3900 RPM Thru Hi & Low Range Via V Belt Change Hard Dovetail Bed Ways: 3-3/8" Wide EQUIPPED WITH: (1) Turret Tool Holder (1) Quick Acting (26) Assorted 5C Collects (1) Tool Holder Block on Cross Slide (1) OEM Manual (1) 6 Position Bed Turret with Adjustable Stops (1) Turret Tool Holder Original Coolant Pump is Built in (But May Not be Operational) Control Levers for: High-Low-Start-Stop and Forward-Reverse DV-59 Machine with DSM-59 Control System Lever Type Collet Closer 1-1/2 HP Baldor 2-Speed Motor, Wired for 3 Phase, 60 Hz, 208/230 Volts Only Overall Dimensions: 56" L x 27" W x 50" High (on 1-1/2" blocks) x 1,000 Lbs. See Our TOOLING Page for Hardinge Tooling and Accessories: https://www.hildebrandmachinery.com/tooling-search-results-2/?Catagories=Lathe%20Tooling%20and%20Accessories


Stock Number23039
Size09" SWING
