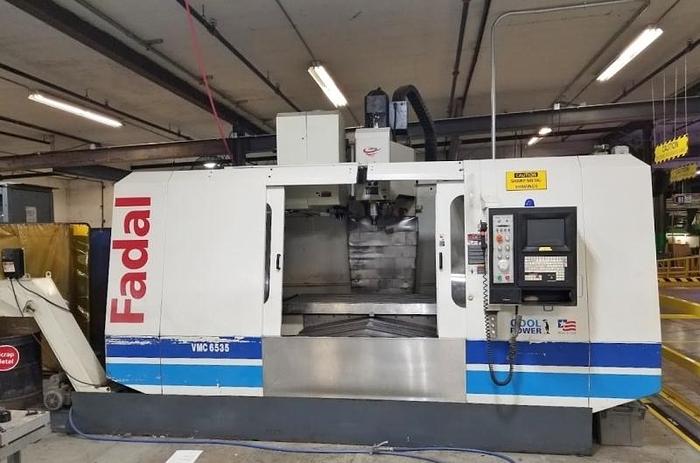

FADAL VERTICAL MACHINING CENTER

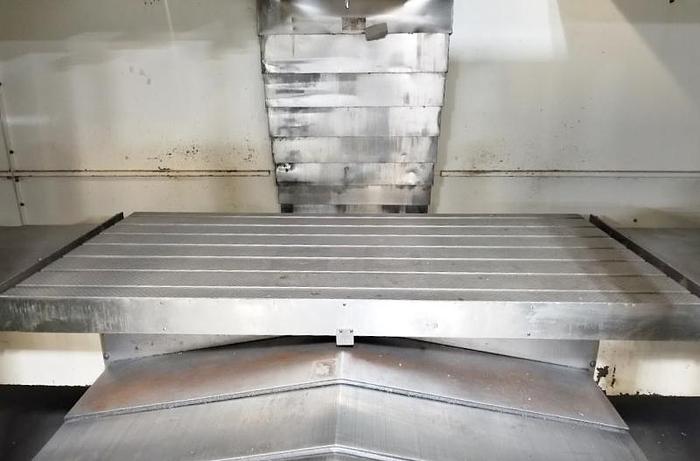

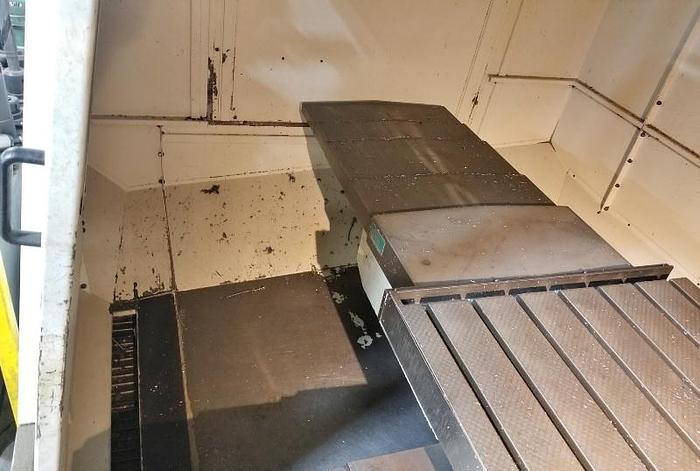

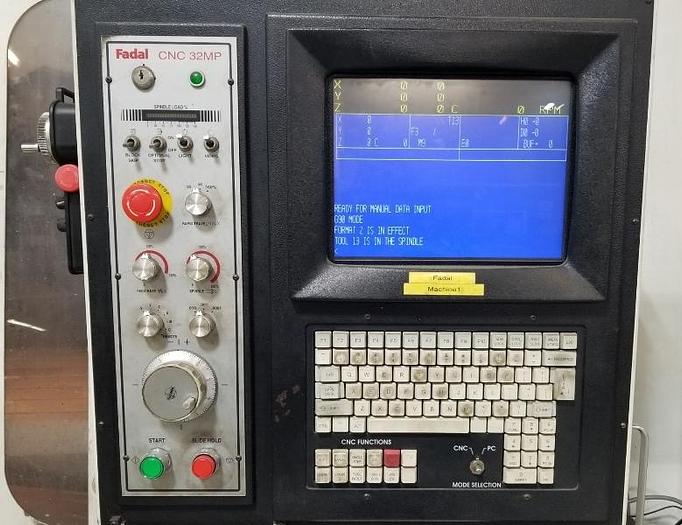

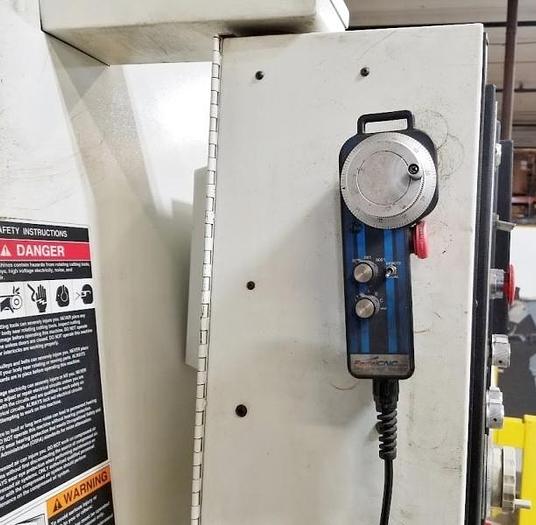

FADAL VERTICAL MACHINING CENTER PRICE: Loaded on Truck, Our Warehouse, York, PA ……… $35,000.00 HMC Stock # 22192-P Machine Serial No.: 012002064380 Machine Model No.: VMC-6535-50 New Date: 2002 SPECIFICATIONS: Table Length: 74.8" Table Width: 26.5" Table Capacity: 4,250 Lbs. X-Axis Travel: 65" Y-Axis Travel: 35" Z-Axis Travel: 34" Spindle Speed: 7,500 RPM Spindle Motor: 22.5 HP Spindle Taper: CAT 50 Tool Capacity (ATC): 32 Rapid Traverse X/Y Axis: 900 IPM Rapid Traverse Z-Axis: 700 IPM Cutting Feed Rate: 400 IPM EQUIPPED WITH: Fadal 32MP CNC Control Through Spindle Coolant Wash Down Coolant System Remote MPG High Torque Option Chip Conveyor High Speed CPU Graphics Rigid Tapping Hard Ground Ways (X/Y/Z) 4 Way Surfaces on Saddle Dual Ball Screw Supports (X/Y/Z) 422K Expanded Memory 2 Piece Hood Construction Above Doors to Accommodate Lifting Straps (This is Currently Dismantled and Will Remain That Way for Shipping) 30 Amps @ 460 VAC Cool Power Millimeter Ball Screws 30 HP Baldor Vector Drive 25 HP Spindle Motor Wired for 3 Phase, 60 Cycle, 480 Volts Overall Size Machine: 180" LR x 128" FB x 117" High x 34,700 Lbs. Chip Conveyor: 204" LR x 40" FB x 65" High
