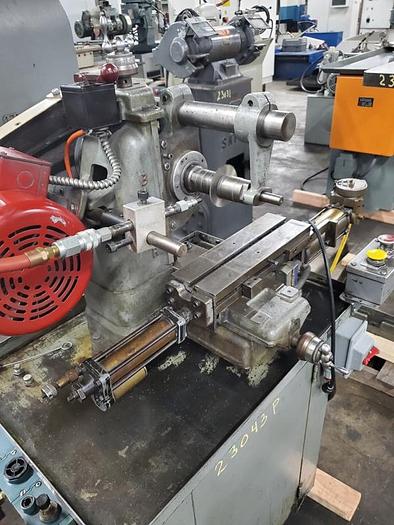

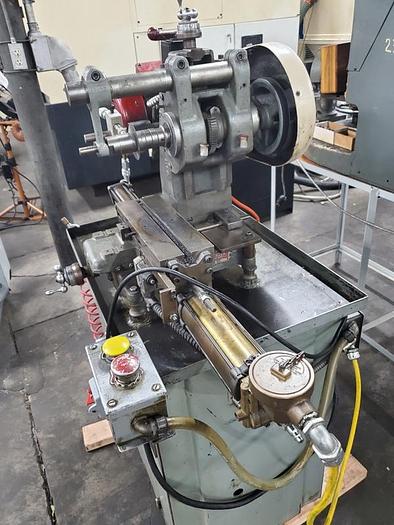

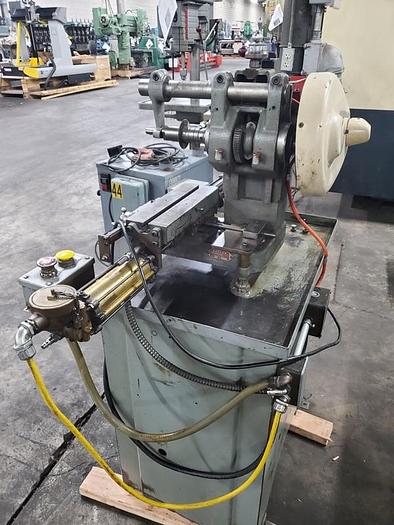

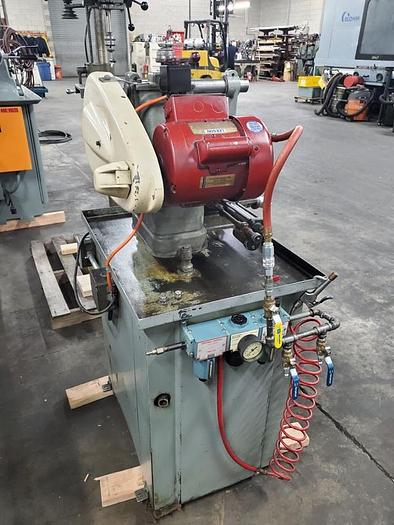

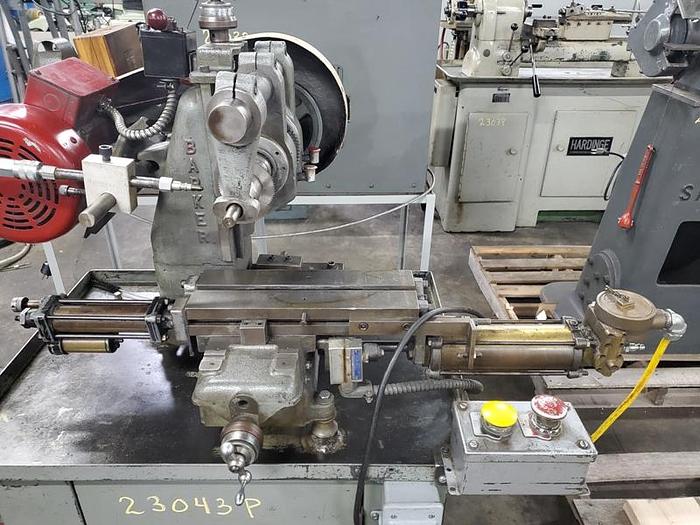

BARKER HORIZONTAL MILL

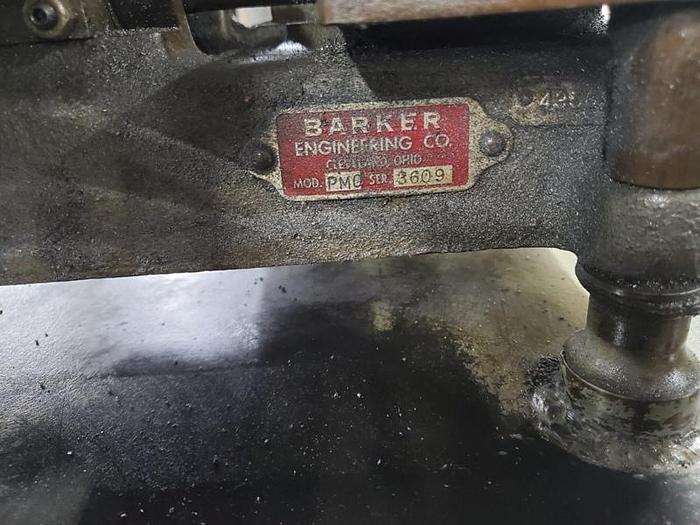

BARKER HORIZONTAL MILL PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $750.00 HMC Stock # 23043-P Machine Serial No.: 3609 Machine Model No.: PMO New Date: 1968 Table Size: 4-1/8" X 12" with 1/2" T-Slot Full Length of Table in Center Spindle Taper: Hardinge 3-C (1) Spindle Speed via V Belt Pulley: Speed Unknown Table Travel Longitudinal: 5" Max. Air Operated Cross Travel Approx.: 3" by Hand Crank w/Micrometer Dial Vertical Travel of Head: 4" by Hand Crank w/Micrometer Dial Dis. Center of Spindle to Table Top: 2-1/8" Min 6 1/8" Max Variable Table Air Feeds: Rates Unknown EQUIPPED WITH: Manual Draw Bar Air Feed System Controls Variable Length Feed Adjustment Metal Cabinet Type Base (1) Milling Arbor with Spacer Bushings, ? Dia. (1) Arbor Support Bracket Table Air Feed and Return Cycle Manual Head Vertical Movement 1/2 Horsepower Main Motor 1725 RPM Motor is Wired For Single Phase 60 Hz 115/208/230 Volts Presently Wired for 115 Volts Single Phase Overall Dimensions: 45" LR X 25" FB X 53" High
