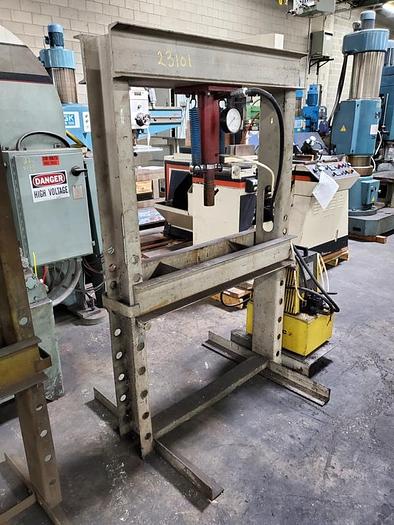

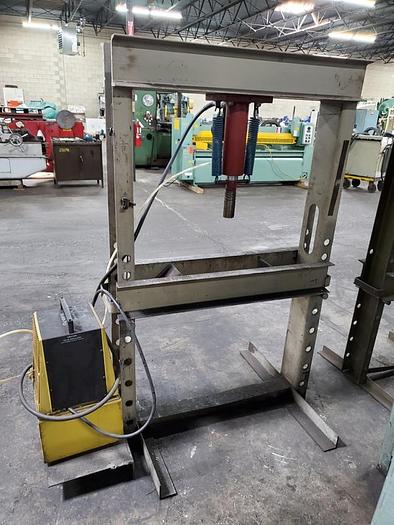

H FRAME HYDRAULIC PRESS

H FRAME HYDRAULIC PRESS

$2,950 (USD)

orCall 717-846-2600

Description

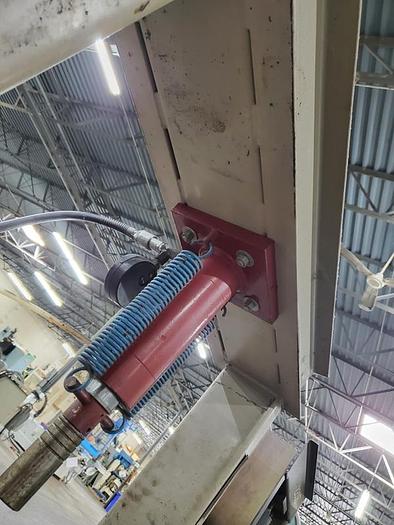

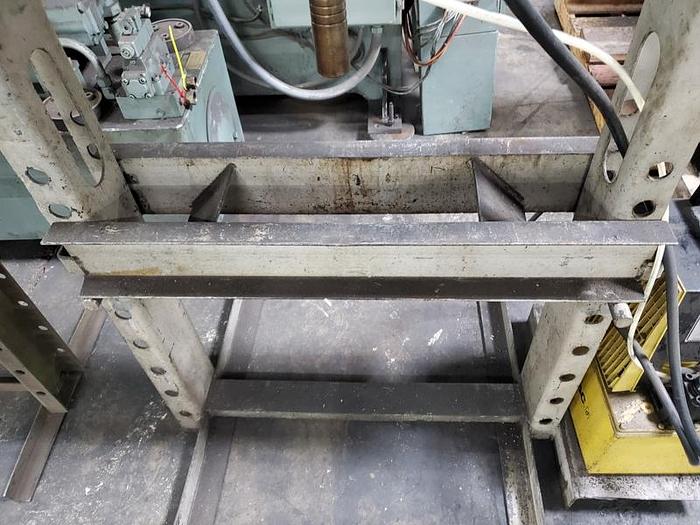

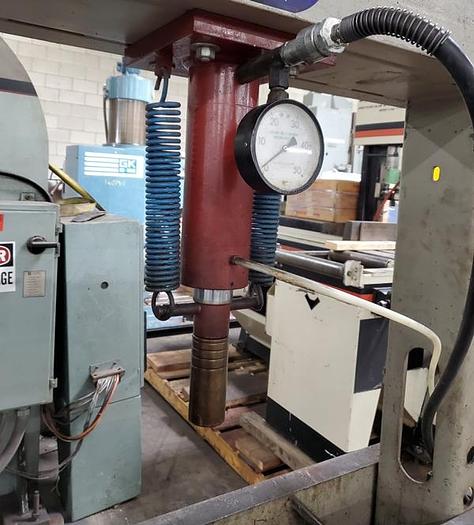

H FRAME HYDRAULIC PRESS PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,950.00 HMC Stock # 23101 Machine Serial No.: None Machine Model No.: H Frame New Date: Unknown Manufacturer Unknown Approximate Pressure Rating: 50 Ton Table Beams are 6" Channel Iron Table Vertical Adjustment Positions Every 3" (2) Table Vertical Adjustment Rail Pins: 1-1/4" Diameter Distance Table Rails to Pusher Nose: 35" Maximum Distance Between Vertical Frames: 36" Each Vertical Frame has a 3" x 10" Long Opening in It Distance Thru Bed Rails: 7-1/4" Hydraulic Ram Screw on Nose Piece: 4-3/4" Long Dual Springs for Ram Return Ram is Bolted in Fixed Position in Center of Rails 0 to 50 Ton Pressure Gauge (on 4-1/4" Dia. Ram) May Not be Correct EQUIPPED WITH: Enerpac Hydraulic Power Unit Model: PEM-2045, Product Code: 80493C Pump Specs: PSI: 0, 200, 5000, 10000 Cu In/Min: 280, 250, 45, 42 Useable Oil Capacity: 1155 Cu In. Manual Lever Operation Control Overall Size: 36" FB x 57" LR x 69" High

Specifications

ModelH FRAME
ConditionUsed
Stock Number23101
Size050 TON
