WHITNEY ESTERLINE 650 FABRICATOR HYDRAULIC PUNCH

Sold

WHITNEY ESTERLINE 650 FABRICATOR HYDRAULIC PUNCH

$2,950 (USD)

Description

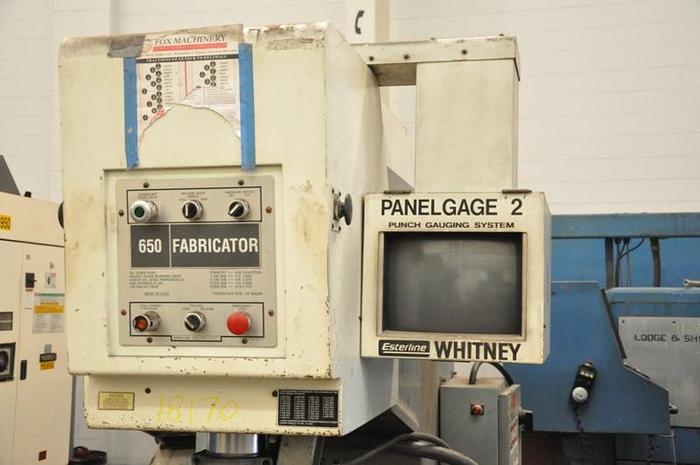

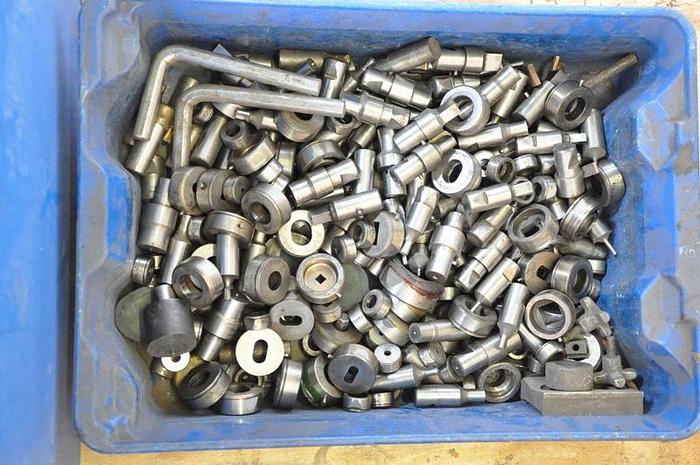

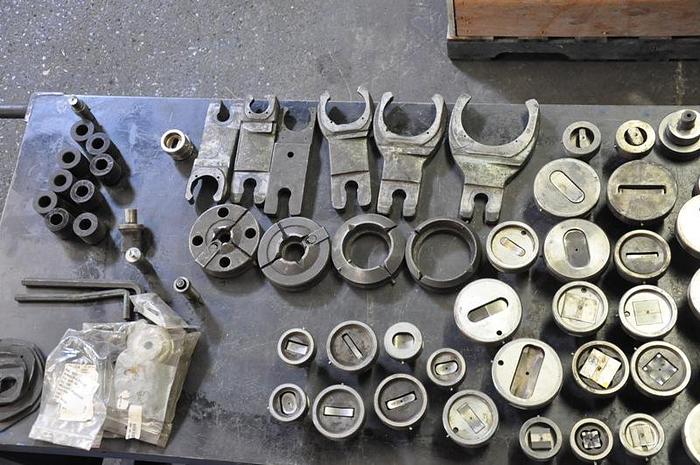

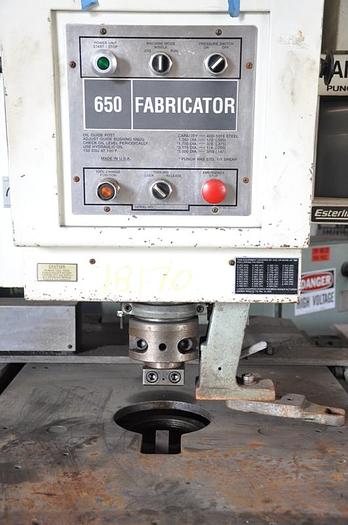

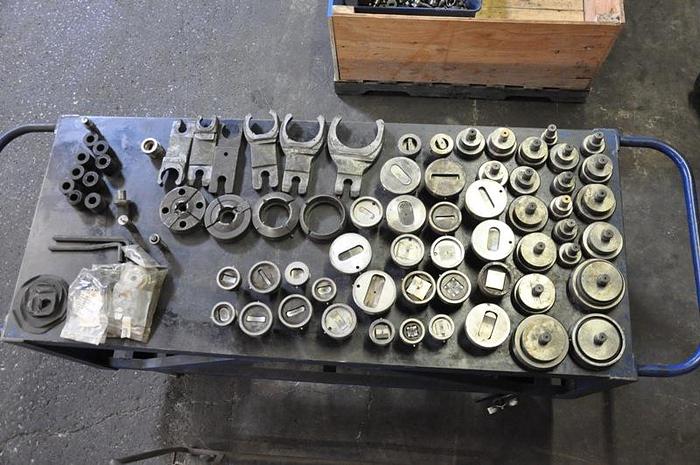

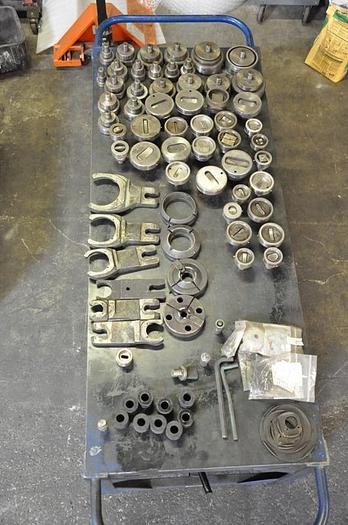

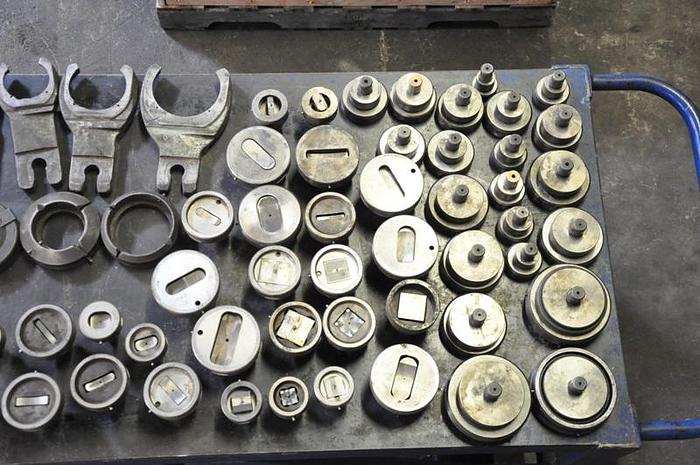

WHITNEY ESTERLINE 650 FABRICATOR HYDRAULIC PUNCH PRICE: Loaded on Truck, Our Warehouse, York, PA …… $2,950.00 PRICE: AS IS $2,500.00 HMC Stock No. 18170 Machine Serial No. 652-180-41747 Machine Model No. 650 New Date: April 1994 Capacity Throughout Entire Stroke: 50 Tons Punching Stroke: Adjustable Over 2" Range Throat Depth: 36" Removable Tables on Each Side: 48" x 56" Maximum Material Thickness: 1/2" (With Proper Tooling) Table Surface of Main Machine: 31" x 60" F-B Max. Punch Dia. in Max. Thickness: 1" Dia. Thru 1/2" to 5" Dia. Thru 8 Ga. (.164") Stroke Adjustment: 1/4" to 2" Uses 28XX Tooling Compressed Air Required: 5 SCFM at 80 to 100 PSI EQUIPPED WITH: Hydraulic Stroke Operation Dual Foot Pedal Operation Controls for Ram Up and Down OEM Operation Manual with Schematics and Drawings Panel Gage 2 Sheet Positioning System NOT Operational NO Work Positioner Bar, Material Gripper or Back Gage 28XX Tooling with Assorted Holders, Accessories, Punches and Dies Air Powered Tool Clamping Selector Controls for Jog, Nibble and Run Operations Air Regulator with Filter Bowls and Gauge Vickers Free Standing Hydraulic System and Tank 20 HP Hydraulic System Motor Wired for 3 Phase, 60 Cycle, 230/460 Volts Presently Wired for 230 Volt Operation Overall Size of Machine Components: Main Machine: 50" L-R x 96" F-B x 84" High x 10,000 Lbs. Skid of Tooling: 27" x 26" x 15" High x Est. 200 Lbs. Table Sections and Guards: 60" x 60" x 13" High Hydraulic System: 49" x 27" x 41" High x Est. 1,000 Lbs. Panel Gage Control: 34" x 15" x 50" High x Est. 300 Lbs.

Specifications

Model650 FABRICATOR
ConditionUsed
Stock Number18170
Size50 TON
