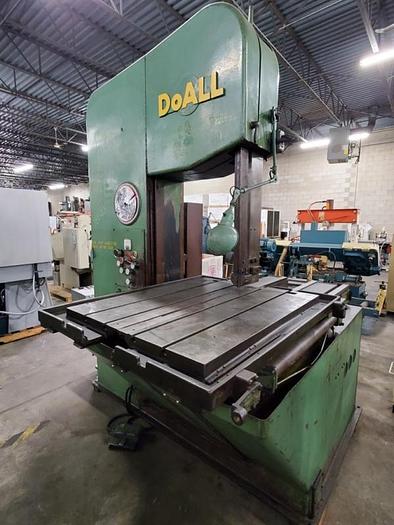

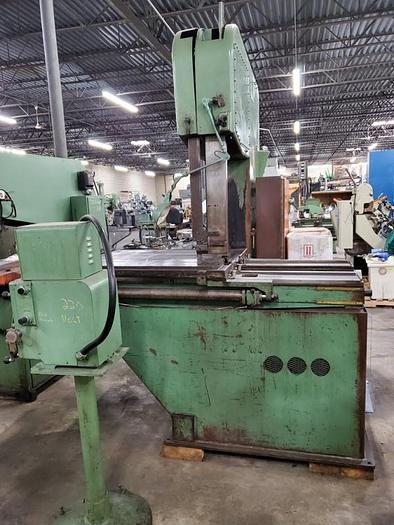

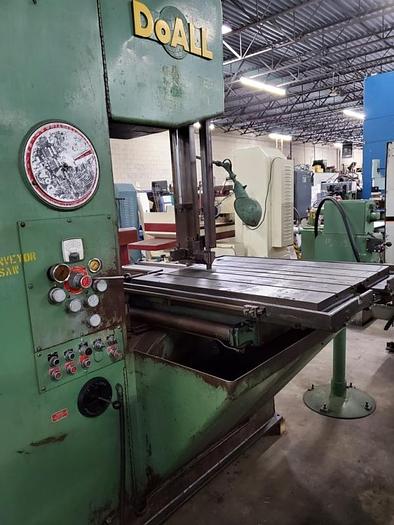

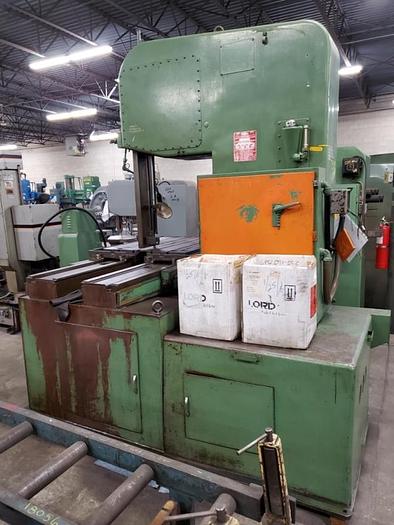

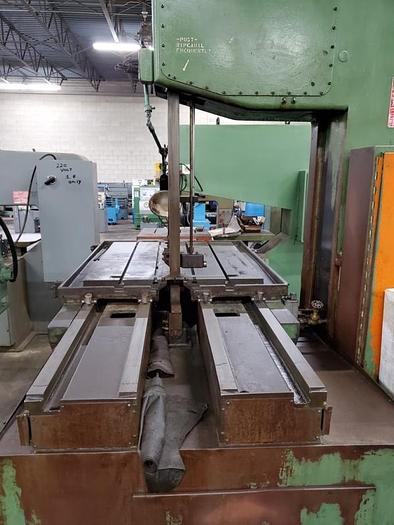

DOALL VERTICAL BAND SAW
![Used DOALL VERTICAL BAND SAW](https://i.machineryhost.com/d5cfead94f5350c12c322b5b664544c1/642cb4517c09898ba43889e2554c6145/large-18023.jpg)
DOALL VERTICAL BAND SAW
$12,500 (USD)
Description

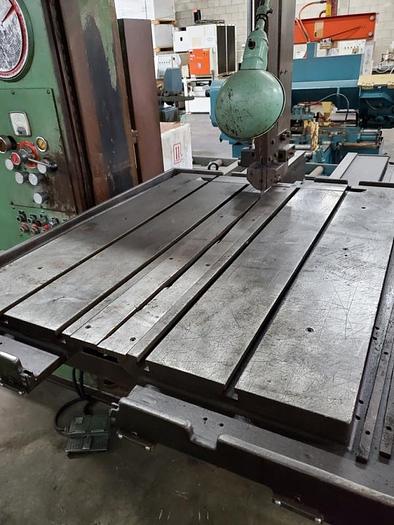

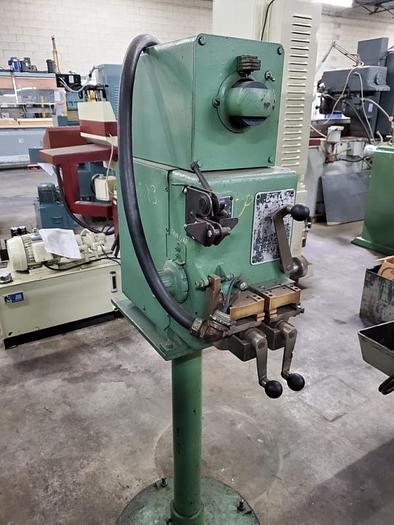

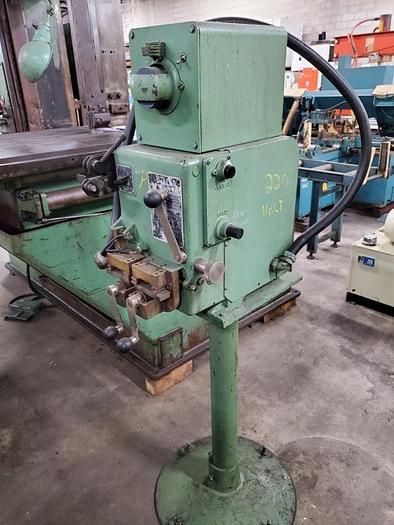

26" DOALL VERTICAL BAND SAW PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00 HMC Stock No. 18023 Machine Serial No. 208-64107 Machine Model No. 2624-4 New Date: 1964 Main Gearbox Rebuilt & New Shift Linkage Installed 4/2018 Table Size: 32" L-R x 40" F-B with (4) 9/16" Tee Slots Running the 40" Length of the Table Throat: 26-3/16" Maximum Height Under Blade Guide: 24" Variable Blade Speeds: 50 to 8000 FPM via 3-Speed Transmission Hydraulic Feed to Table with Variable Feed Pressure, Approx. 30" Travel Hydraulic Post Elevation Hydraulic Blade Tension Carbide Blade Guides for 1-1/2" Wide Blade Blade Length: 216" 7-1/2 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts Presently Wired For 220 Volt Operation Coolant Pump Chip Auger Continental Hydraulic Pump Driven Off the Main Motor Doall Floor Standing Blade Welder, Model DBW-8CGP with Blade Grinder and Shear Machine Overall Dimensions: 66" F-B x 95" L-R x 108" H
Specifications
Model | 2624-4 |
Condition | Used |
Stock Number | 18023 |
Size | 26" |
