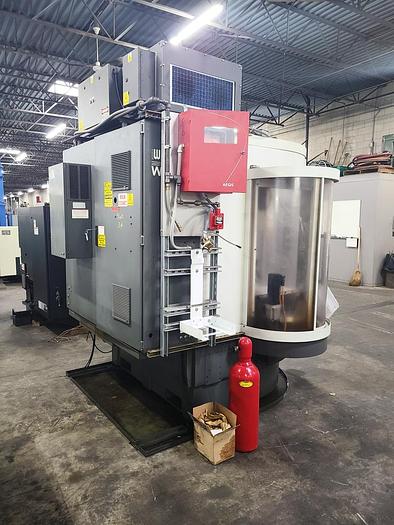

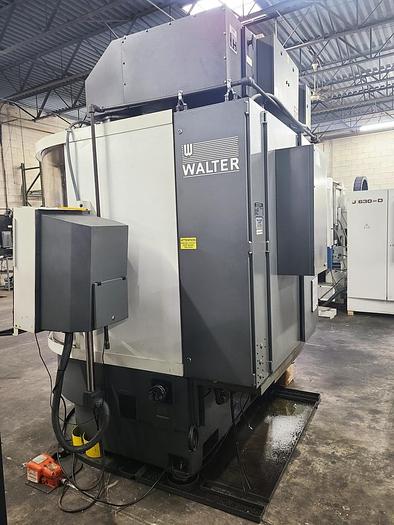

WALTER POWER "R" 500 CNC TOOL & CUTTER GRINDER

WALTER POWER "R" 500 CNC TOOL & CUTTER GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA … $44,500.00

HMC Stock # 23159-P

Machine Serial No.:  643133

Machine Model No.:  Power "R" 500

New Date: 2003

SPECIFICATIONS:

Longitudinal (X-Axis) Travel:  18.5"

Vertical (Y-Axis) Travel:  12.6"

Cross (Z-Axis) Travel:  26.4"

Rotary Table (C-Axis):  +/- 200 Degrees

Rotation (A-Axis):  Infinite

Rapid Traverse – Linear Axis:  600 "/Min.

Rotary Table:  120 Degrees/Sec.

Rotation:  100 RPM

Maximum Diameter of Workpiece:  12.6"

Length of Workpiece – Peripheral:  15.7"

Face Grinding:  11.8"

Linear Resolution:  0.0001 mm

Radial Resolution:  0.0001 Degrees

Diameter of Spindle:  3.1"

Maximum Diameter of Grinding Wheel:  7.9"

Spindle Speeds:  0 to 8500 RPM

Spindle Motor:  16 HP 3/60

EQUIPPED WITH:

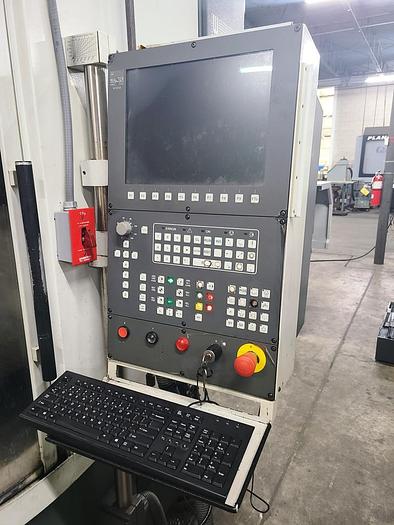

Walter HMC 500 CNC Control with 15" Touch Screen Monitor

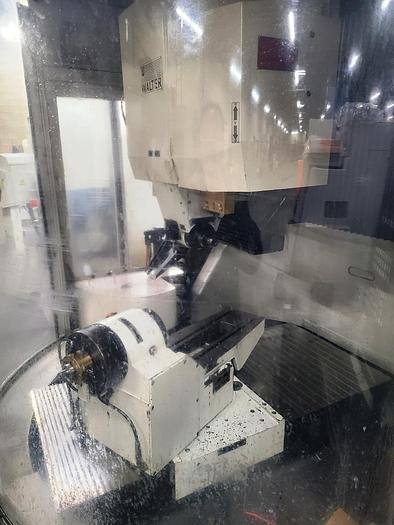

Double-Ended Grinding Spindle

Adaptive Control Software

Software Control Packages:

   #1 (Cylindrical End Mills)

   #2 (Tapered Helical End Mills)

   #3 (Drills & Step-Drills)

   #4 (Step Tools)

   Universal Grinding

   Tool Studio 3R3 (May Require Walter Software License)

EQUIPPED WITH:

Heli-Probe Measuring & Positioning System

Mist Extractor System

Automatic Tool Clamping System

Air Conditioning Unit

(3) Programmable Coolant Valves per Spindle (No Coolant System)

(2) Grinding Wheel Adapters

Automatic Disk Loader (Previous Owner Never Used It) - Operation of this System has Not Been Checked.  It is Not Guaranteed to be Functional.

Fire Suppression

No Coolant System

Floor Space:  90" x 116" x 115" (With Mist Collector)

Weight:  10,000 Lbs.
