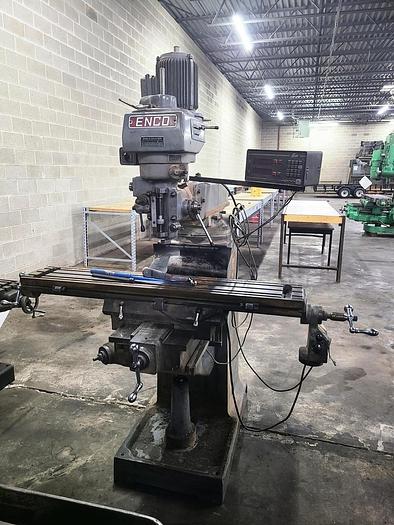

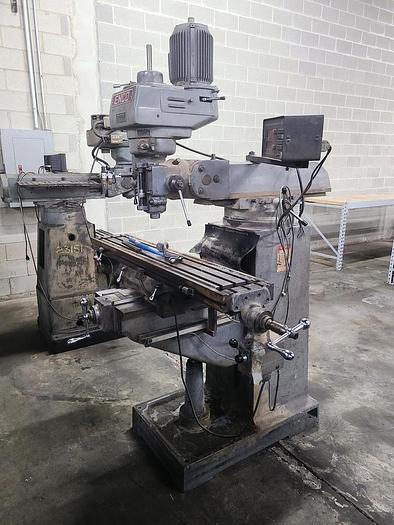

ENCO VERTICAL MILLING MACHINE

ENCO VERTICAL MILLING MACHINE

$3,000 (USD)

Available quantity:1

orCall 717-846-2600

Description

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $3,000.00



HMC Stock # 24018-P

Machine Serial No.:  41213

Machine Model No.:  100-1598

New Date: 1991

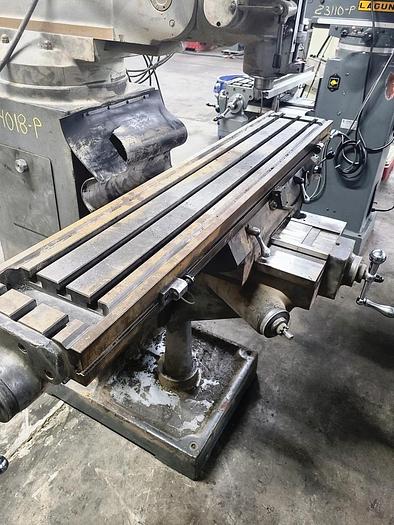

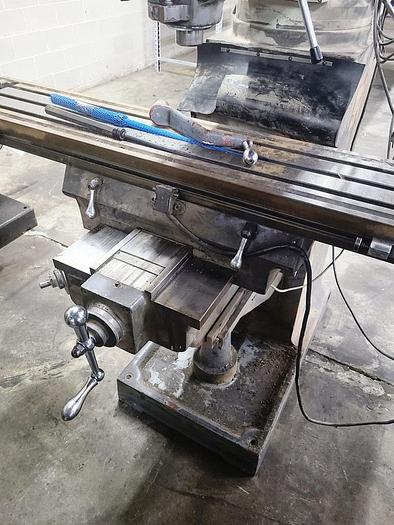

Table Size: 54" LR x 10" FB

Travels:

  X Axis:  33-1/2" (Actual travel with DRO and power feed installed.)

  Y Axis:  15"

  Knee:  16"

  Quill:  5"

Spindle Taper:  R8

(16) Spindle Speeds:  78 – 4800 RPM

(3) Power Quill Feeds:  .001, .002, .003 Thousandths per Rev. of Spindle


EQUIPPED WITH:

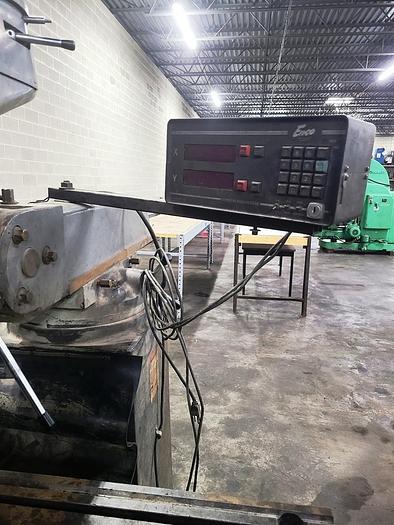

Enco 2-Axis Digital Read Out (Unit is fully functional but power cord is missing. Unit was tested with inhouse cord, but none will be supplied with purchase.)

Servo 140 X Axis Power Feed (Rapid button does NOT work.)

One Shot Lube

Extra Draw Bar

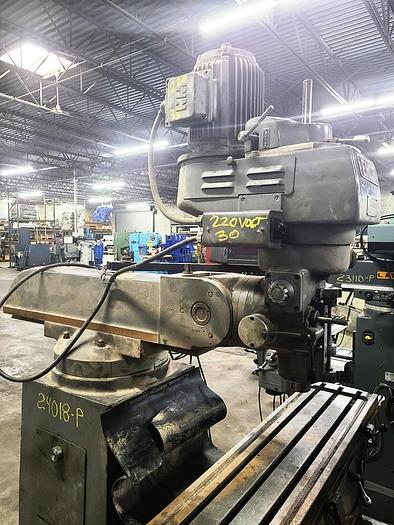

? HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size:  75" LR x 65" FB x 87" High


Specifications

ManufacturerEnco
Model100-1598
ConditionUsed
Serial Number41213
Stock Number24018-P
