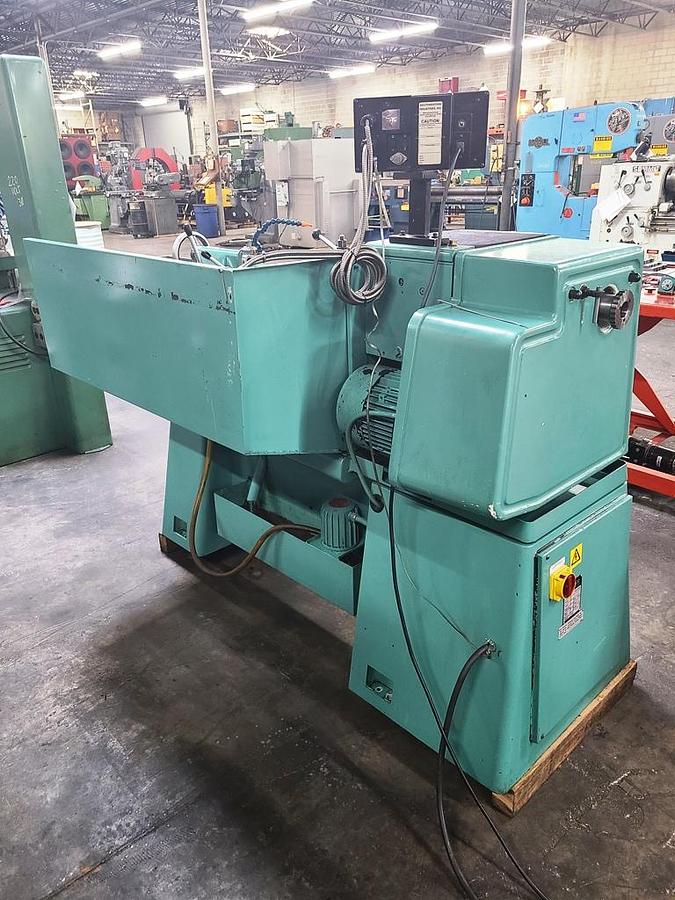

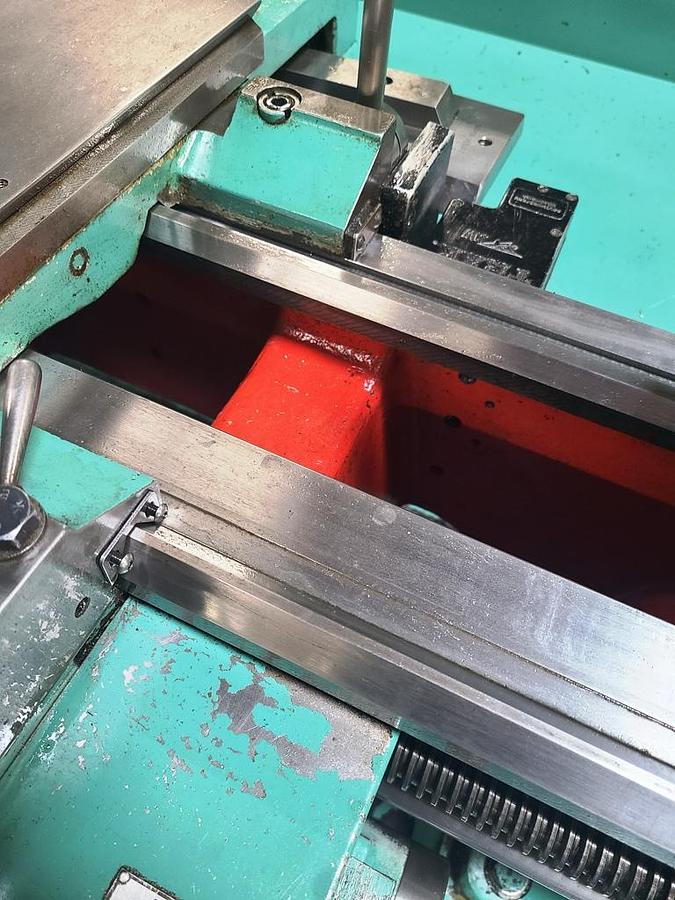

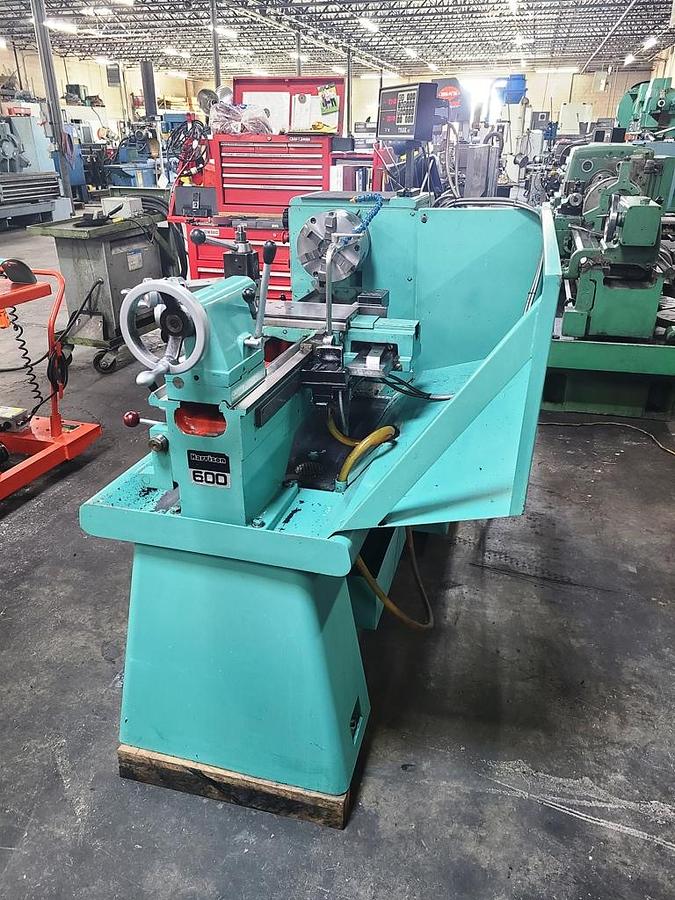

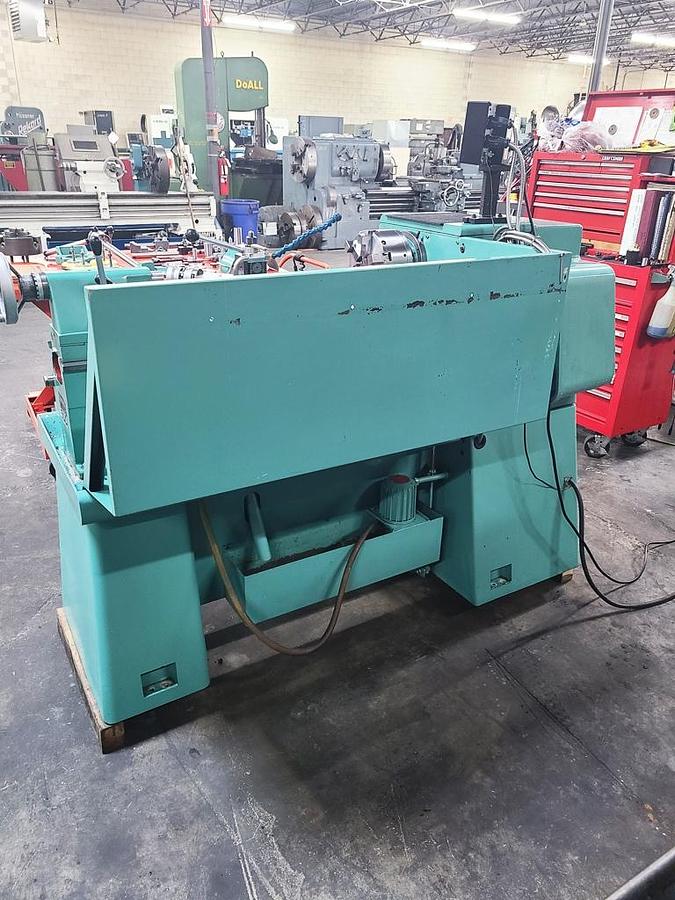

13" X 25" HARRISON ENGINE LATHE

13" X 25" HARRISON ENGINE LATHE

Contact us for price

Available quantity:1

Description

13" X 25" HARRISON ENGINE LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $12,500.00



HMC Stock # 25022-P

Machine Serial No.: TR/VS820824

Machine Model No.: VS330 TR (AA)

Year: Unknown



Swing Over Bed: 13"

Swing Over Cross Slide: 8-1/4"

Swing in Gap: Diameter: 19"

                        Length: 4-1/2"

Distance Between Centers: 25"

Spindle Bore: 1-1/2"

Spindle Mount: D-4 Camlock

Morse Taper in Nose: No. 5

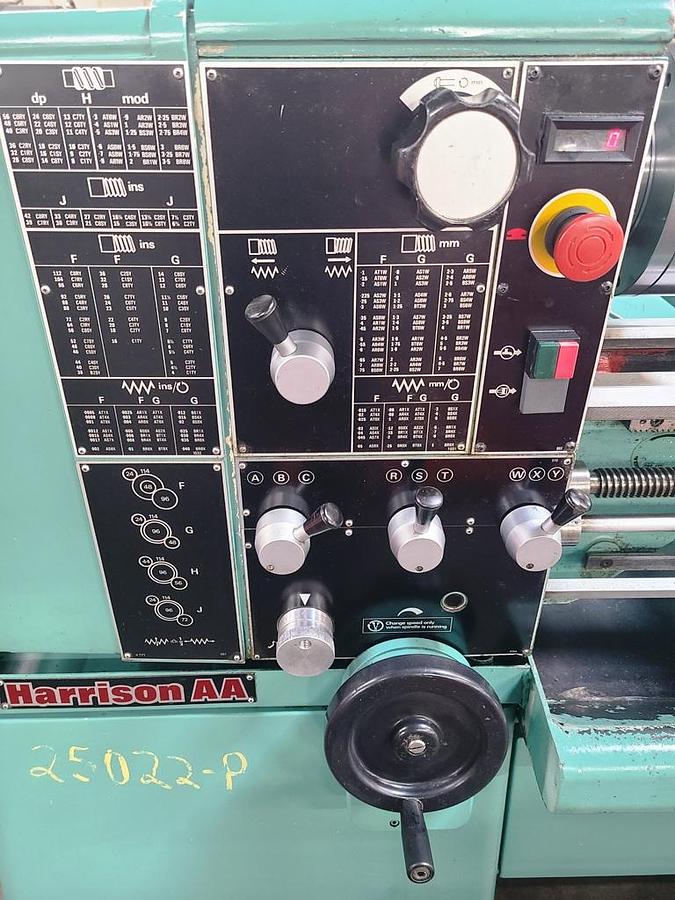

Spindle Speeds: Infinitely Variable Range from 35 to 3,000 RPM

Feeds:

(16) Metric from .03 to 1 mm Per Revolution

(16) English from .001 to .040 Inches Per Revolution

Cross Slide Feed Values are Half of Carriage

Threads:

(39) Metric Pitches from .2 to 14 mm

(35) English Pitches from 2 to 56 TPI

(18) Module Pitches from .3 to 3.5 MOD

(18) Diametral Pitches from 8 to 56 DP

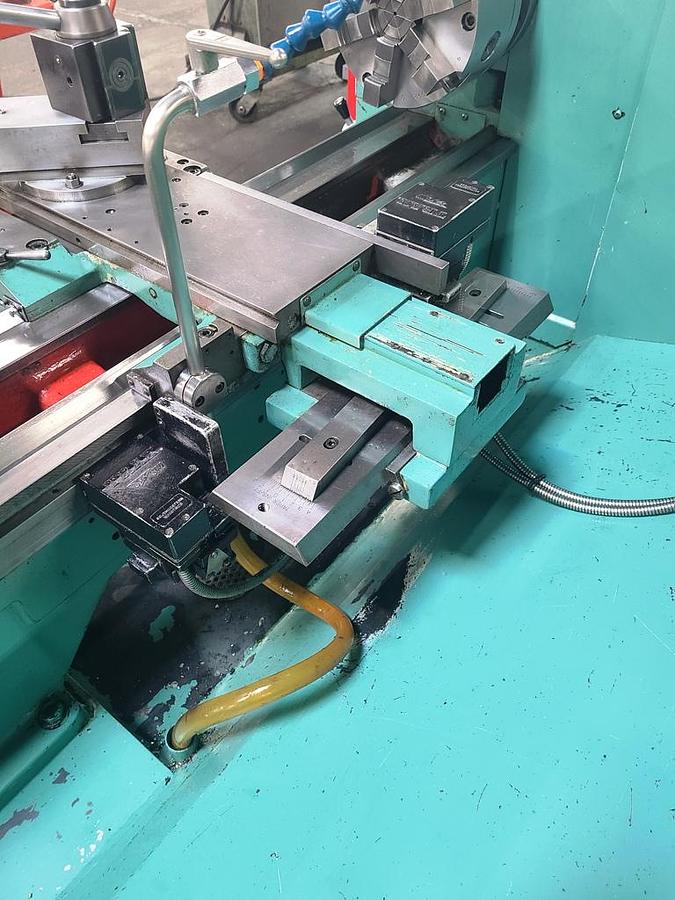

Cross Slide:

Width: 5-1/2"

Travel: 7-1/2"

Top Slide:

Width: 3-1/4"

Travel: 3-5/8"

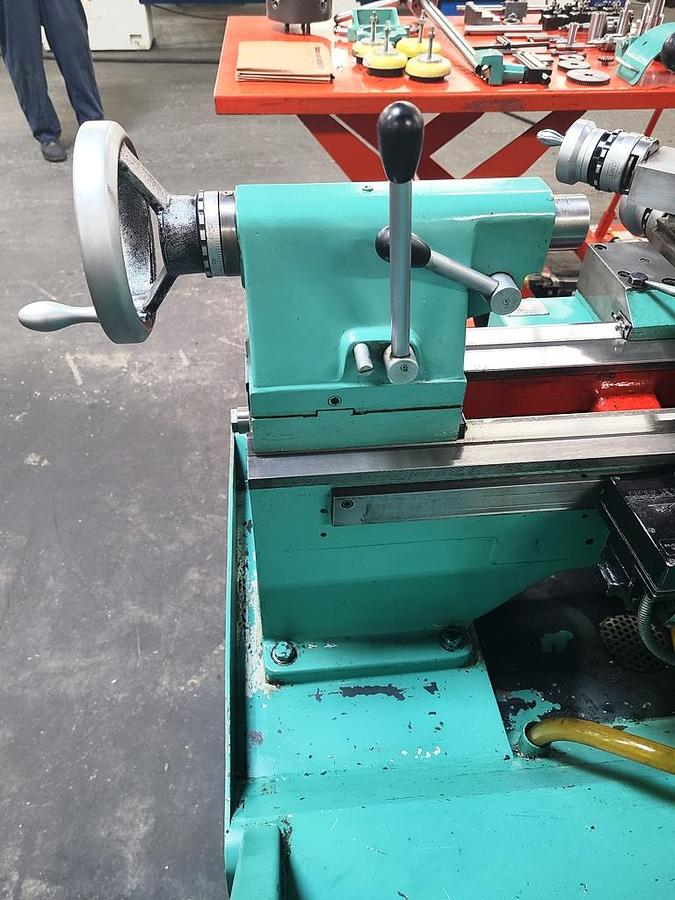

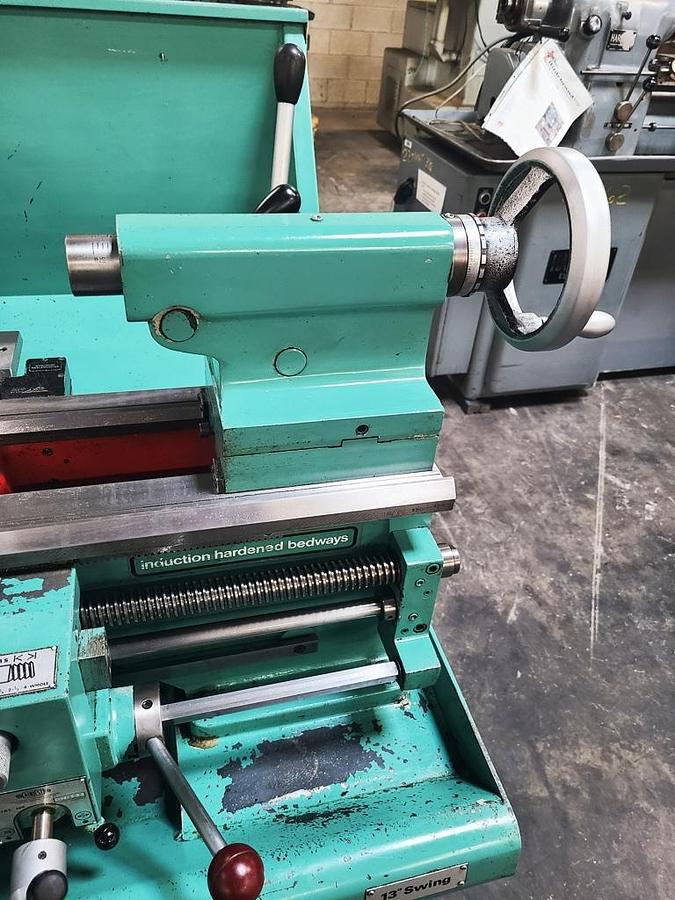

Tailstock:

Quill Diameter: 1-21/32"

Tavel: 4-3/8"

Morse Taper: No. 3

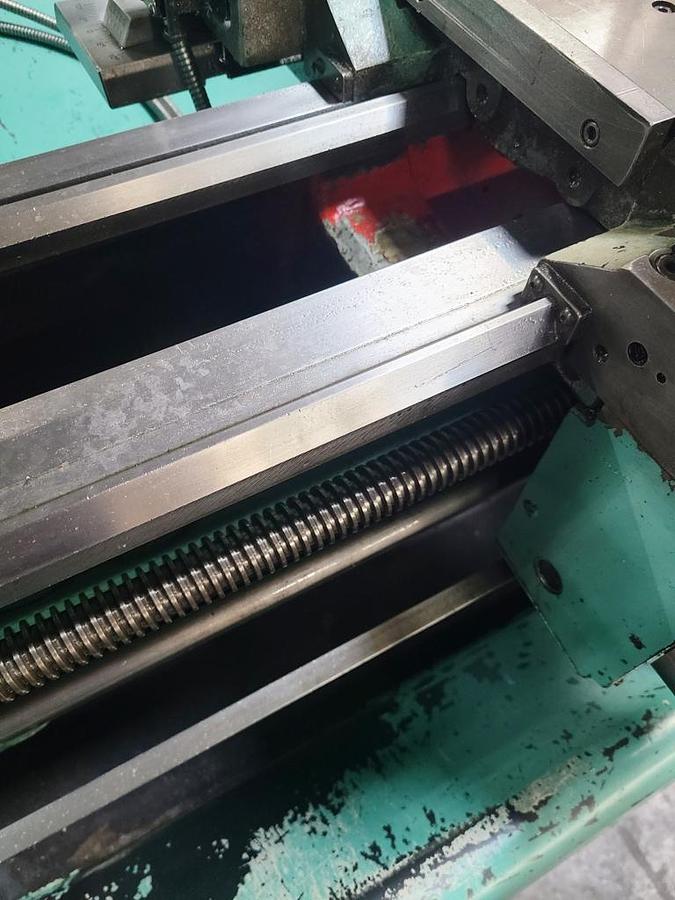

Leadscrew: 1-1/8" Diameter x 4 TPI Pitch

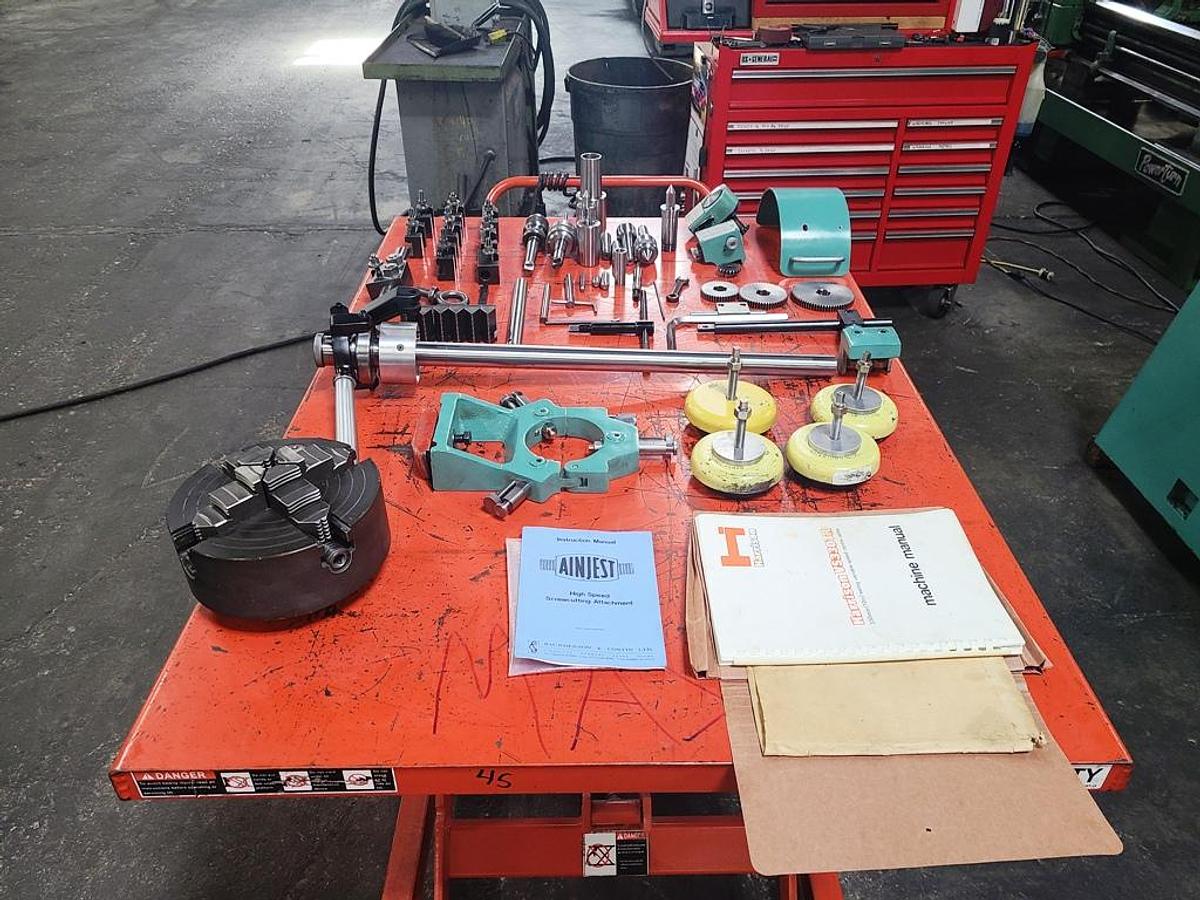

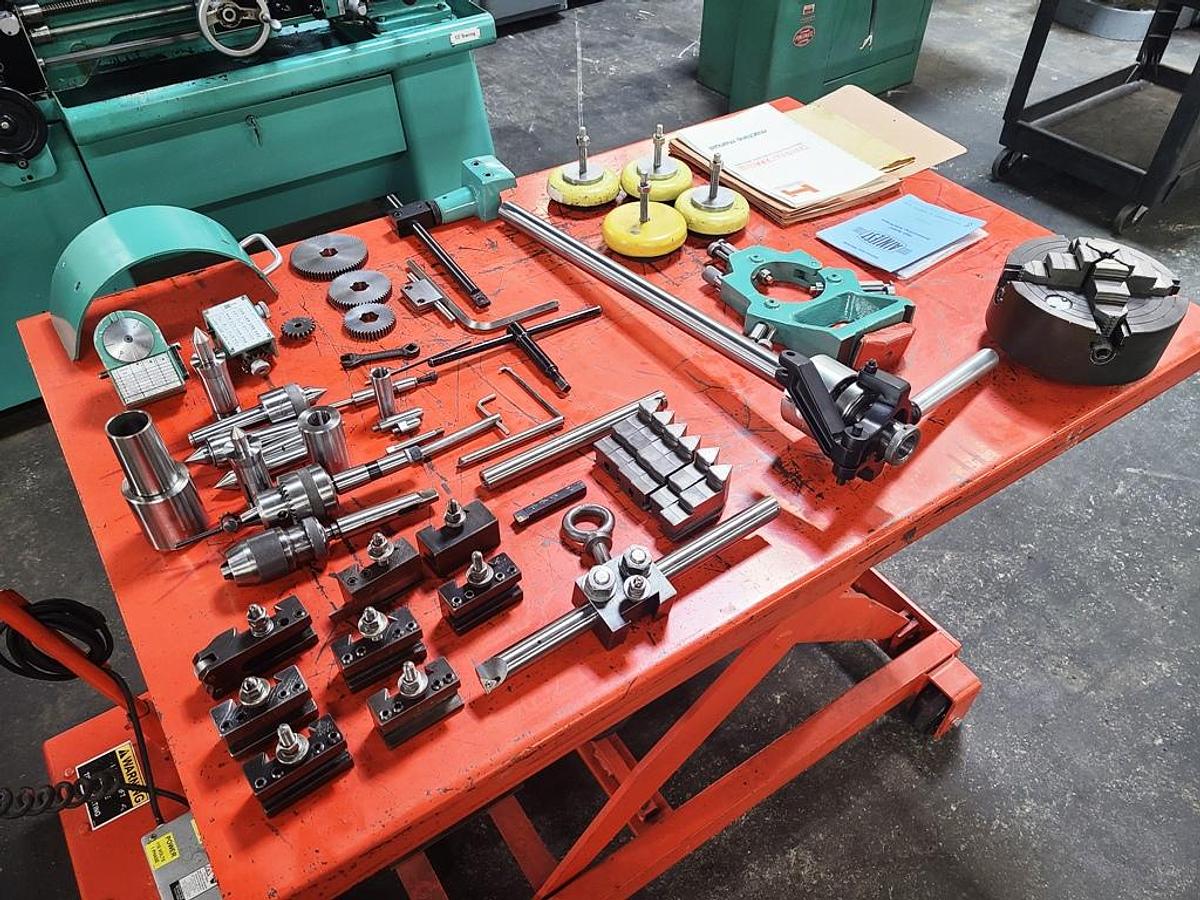

Equipped With:

TRAK Digital Read Out

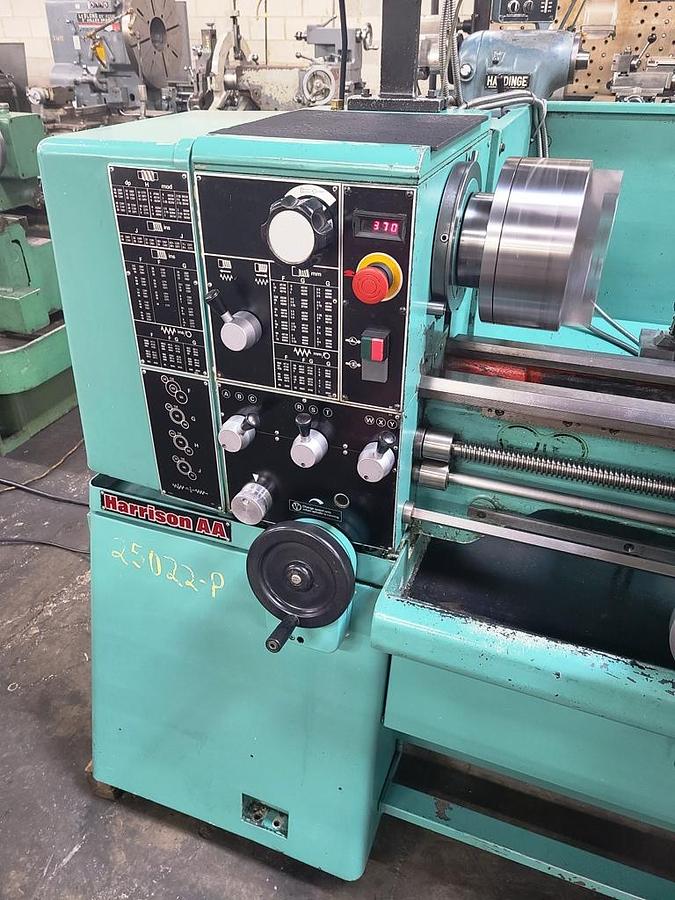

Functional Digital Tachometer for Spindle Speed

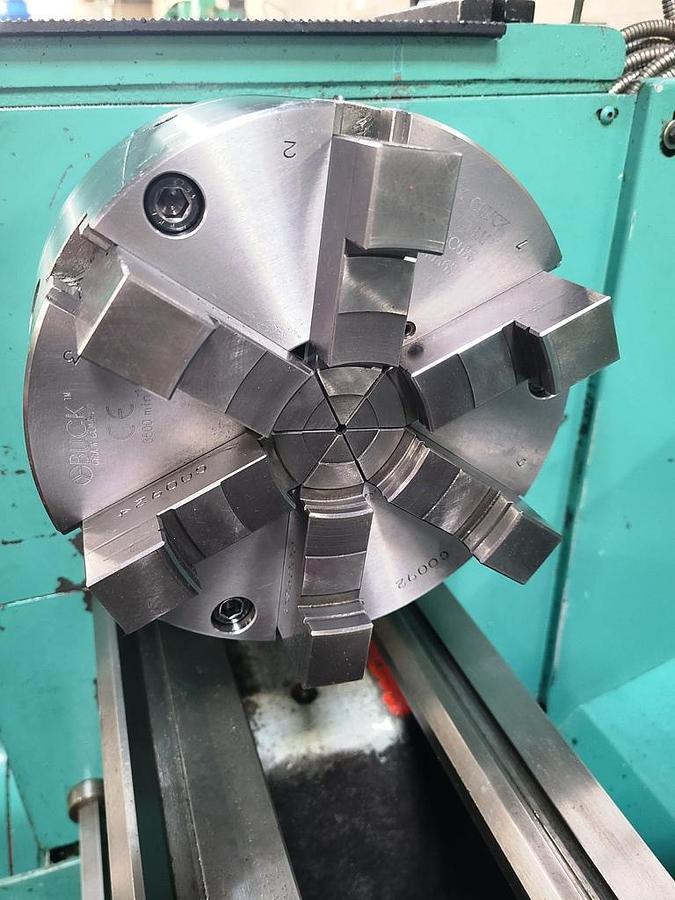

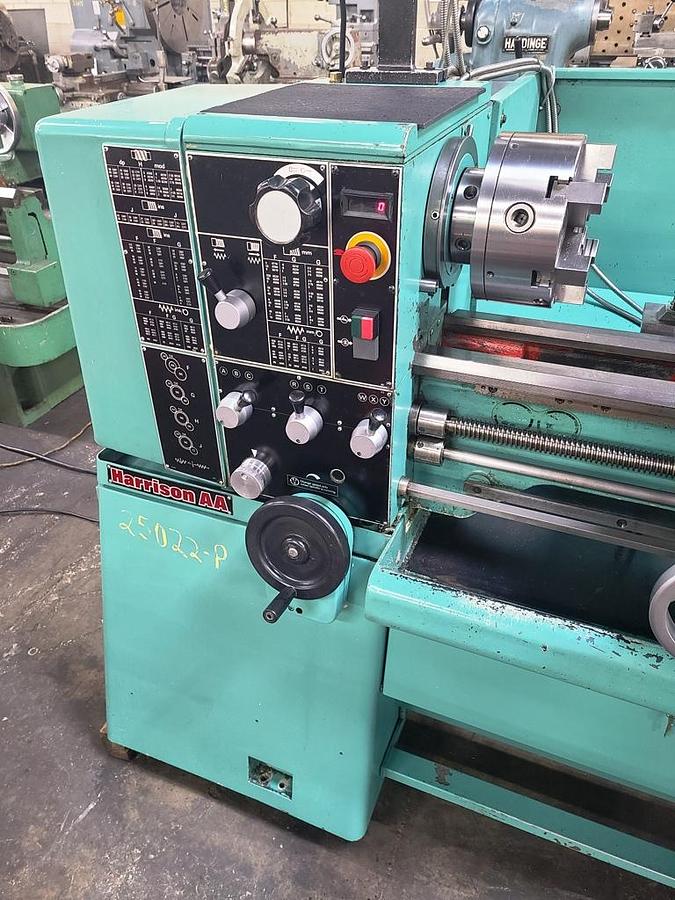

8" 6 Jaw Adjust A TRU Buck Chuck

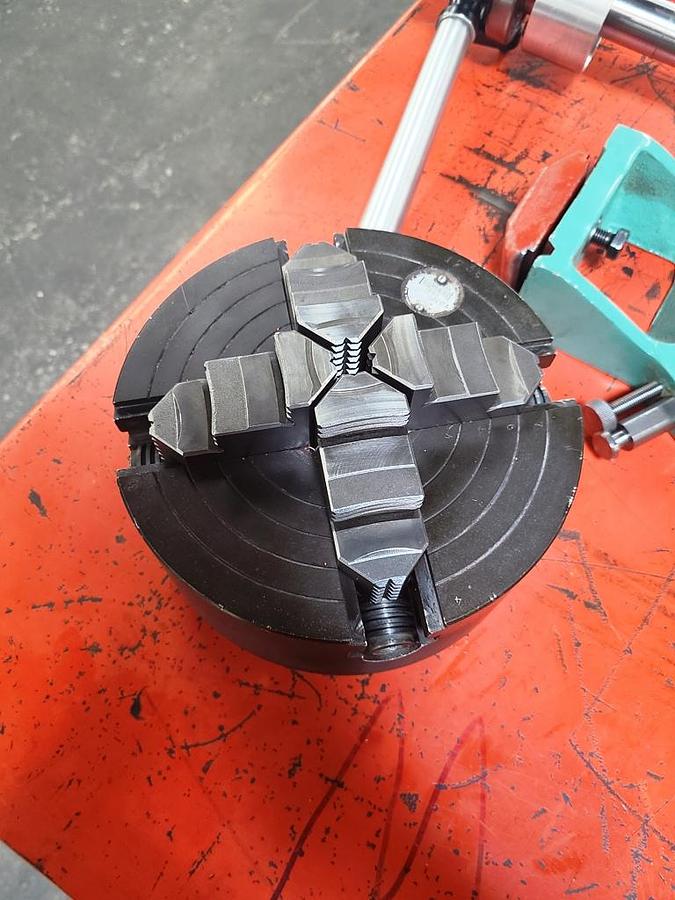

8" 4 Jaw Cushman Chuck

3 Point Bronze Bushing Steady Rest

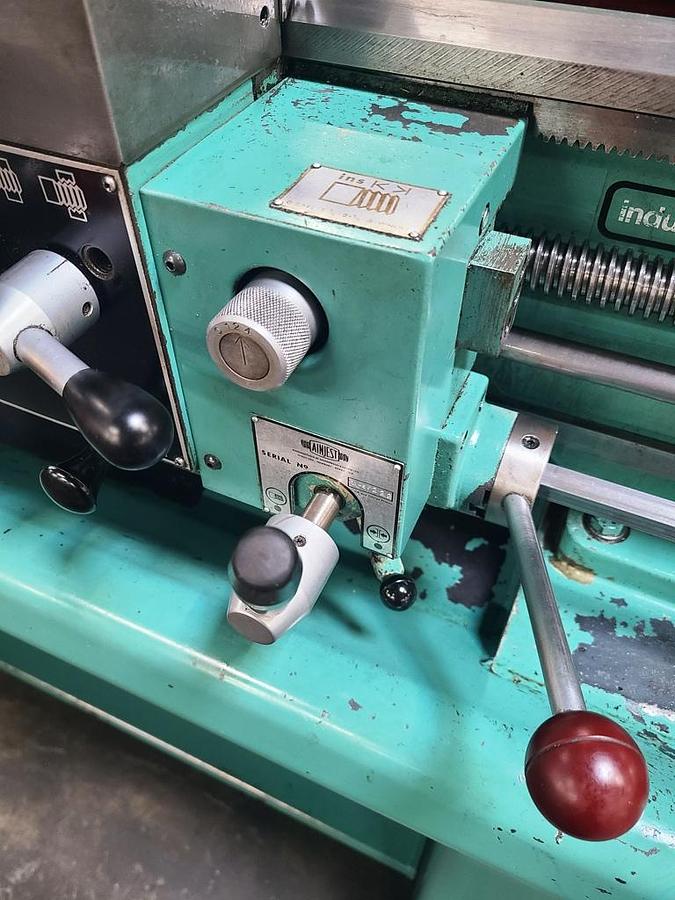

Inch and Metric Thread Chasing Dials

High Speed Threading Attachment

Taper Attachment

Change Gears

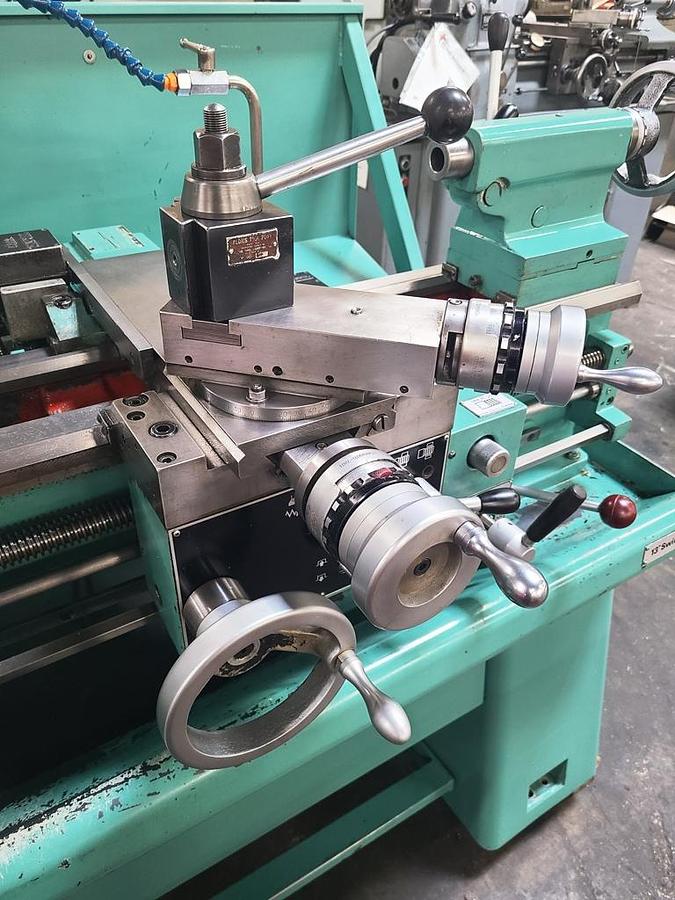

Aloris Quick Change Tool Post with Holders

Chuck Guard

Collet Attachment

Assorted Drill Chucks and Tapers

Machine Manual

High Speed Threading Attachment Manual

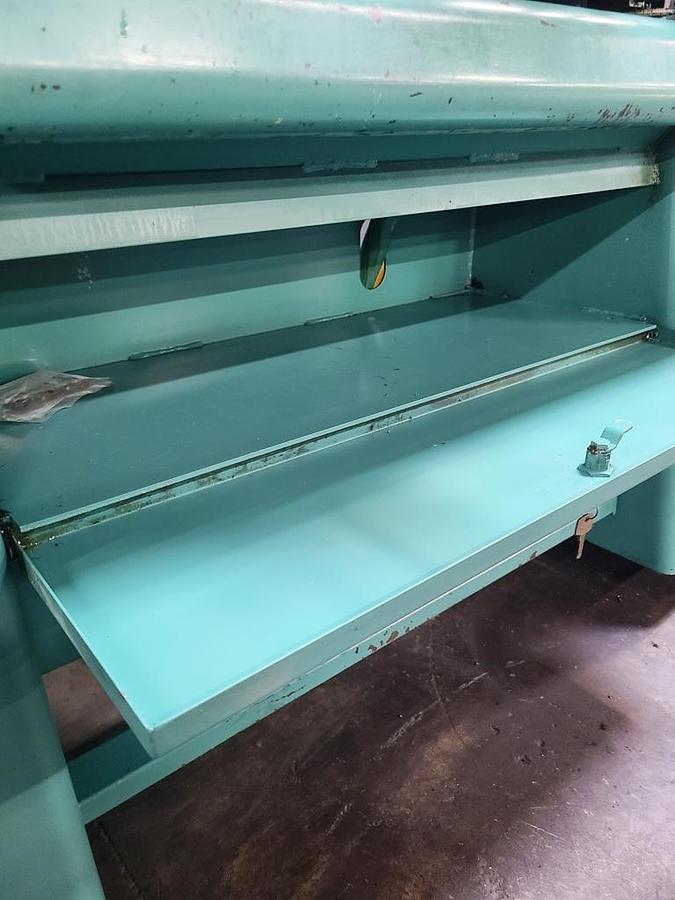

Coolant Pan and Pump

3 HP Main Spindle Motor

Wired for 3 Phase, 60 Cycle, 220 Volts



Overall Size: 75" LR x 25" FB x 48" High x 1,400 Lbs.



*The High Speed Threading Attachment Currently Installed Limits the Carriage Travel to 18". To Restore the Full 25" Capacity the Threading Attachment Needs to be Removed and a Regular Thread Chasing Dial can be Installed.*



*Excellent Condition*





Specifications

ManufacturerT.S. HARRISON & SONS LTD
ModelVS330TR (AA)
ConditionUsed
Serial NumberTR/VS-820824
Stock Number25022
