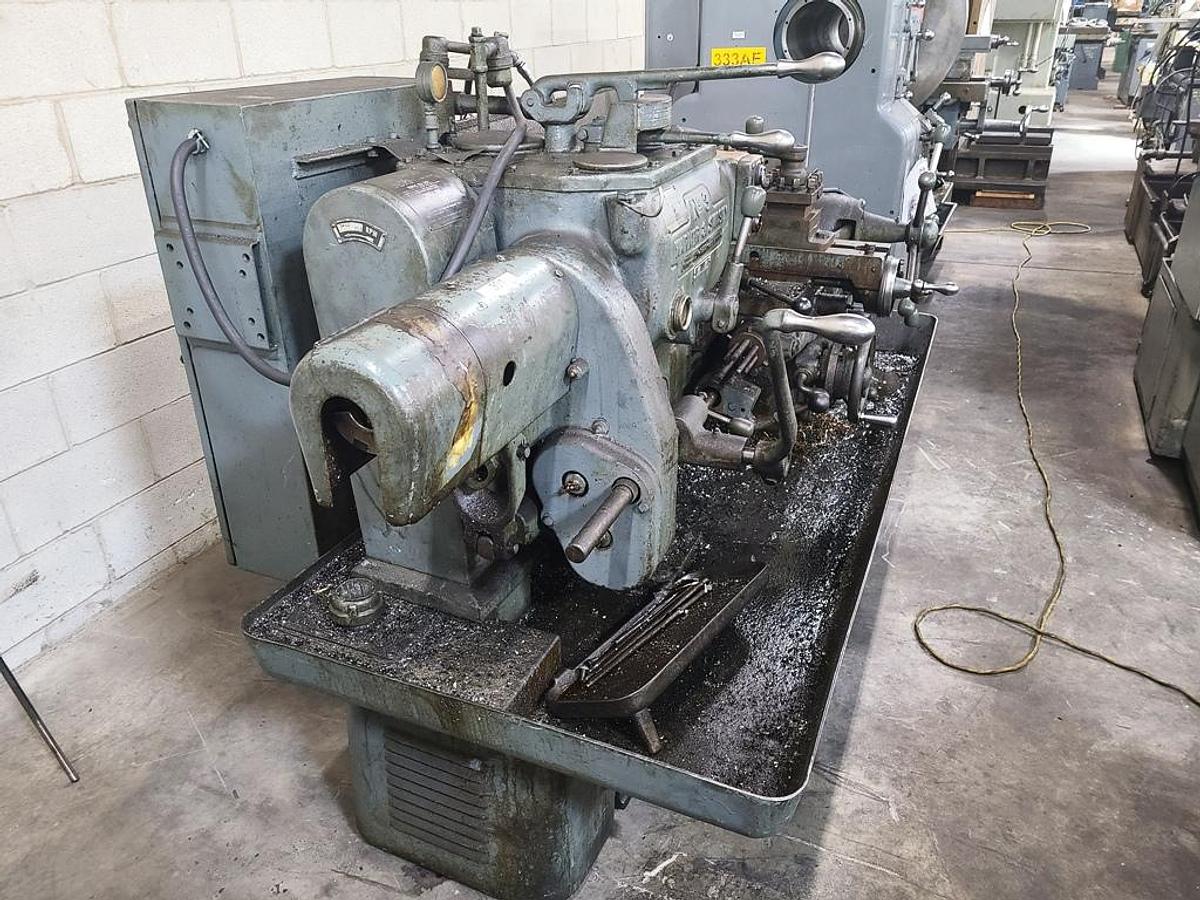

#3 WARNER & SWASEY TURRET LATHE
#3 WARNER & SWASEY TURRET LATHE
$1,950 (USD)
AS IS
Available quantity:1
or
Call 717-846-2600
Description
#3 WARNER & SWASEY TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $1,950.00 AS IS
HMC Stock # 25015-P
Machine Serial No.: 1034178
Machine Model No.: M-1200
Swing Over Ways: 15"
Swing Over Cross Slide: 7"
Cross Slide Travel: 8"
Carriage Travel: 17"
Carriage Feeds: .0025 to .026 TPR
Max. Distance Turret Face to Spindle Nose: Approx. 26"
6-Position Turret
Turret Feeds: .003 to .030 TPR
Max. Turret Stroke: 10"
(12) Spindle Speeds: 67 to 1480 RPM
Spindle Hole: 1-27/32"
Spindle Nose: A-6
Bar Feed Capacity: 1-1/2"

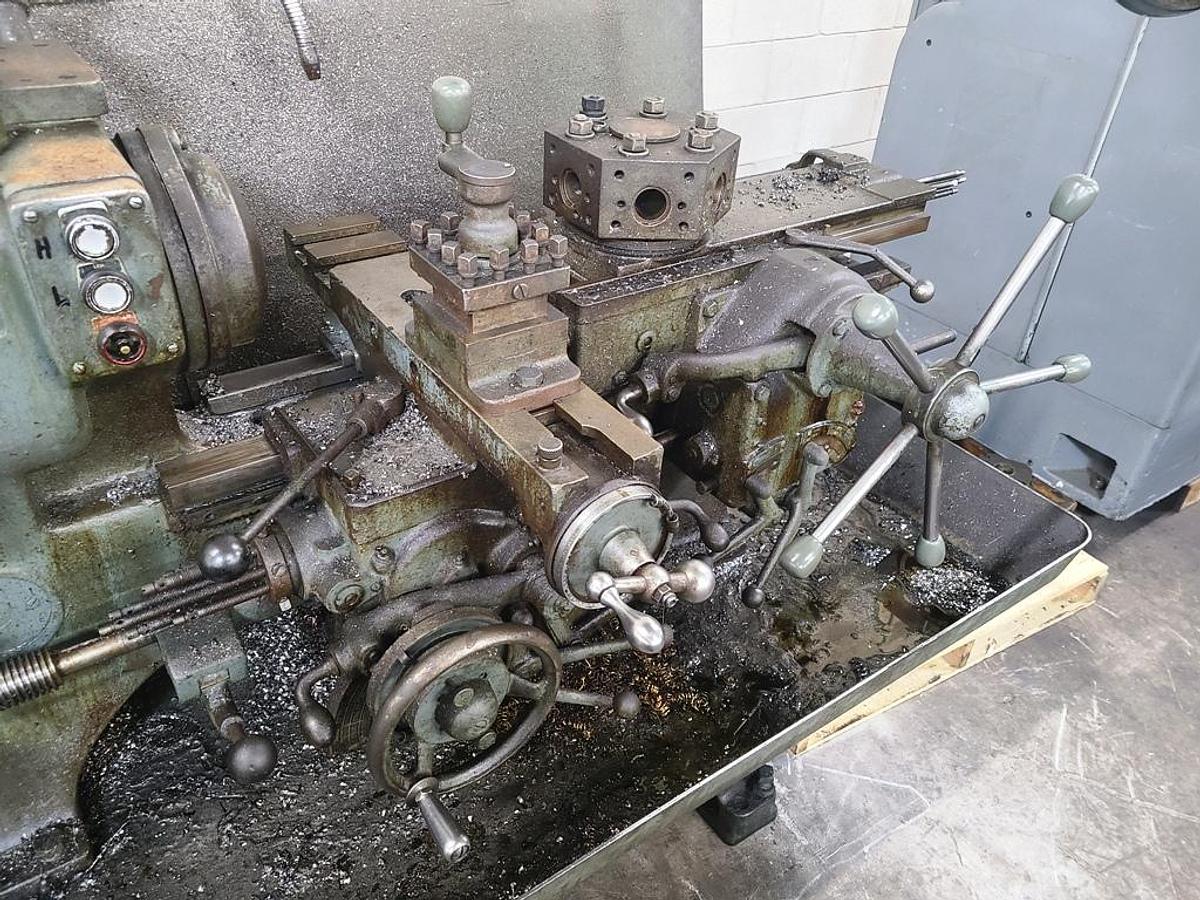

Condition: Very poor running condition. Cross slide and compound frozen. Condition of turret and feeds are unknown.
Overall Size: 96" LR x 48" FB x 55" High
Specifications
| Manufacturer | Warner & Swasey |
| Model | No 3 |
| Condition | Used |
| Serial Number | 1034178 |
| Stock Number | 25015-P |
| Swing Over Ways | 15" |
| Swing Over Cross Slide | 7" |
| Cross Slide Travel | 8" |
| Carriage Travel | 17" |
| Carriage Feeds | .0025 to .026 TPR |
| Turret Feeds | .003 to .030 TPR |
| (12) Spindle Speeds | 67 to 1480 RPM |
| Max. Turret Stroke | 10" |
| Spindle Nose | A-6 |
| Spindle Hole | 1-27/32" |
| Bar Feed Capacity | 1-1/2" |
