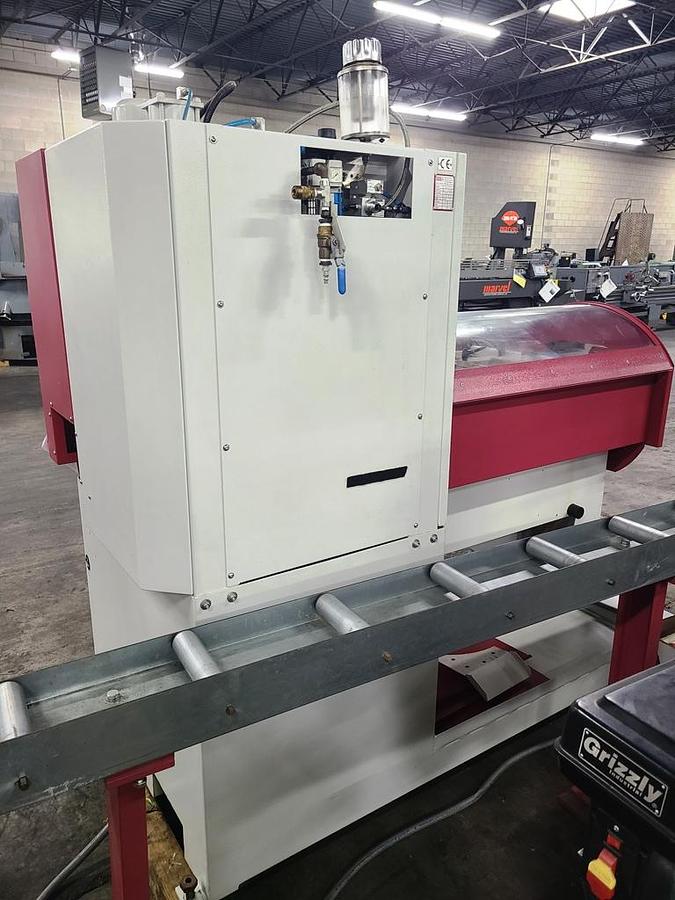

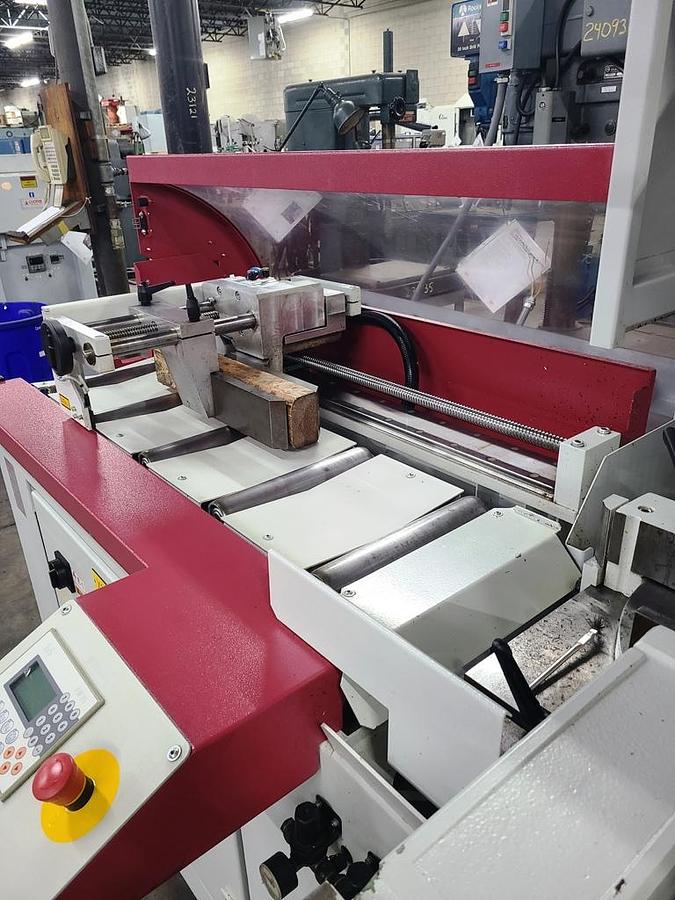

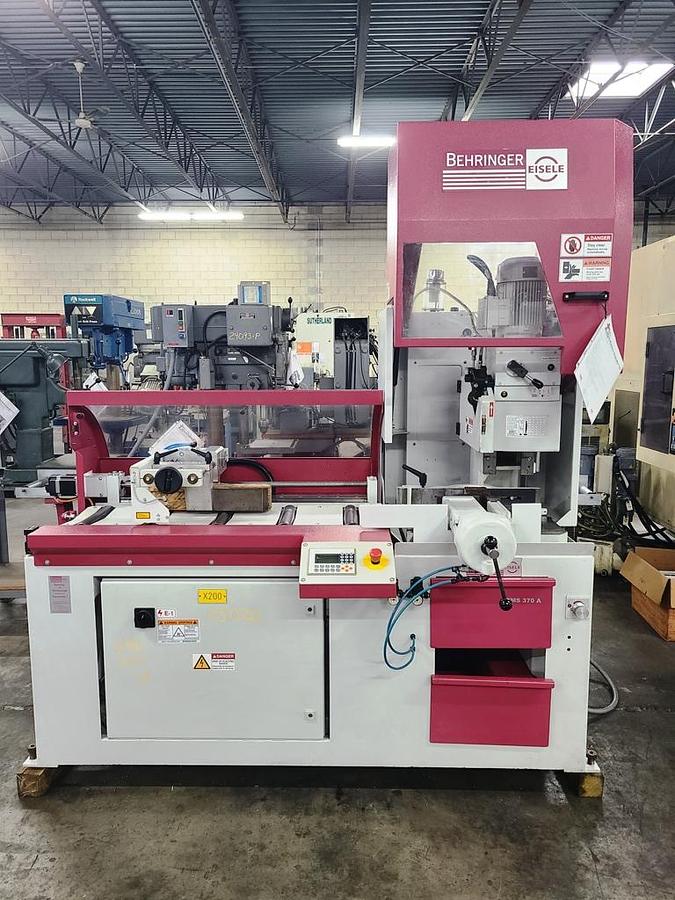

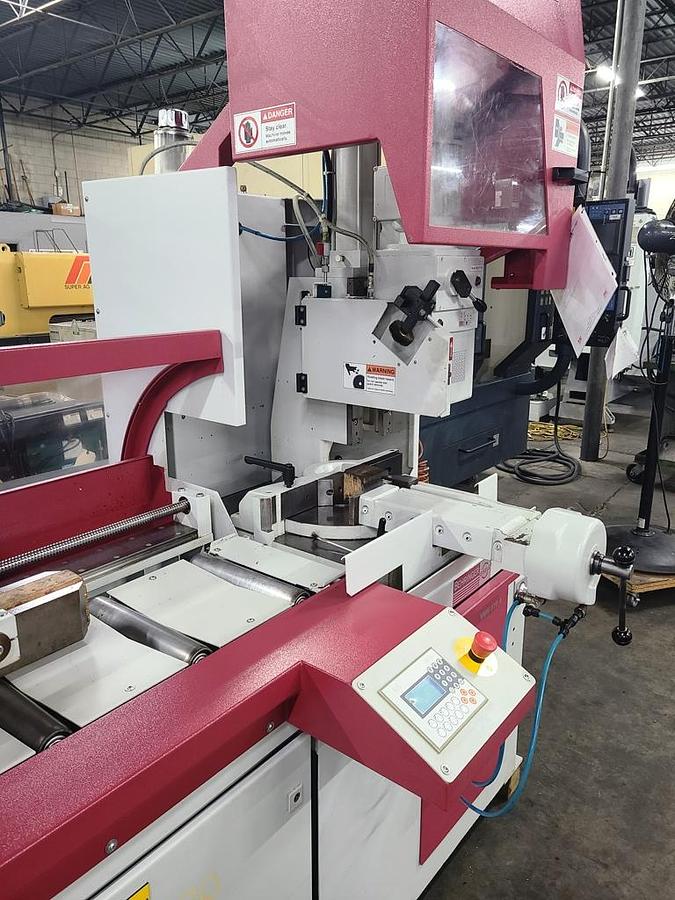

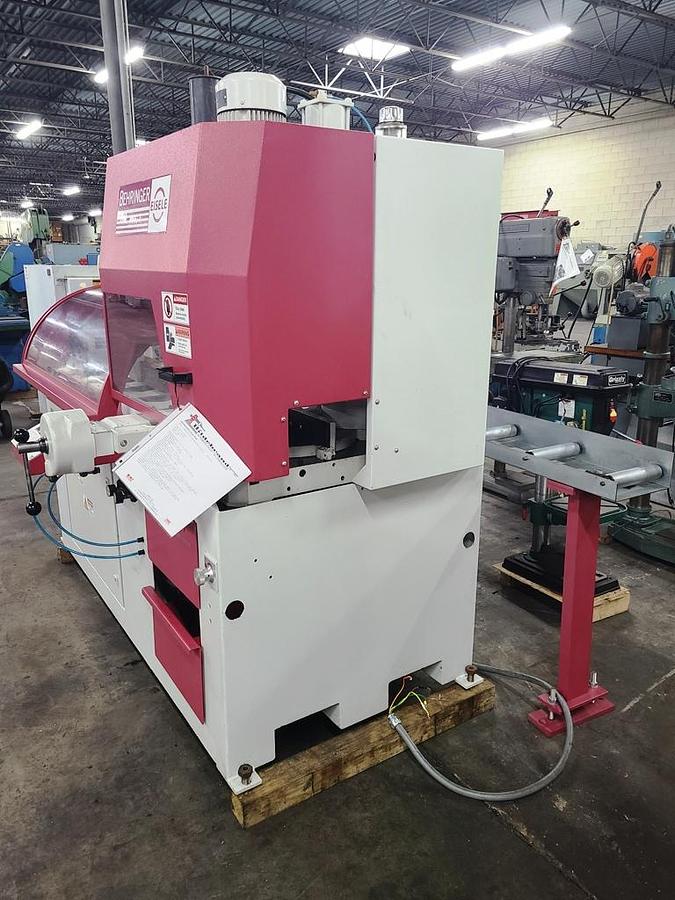

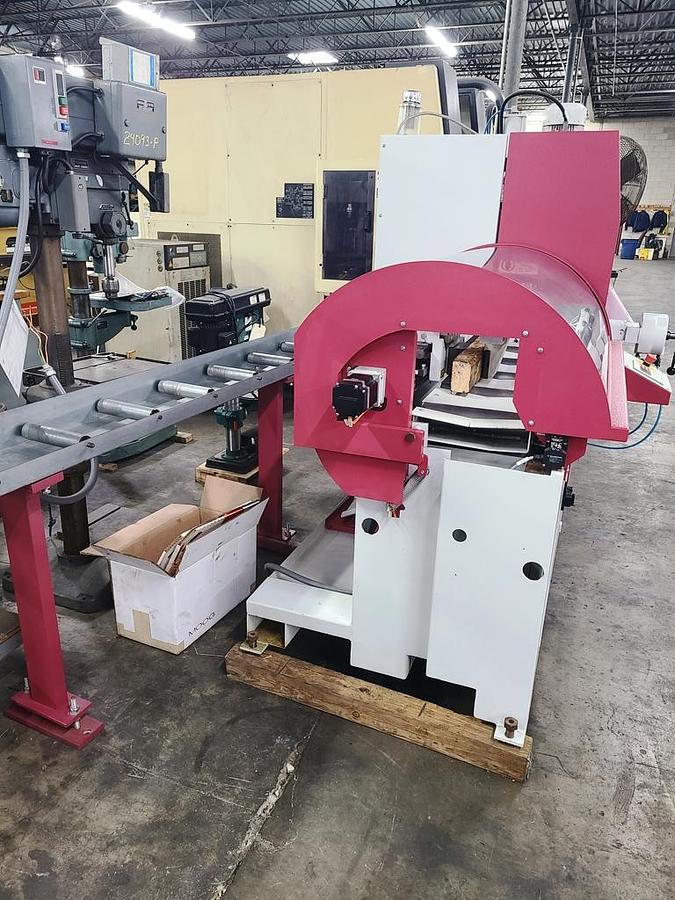

BEHRINGER COLD SAW

BEHRINGER COLD SAW

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $22,500.00

HMC Stock # 25020

Serial No.: 10014023

Model: VMS 370 A

Year: 2019

Operating Pressure: 72.52 - 116.03 PSI (5 - 8 Bar)

Cutting Range:

   Flat Material: 7.87" (200 mm)

   Round Material: 5.12" (130 mm)

Cutting Range:

   Square: .39" - 3.94" (10 - 100 mm)

   Rectangular: .79" x .39" - 7.87" x 3.94" (20 x 10 mm - 200 x100 mm)

   Round Material: .39" - 5.12" (10 - 130 mm)

Saw Blade: 14.57" (370 mm)

Number of Programmable Pieces: 1 - 99999

Cutting Range:

   Rectangular 90° (Straight Cut): 3.94" x 3.94" - 7.87" x 3.94" (10 x 10 mm - 200 x 100 mm)

   Rectangular 45° Bevel: 3.94" x 3.94" - 5.51" x 3.94" (10 x 10 mm - 140 x 100 mm)

   Round Material 90° (Straight Cut): 3.94" - 5.12" (10 - 130 mm)

   Round Material 45° (Bevel): 3.94" - 5.12" (10 - 130 mm)

Saw Blade Speeds: 8, 16, 32, 64

Mitre Angle: Mitre Cutting to 60 Degrees (Depending on the type of saw fitted)

Travel Distance of Material Feed Axis: 31.50" (800 mm)

Cutting Length Range: .39" x 236.22" (10 - 6000 mm)

Length of First Cut: 0" - 11.81" (0 - 300 mm)

Clamping Stroke: .39" (10 mm)

Clamping Force: 300 - 3000 N 97.02 PSI (6 Bar) & 400 - 4000 N 116.03 PSI (8 Bar)

Adjustable Path/Length of Clamping Jaw - Manual Adjustment: 7.87" (200 mm)

Material Feed Rate: 0 - 708.66 IPM (0 - 18 m/min)

Compressed Air Supply: Continuously 101.53 PSI (7 Bar)

EQUIPPED WITH:

PW 35 Control

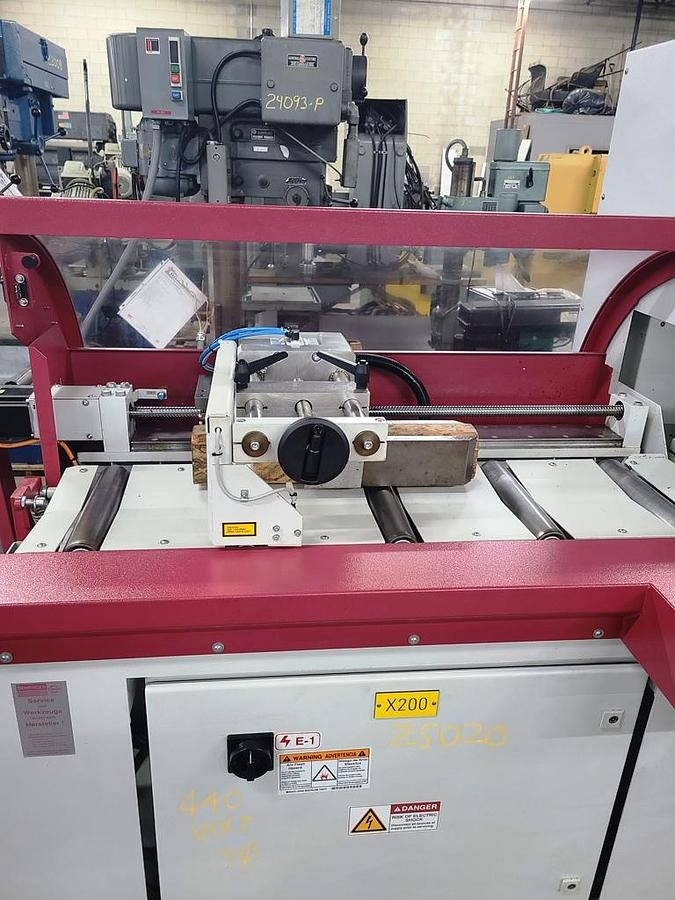

Manual / Pneumatic Vise

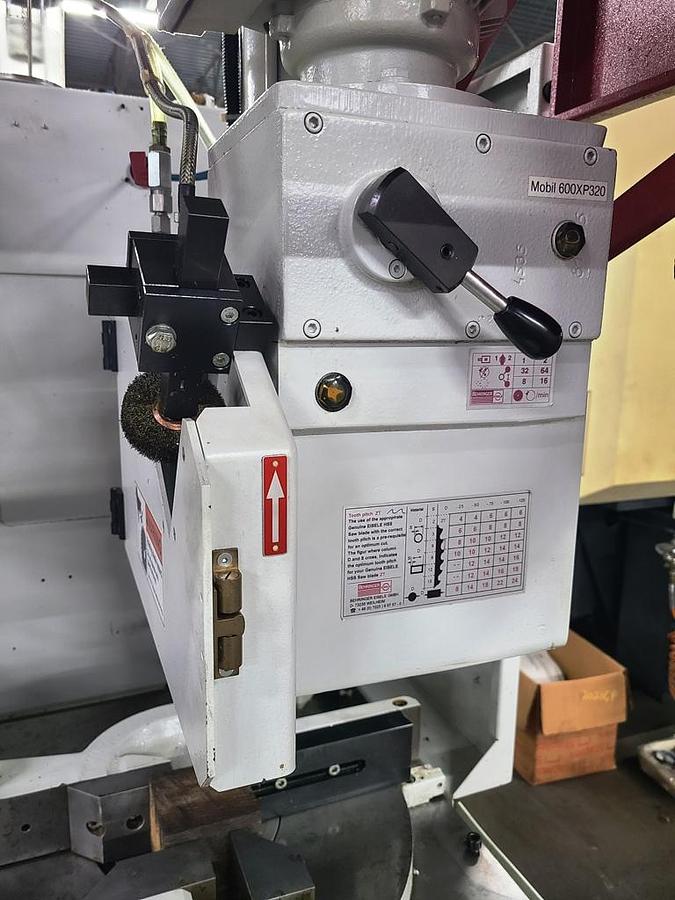

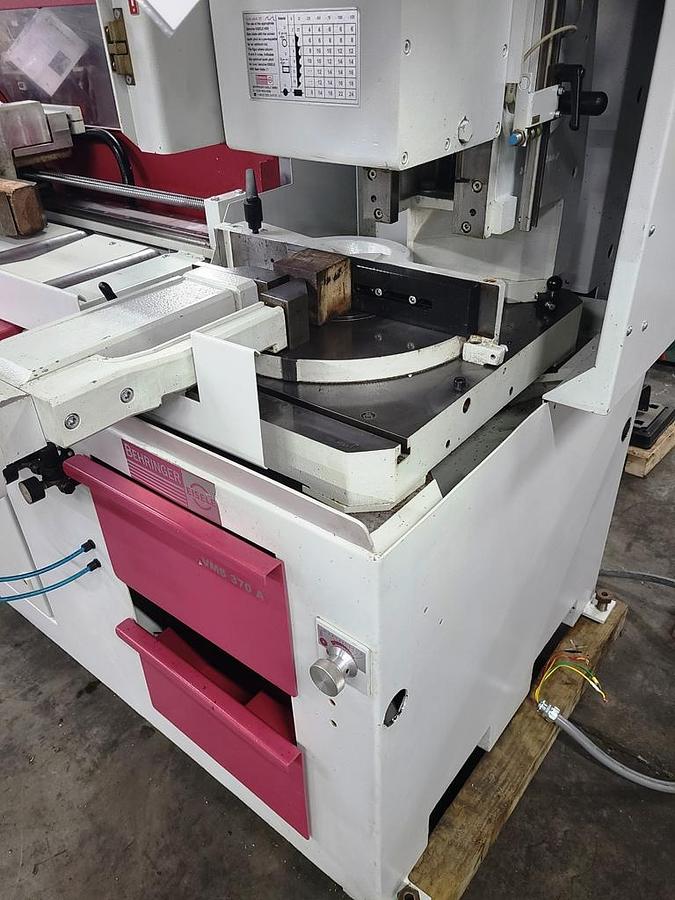

Manually adjustable Mitre Saw Head

Removable Chip Pan

Lift Up Guarding

Part Exit Chute

120" Section of Manual Roller Conveyor

Wired for 3 Phase, 60 Cycle, 400 Volts

DIMENSIONS:

Overall Machine Size: 84" LR x 55" FB x 78" High x 1,764 Lbs.

Manual Conveyor: 120" LR x 10" FB x 36" High
