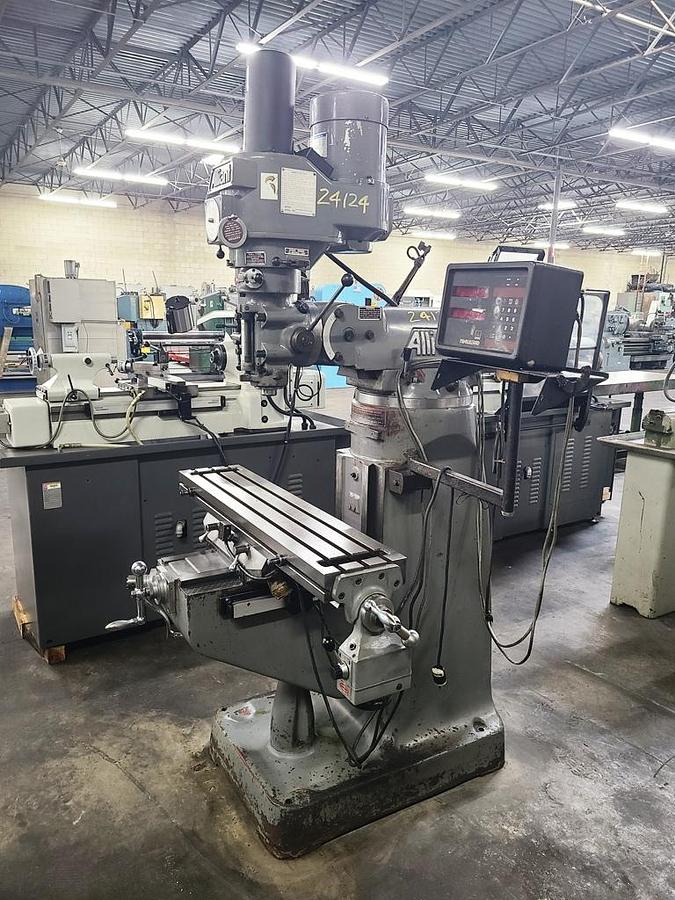

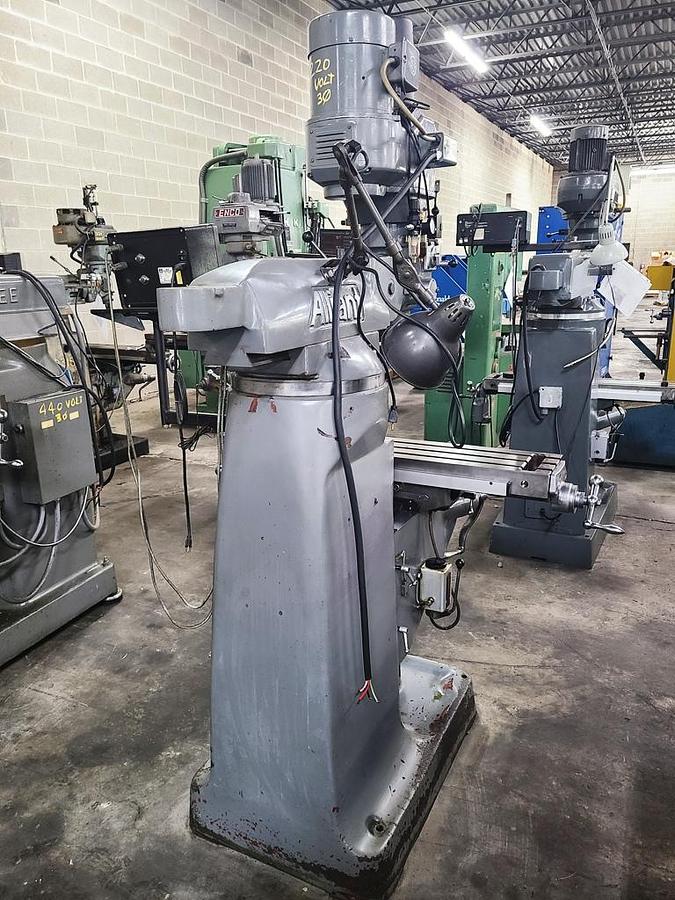

ALLIANT RT2

ALLIANT VERTICAL MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,950.00

HMC Stock # 24124

Serial No.: 90614616

Model: RT2

Year: Unknown

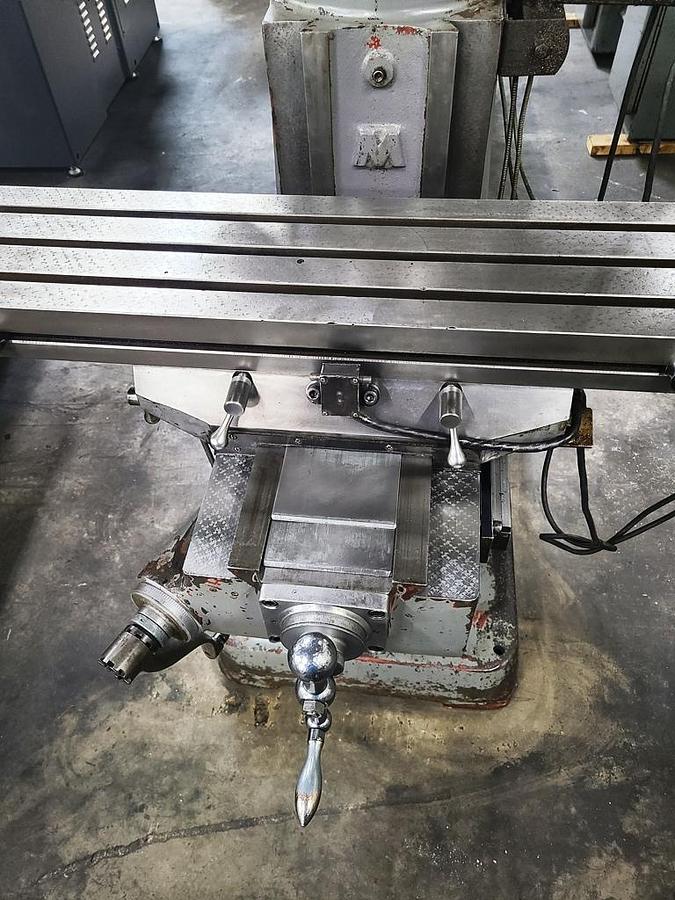

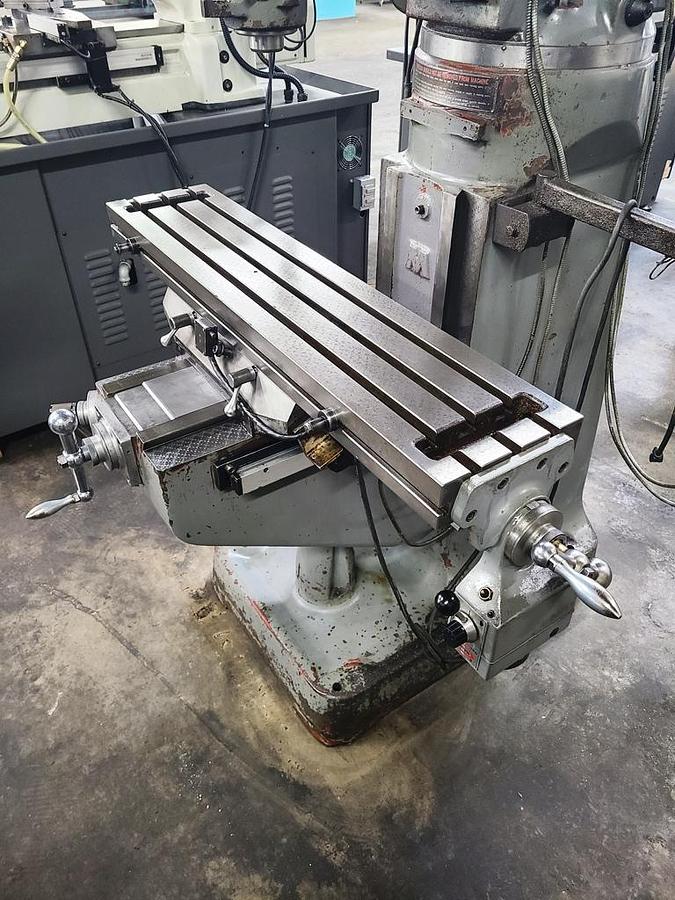

Table Size: 9" x 42" with (3) T-Slots

Travels: (These are catalog specs. The installation of digital read outs or power feeds can change these dimensions. Please ask for confirmation if it is necessary for the buyer to know.)

X Axis: 28"

Y Axis: 12"

Knee: 16"

Quill: 5"

Ram: 12"

Ram Rotation: 360 Degrees

Quill Power Feeds: .0015", .003", .006" Per Revolution

Spindle Taper: R8

Spindle Speeds: 60 to 4500 RPM

EQUIPPED WITH:

Chrome Knee Ways in Good Condition

One Shot Lubrication

Work Light

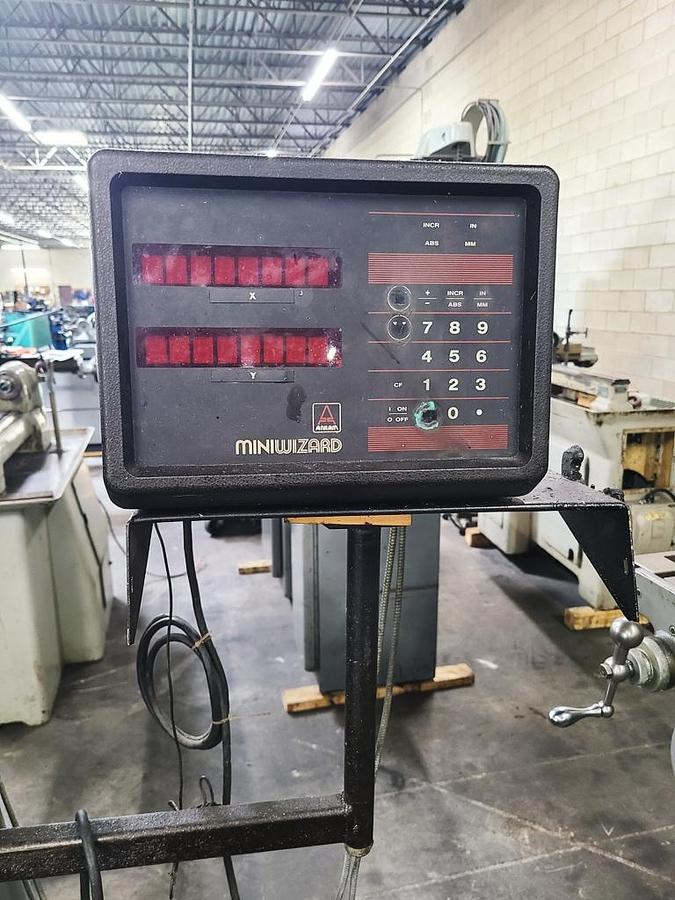

Mini Wizard Digital Read Out

Servo 140 Power Feed

Kurt Power Draw Bar

3 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 58" LR x 50" FB x 83" High x 2250 Lbs.
