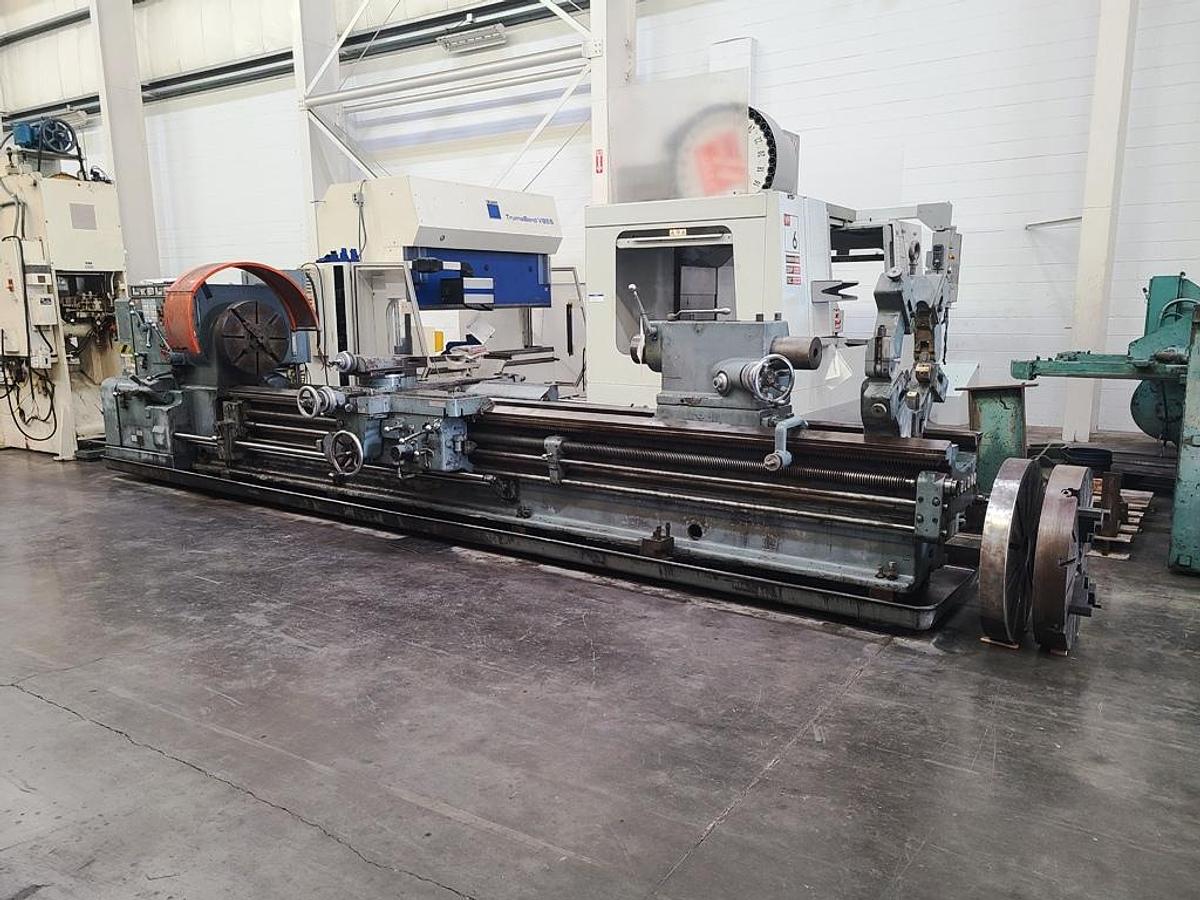

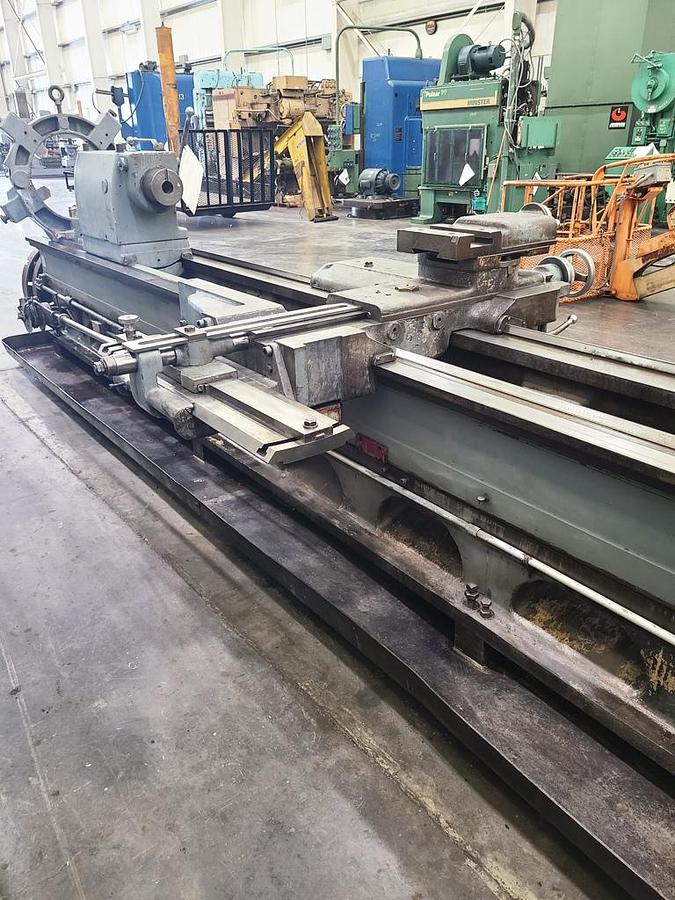

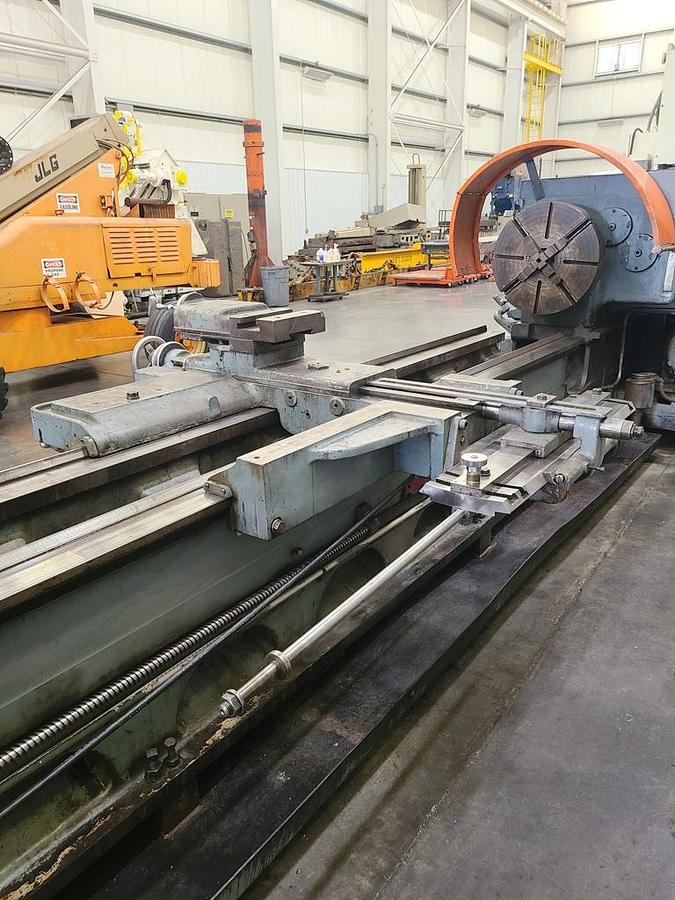

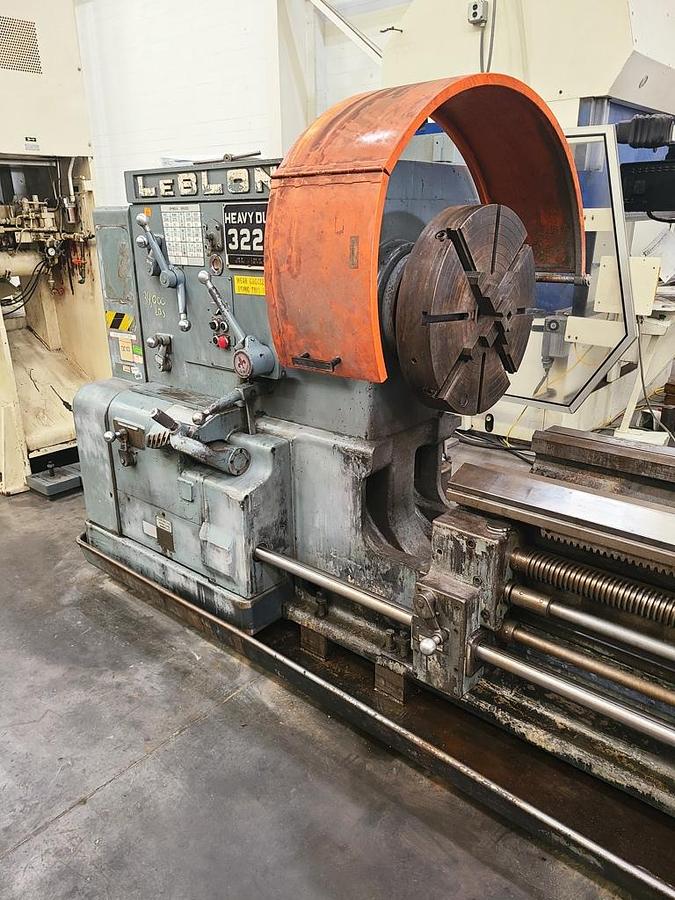

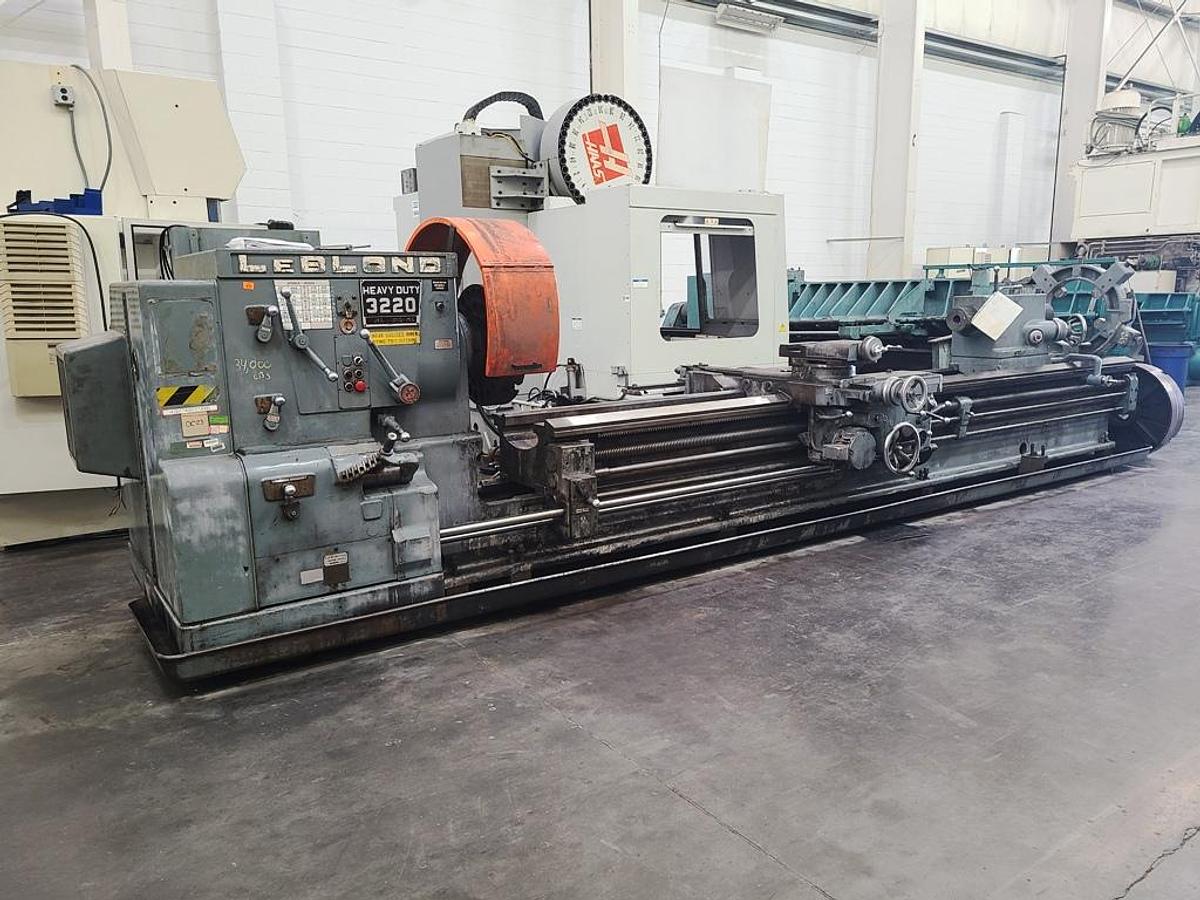

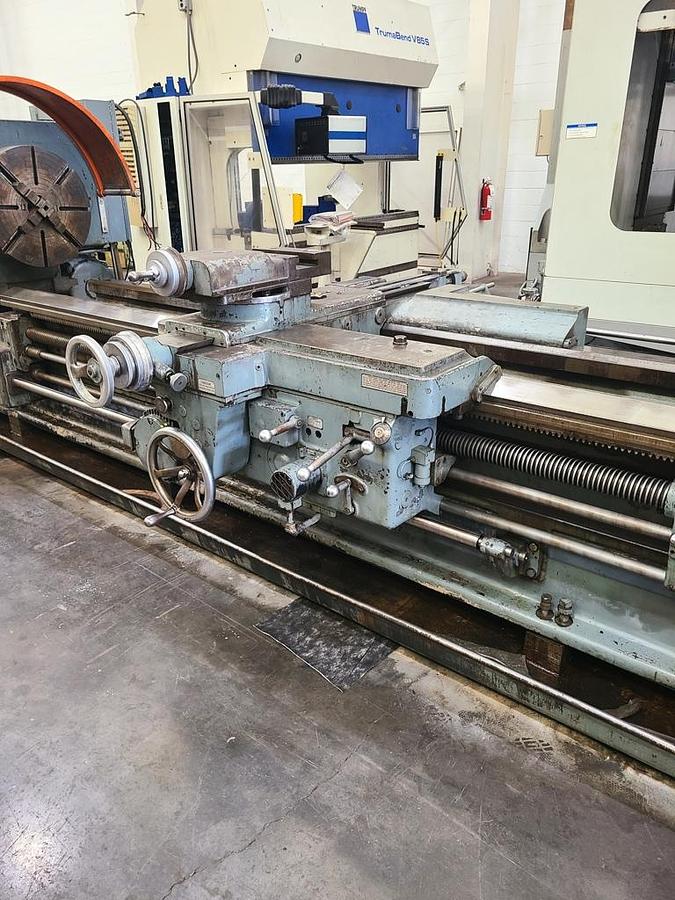

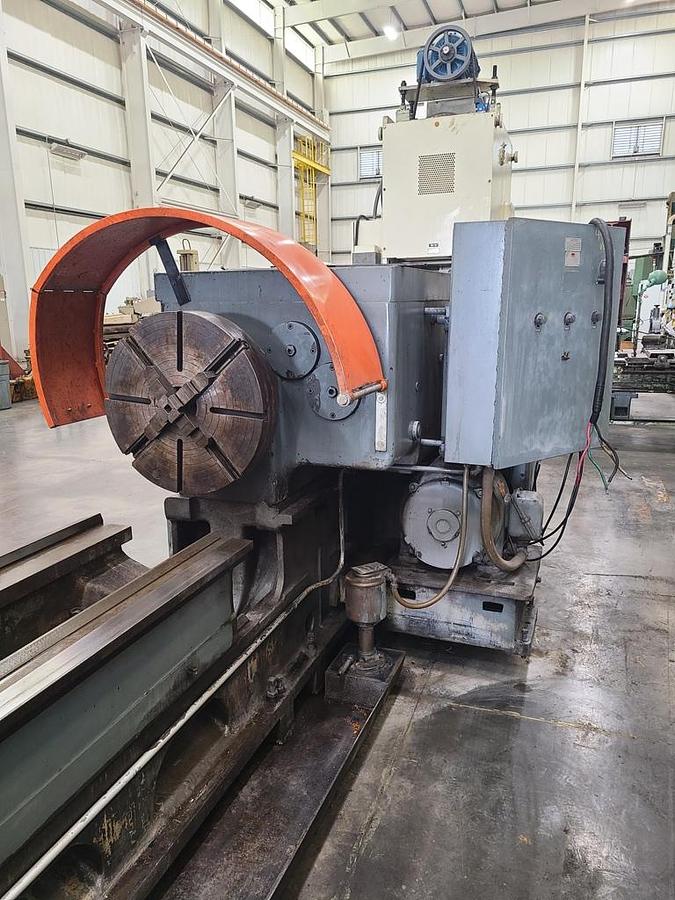

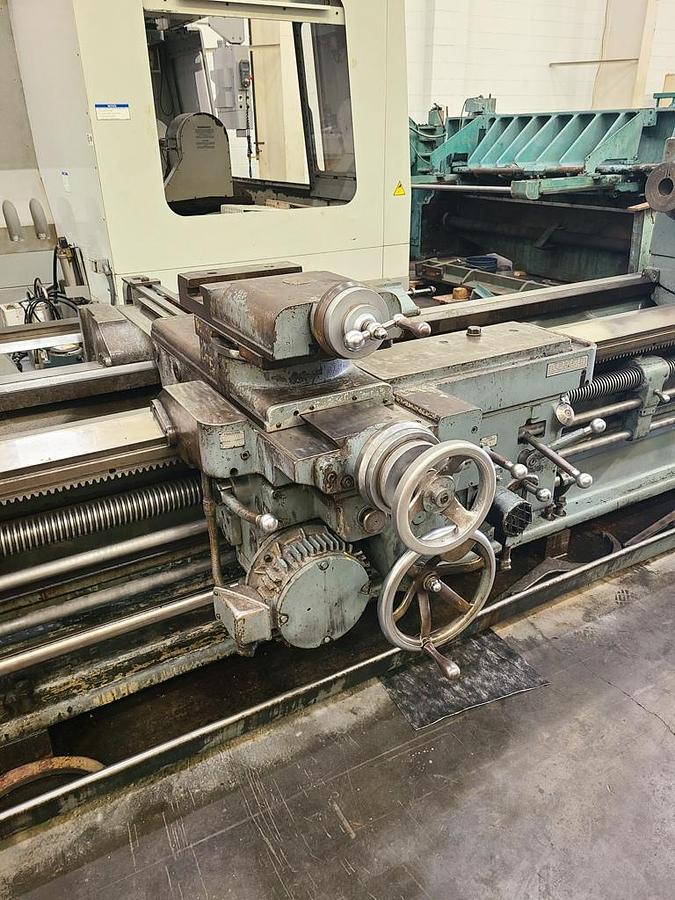

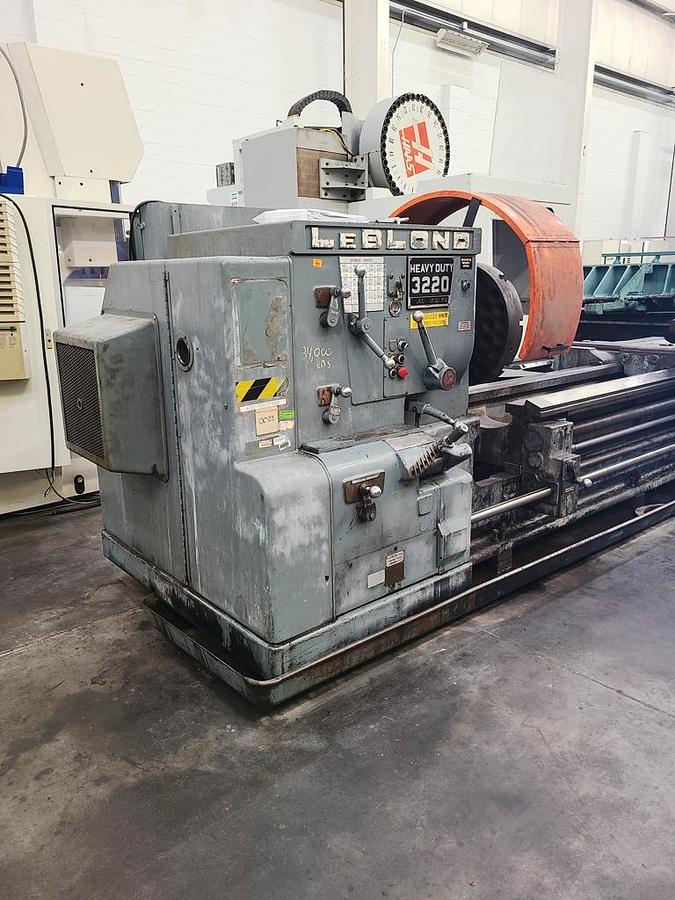

36"/58" X 204"/311" LEBLOND SLIDING GAP BED LATHE

36"/58" X 204"/311" LEBLOND SLIDING GAP BED LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $119,500.00

HMC Stock # 25023-P

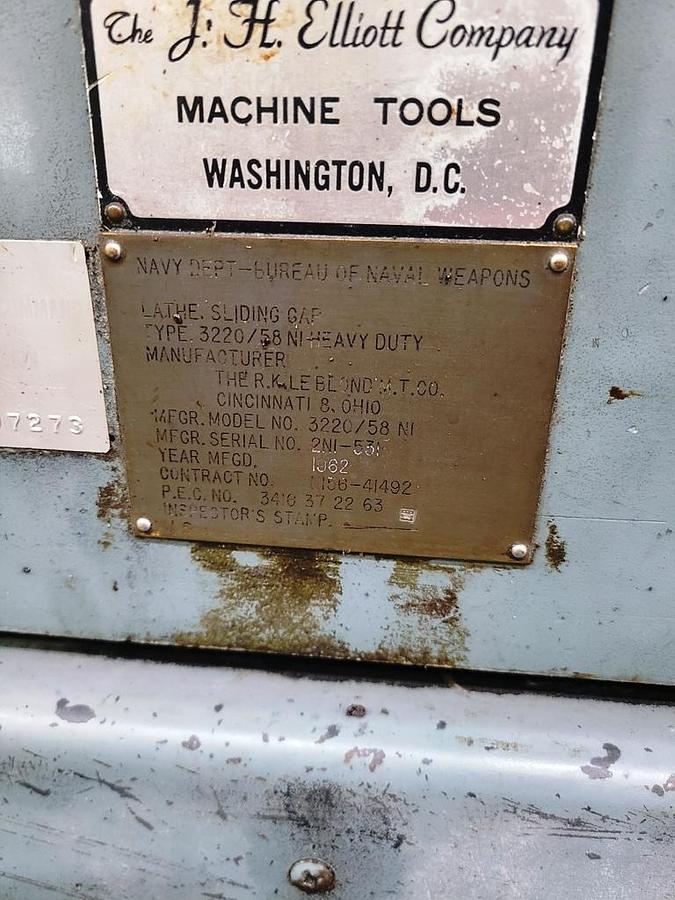

Serial No.: 2NI-531

Model: 3220/58-NI Heavy Duty

Year: 1962

Overall Bed Length: 220"

Center to Center Distance (Bed Close Accounting for Tailstock): 204"

Center to Center Distance (Bed Open Accounting for Tailstock): 311"

Swing Over Ways (Bed Closed): 36"

Swing Over Ways (Bed Open): 58"

Overall Bed Width: 26"

Spindle Nose: L3

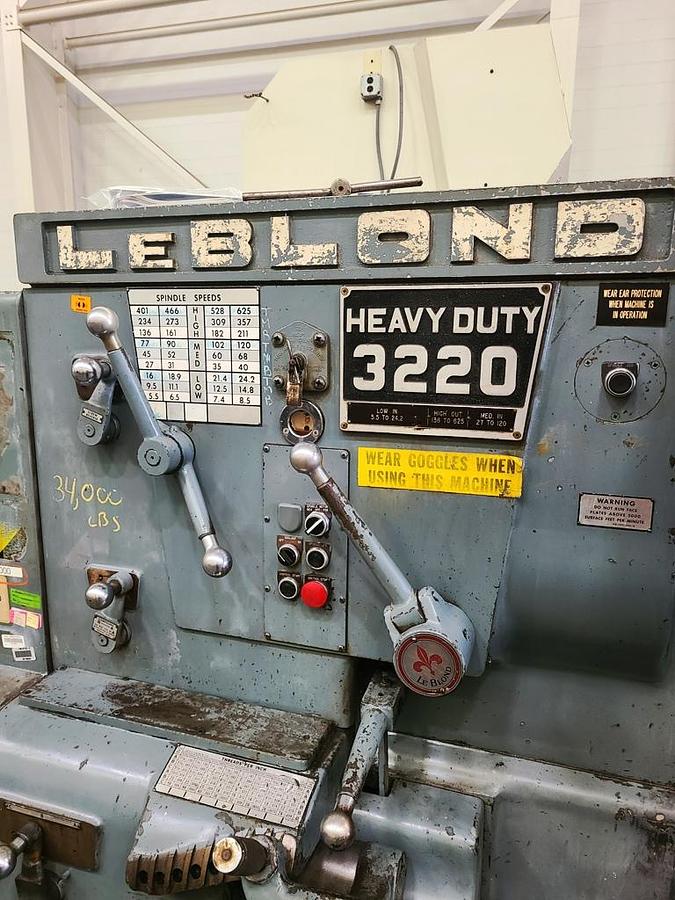

Spindle Speeds: (48) 5.5 - 625 RPM

(48) Feeds: .004" - .250" Per Rev.

(48) Threads: 3/4 - 46 Thread Per Inch (Inch Threading Only)

Hole Through Spindle: 3"

EQUIPPED WITH:

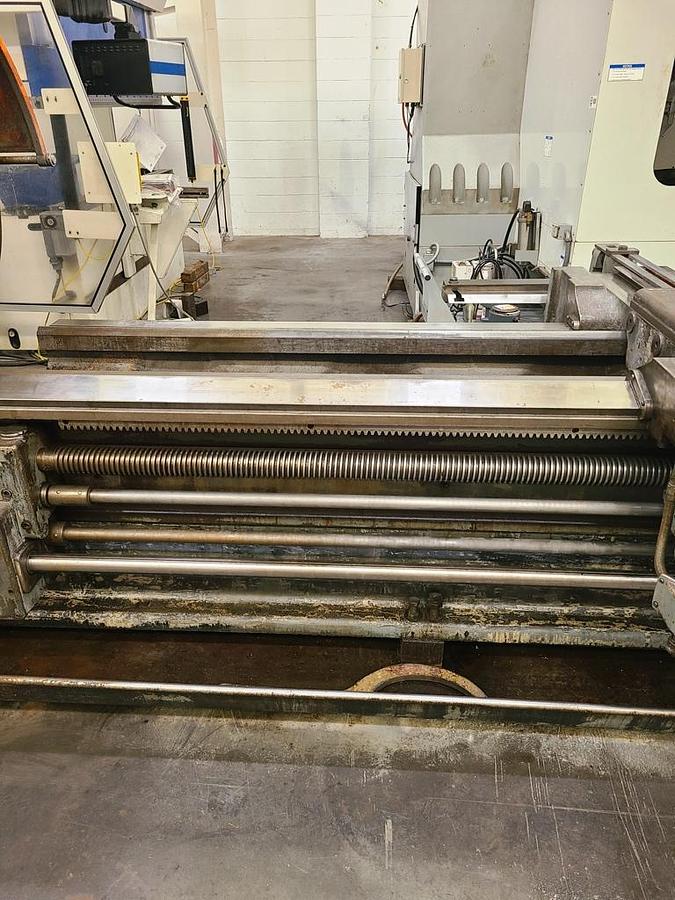

Hard Replaceable Ways

Taper Attachment

Rapid Traverse

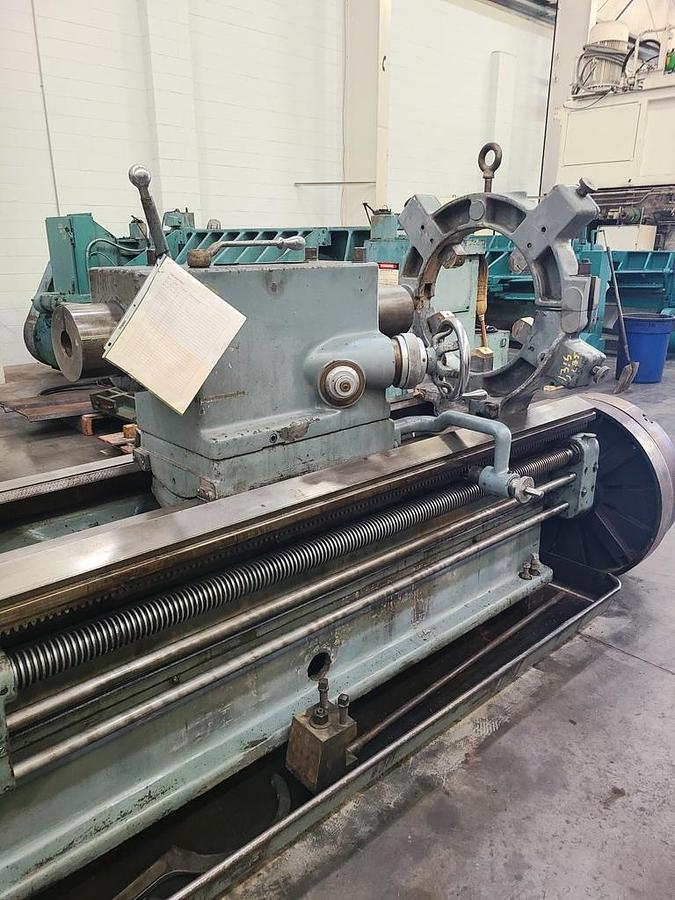

2-Speed Tailstock

Spindle Jogga

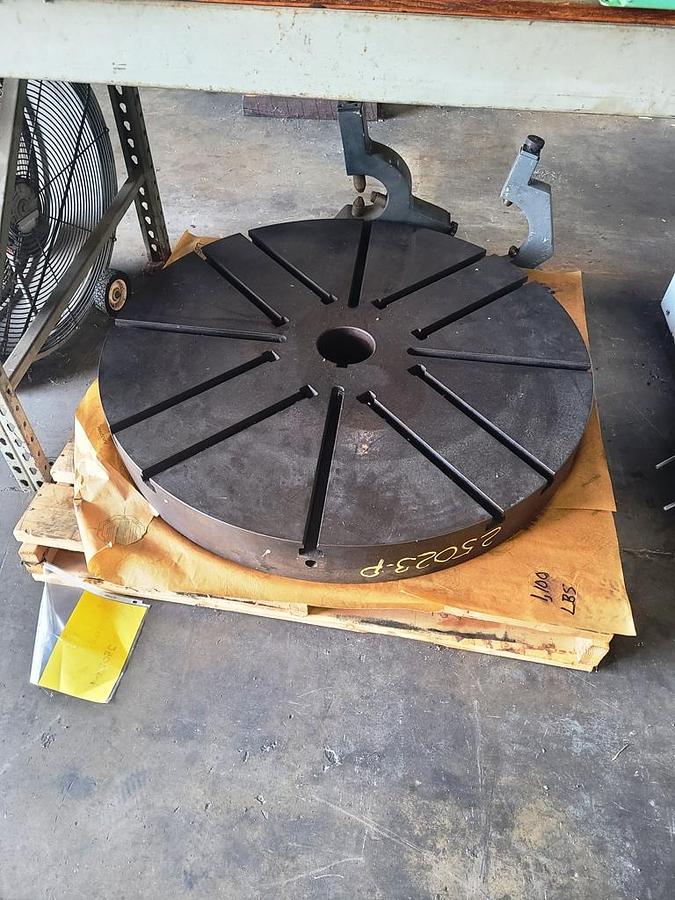

45" Diameter Face Plate

33" Diameter Face Plate

32" Diameter 4 Jaw Chuck

24" Diameter 4 Jaw Chuck

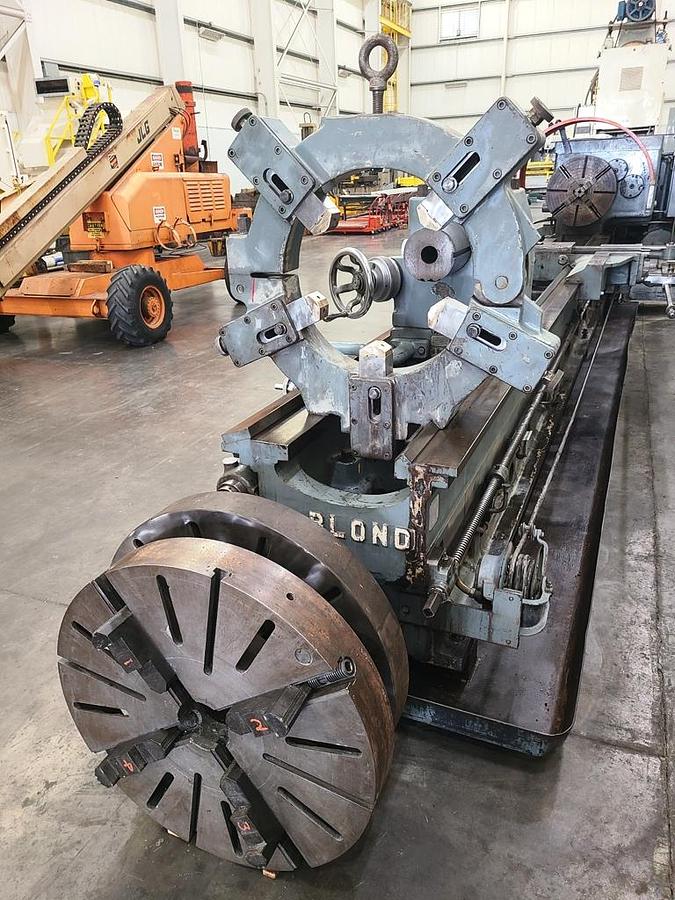

20" (Through Hole Diameter) 5 Post, Bronze Bushing

Coolant Pump

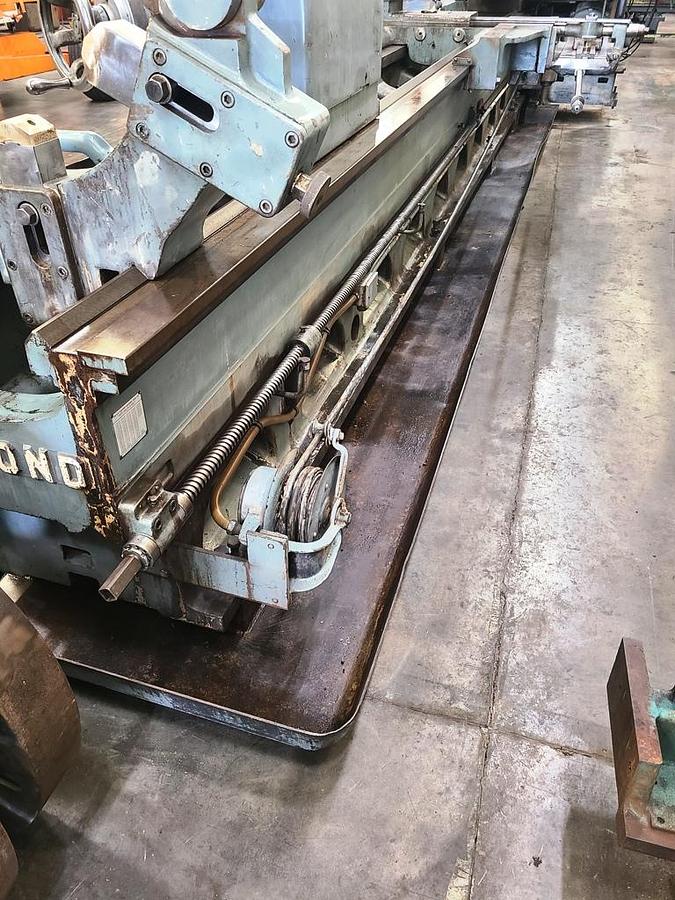

Coolant Pan (Machine is Bolted to Steel Blocks Welded Inside of the Coolant Pan)

Manual (Purchased from Leblond)

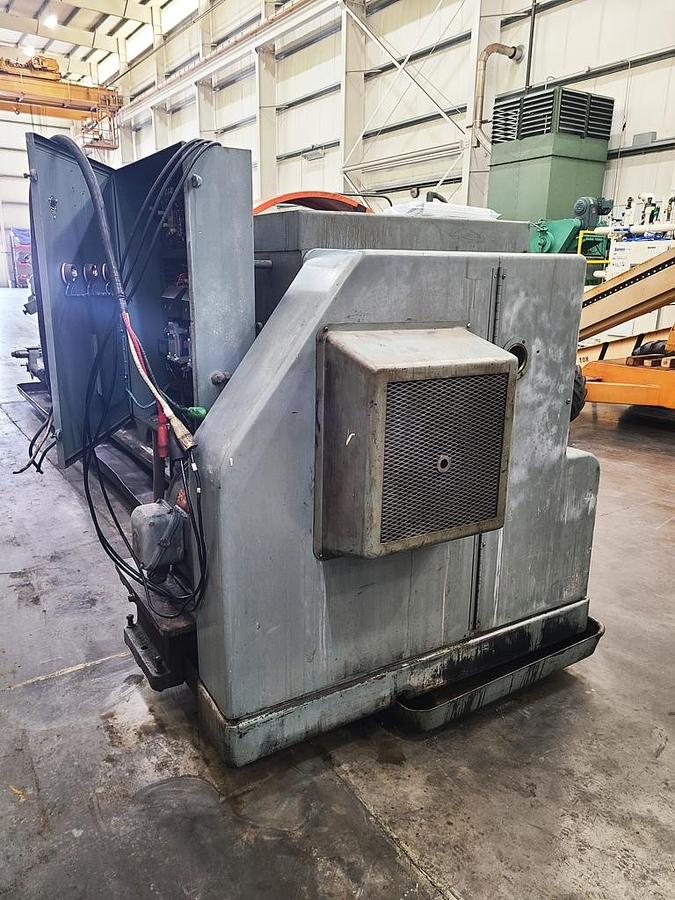

40 HP Main Motor

Wired for 3 Phase, 60 Cycle 440, Volts

Overall Size: 300" LR x 88" FB x 75" High x 34,000 Lbs.
