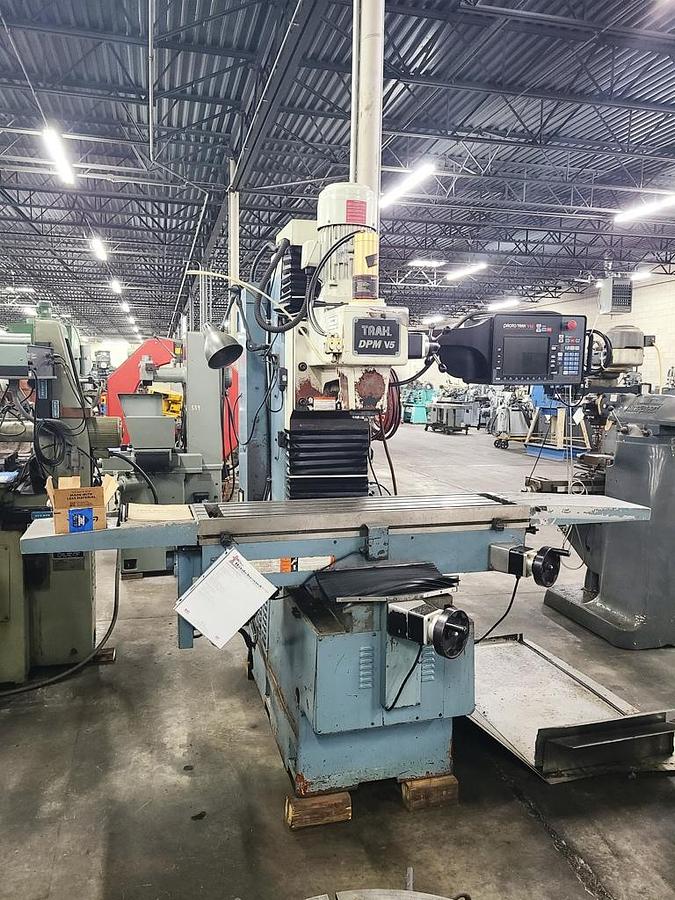

TRAK CNC VERTICAL BED MILL

TRAK CNC VERTICAL BED MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $16,500.00

HMC Stock # 24105

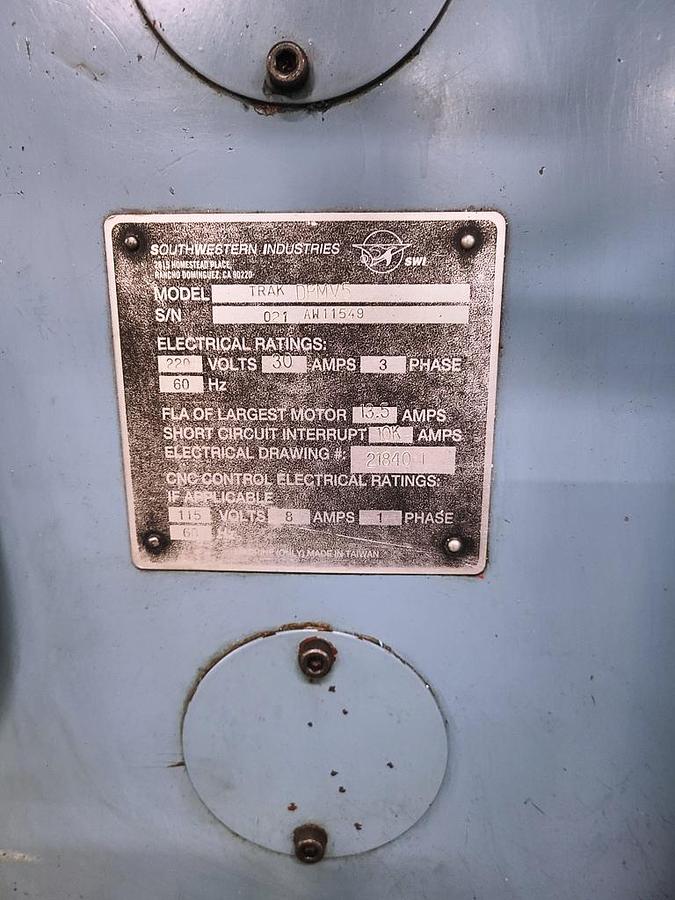

Machine Serial No.: 021AW11549

Machine Model No.: DPM-V5

New Date: 2002

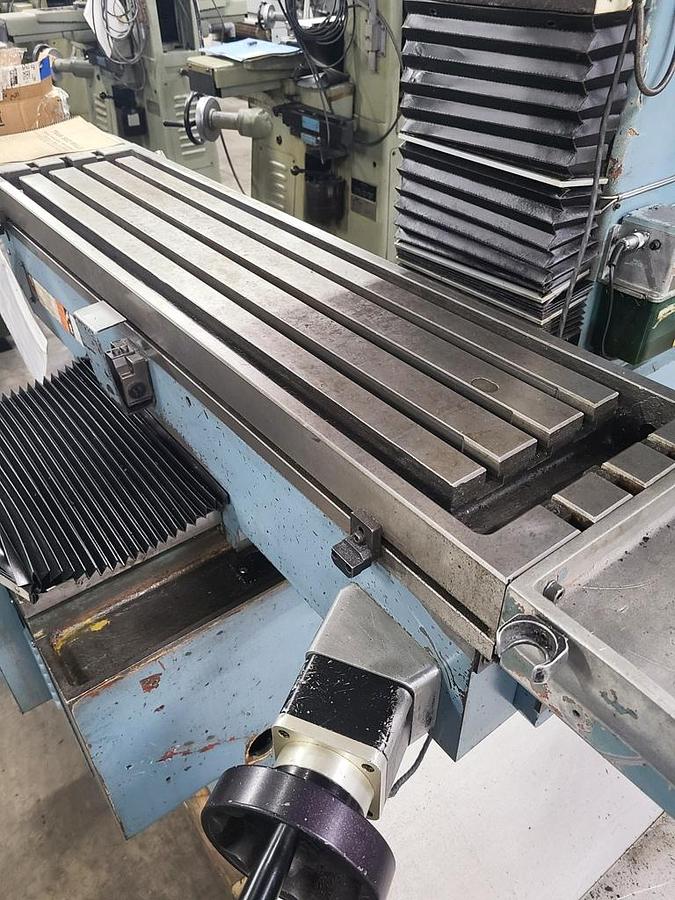

Table Size: 50" x 12"

Travels:

X: 40 Inches

Y: 20 Inches

Z: 23.5 Inches

Spindle Taper: NMTB 40

Spindle Speed Range: 160-4,000 RPM

Distance Spindle Nose to Table: 0 - 23.5"

Head Swivels Left & Right: 90 Degrees

Maximum Weight of Workpiece: 1,760 Lbs.

EQUIPPED WITH:

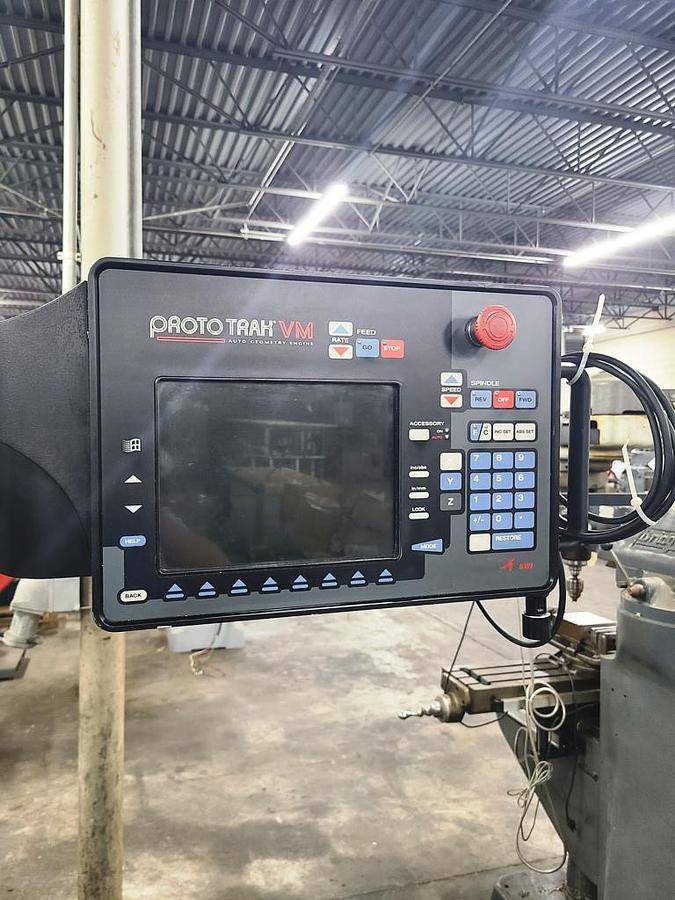

Proto Trak VM CNC Control

Power Draw Bar

Auto Lube

5 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Dimensions: 94" LR x 80" FB x 98" High

Weight: 4,400 Lbs.
