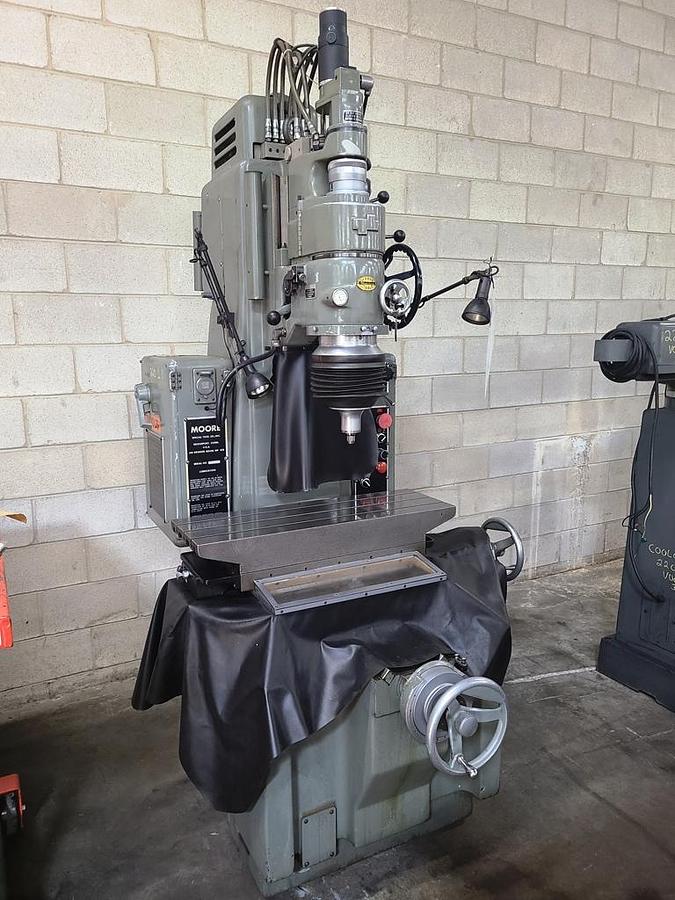

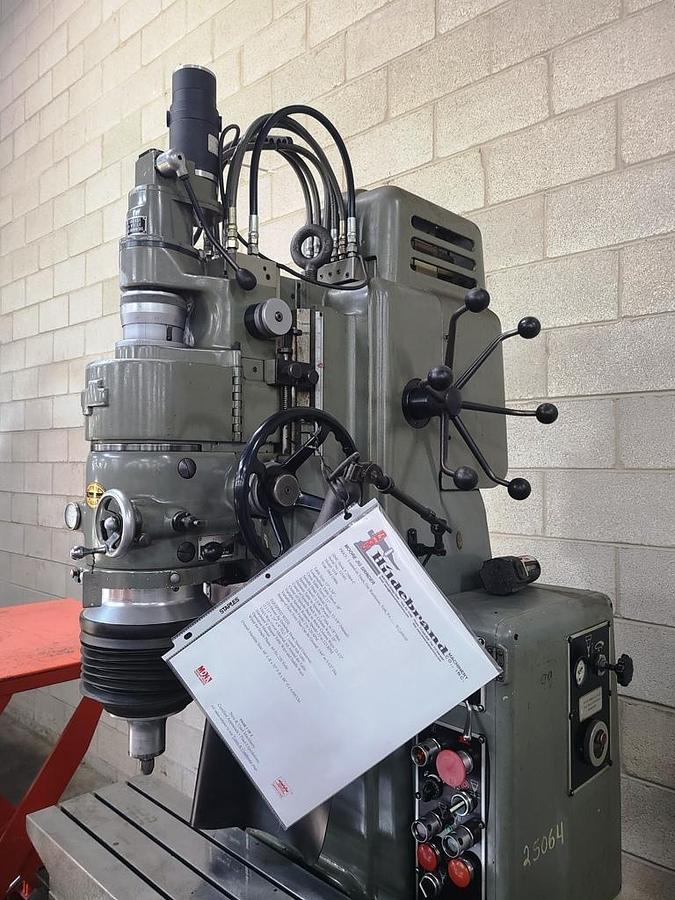

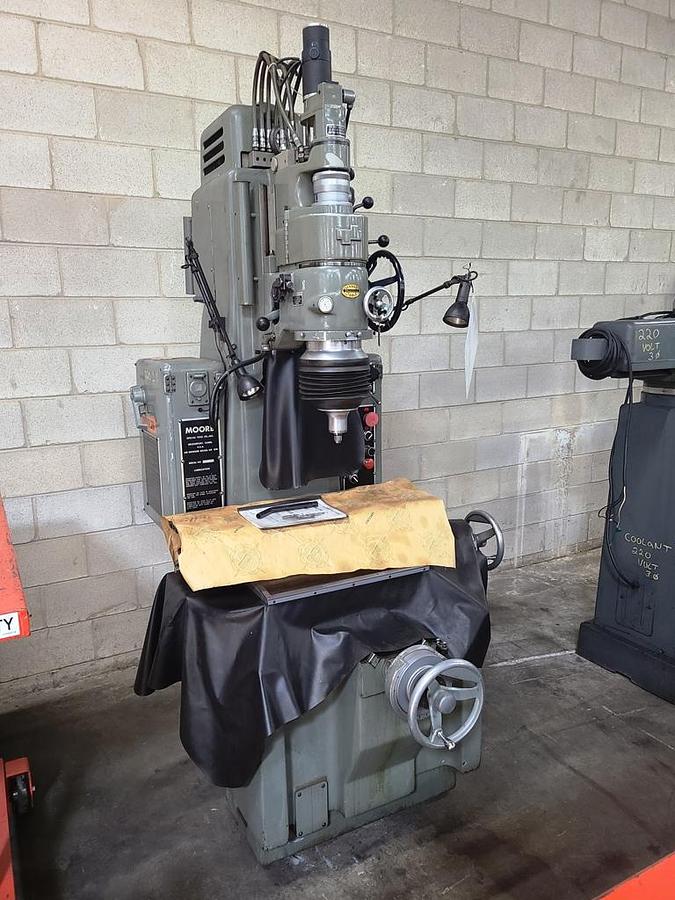

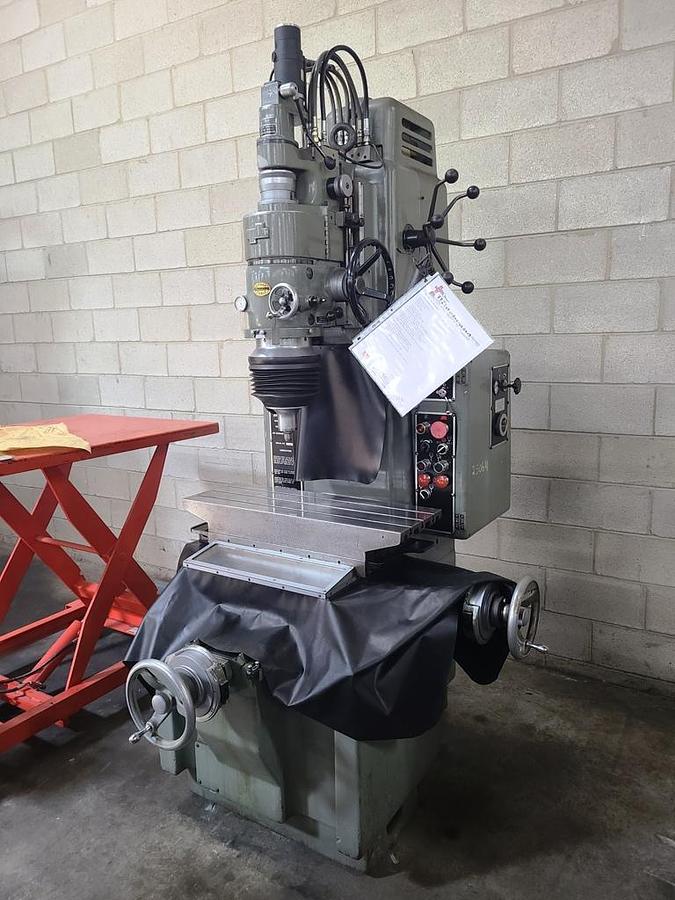

MOORE JIG GRINDER

MOORE JIG GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,600.00

HMC Stock # 25064-C

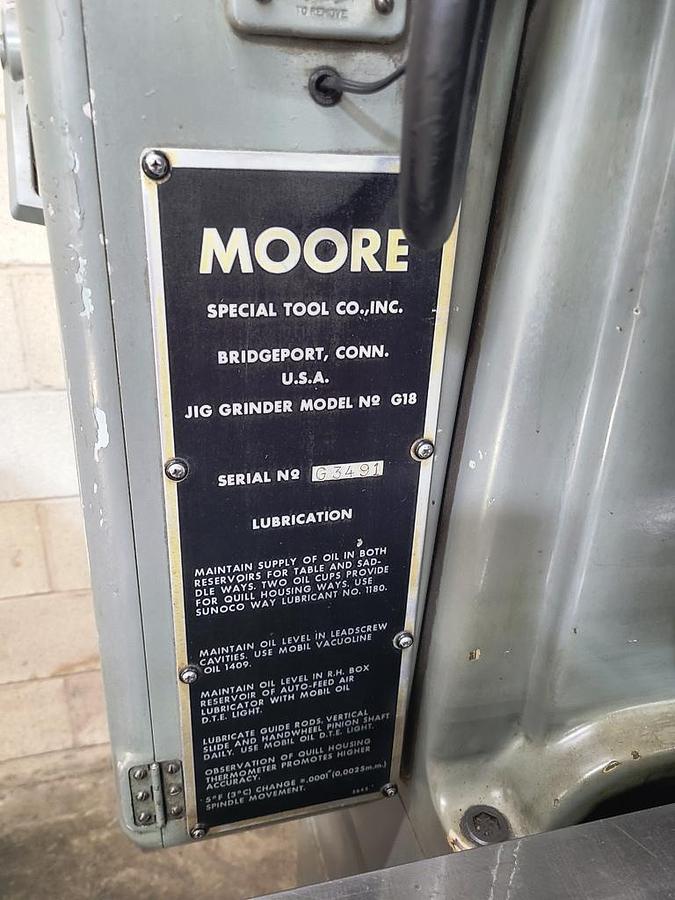

Serial No.: G3491

Model: G18

Year: Mid 1980s

Table Size: 11" x 24"

Longitudinal Table Travel: 18"

Cross Table Travel: 11"

Spindle Head Vertical Travel: 12-5/8" (Manual)

Spindle Travel: 3-5/8" (Power)

Distance Table to Spindle: 2" Min. to 18" Max.

Center of Spindle Back to Column Ways: 10"

Center of Spindle Back to Below Column Ways: 13-1/2"

Variable Spindle Rotation Speeds: 25 to 225 RPM

Variable Spindle Feeds: 2 to 120 SPM

Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.

EQUIPPED WITH:

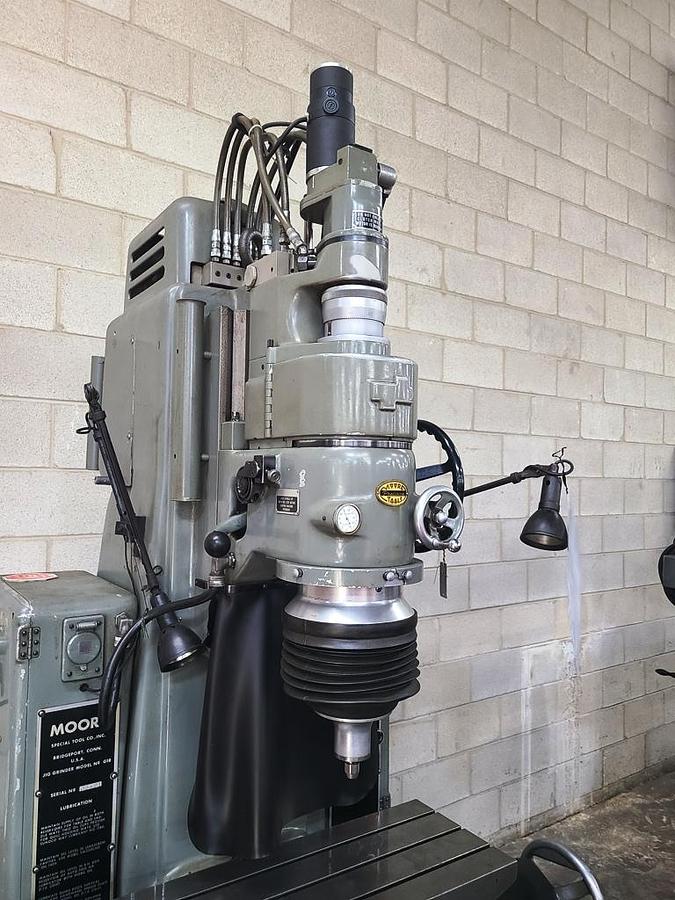

(1) Moore Jig Grinding Head, Speed Unknown

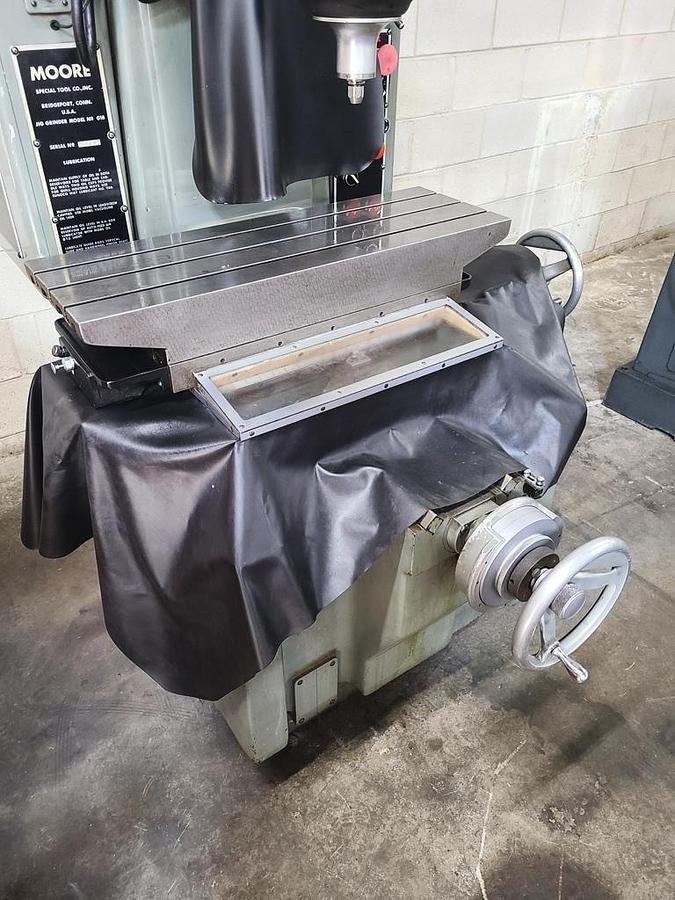

(1) 11" x 24" x 4" High T Slotted Sub Table

Vinyl Way Cover Material All Around the Table

Hardened V Shaped Table Ways and Saddle Ways

Operation Manual

Wired for Single Phase, 60 Hz, 220 Volts

Overall Machine Size: 48" L-R x 72" F-B x 88" H x 4,000 Lbs.
