OKAMOTO AERO LAP LAPPING MACHINE

OKAMOTO AERO LAP LAPPING MACHINE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $15,500.00

HMC Stock # 26005-P

Serial No.: 3125

Model: YT-300

Year: 2009

SPECIFICATIONS:

Floor Space 23" W x 63" H x 35" L

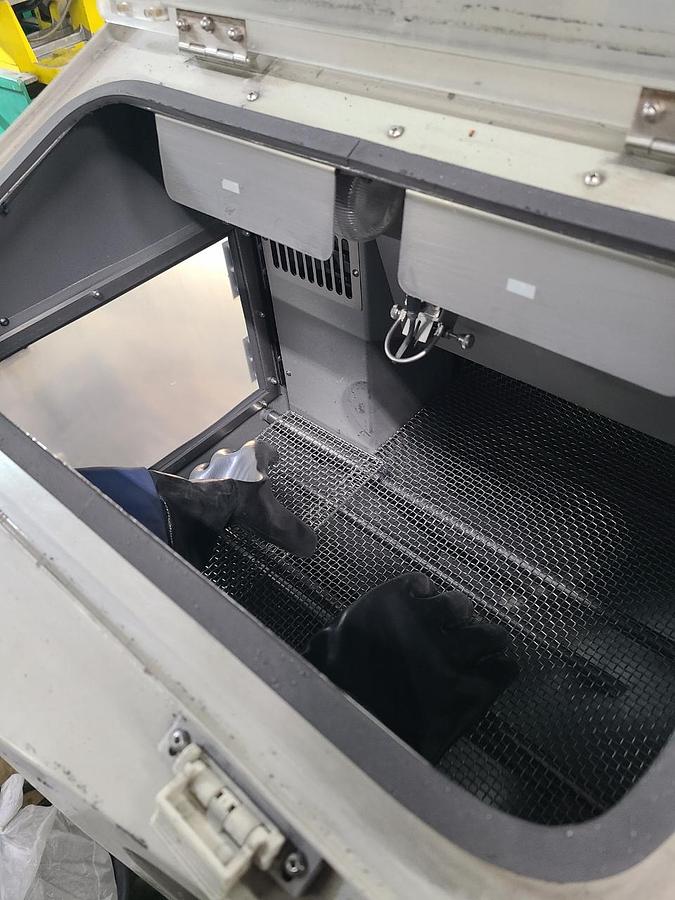

Effective Inner Dimensions: 19" W x 13" H x 16" L

Weight: 455 Lbs.

Maximum Load Capacity: 67 Lbs.

Disk Speed 3,000 min.

Maximum Conveyor Speed: 15.8 inch/s

Control Unit: Sequence Control

Power Supply: 200V AC 3 Ph

Maximum Power Consumption: 500 W

Air Supply Working Pressure: 72 psi

Maximum Working Pressure: 101 psi

Flow Rate: 150 NL/min.

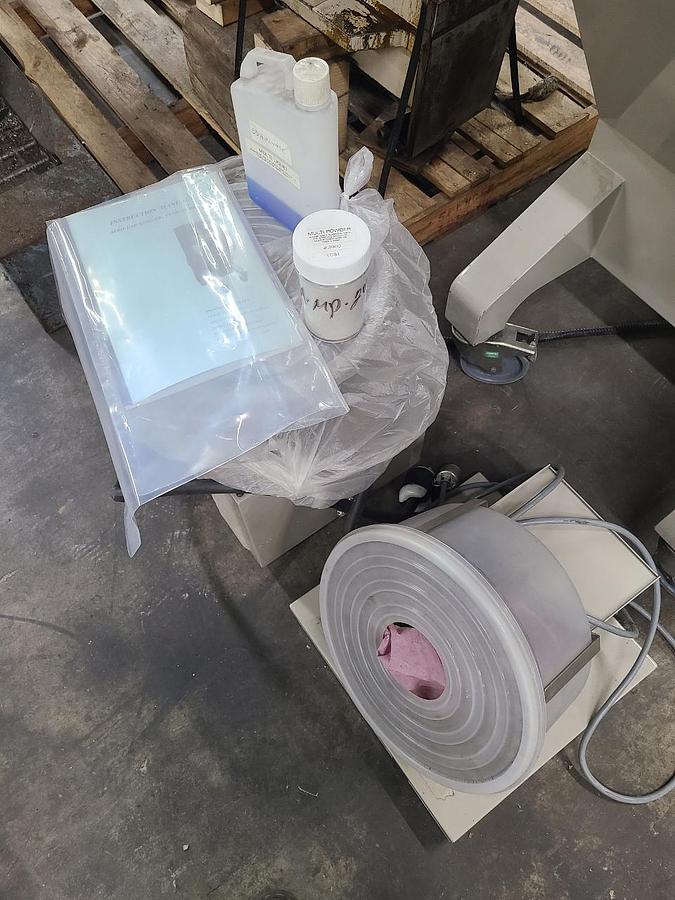

Mixer Unit for Media with Tumbler

Operation Manual

MACHINE FEATURES:

• Unique machine's construction is perfect for lapping process:

Diamond powder of different grit sizes are propelled through a lapping nozzle that is directed toward the piece to be lapped.

• Combination of machine structure and media is a perfect fit for lapping process:

The combination of machine structure and multi-cone (media) achieves super quick and amazing super-finishing without damaging the critical dimensions of the work piece.

• Minimum Set-Up Time:

After preparing the multi-cone, the machine is ready to be used. No specific jobs are required and nor any programming is needed for operating the machine.

• User Friendly Control System:

User friendly control system and simple operating structure can be required.

• Environmentally Friendly System:

Aero Lap operates without generating toxic industrial waste. Green operation cuts.
