SIP PI-5 TILTING ROTARY TABLE

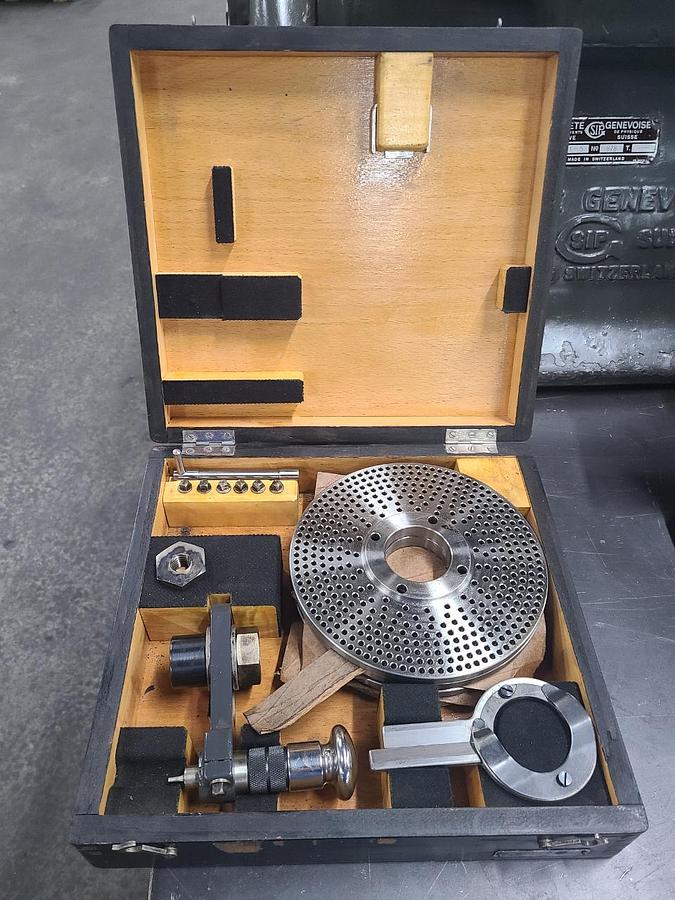

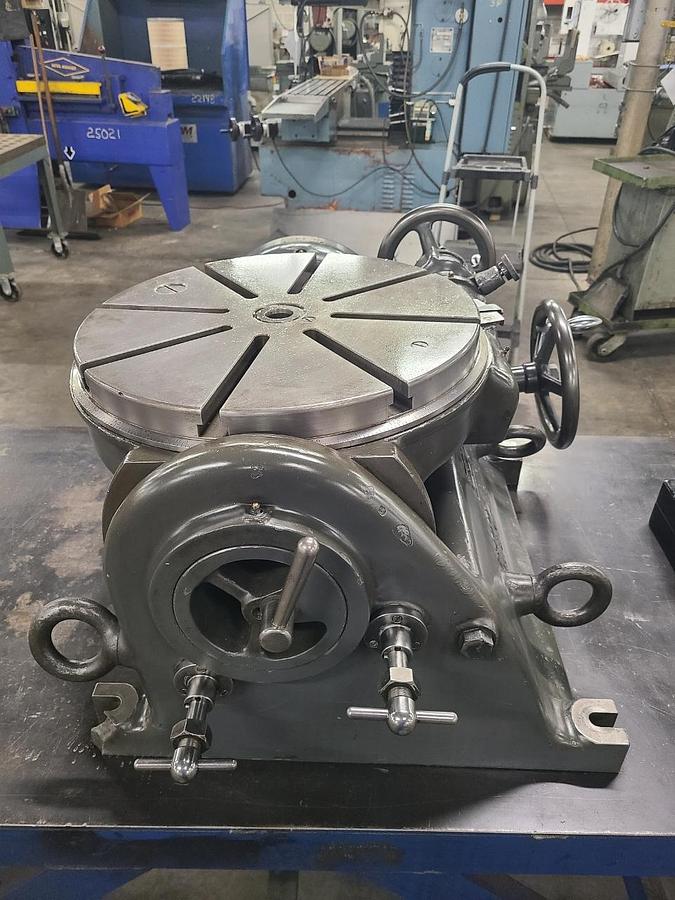

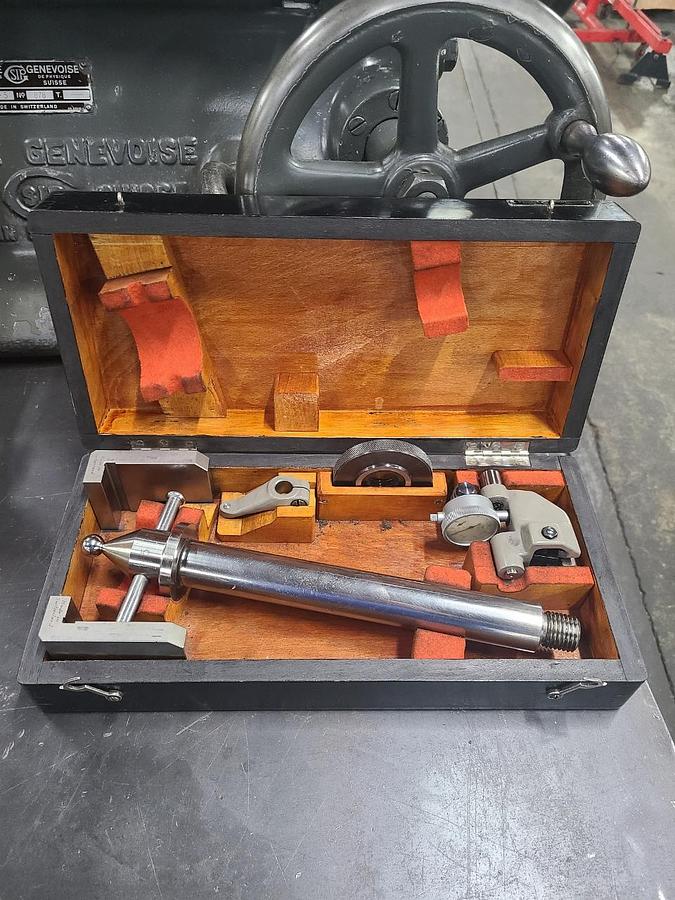

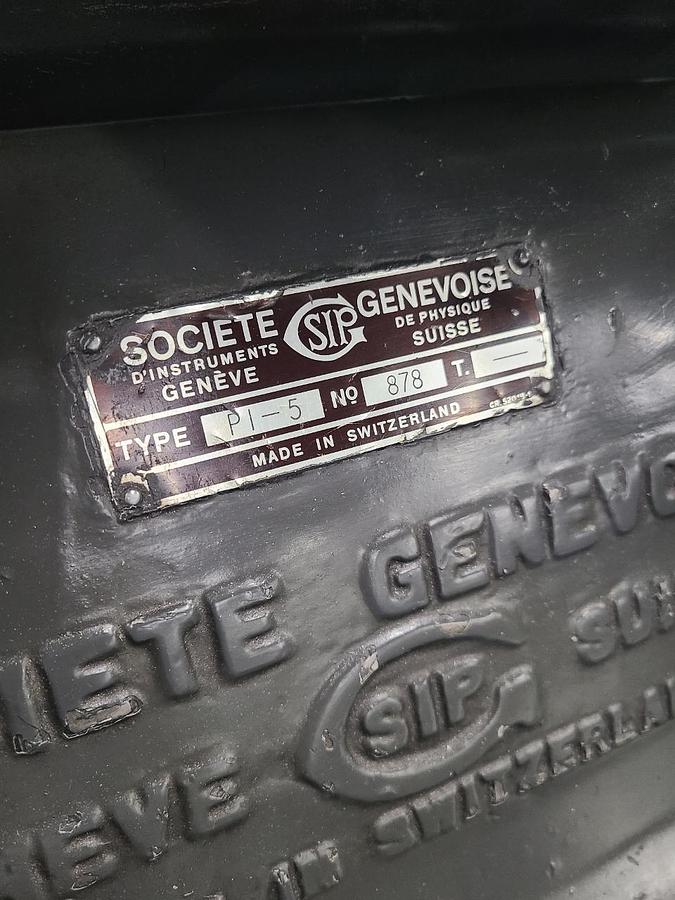

Serial Number: 878

Diameter of the platen: 17 ¾” (450mm)

Number of teeth of the platen: 180

For one rotation of handwheel: 2 degrees

For one graduation stroke of platen: 1 degree

For one graduation stroke of micrometer drum: 30”

For on graduation stroke of vernier: 1”

For one graduation stroke: ½ degree

For one graduation stroke of vernier: 1 minute

T-slots of the platen, width: 0.63” (16mm)

Slots in the base for fixation bolts of dia.: 5/8” (16mm)

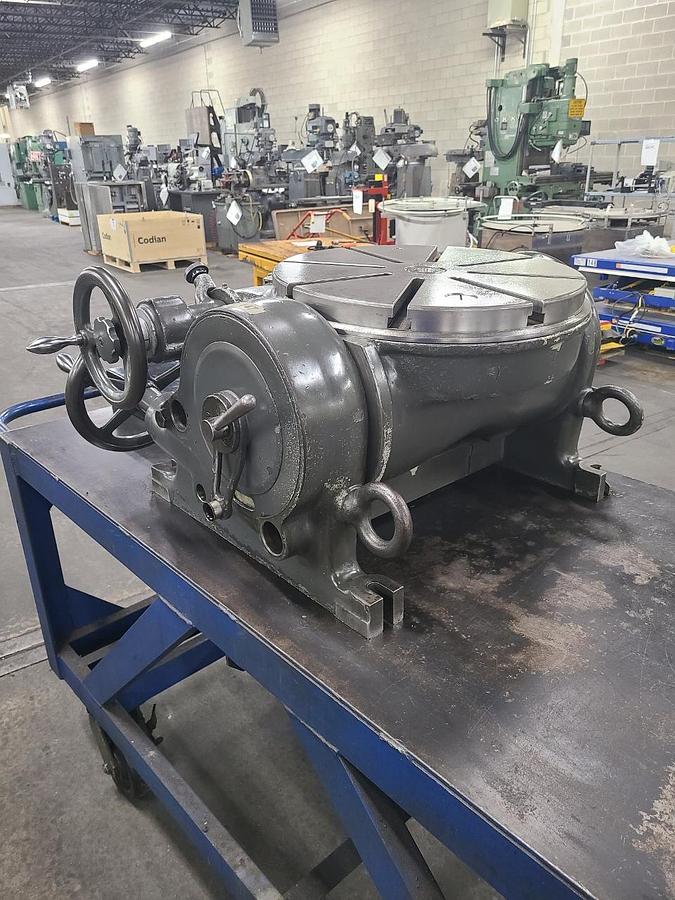

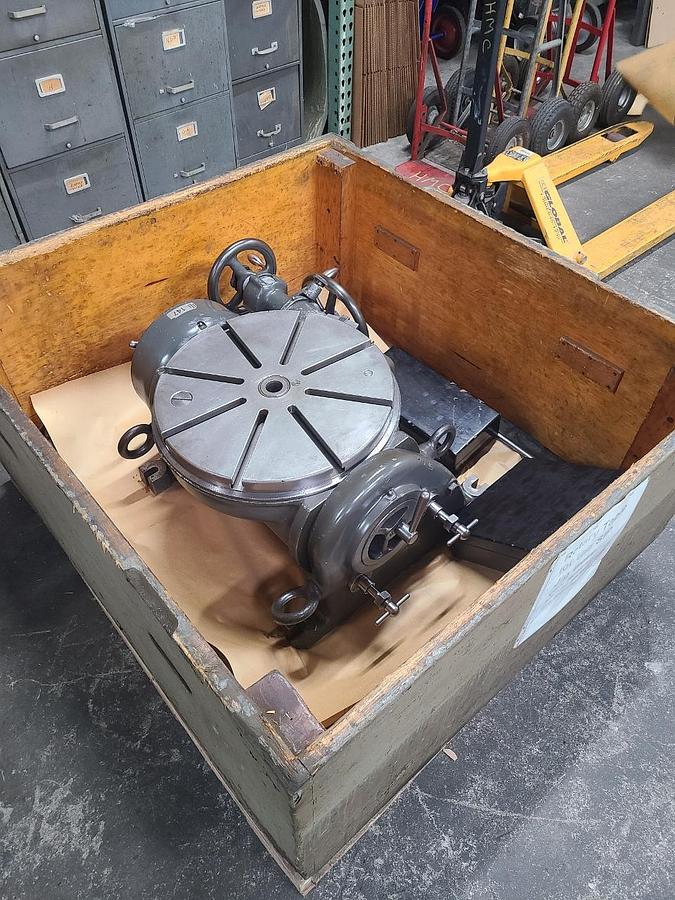

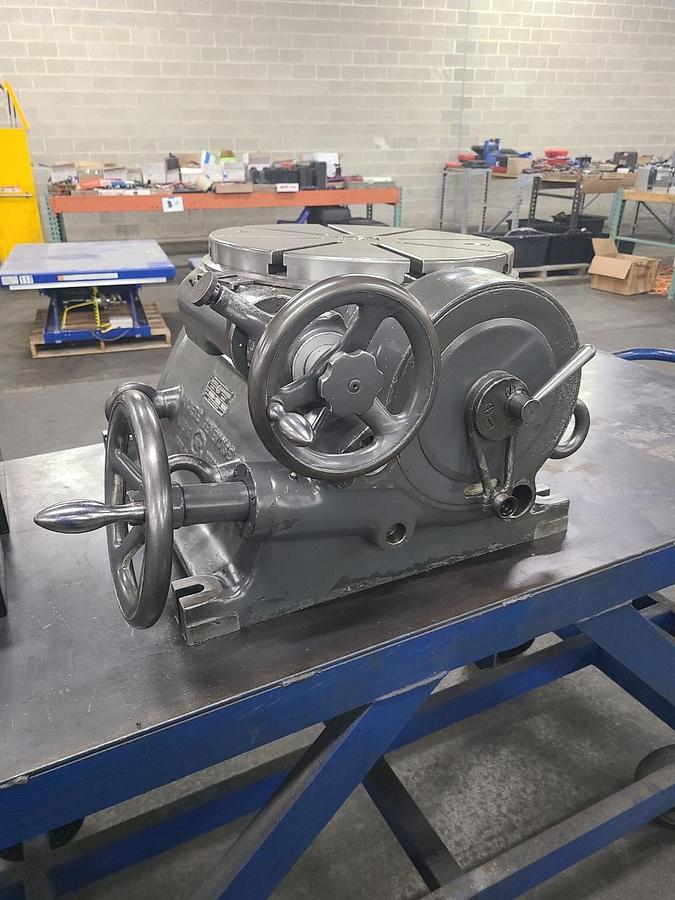

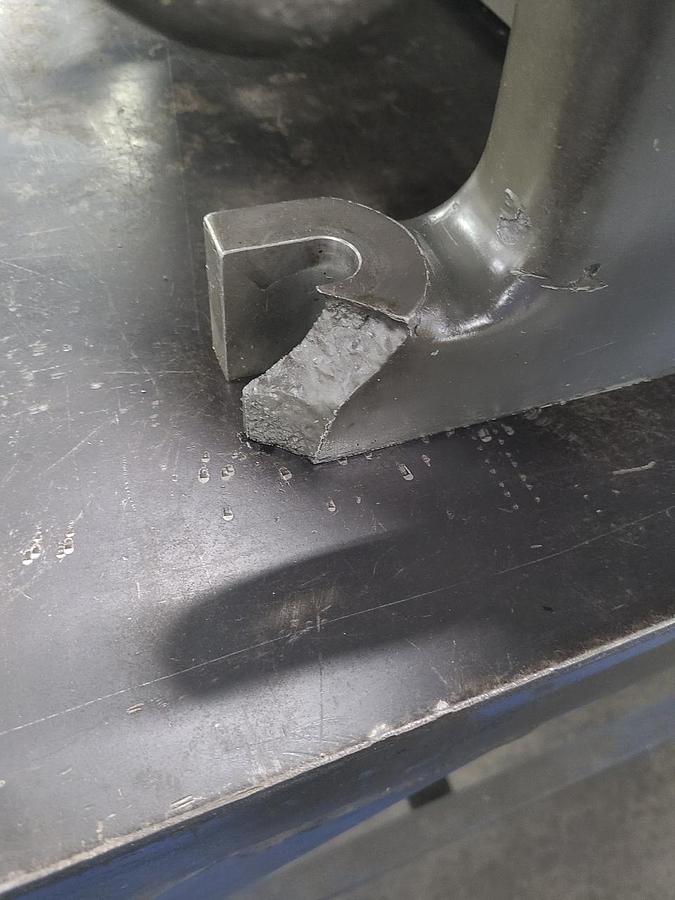

One Foot damaged See Photo

weight of workpiece: 130 lbs. (60 kg)

Net weight of the rotary table: 870 lbs. (395 kg)
