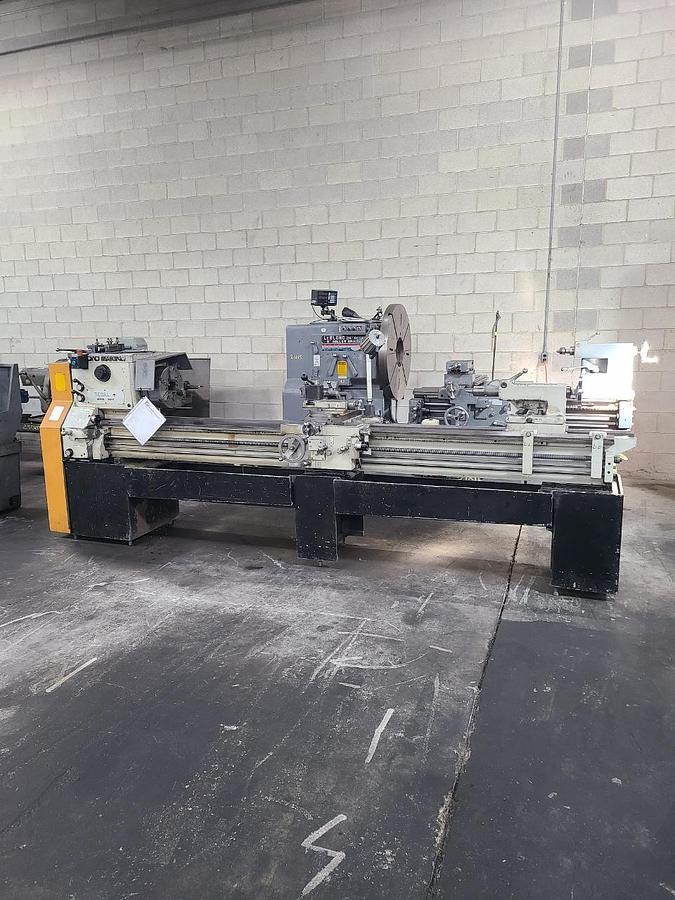

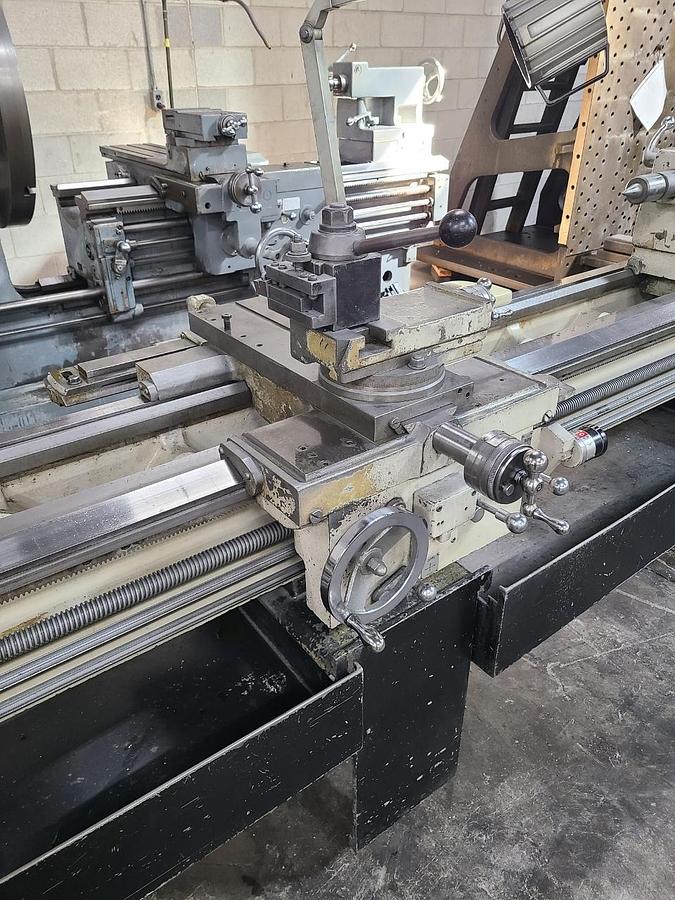

21" X 102" LEBLOND REGAL ENGINE LATHE

21" X 102" LEBLOND REGAL ENGINE LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $22,500.00

HMC Stock # 26014

Serial No.: 15E-240

Model: 19" Regal

Year: 1990

Swing Over Bed and Carriage Wings: 21"

Swing Over Cross Slide: 13"

Distance Between Centers: 102"

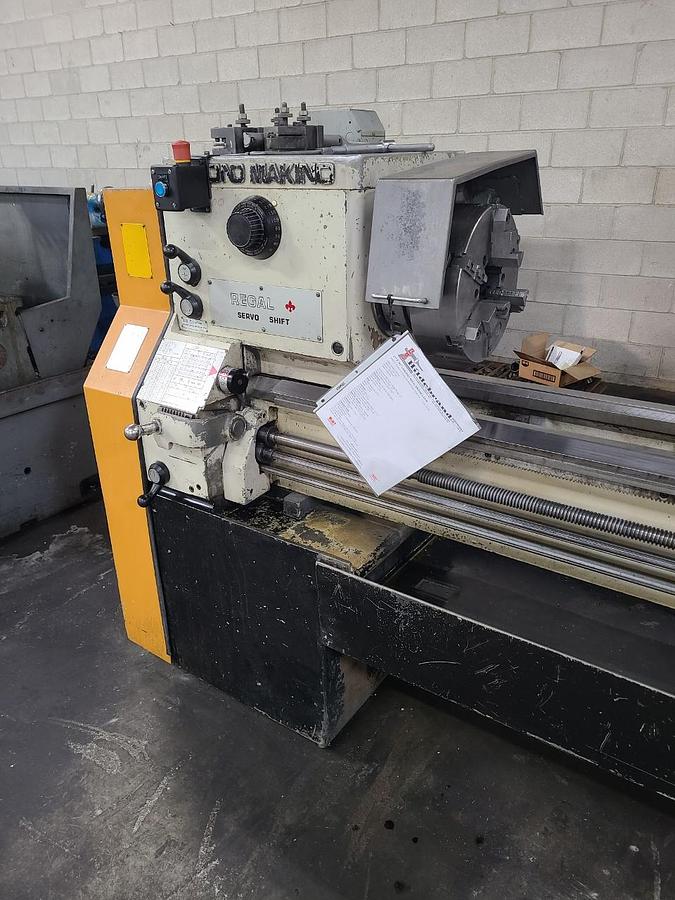

Headstock:

Spindle Speeds (12): 40 to 1,600 RPM

Spindle Nose: D1-8

Spindle Hole: 3-1/16"

Bed:

Length, Standard: 12' 3"

Width: 14-3/8"

Depth: 11-1/2"

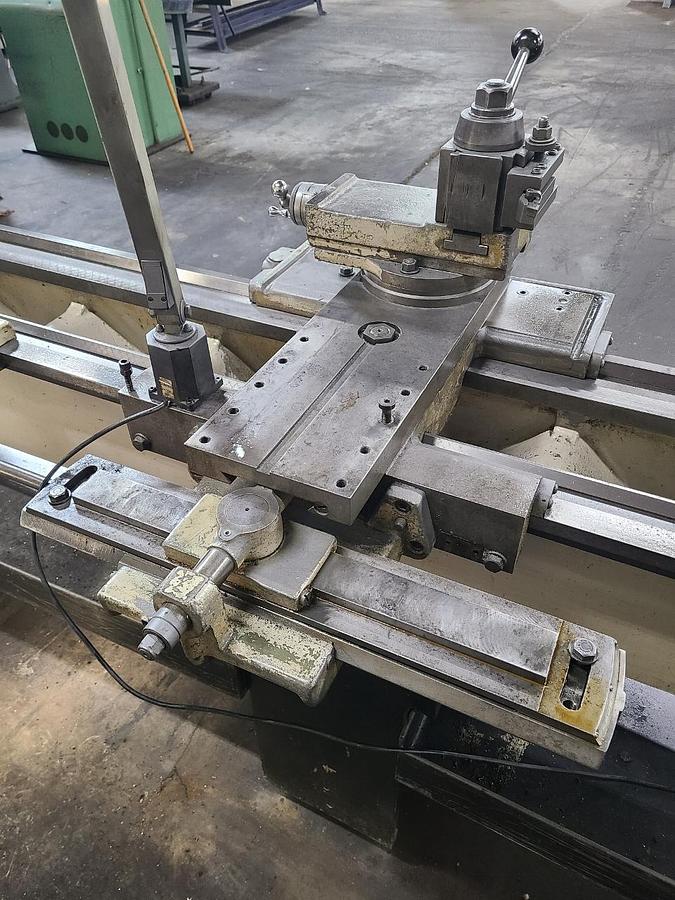

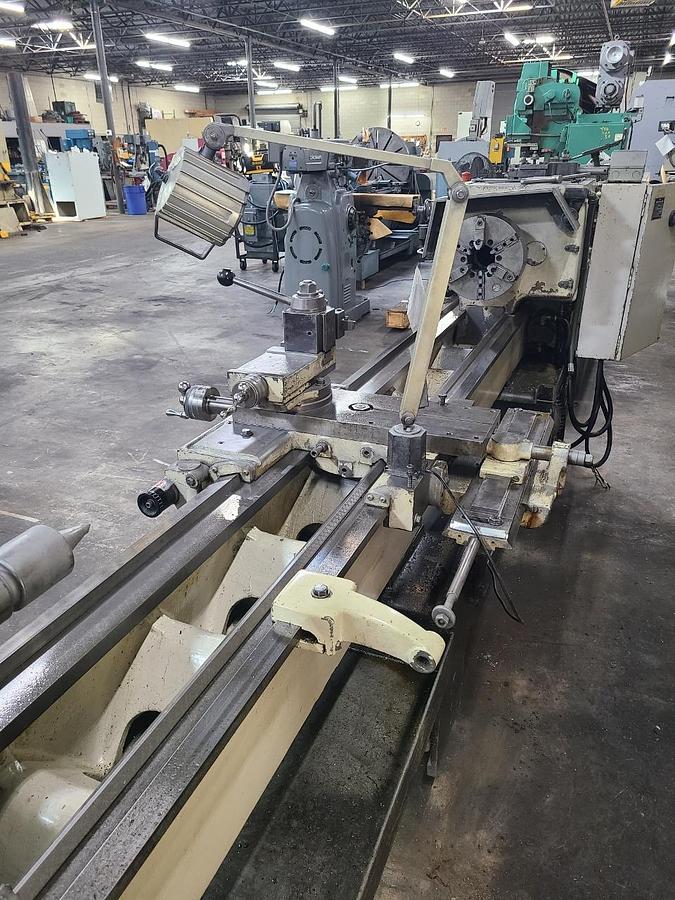

Carriage:

Length on Bed: 21"

Bridge Width: 7-7/8"

Cross Slide Travel without Taper: 11-1/4"

Cross Slide Travel with Taper: 9-5/8"

Compound Rest Travel: 4-3/8"

Feeds & Threads:

Feed Range (48): .0018 to .104 IPR

Threads, Inch (48): 2 to 112 TPI

Threads, Metric (48): .05 to 2.6 MM

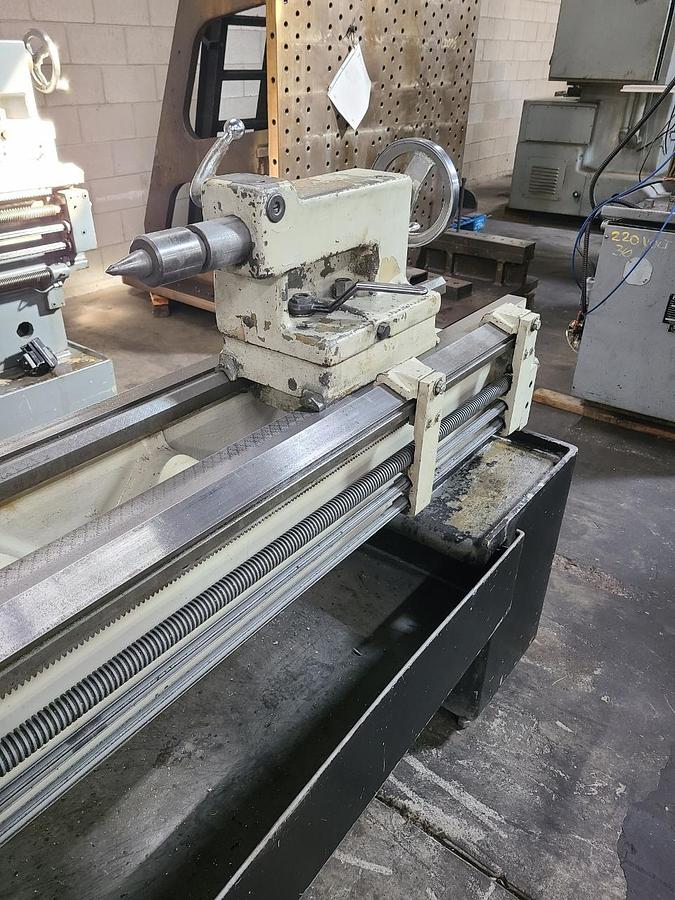

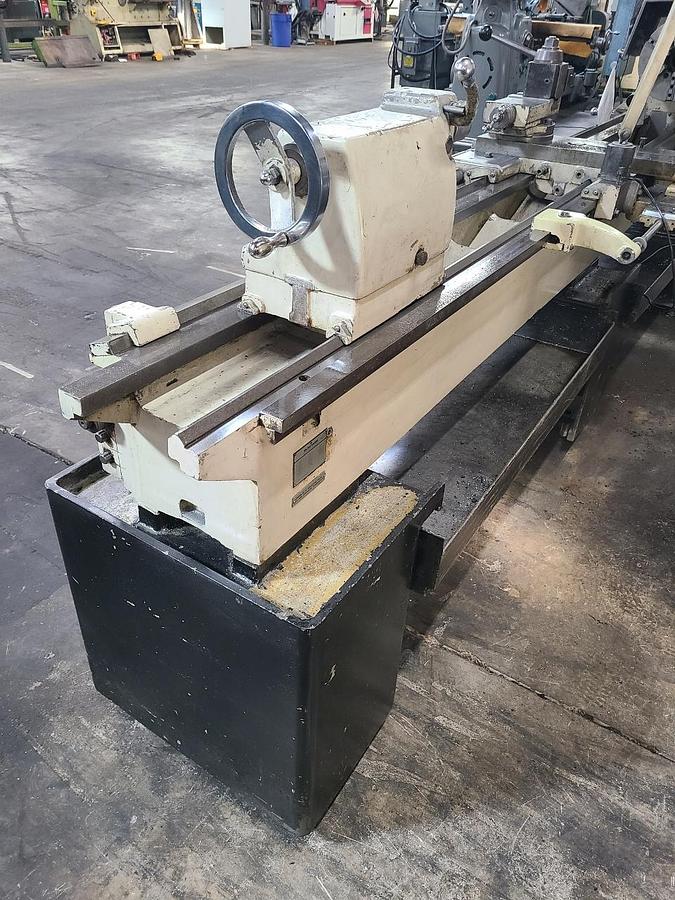

Tailstock:

Spindle Diameter: 2-7/16"

Center: 5 MT

Equipped With:

Inch/Metric Threading

Taper Attachment

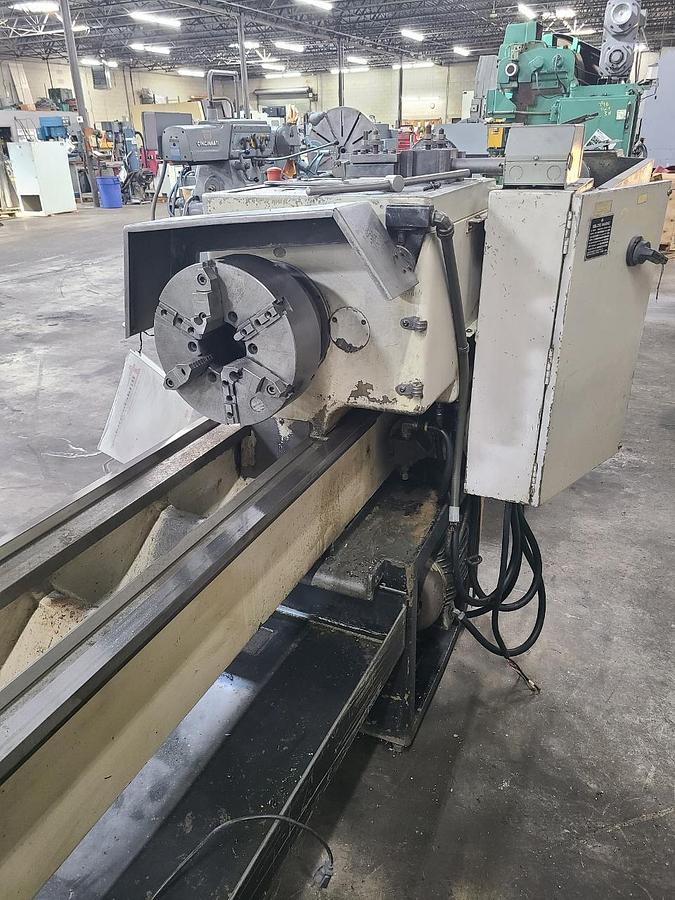

12" Pratt Burnerd 6 Jaw Chuck (3 Missing)

Aloris Toolpost

Assorted Holders

10 HP Motor, Wired 3 Phase, 60 Cycle, 230 Volts

Dimensions: 165" LR x 54" FB x 62" High x 4,800 Lbs.
