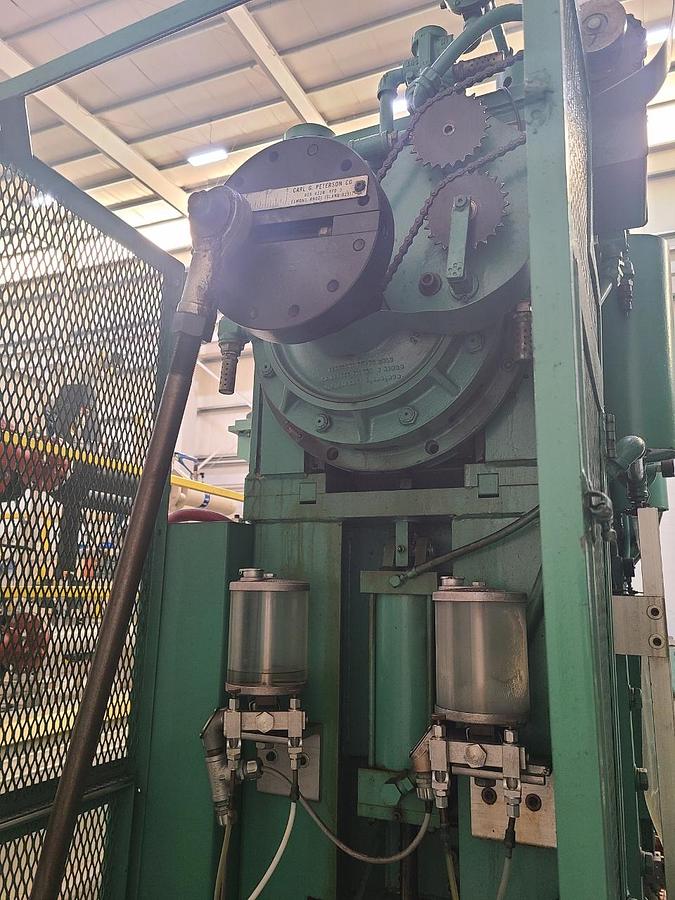

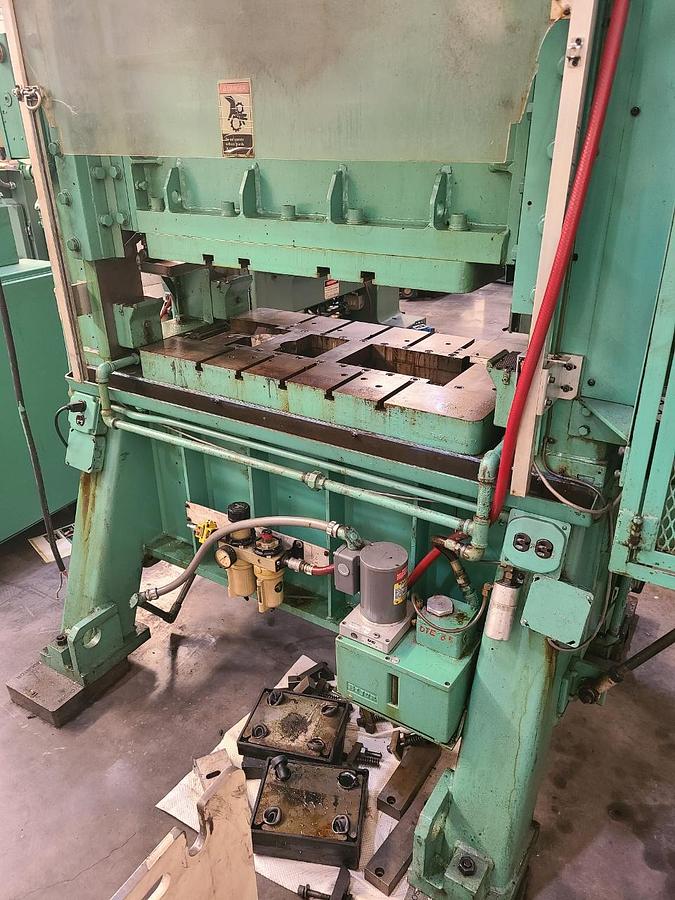

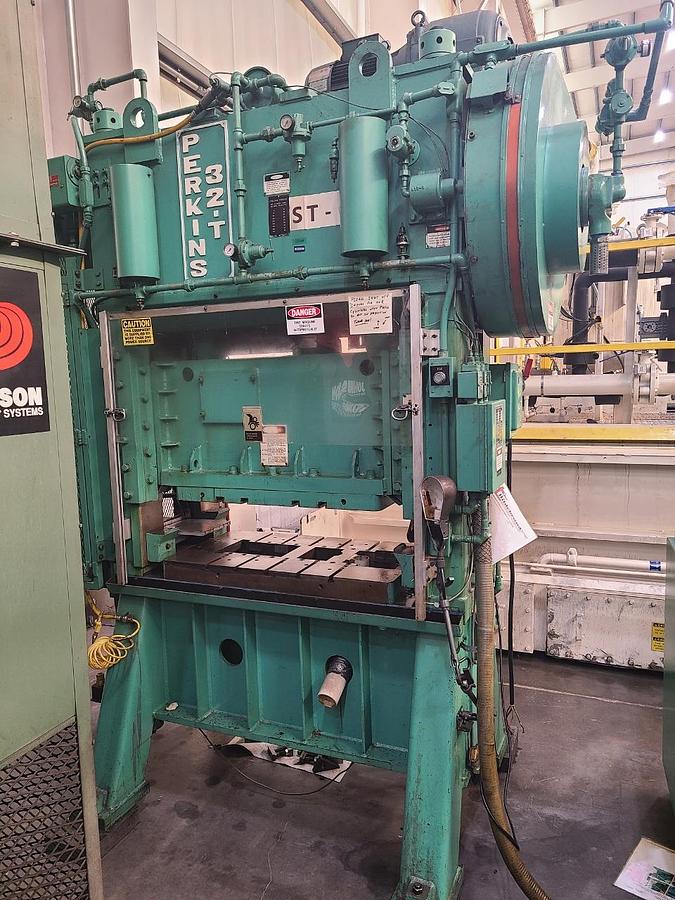

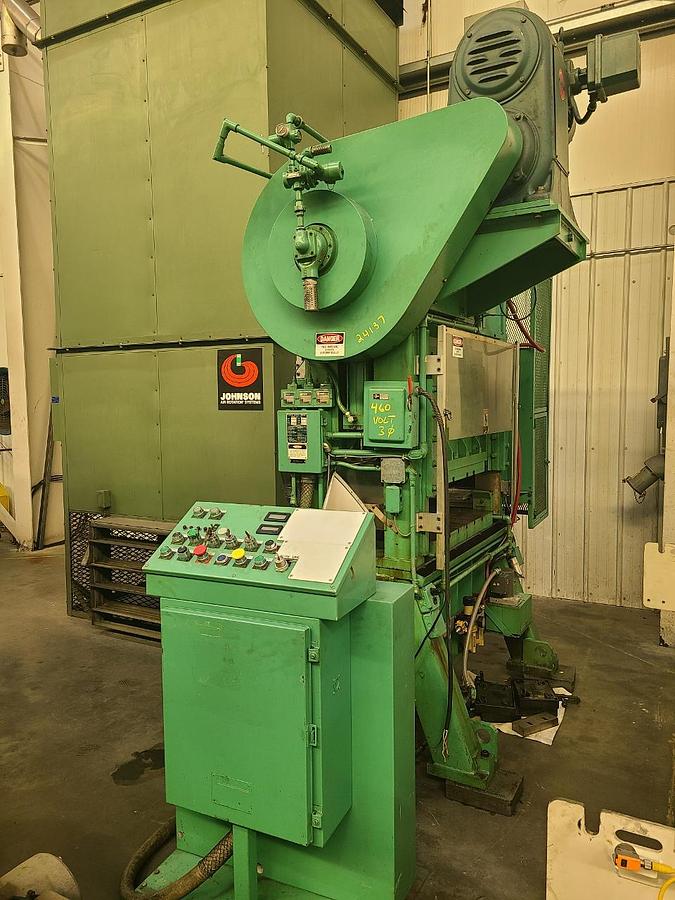

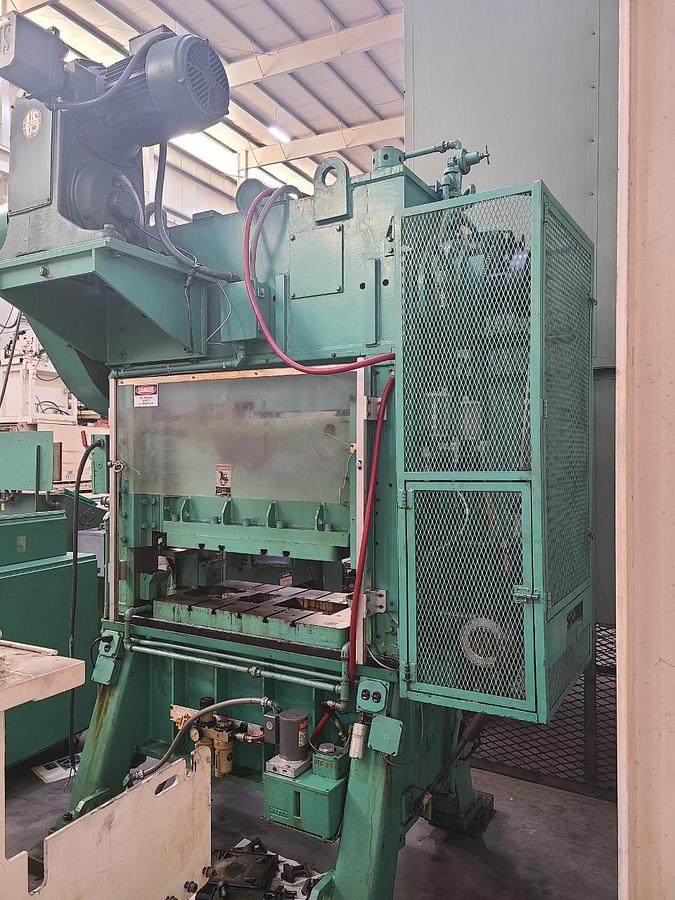

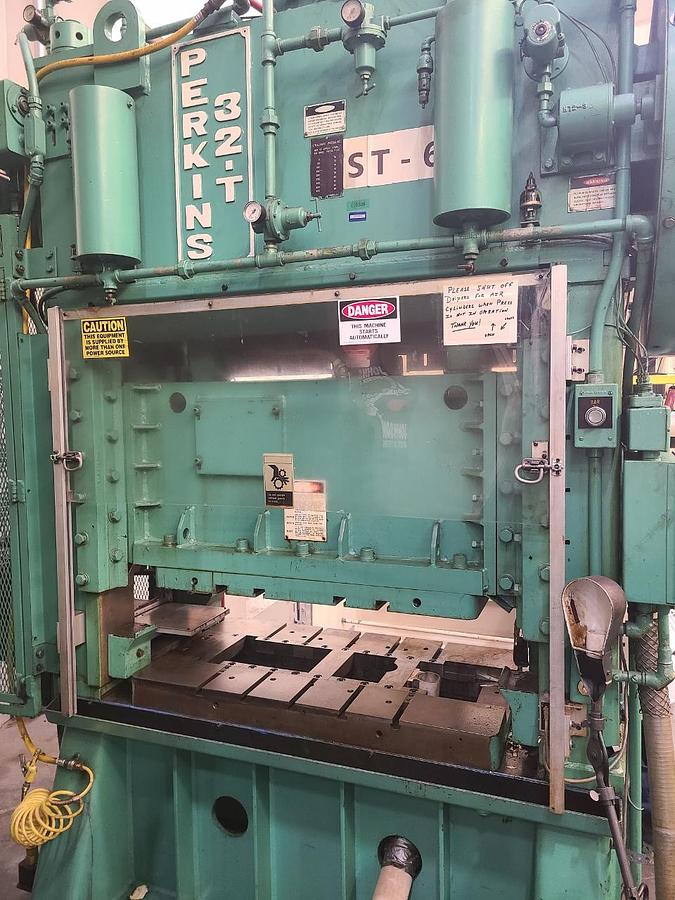

32 TON PERKINS STRAIGHT SIDE SINGLE CRANK PRESS

32 TON PERKINS STRAIGHT SIDE SINGLE CRANK PRESS

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $14,500.00

HMC Stock # 24137

Machine Serial No.:  41951

Machine Model No.:  32-T

Ram Stroke:  2-1/2"

Bed Size:  20" x 36"

Shut Height:  9-1/4"

Ram Adjustment:  3"

Air Clutch

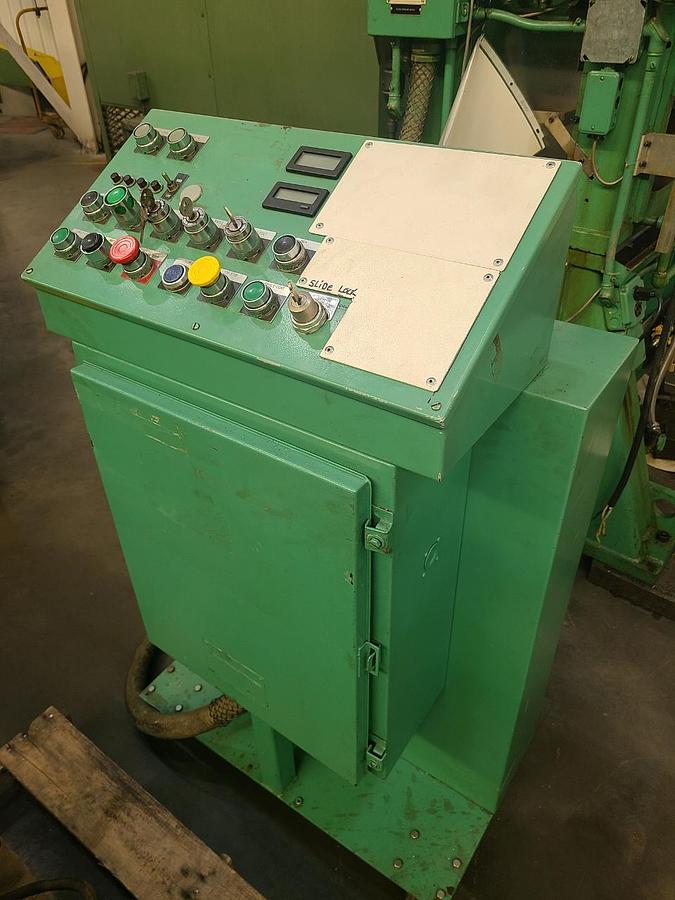

Remote Operators Station

Forced Central Lubrication System

36" x 20" x 3" Bolster Plate

33" x 17-1/2" Ram Bolster Plate

Replaceable and Adjustable Ram Way Gibbing

Motorized Ram Adjustment

Variable Speed Drive: (SPM is Not Currently Known)

10" Windows

Adjustable Air Counter Balance to Ram

Work Area Guarding

Control Cycles:  Inch-Single-Continuous and Run-Bar

No Foot Pedal or Palm Buttons

Air Brake

Dual Air Surge Tanks

Clutch is on the Left Side of Press

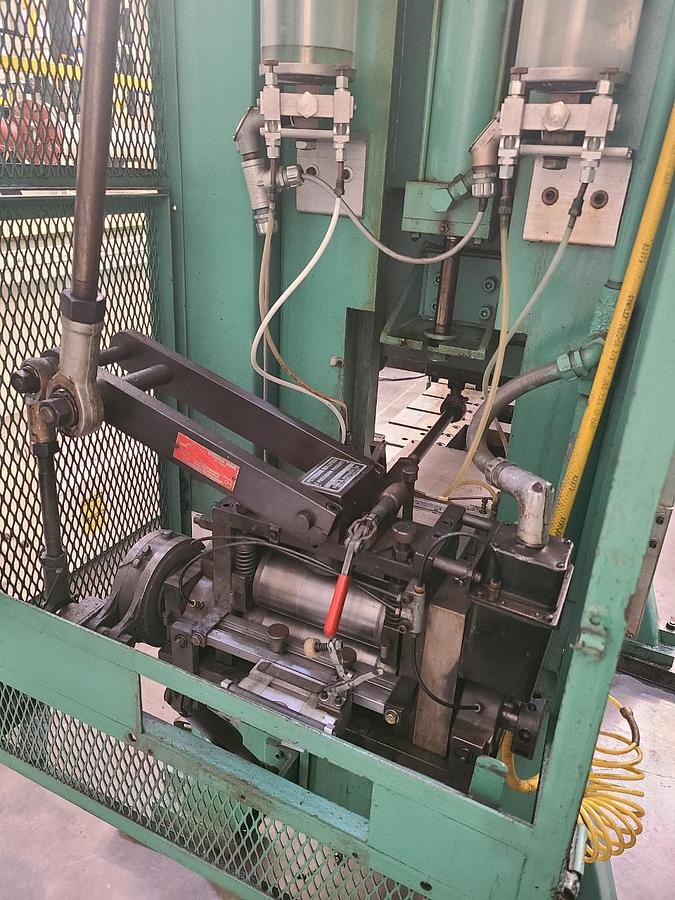

Peterson Shaft Driven Roll Feed

Serial Number:  CWPJ 5509

Model:  DDR63HS

6" Capacity

Mounted On Left Side

Wired for 3 Phase, 60 Cycle, 230/460 Volts

Overall Size for Shipping:  93" L-R x 58" F-B x 120" H x 12,100 Lbs.

Control:  30" LR x 24" FB x 51" High
