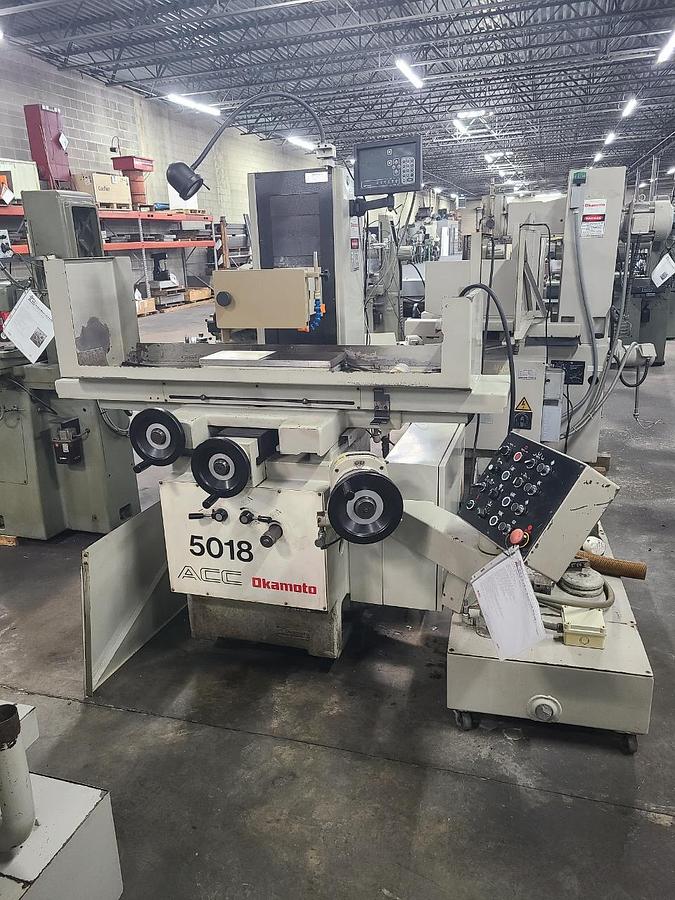

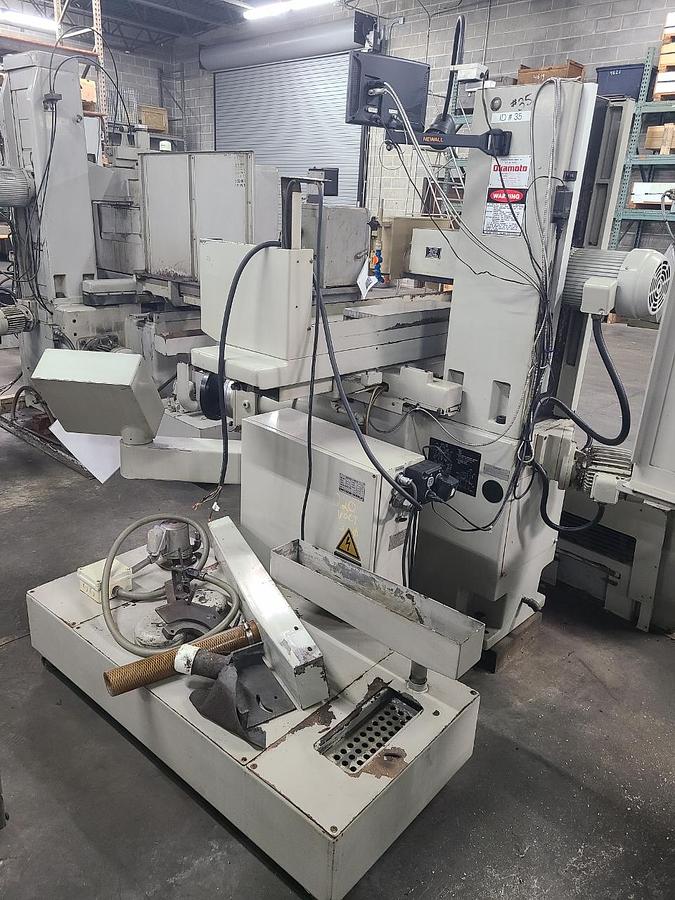

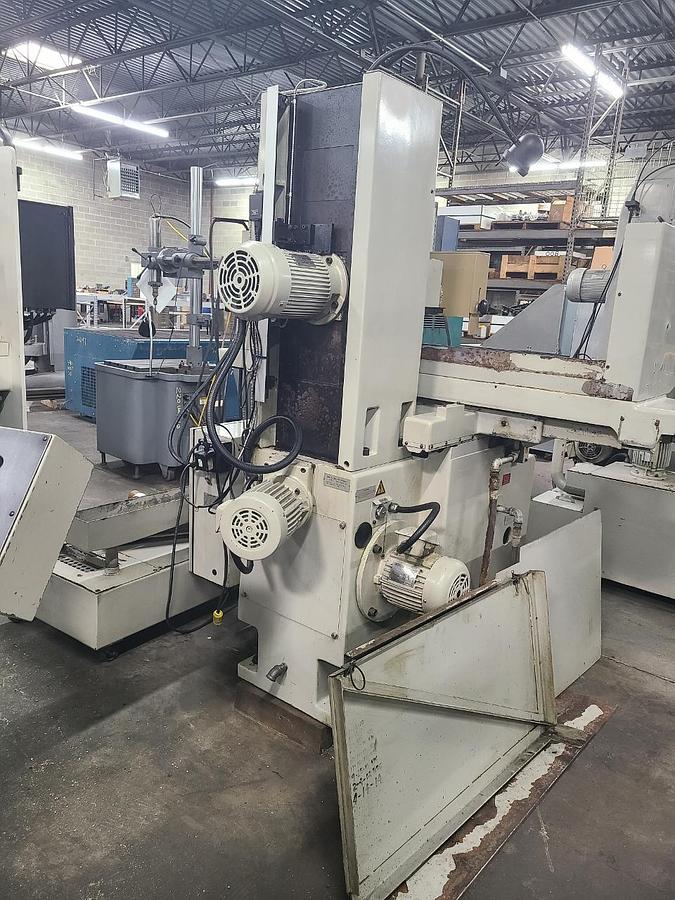

8" X 20" OKAMOTO SURFACE GRINDER

8" X 20" OKAMOTO SURFACE GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00

HMC Stock # 24050-P

Machine Serial No.: 82089

Machine Model No.: ACC-820-ST

New Date: Unknown

Nominal Grinding Capacity: 8" x 20"

Maximum Height Under 8" Wheel: 15.6"

Table Speed, Infinitely Variable: Up to 82 FPM

Maximum Longitudinal Table Movement, Manual: 24"

Auto Cross Feed Increment: 0.002" to 40"

Auto Continuous Cross Feed: 4 to 40 FPM

Cross Feed, Manual, Hand Feed Per Rev.: 0.25"

Graduations of Handwheel: .001"

Maximum Cross Feed, Manual: 9"

Power Rapid Wheel Positioning Rate: 16 IPM

Wheel Size: 8" Dia. x 1" W x 1.25" B

EQUIPPED WITH:

3-Axis Hydraulic Feed

Hydraulic Incremental Down feed

Spark Out Passes (0 to 5)

Power Rapid Wheel Positioning

Hydraulic Table Traverse & Automatic Cross Feed

Variable Hold Neutrofier with Auto Demagnetizing is Installed on

  Machine Control Console

8" x 20" Electro-Magnetic Chuck

2-Axis Newall Digital Read Out

Coolant System (Pan and Pump) NOT a Filter Type System

Missing Wheel Guard

2 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220/440 Volts

Overall Size:

Machine: 72" LR x 52" FB x 72" High

Coolant Pan: 52" LR x 24" FB x 24" High
