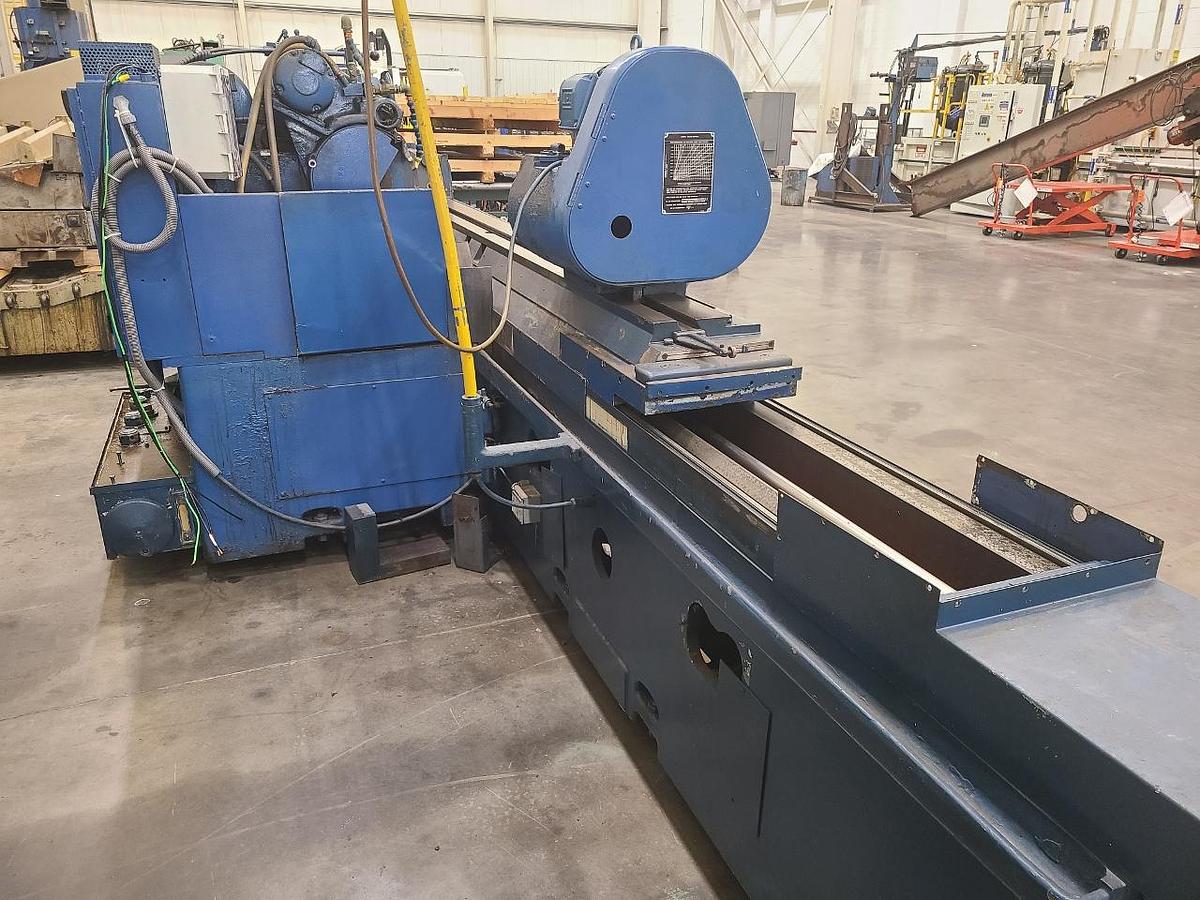

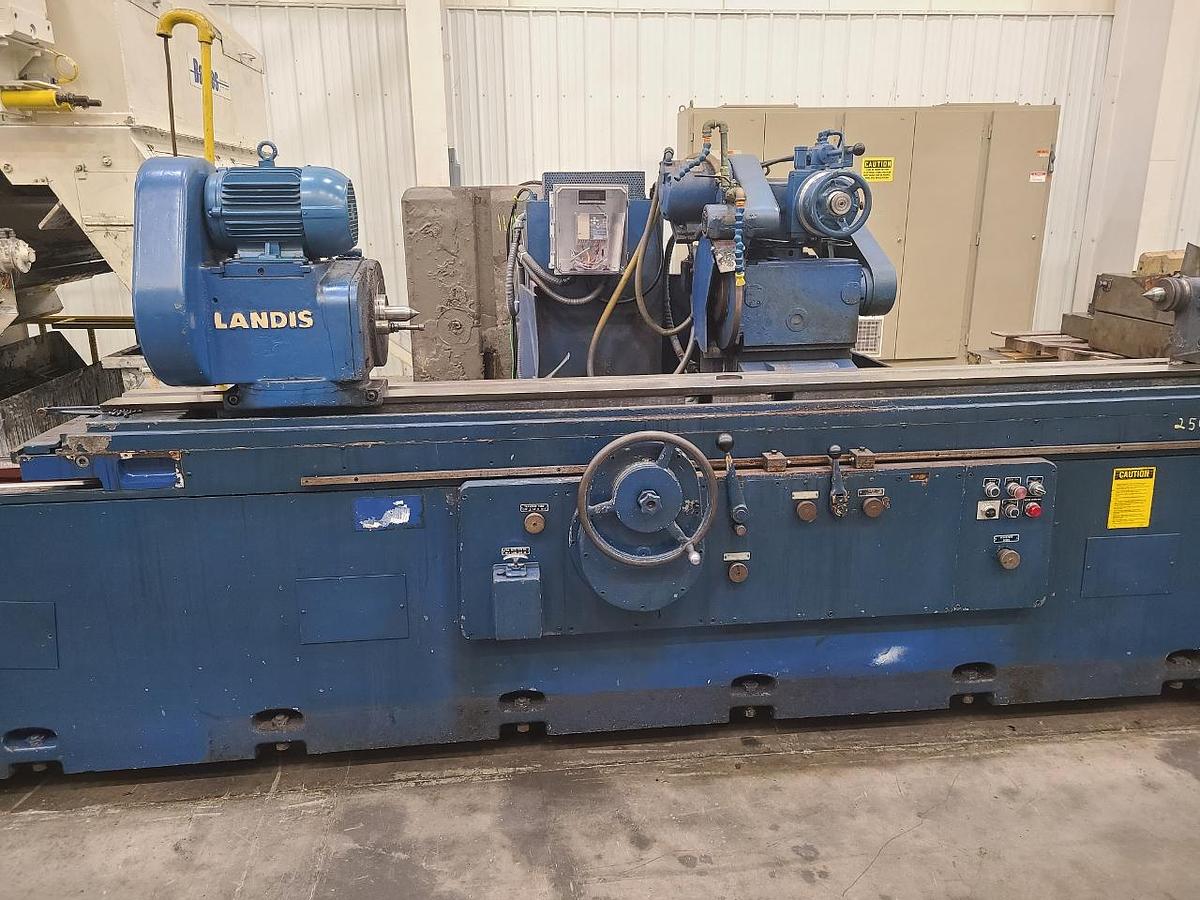

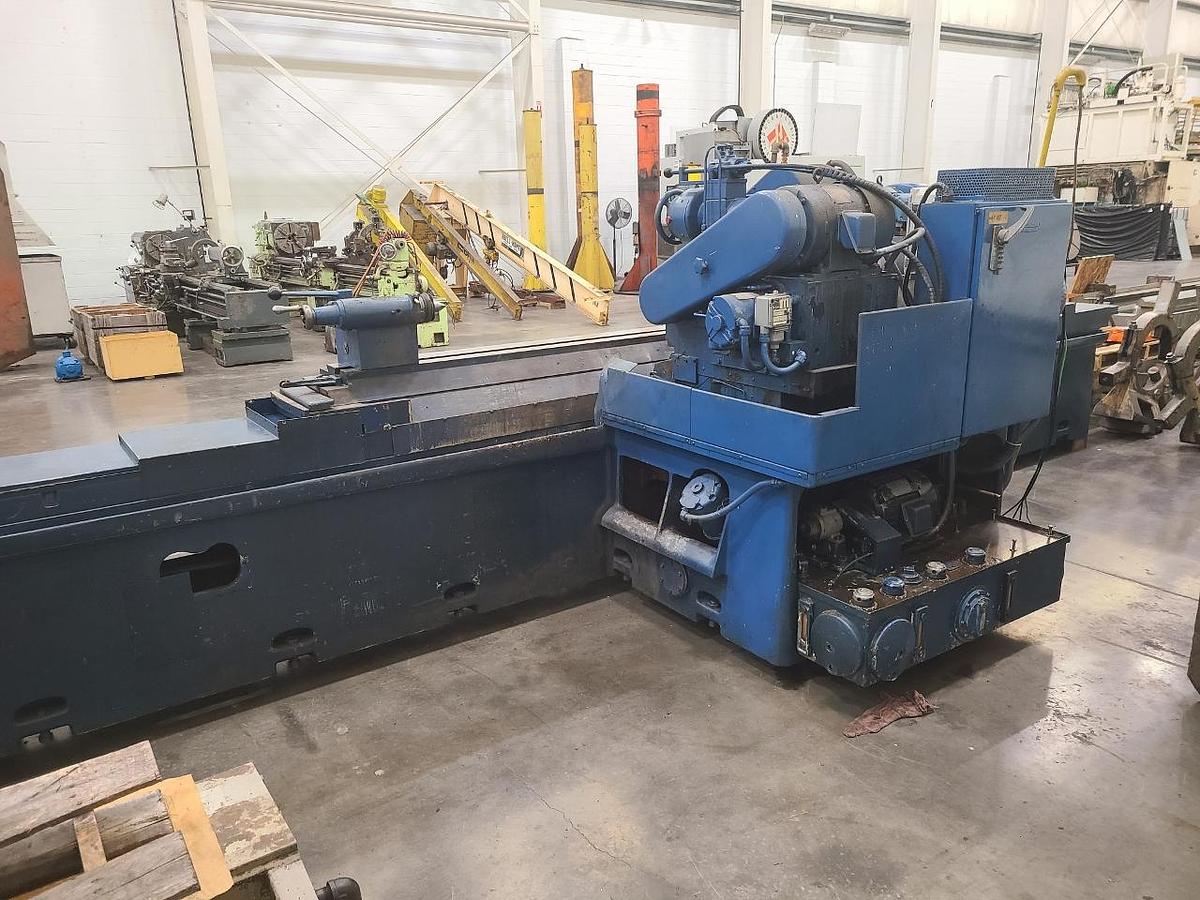

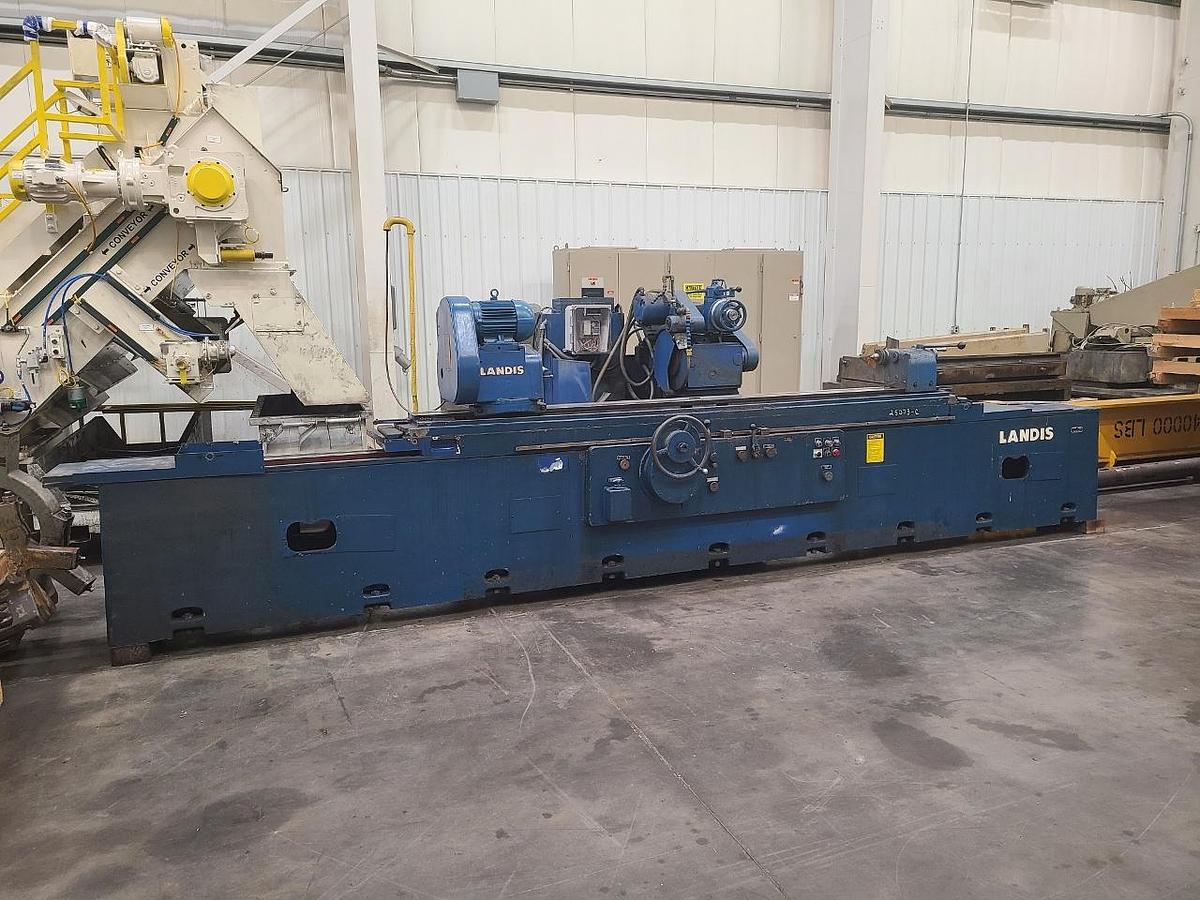

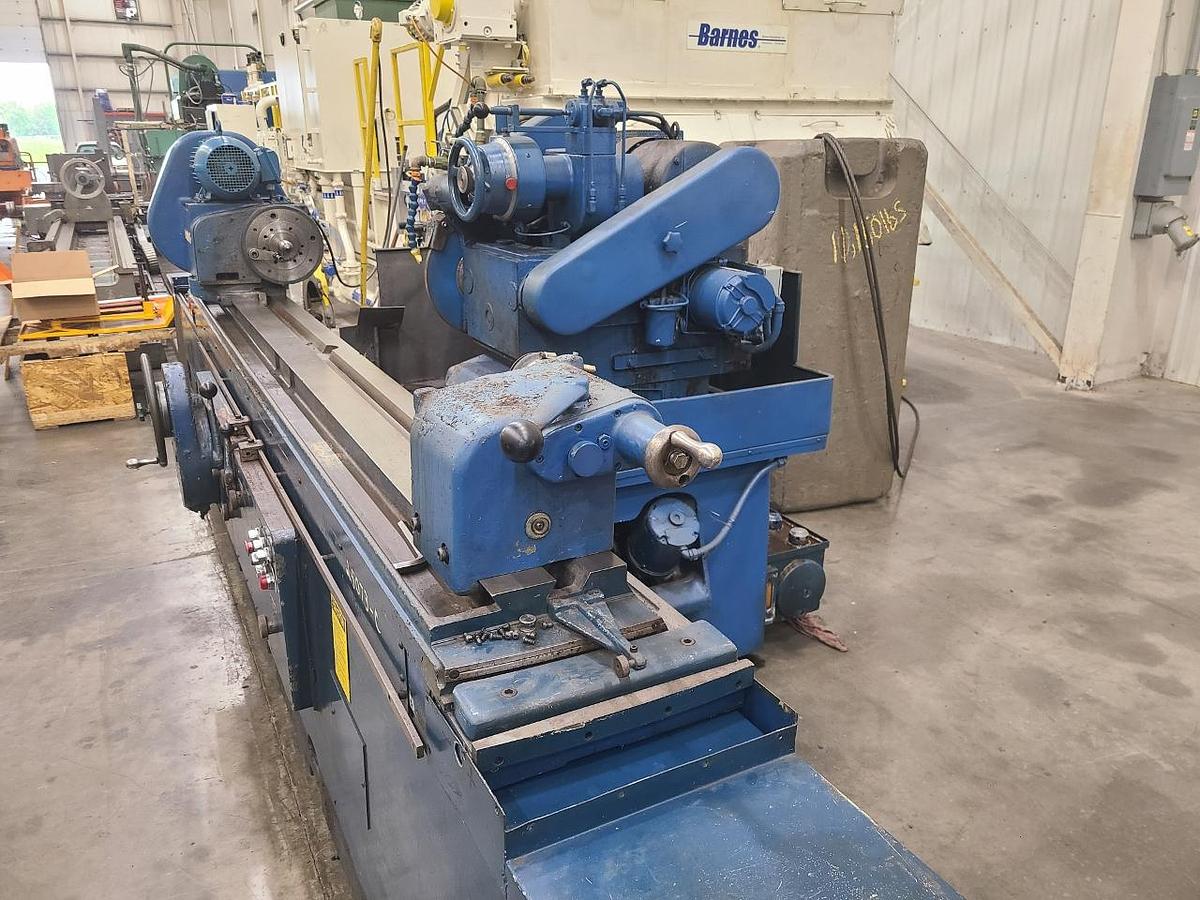

14" X 96" LANDIS UNIVERSAL CYLINDRICAL GRINDER

14" X 96" LANDIS UNIVERSAL CYLINDRICAL GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $ POR

HMC Stock # 25073-C

Serial # 796-54

Model: 3RH

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

Swing: 14" Catalog Spec (Machine Can Swing Up to 17" Based on Measurement)

Center Distance: 96"

Max. Diameter with Full Size Standard Wheel: 14-31/32"

Min. Diameter Wheel to Grind Zero Diameter Work on Centers: 9-1/4"

Traverse Speed: 2 to 240 IPM

Traverse Per Turn of Handwheel:

  Slow: .100"

  Fast: .750"

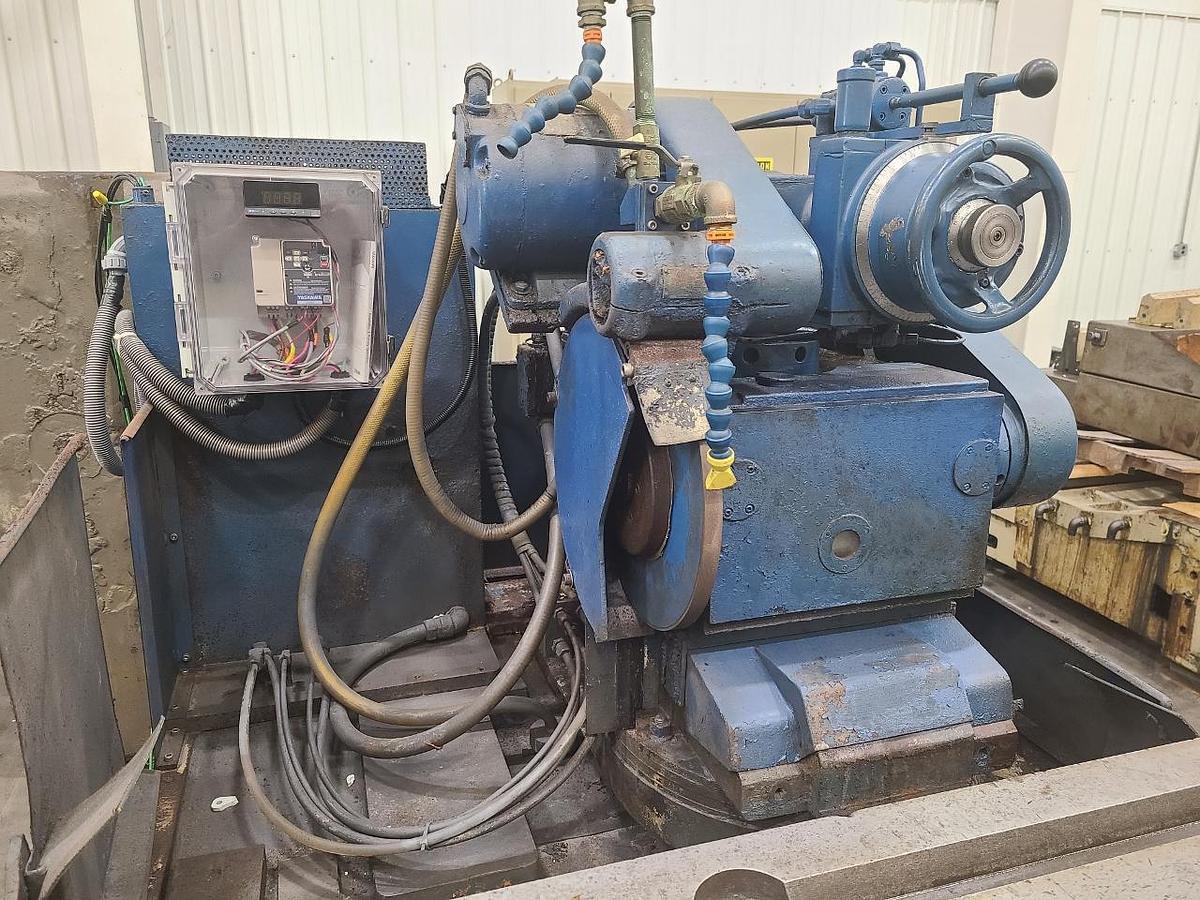

WHEELHEAD AND WHEELFEED:

Standard Wheel Size: 14" x 1-1/2" x 5"

Grinding Wheelhead Swivel Range:

  Upper: 180 Degrees

  Lower: 60 Degrees CW to 30 Degrees CCW

Automatic Infeed at Table Reversal (On Diameter): .0003" to .004"

Max. Distance Wheel Centerline to Work Centerline: 17"

Min. Distance Wheel Centerline to Work Centerline: 3"

Work Diameter Reduction Per Revolution of Handwheel: .100"

Work Diameter Reduction Per Revolution of Fine Feed Knob: .005"

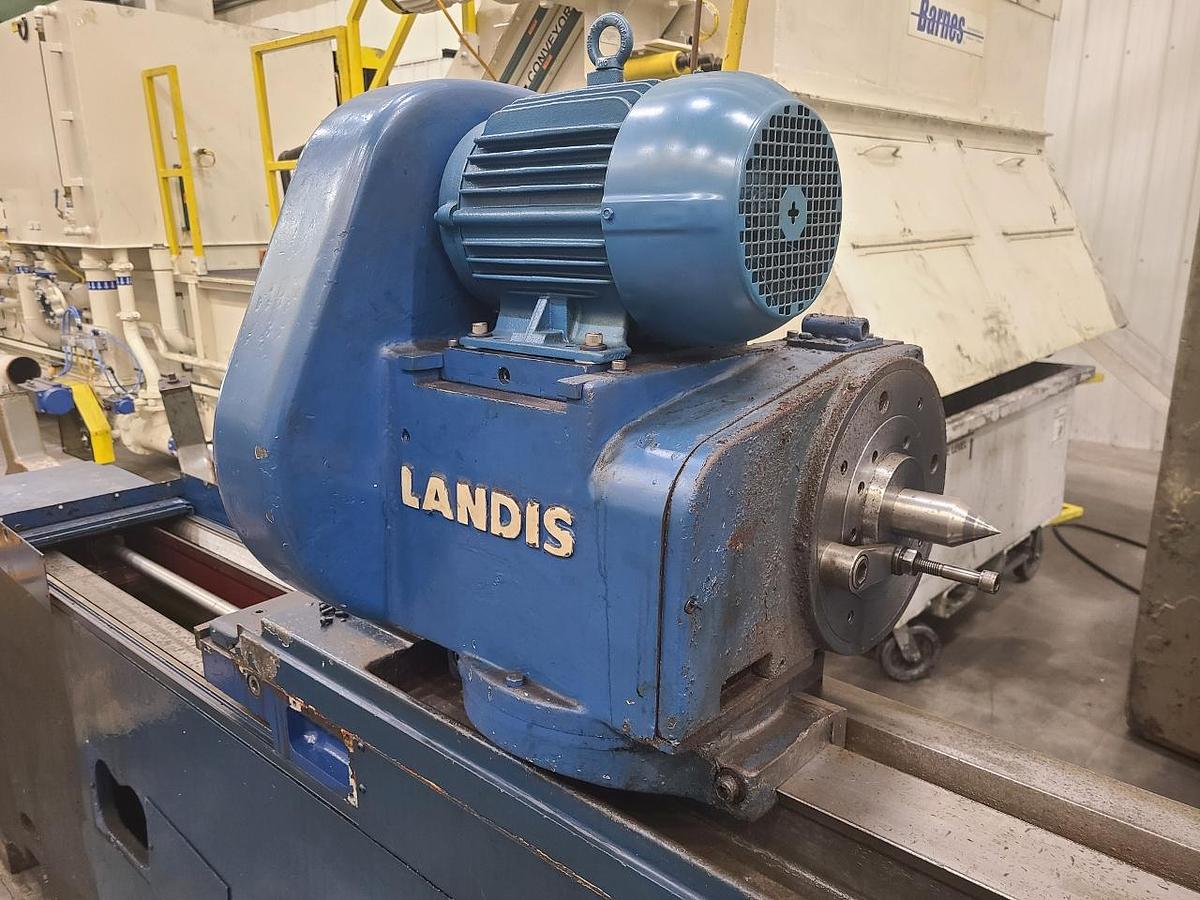

Headstock Work Center: #14 Jarno

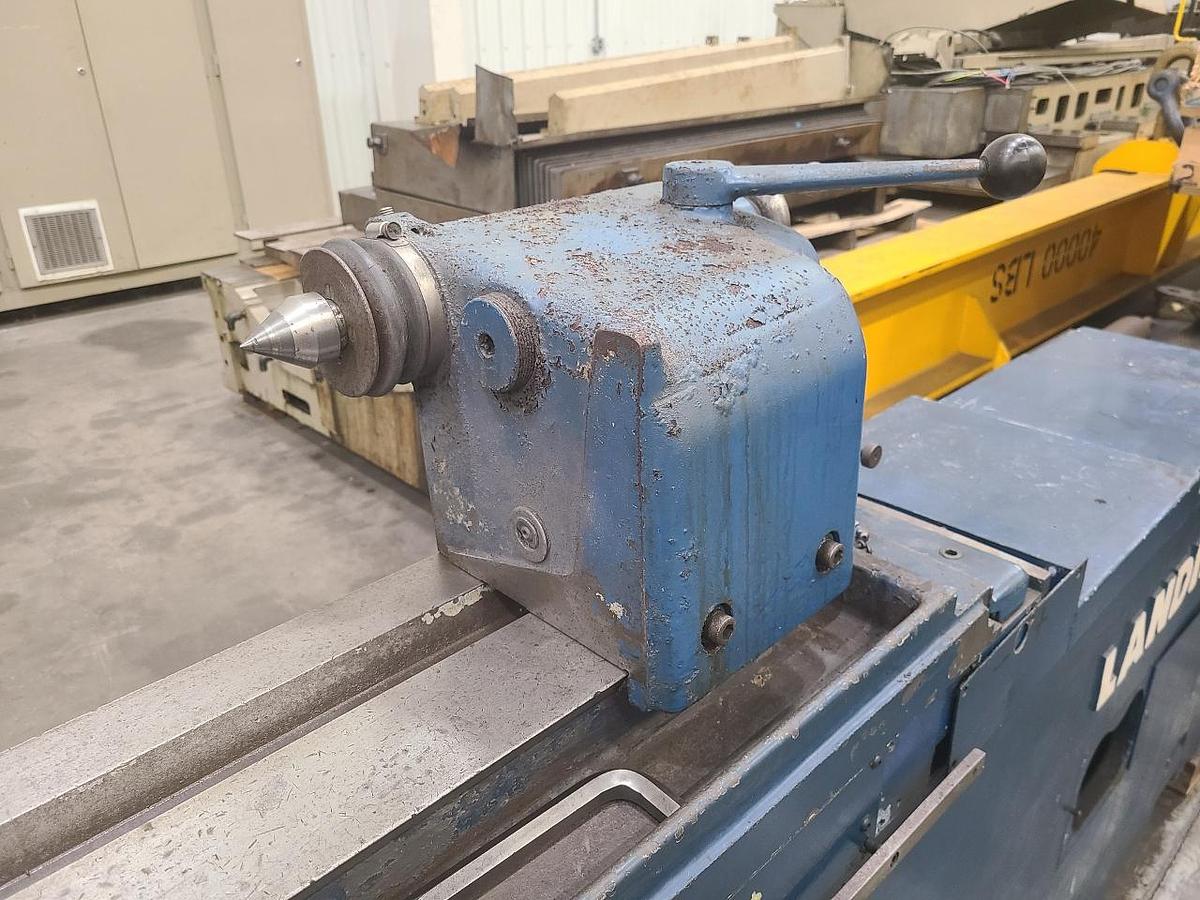

Tailstock Work Center: #10 Jarno

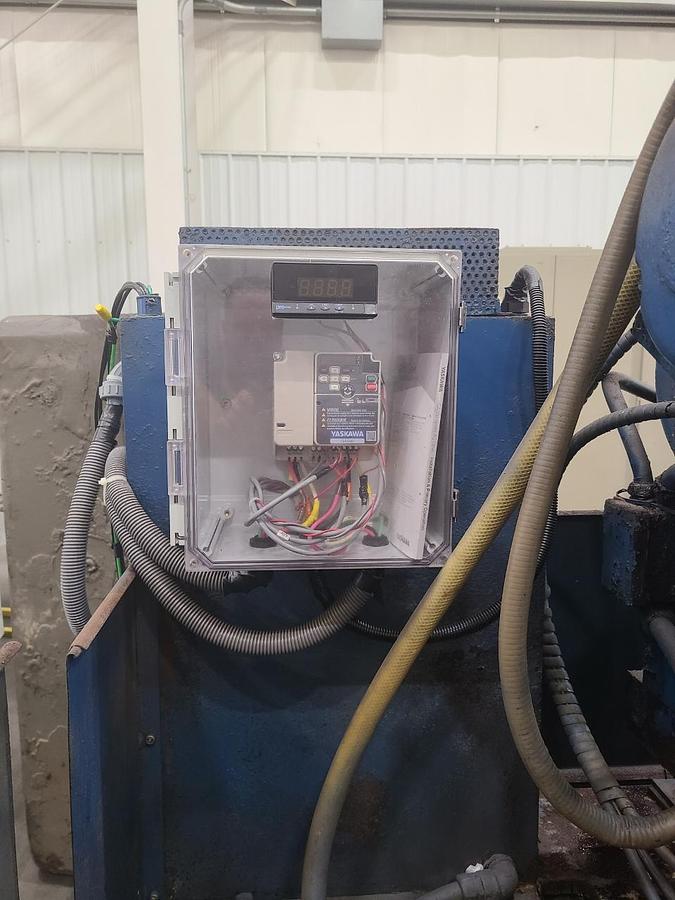

Headstock Work Speeds, Infinitely Variable Via VFD Drive (Exact Speed Range Not Known)

Diameter of Hole Through Headstock: 1-7/16"

Headstock Spindle Nose: 6A-2

Headstock Swivel Range: 120 Degrees

Swivel Table Graduated (Inches Per Foot): 4-3/4"

Swivel Table Graduated (Degrees Included Angle): 23 Degrees

EQUIPPED WITH:

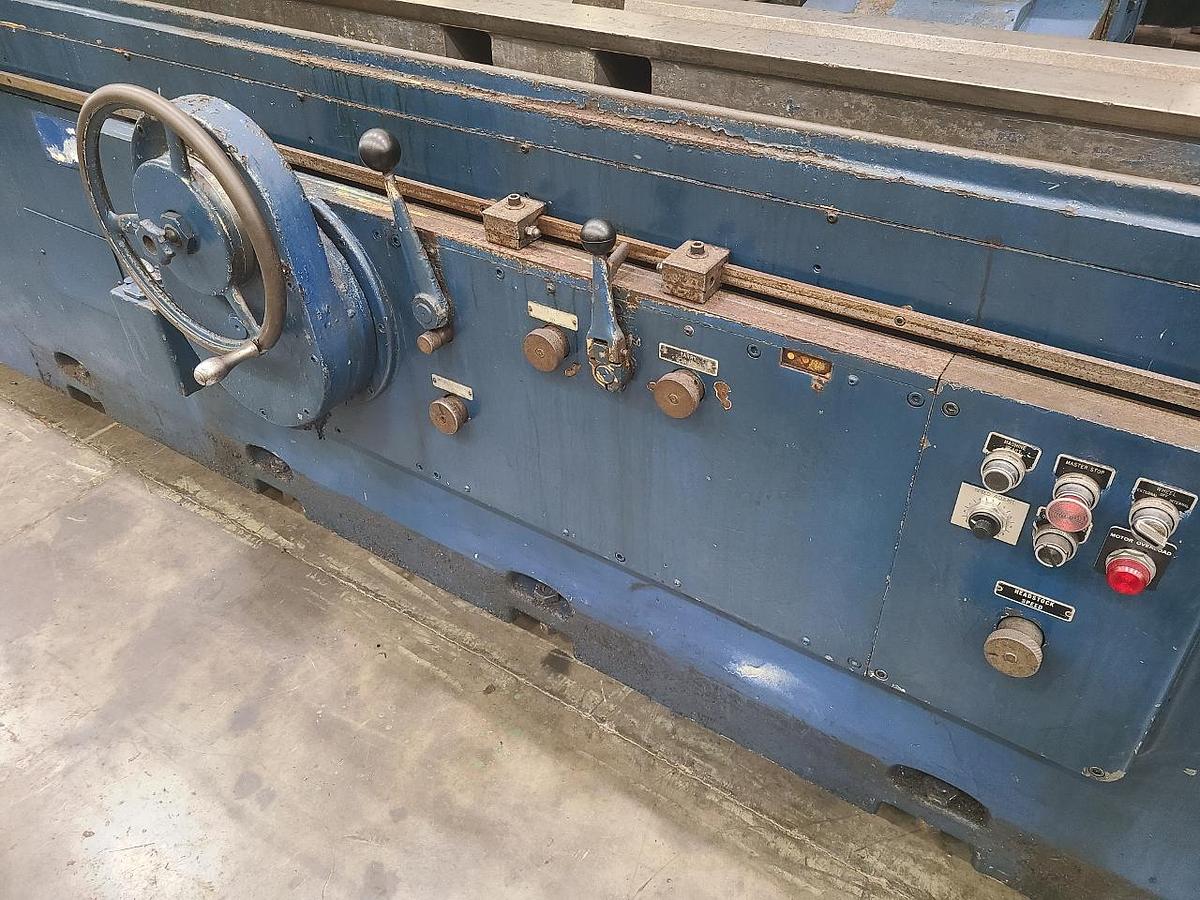

Traverse Feed Selector

Wheelhead Ways Lubrication Pump

Left/Right Tarry

Traverse Rate Knob

Headstock Speed Knob

Grinding Wheel Hubs

Flood Coolant Built Into Base of the Machine

5 HP Grinding Wheel Motor

Coolant Pump in Base

Machine Wired for 3 Phase, 60 Cycle, 440 Volts

DIMENSIONS:

Overall Size Machine: 240" L-R x 84" F-B x 72" H
