HWA CHEON 2-AXIS LATHE

HWA CHEON 2-AXIS LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …….……. $14,500.00

Stock # 26029-P

Serial # M058348J4KB

Model: Hi-ECO21HSBB

Year: 2000

CAPACITY:

Swing Over Bed: 23.6"

Maximum Turning Diameter: 11"

Standard Turning Diameter: 8.3"

Maximum Turning Length: 15.7"

Chuck Size: 8"

SPINDLE:

Spindle Speeds: 40-4,000 RPM

Spindle Nose: A2-6

Spindle Bearing Inner Diameter: 3.9"

Spindle Through Hole: 3"

Standard Bar Diameter: 2.6"

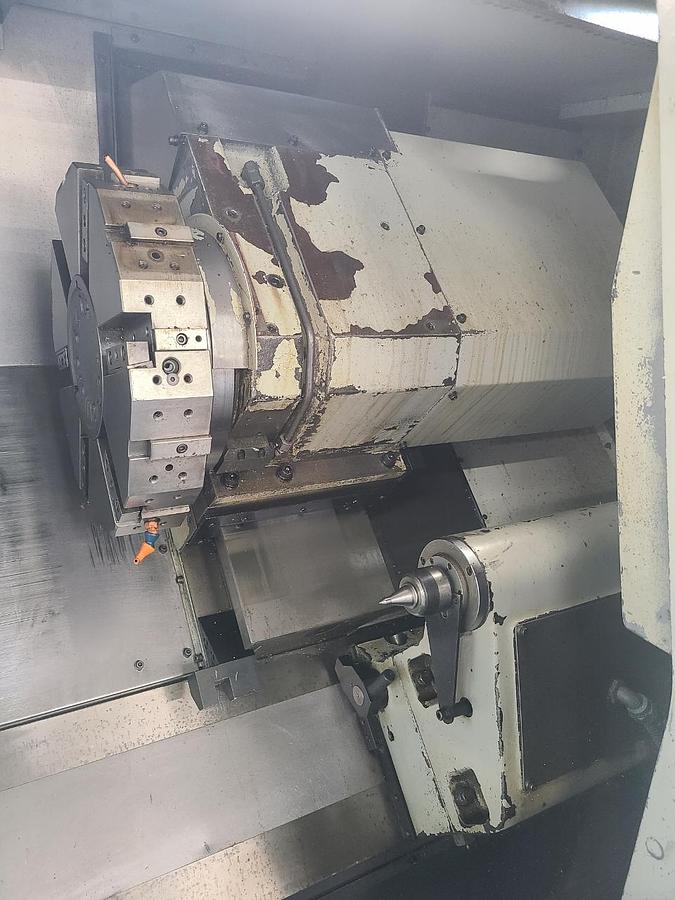

TURRET:

Number of Turrets: 1

Number of Tool Positions: 12

Standard Tool Size: 1"

Boring Bar Size: 1.3"

FEEDRATES:

Rapid X & Z: 1,181 IPM

Jog X & Z: 50 IPM

Traverse X: 6.6"

Traverse Z: 17.3"

TAILSTOCK:

Quill Diameter: 3.1"

Quill Stroke: 3.9"

Quill Taper: #3 MT

EQUIPPED WITH:

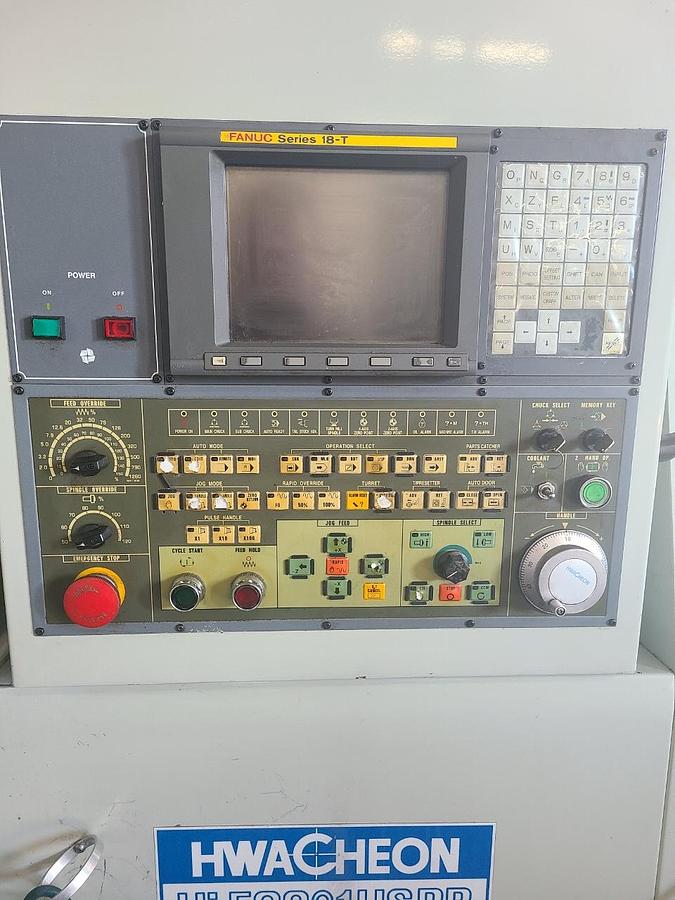

Fanuc 18-T Control

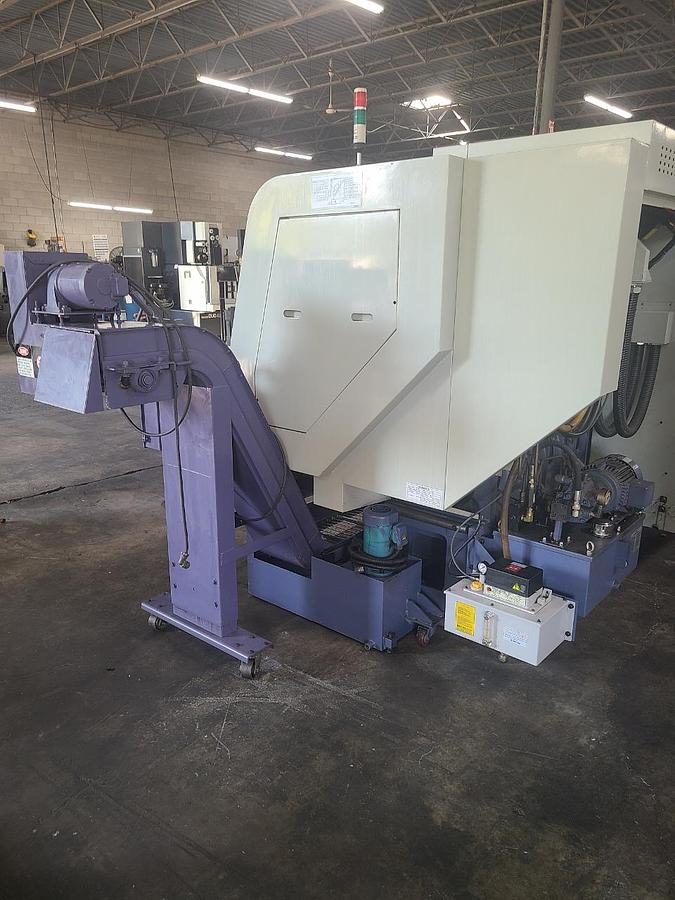

Chip Conveyor

Collet Chuck

Tailstock

Box Way Construction

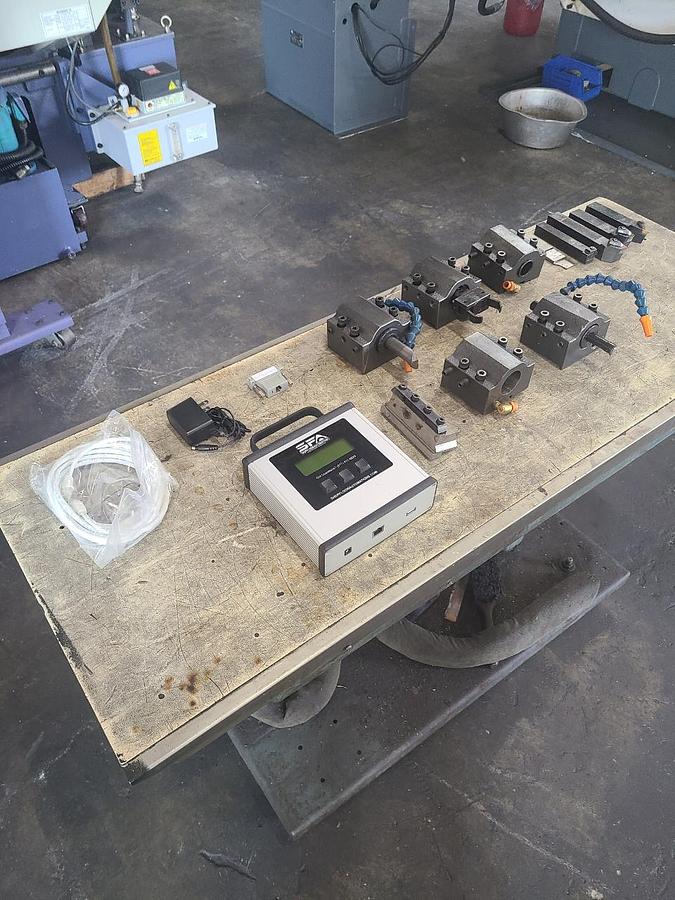

Assorted Tool Holders

Manuals

RS 232C

Wired For 3 Phase 60 Cycle, 220 Volts

Machine Size: 102" L-R x 65" F-B x 91" H

Chip Conveyor: 102" L-R x 68" F-B x 63" H
