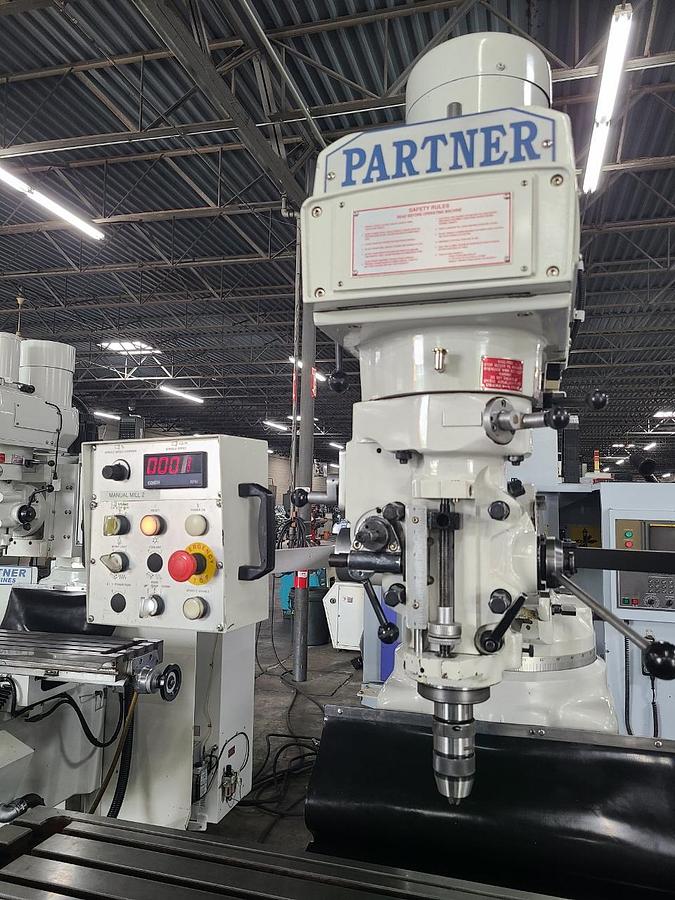

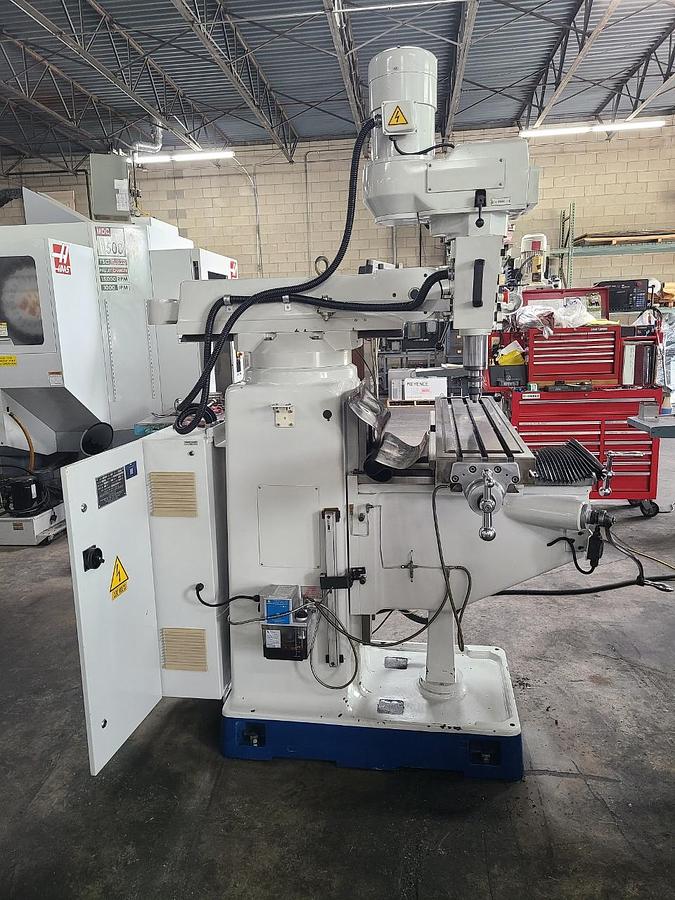

MILLTRONICS VERTICAL MILL

MILLTRONICS VERTICAL MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $14,500.00

Stock # 26018

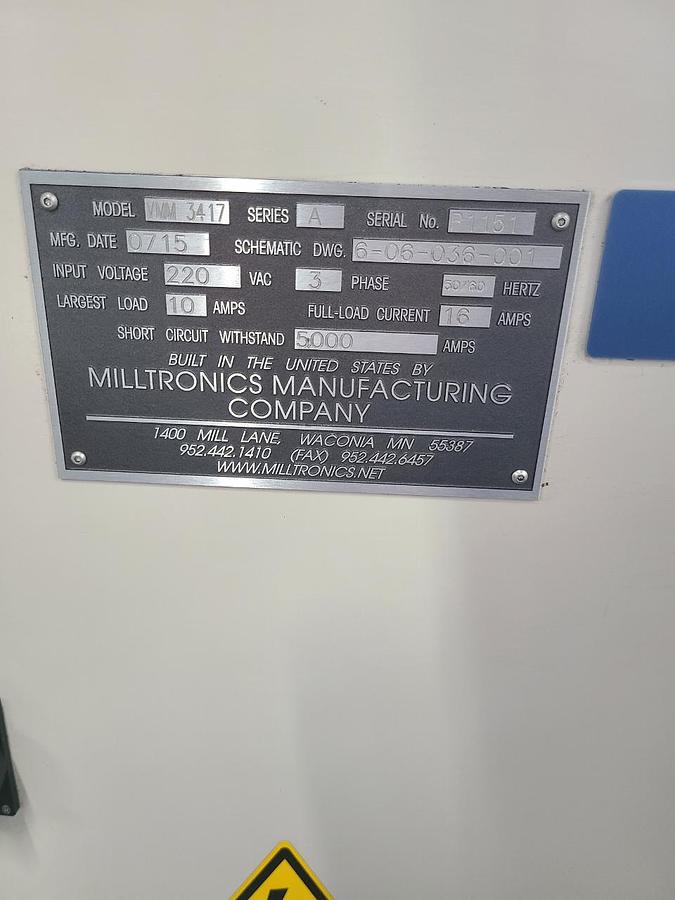

Serial # P1151

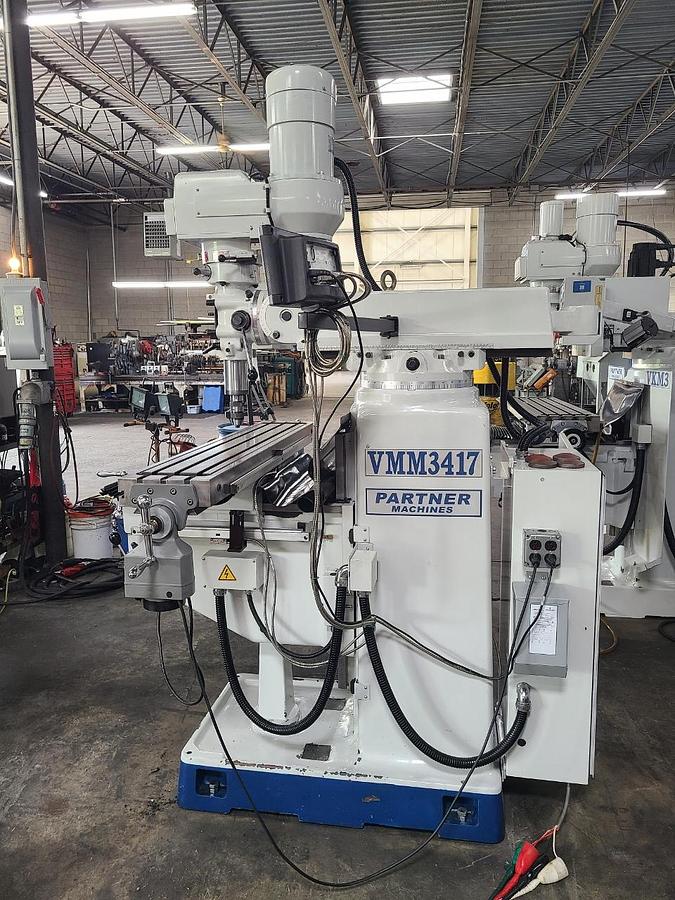

Model: VMM3417

Year: 2015

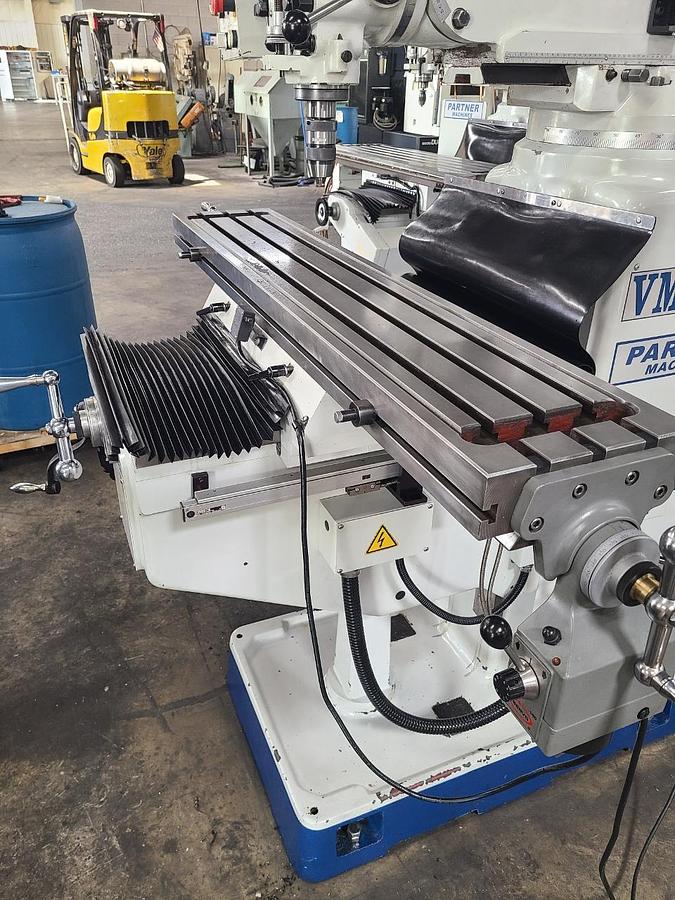

Table Size: 10″ X 54″

Table Travel - Longitudinal (Dovetail Way): 40″

Saddle Travel - Cross (Box Way): 15″

Knee Travel - Vertical (Box Way): 16″

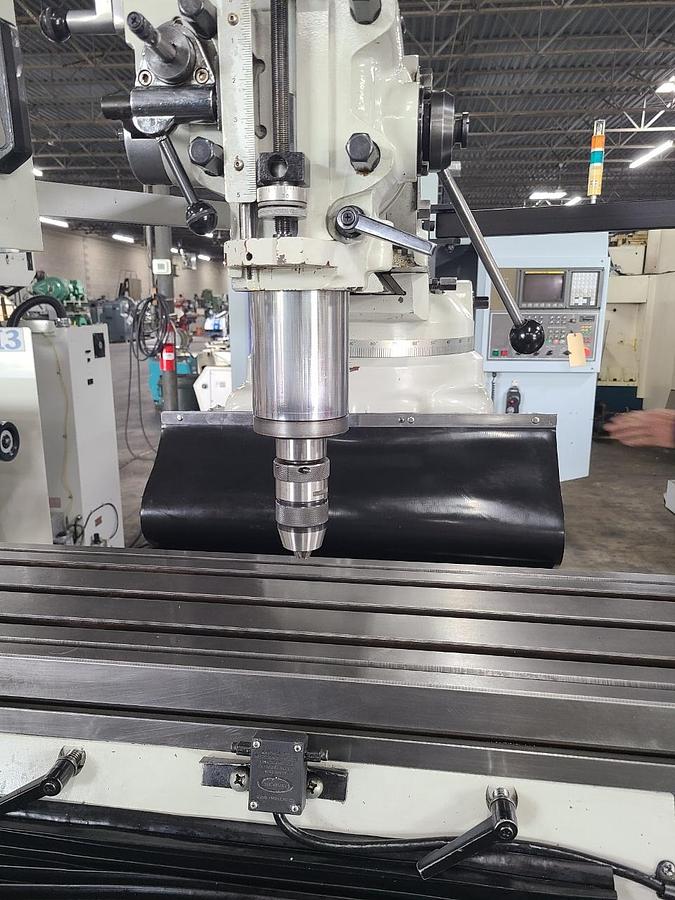

Quill Diameter: 3-1/2″

Quill Travel: 5″

Ram Travel: 22″

Spindle Taper: R8

Quill Power Feed Rate: 0.0017″, 0.0033″, 0.0054″

Spindle Speeds (Infinitely Variable): Maximum 3750 RPM

Tilt Angle (Forward & Backward): +/- 45 Degrees

Tilt Angle (Left & Right): +/- 90 Degrees

EQUIPPED WITH:

Servo Power Feed on X-Axis

Powered Knee Up/Down

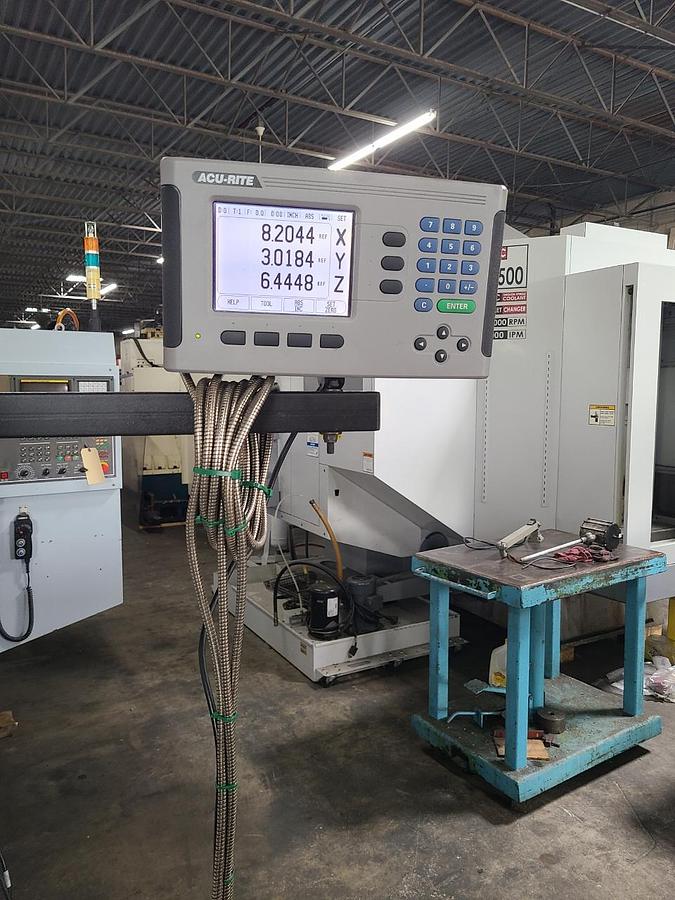

3-Axis Acu-Rite Digital Read Out

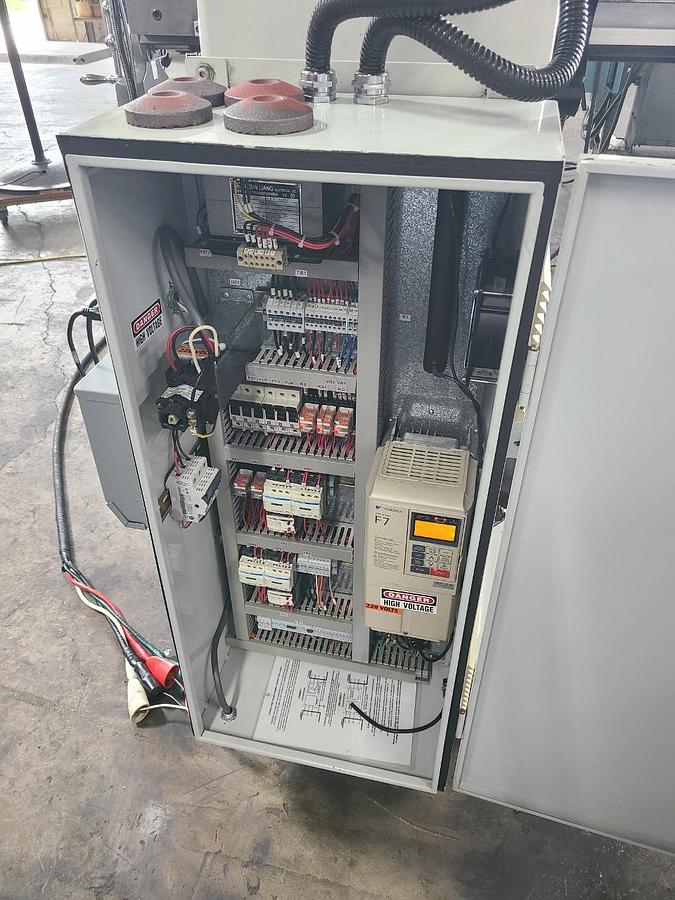

Variable Frequency Spindle Drive Controller

Digital Spindle Speed Tachometer

Automatic Lubrication

Coolant Style Base

Spindle Motor (Inverter Drive): 3 HP

Wired for 3 Phase, 60 Cycle, 220 Volts

Dimensions: 72″ L-R x 76″F-B x 96″H

Approx. Weight: 3,500 Lbs.
