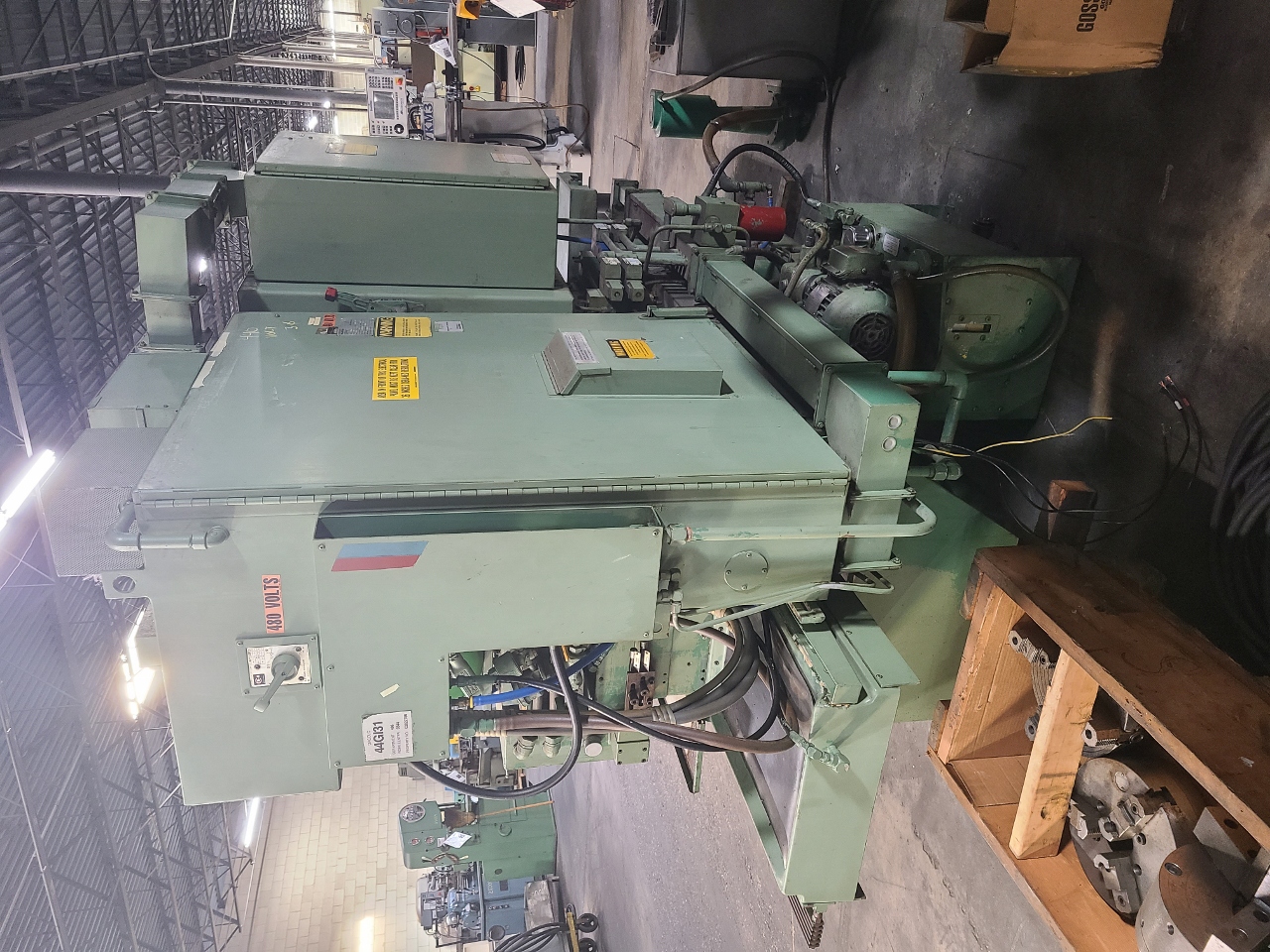

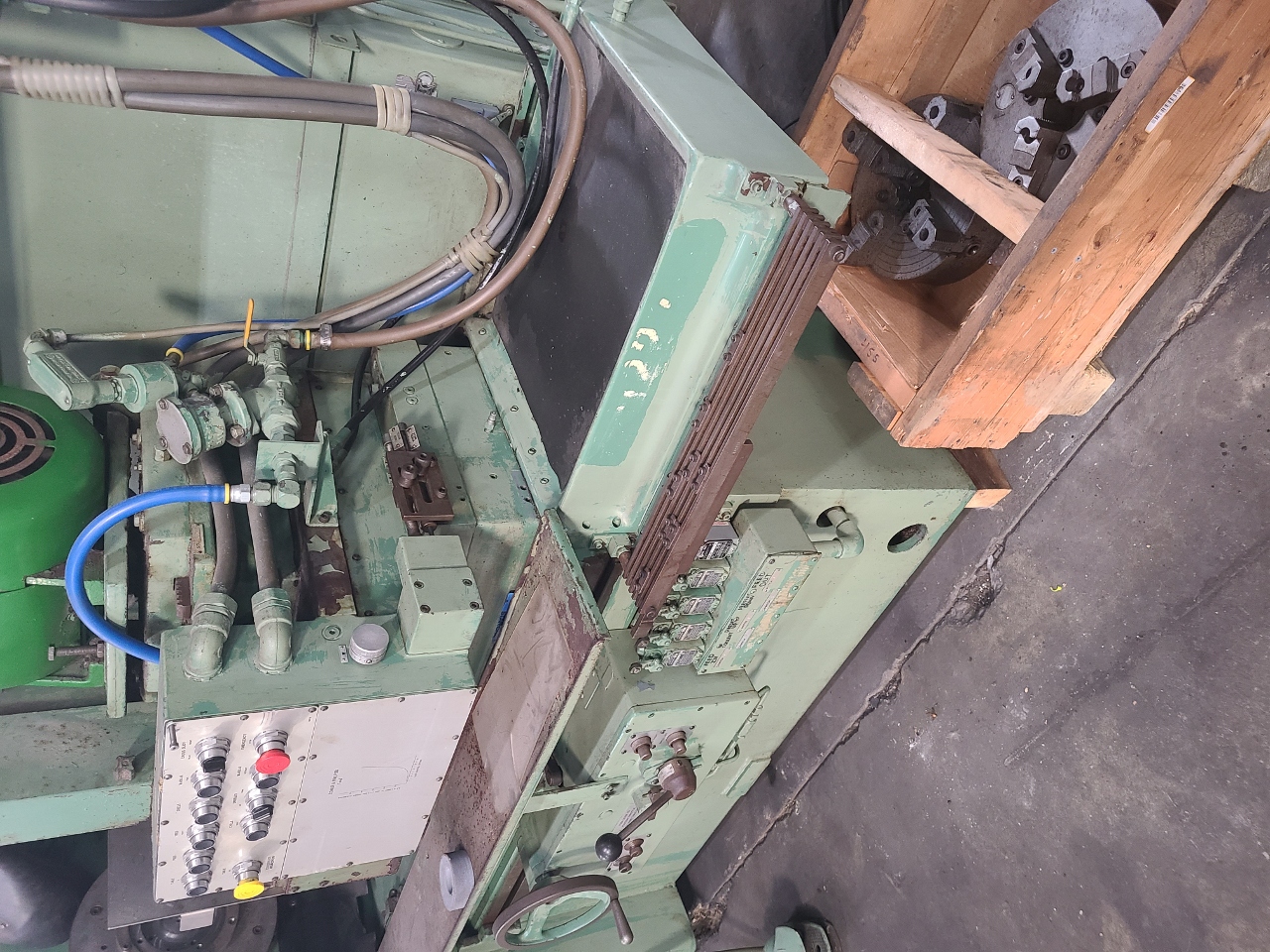

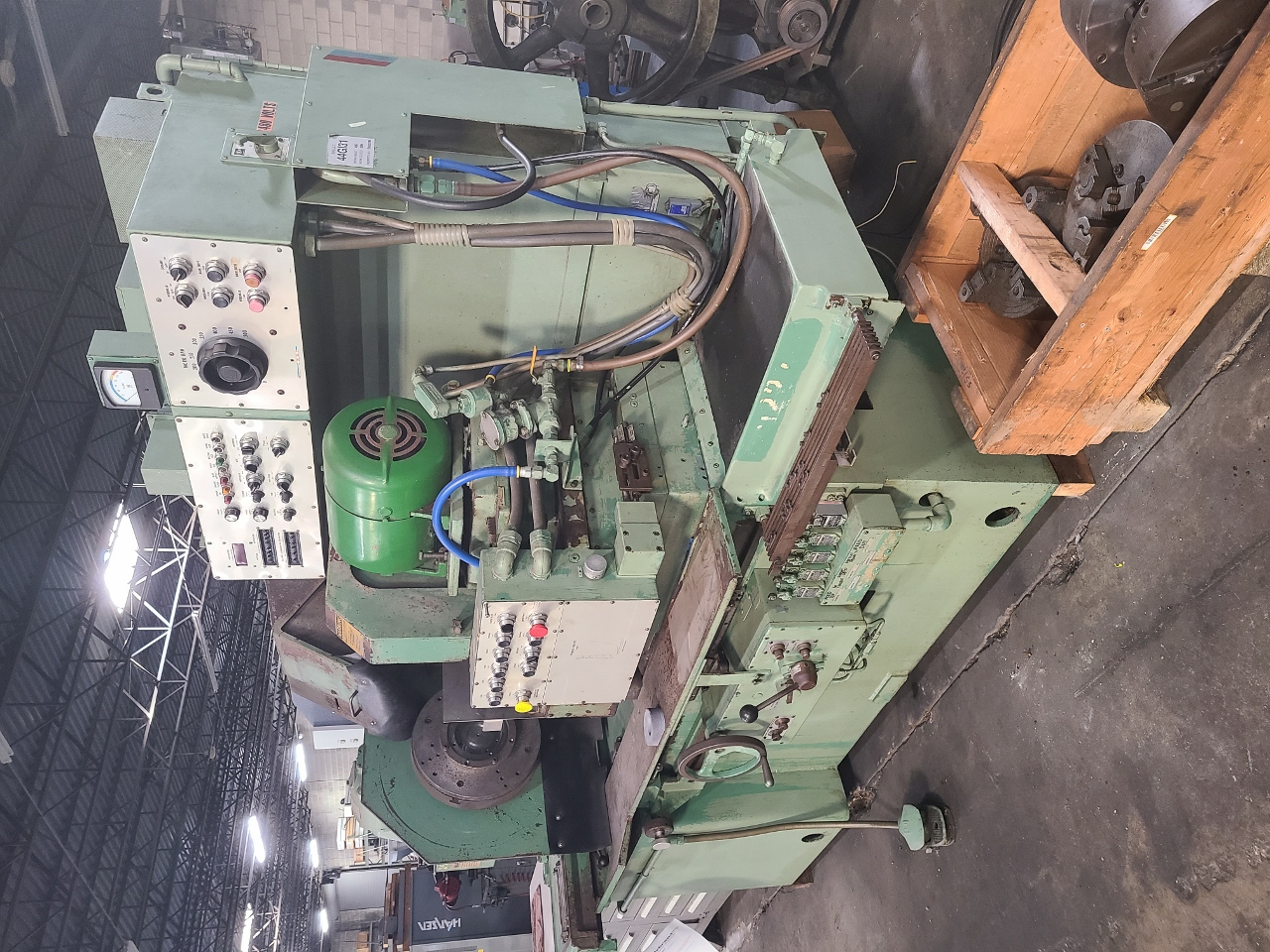

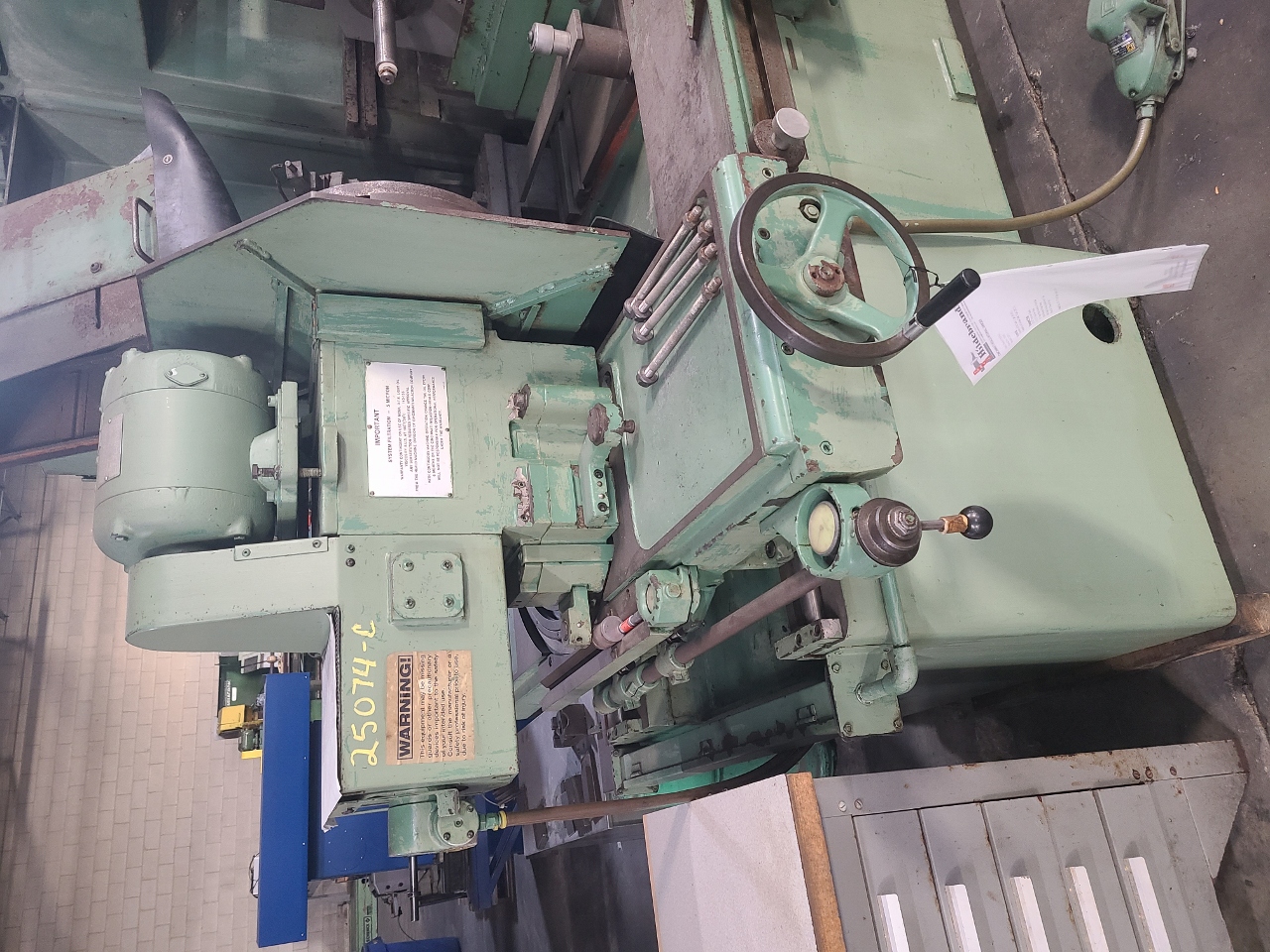

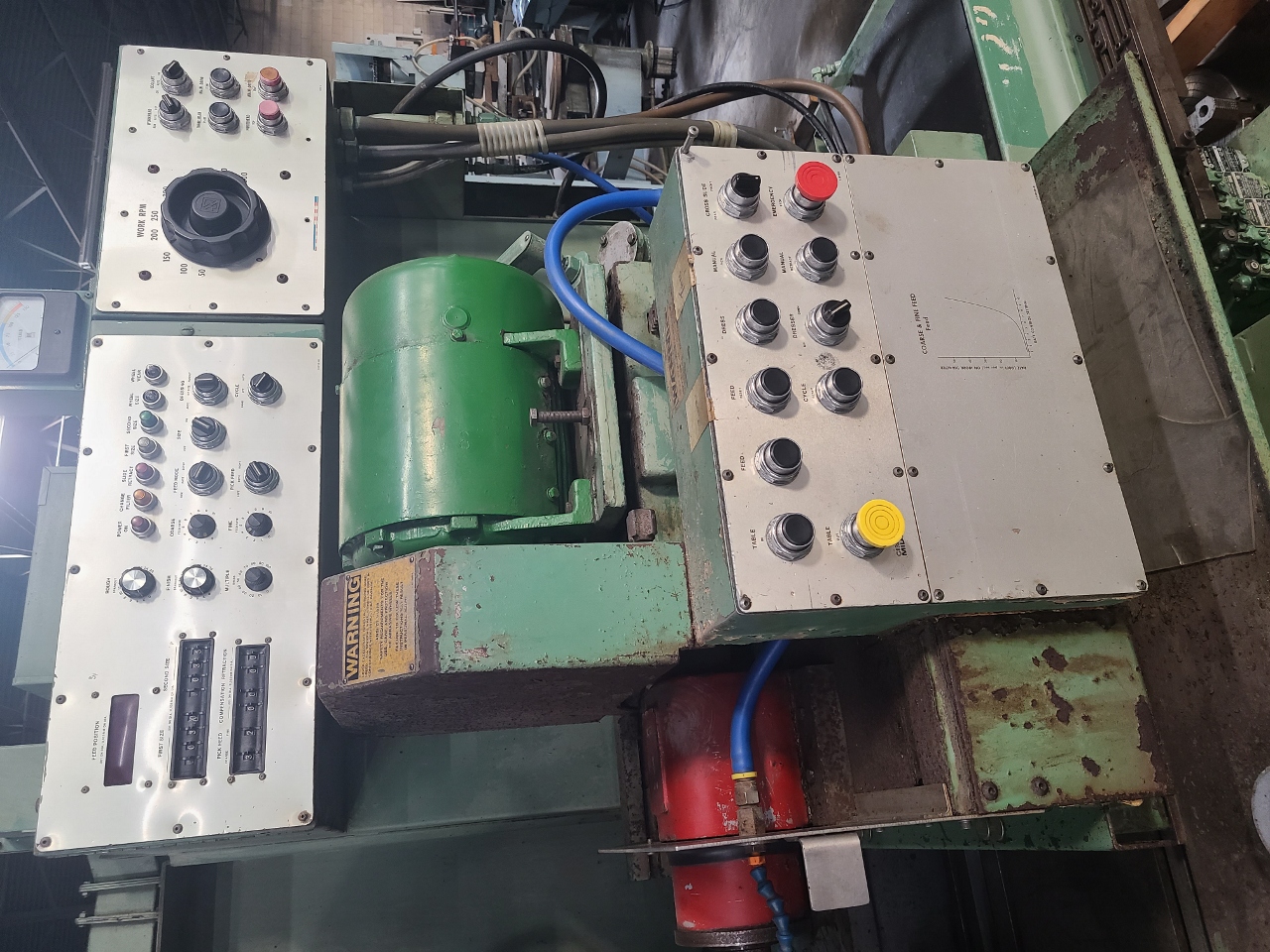

CINCINNATI HEALD INTERNAL GRINDER

CINCINNATI HEALD INTERNAL GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $24,500.00 AS IS

HMC Stock # 25074-C

Serial No.: 50302

Model: 2EF73

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

Capacities:

Maximum Swing Over Table Extension: 23-1/2" (597 mm) - (Work-Head Parallel to Table Without Chuck Guard, Permits No Workslide Travel, Limited Table Travel)

Swing, Workhead Swiveled 90°: 13" (330 mm)

Swing Inside Standard Chuck Guard: 20" (508 mm)

Angular Adjustment of Workhead: 90°

Workhead Positioning Slide Travel: 17-1/2" (445 mm)

Maximum Table Travel: 20" (508 mm)

Grinding Traverse Stroke: 3/16" - 16" (4.76 - 406 mm)

Wheelhead Cross Slide Travel: 1-1/2" (38.1 mm)

Center of Workhead Spindle to Floor: 43-1/2" (1105 mm)

Distance Workhead Flange to Edge of Wheelslide: 0 - 25-3/4" (0 - 654 mm)

Automatic Wheel Feed - Diametric: .9999" (25 mm)

Wheelhead Mounting - 3 Positions - Total Adjustment: 7-1/2" (191 mm)

Speeds and Feeds:

Table Speeds for Grinding: 0 - 18 fpm (0 - 5.5 mpm)

Workhead Speeds - Reversible and Variable: 0 - 500 rpm

Rapid Traverse of Table: 18 fpm (5.5 mpm)

One Turn of Cross Feed Handwheel: .050" on dia. (1.3 mm)

Wheelslide Feed Increments: .00005" direct (.00125 mm)

One Turn of Workslide Handwheel: .100" (2.5 mm)

Drive:

Hydraulic Pump Motor: 1-1/2 hp @ 3450 rpm

Workhead Motor (dc): 1-1/2 hp @ 3450 rpm

Wheelhead Motor: 5 hp @ 3600 rpm

Coolant Pump Motor: 1/4 hp @ 1800 rpm

General:

Capacity of Oil Tank: 11 gal. (41.64 L)

Capacity of Coolant Tank: 55 gal. (208.2 L)

Equipped With:

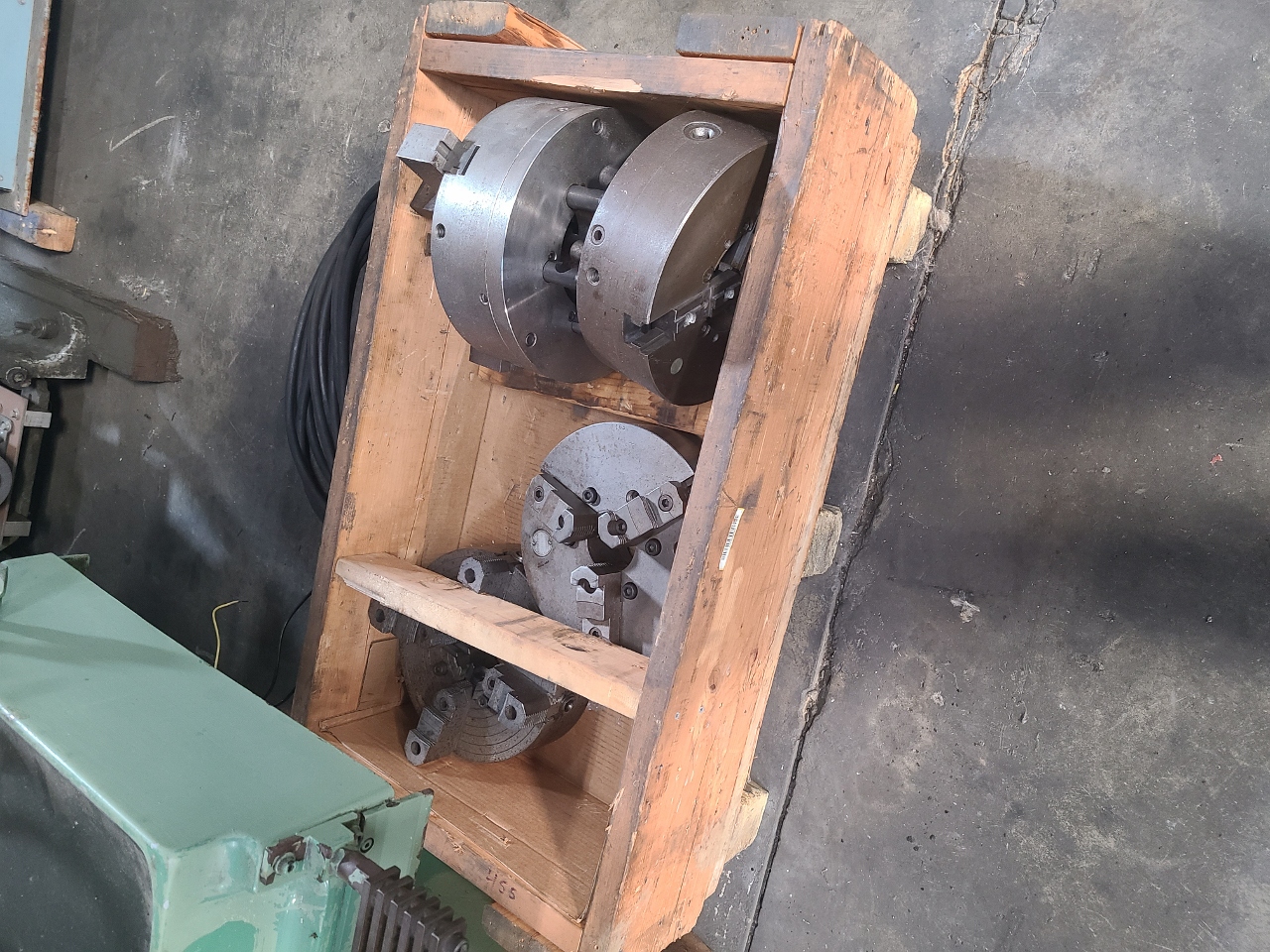

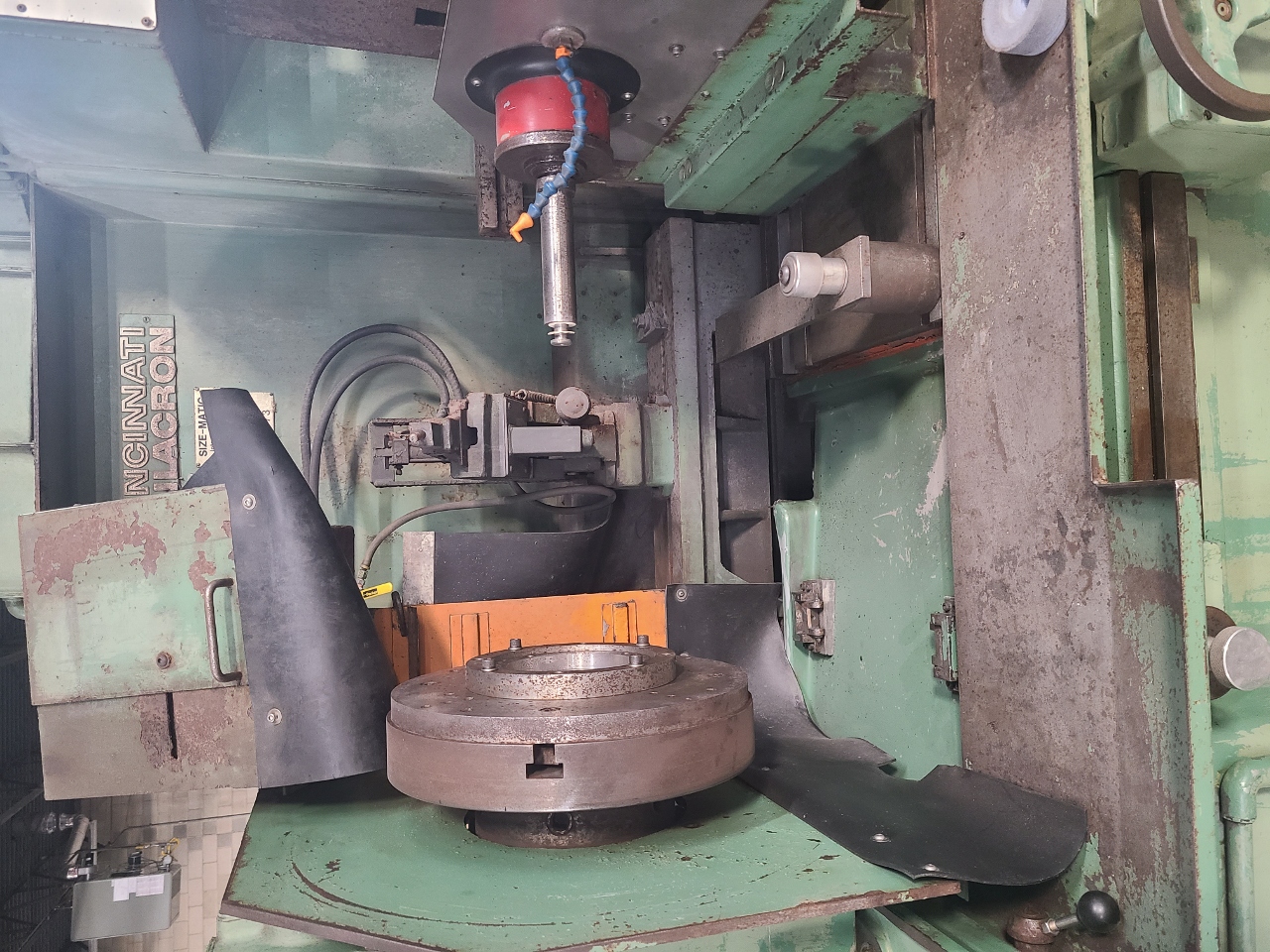

(3) 12" Four Jaw Chucks

(1) 12" Four Jaw Chuck

15" Face Plate Mounted to Work Head

Rear Mounted Wheel Dresser

Red Head Grinding Spindle with 6" Arbor

Wired for 3 Phase 440 Volts

Overall Size: 120" x 72" x 86" High x Approx. 11,000 lbs.
