ALLEN 6-SPINDLE DRILL

No longer available

ALLEN 6-SPINDLE DRILL

$1,950 (USD)

Description

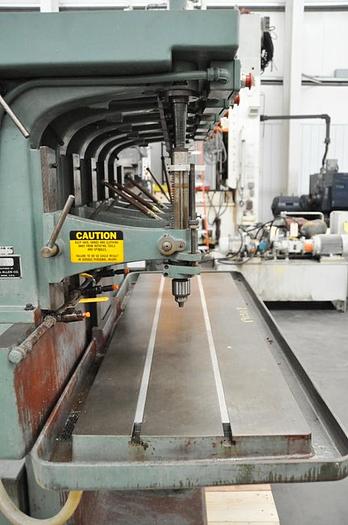

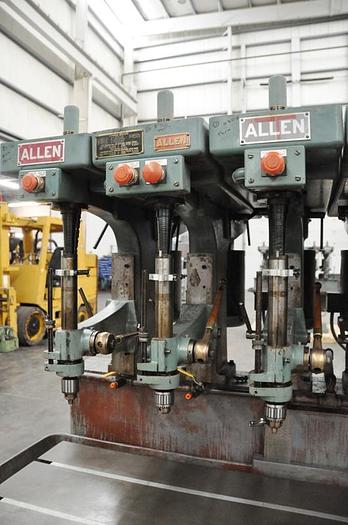

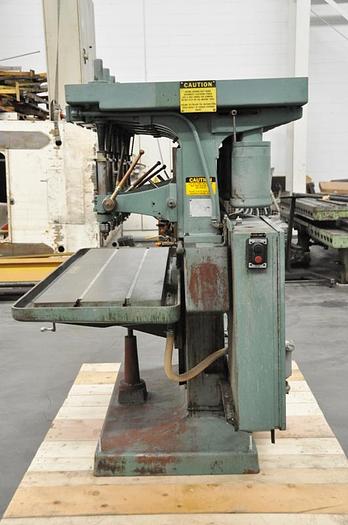

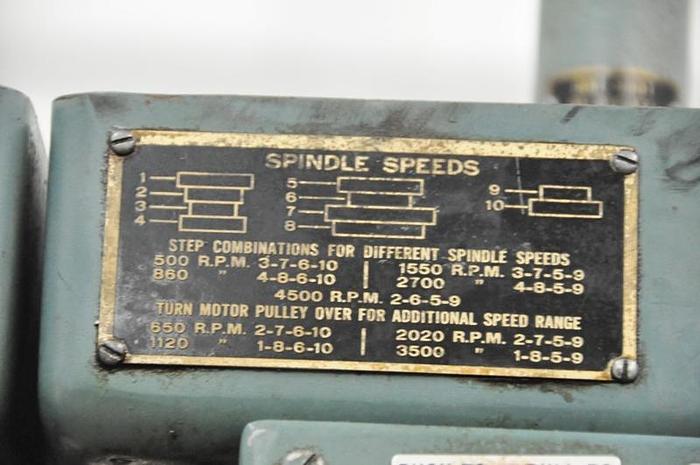

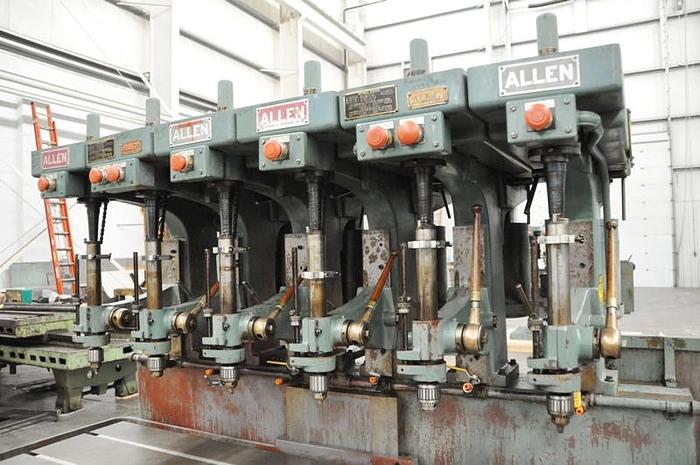

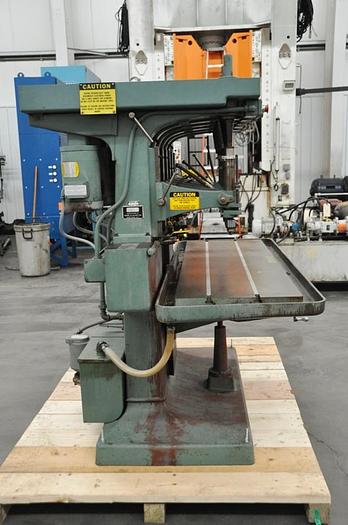

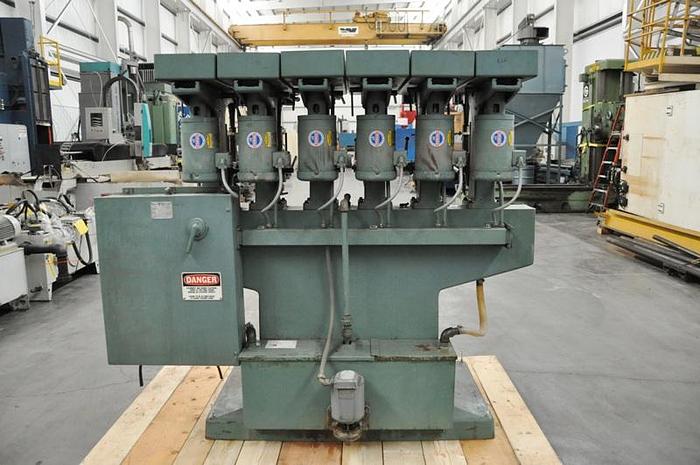

ALLEN 24" 6-SPINDLE DRILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $1,950.00 HMC Stock No. 19050-P Machine Serial No. 36339 A thru F Machine Model No. HMDB New Date: 1987 (9) Spindle Speeds Via Belt Pulley Change: 500 to 4500 RPM Speeds: 500, 650, 860, 1120, 1550, 2020, 2700, 3500, 4500 RPM Table Working Surface: 21" x 65-3/4" with (2) 3/4" T Slots Table Overall Size with Coolant Trough: 27-1/2" x 72-3/4" Centerline of Spindle to Machine Frame: 13-1/2" on (2) End Spindles Each Side Centerline of Spindle to Machine Frame: 12" on (2) Center Spindles Distance Spindle Apart: 10" on Center Centerline of Spindle to Spindle Carrier Bracket Ways: 12" Vertical Travel of Spindle Carrier Brackets: 4" Approx. Distance Chuck Nose to Table: 18-1/2" Quill Travel: 6" Manual Only EQUIPPED WITH: Each Spindle Has Adjustable Depth Stop Each Spindle Has Jacobs 0-3/8" Key Type Drill Chuck (Fixed Non Removeable) Push On Pull Off Start Stop Controls for Each Head Table Hand Crank Handle Coolant Tank, Pump and Piping to Each Spindle Head Units are Bolted to the Machine Frame and Can be Rearranged with Minor Modification (6) 1 HP Spindle Motors, 1725 RPM Wired for 3 Phase, 60 Hz, 208/230/460 Volts 1/4 HP Gusher Coolant Pump, Wired for 230/460 Volts Overall Size: 72-3/4" L-R x 52" F-B x 74" High

Specifications

ModelHMDB
ConditionUsed
Stock Number19050
Size24"
