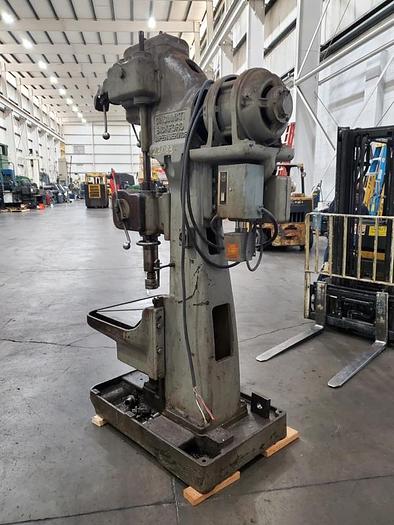

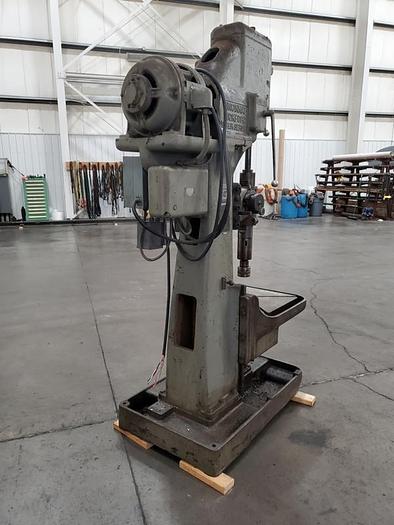

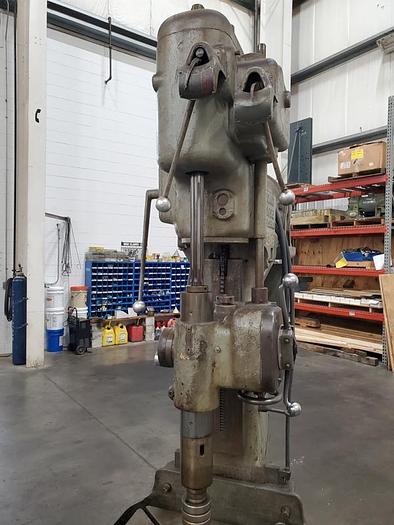

CINCINNATI BICKFORD SINGLE SPINDLE DRILL

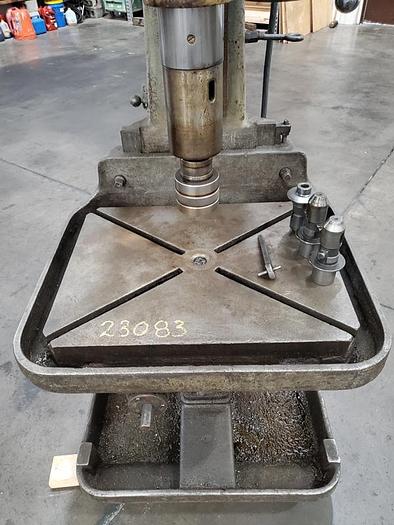

CINCINNATI BICKFORD DRILL PRESS PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,950.00 HMC Stock # 23083 Machine Serial No.: 2L-384 Machine Model No.: Super Service New Date: Unknown (12) Spindle Speeds Via 1-Speed Motor: 60 to 1000 RPM (9) Quill Feeds: .005" to .043" TPR Spindle Taper: #4 Morse Working Table Size: 24" L-R x 19" F-B with (4) T-Slots for Work Holding Overall Table Size: 28-3/4" L-R x 23" F-B Maximum Height Floor to Table: 33-1/2" Table Travels Vertically on Column Via Hand Crank & Screw Table Secured Via Manual Clamps Quill Travel: 11" Hand & Power Feed Spindle Carrier Moves Vertically on Dovetail Ways: 17-1/2" Maximum Distance Spindle Nose to Table Top: Approx. 27" Head Moves Via Hand Crank & Gear Rack & has Chained Counter Weight EQUIPPED WITH: Power Quill Feeds Graduated Scale for Quill Travel (1) Wizard C-4 Quick Change Tool Holder with (3 ) Assorted Holders NO Crank Handles for Table or Spindle Carrier Base Is Designed For Coolant NO Pump No Pipping 5 HP Motor, Wired 3 Phase, 60 Cycle, 220/440 Volts Presently Wired for 220 Volts Overall Size: 30" L-R x 58" F-B x 92" High
