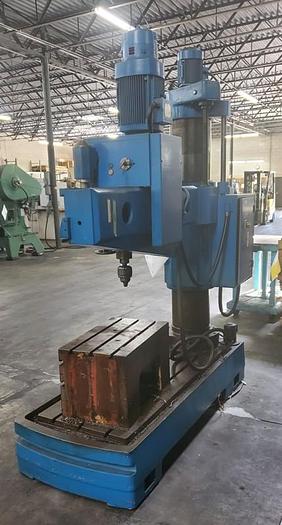

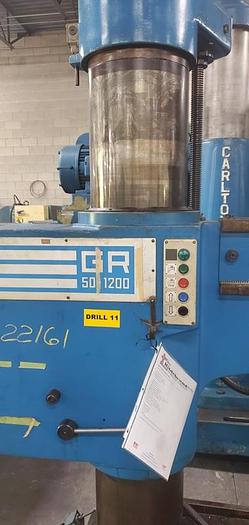

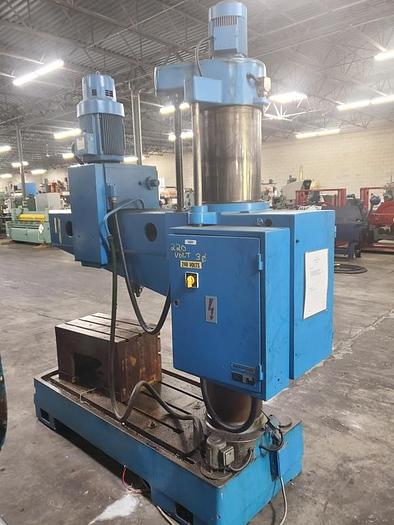

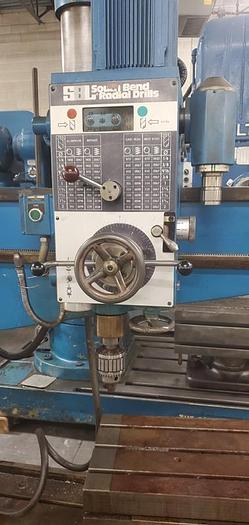

SOUTH BEND RADIAL DRILL

SOUTH BEND RADIAL DRILL PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $4,950.00 HMC Stock # 22161 Machine Serial No.: GR-1092 Machine Model No.: GK50-1200 New Date: Unknown Column Diameter: 14" Arm Length: 48" Traverse of Head on Arm: 36" Arm Travel on Column: 29" Distance Spindle to Base: 13-3/16" Min. to 51-1/4" Max. Height of Head at Full Arm Elevation: 108-5/8" Drilling Capacity in Mild Steel: 2" Quill Travel: 9" Taper in Spindle: #4 Morse (12) Spindle Speeds: 40 to 1750 RPM (6) Feeds: .0020" to .0138" Per Revolution Base Size: 72" Long x 29" Wide x 13" High (3) T-Slots in Base EQUIPPED WITH: Power Clamping Power Elevation Box Table Coolant 2.2 / 3.5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 230 Volts Overall Size: 96" L-R x 36" F-B x 103" H x 6,000 Lbs.
