JACKMILL UNIVERSAL CYLINDRICAL GRINDER

JACKMILL UNIVERSAL CYLINDRICAL GRINDER

$6,500 (USD)

orCall 717-846-2600

Description

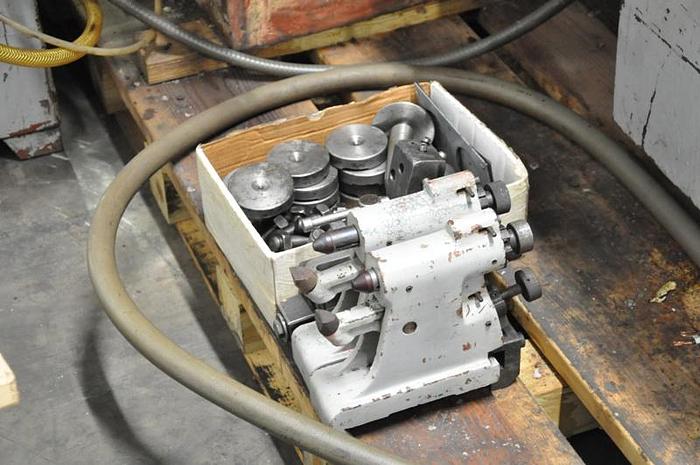

JACKMILL UNIVERSAL CYLINDRICAL GRINDER PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $6,500.00 HMC Stock No. 17076 Machine Serial No. 20167 Machine Model No. JMC1000AGC New Date: 1985 Swing Over Table: 12-1/2" Distance Between Centers: 40" Overall Table Size: 72" L-R x 7" F-B Table Swivel: 9 Degrees Table Traverse Speed: 3 to 138 IPM Movement per Full Turn of Handwheel: 1" Work Head Spindle Speeds, Variable: 15 to 90 RPM & 70 to 420 RPM Taper in Work Head: #4 Morse Work Head Swivel: 0 Degrees +, - 30 Degrees Taper in Tailstock: #4 Morse Auto Rapid Infeed of Grinding Head: 1.6" Additional Travel on Sub-Slide Base: 5.9" Movement per Turn of Handwheel: .040" Movement per Graduation of Handwheel: .0001" Maximum Swivel Angle: +/- 30 Degrees Grinding Wheel: 16" O.D. x 1-1/2" Hole x 5" Width EQUIPPED WITH: 6" 6-Jaw Chuck Work Rests Assorted Wheel Dressers Assorted Gauges & Tooling Manual (Not Guaranteed to be Complete) 7.5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 208-230/460 Volts 28 Gallon Coolant System with Magnetic Separator 15 Gallon Hydraulic System Overall Size Grinder: 142" L-R x 60" F-B x 69" H x 9,000 Lbs. Hydraulic/Coolant System on Skid: 52" L-R x 41" F-B x 30" H Parts Box: 38" L-R x 30" F-B x 14" H

Specifications

ModelJMC1000AGC
ConditionUsed
Stock Number17076
Size11" X 40"
