PRM GAP BED ENGINE LATHE

No longer available

PRM GAP BED ENGINE LATHE

$10,200 (USD)

Description

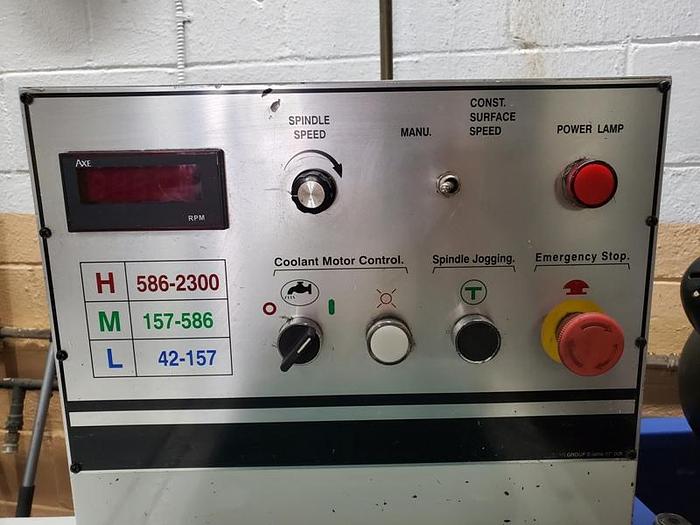

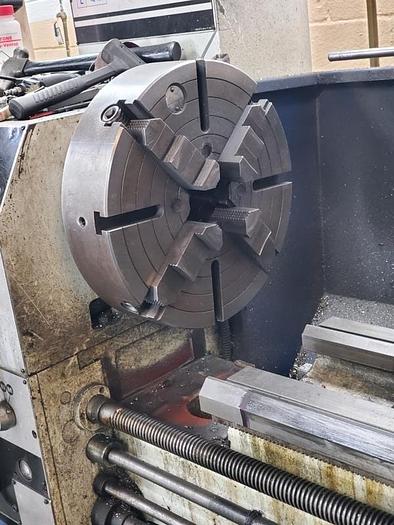

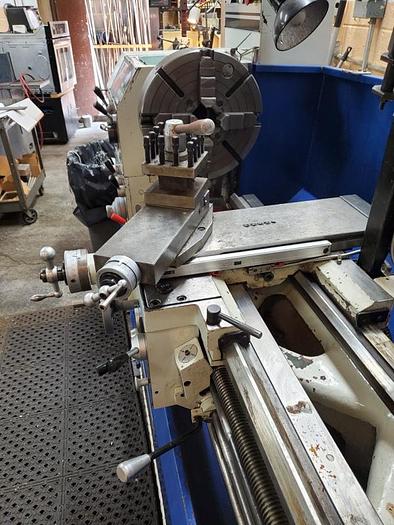

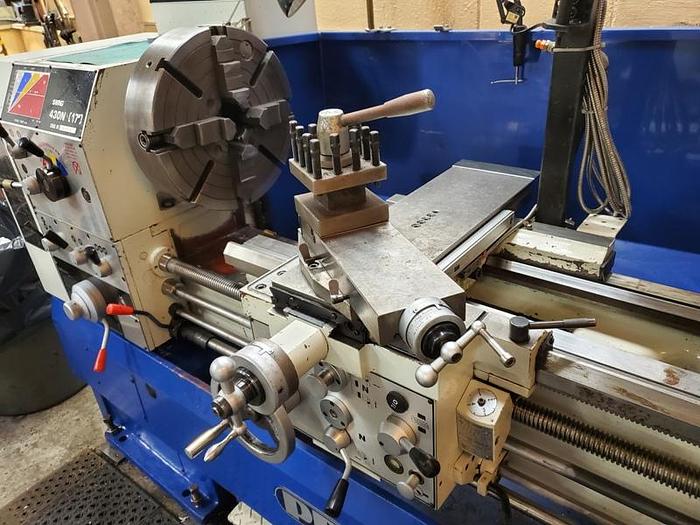

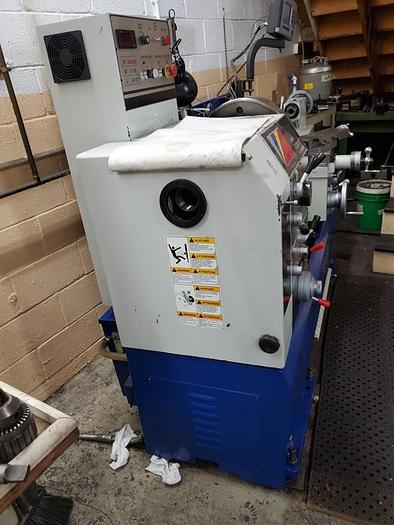

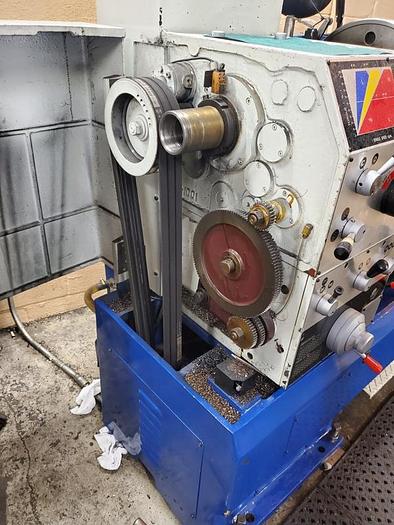

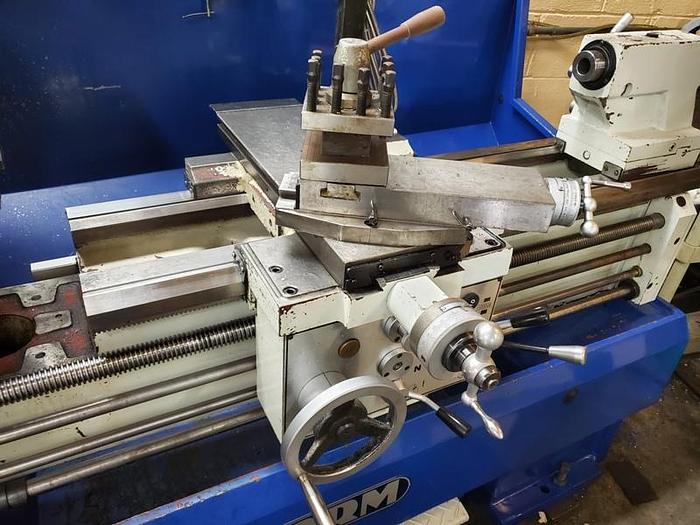

17" x 40" PRM GAP BED ENGINE LATHE PRICE: AS IS WHERE IS In Shop, Wilmington, DE…… $10,200.00 HMC Stock # 23502-N Machine Serial No.: 12127 Machine Model No.: 430N Swing Over Cross Slide: 9-3/4" Swing Over Bed Ways: 17" Spindle Nose: D6 Camlock Spindle Thru Hole: 2-5/16" Swing in Gap: 26" Variable Spindle Speeds in 3 Gear Ranges: 42 to 157; 157 to 586; 586 to 2300 RPM Tailstock Quill Taper: #4 Morse EQUIPPED WITH: 2 Axis Acu-Rite Digital Readout System 10" 3 Jaw Chuck with D6 Camlock Mount Square Turret Type Tool Post Inch – Metric Dials on Cross Slide and Top Compound Thread Chasing Dial Digital Display of Spindle RPM Inch & Metric Feeds and Treads (see pictures of charts) Foot Pedal Spindle Brake Full Length Rear Splash Guard Machine Work Light Hardened Ground Bed Ways It has the Bed Gap Filler Piece (not seen in pics) (1) Steady Rest 7-1/2 HP Main Motor Machine is Wired for 3 Phase, 60Hz, 220 / 440 Volts Presently Wired for 220 Volt Operation Overall Size: 88" LR x 39" FB x 63" High x 3,900 Lbs. OPTIONAL ACCESSORY: 15" Cushman 4 Jaw Chuck with D6 Camlock Mount (+$450.00) as seen in pictures

Specifications

Model430N
ConditionUsed
Stock Number23502
Size17" X 040"
