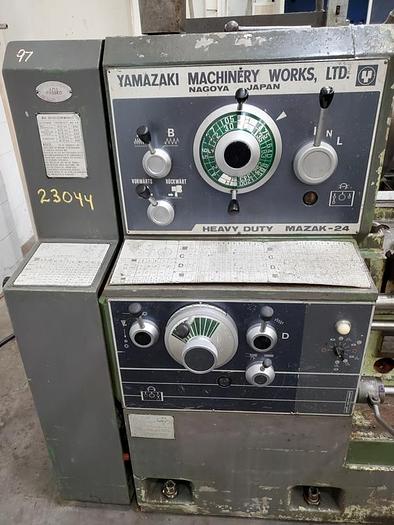

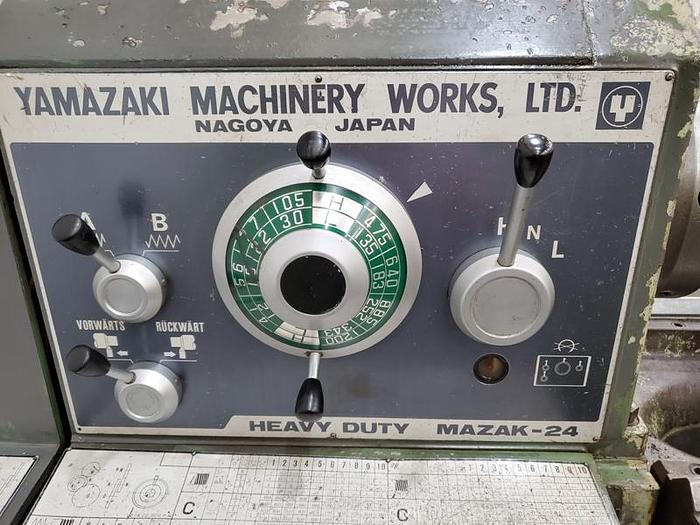

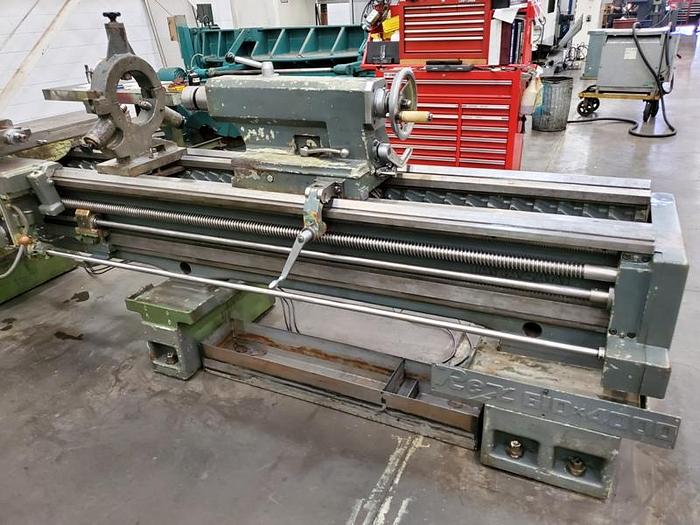

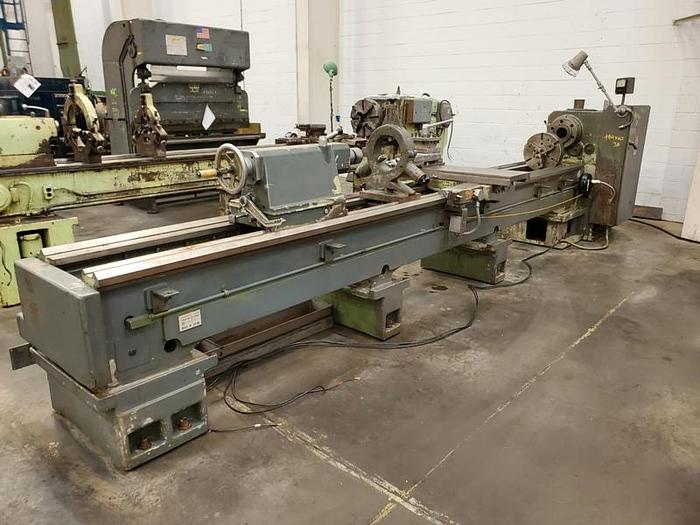

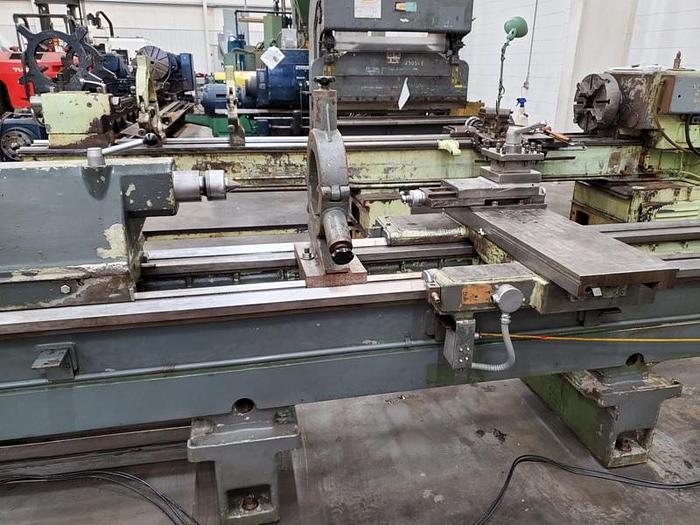

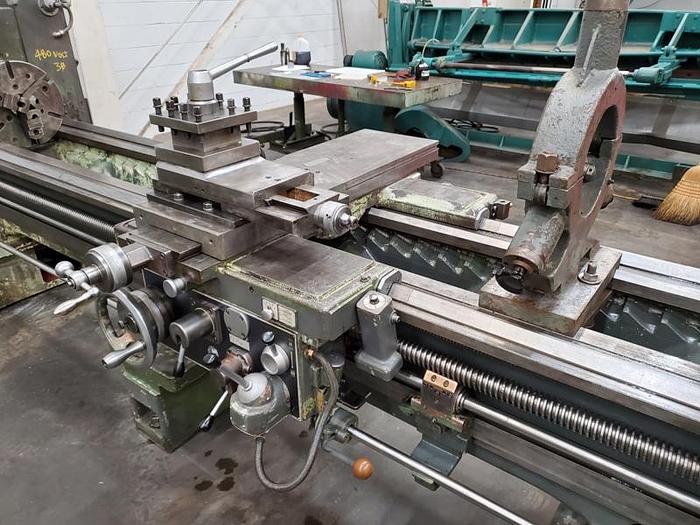

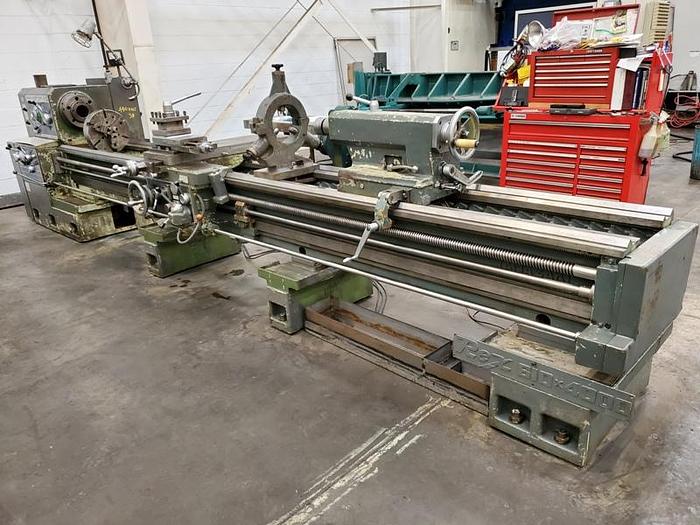

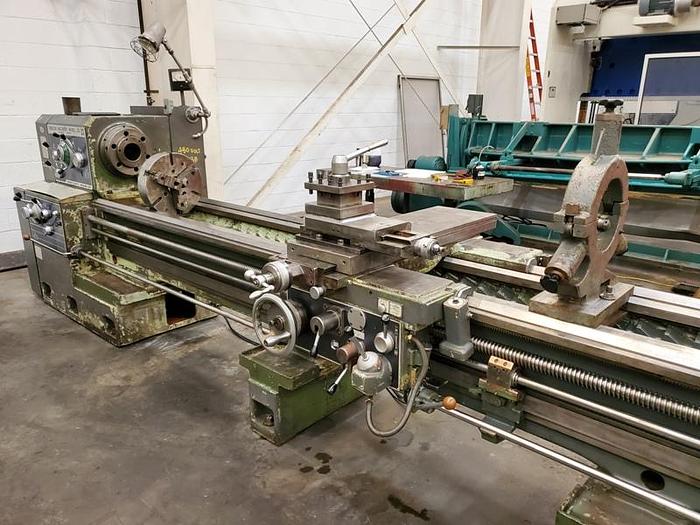

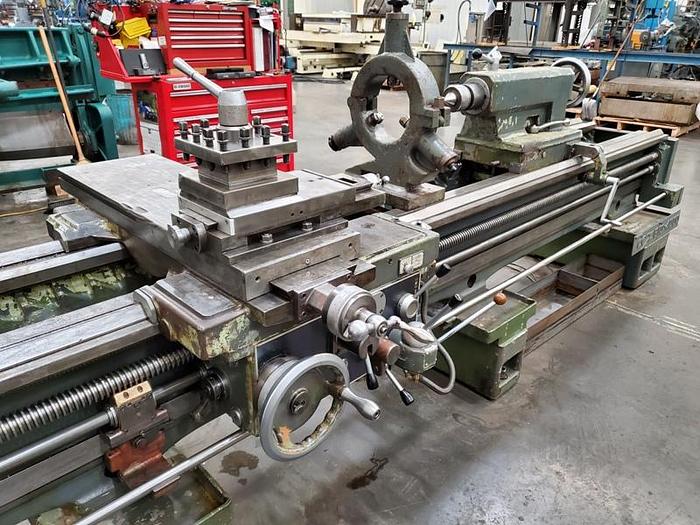

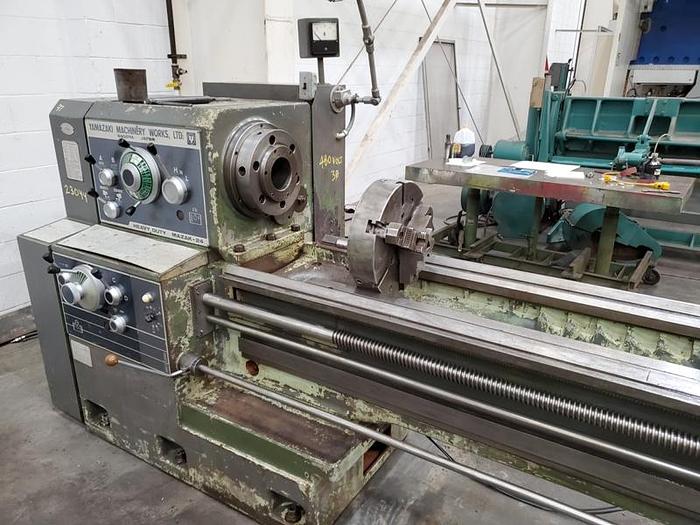

MAZAK GAP BED ENGINE LATHE

24" X 160" MAZAK GAP BED ENGINE LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $32,500.00 HMC Stock # 23044 Machine Serial No.: 25239 Machine Model No.: REX 610 x 4000 New Date: Unknown Manufactured in Japan for German market. Machine signage is German. Swing Over Bed: 26" Swing Over Cross Slide: 13-1/2" Swing in Gap: 34-1/4" Length of Gap in Front of Face Plate: 13-3/8" Height from Floor to Work Center: 43-1/2" Distance Between Centers: 160" Hole Through Spindle: 4-1/8" Taper in Headstock: #6 Morse Spindle Nose: D1-11 Camlock (16) Spindle Speeds: 12 to 1200 RPM (80) Fine Feeds: Longitudinal: .0022" to .0337" per rev (.058 - .891 mm/rev) Cross: .0011" to .0188" per rev (.029 - .446 mm/rev) (30) Coarse Feeds: Longitudinal: .0385" to .2694” per rev (1.018 – 7.127 mm/rev) Cross: .01925" to .1347" per rev (.509 – 3.5603 mm/rev) Threads: Whitworth: (40) 2 to 28 T.P.I - (16) Coarse 5/8 to 8 T.P.I. Metric: (32) 1 to 14 mm - (20) Coarse 15 to 200 mm Module: (25) 1 to 14 M - (14) Coarse 18 to 58 M D.P.: (18) 2 to 23 D.P - (5) Coarse 1-1/2" to 1/2" D.P. Compound Rest Travel: 9-7/8" Cross Slide Travel: 20-3/4" Diameter of Tailstock: 3-13/16" Spindle Travel: 11-3/4" Taper in Tailstock: #6 Morse EQUIPPED WITH: METRIC Graduated Dials on Carriage, Cross Slide, Compound and Tailstock Quill 15" 3-Jaw Chuck with 2 Piece Jaws with Bolt on Hard Reversible Top Jaws 8" Roll Type Supports Steady Rest 4-Way Power Rapid Power Compound with Rapid Multi-Start Thread Indexing Gear Thread Chasing Dial (1) Wrench for Chuck and Camlock (1) Live Center #6 Morse Taper (1) Headstock Bore Bushing for Morse Taper Removable Coolant Pan Style (COOLANT PANS ARE MISSING) 20 HP Main Motor Wired for 3 Phase, 60 Cycle, 480 Volts Overall Size: 244" LR x 60" FB x 60" High x 12,000 Lbs.
