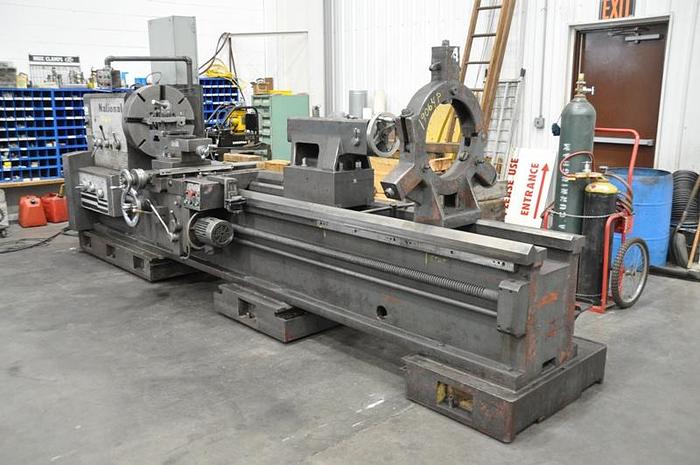

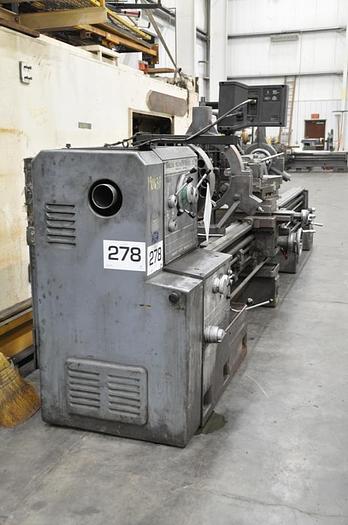

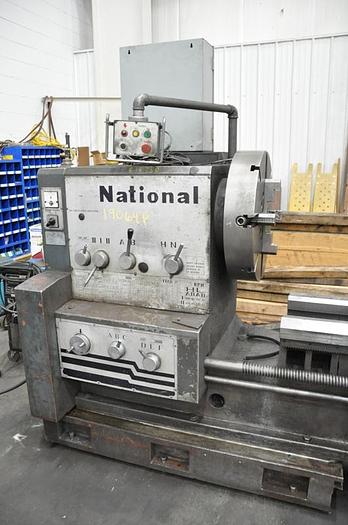

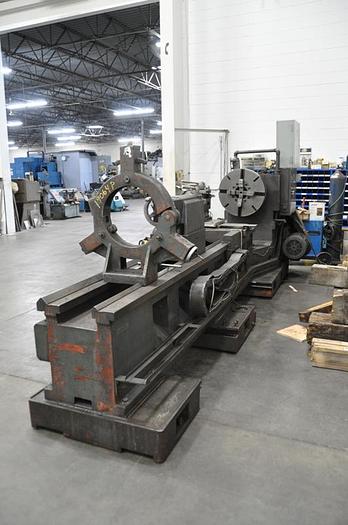

NATIONAL ENGINE LATHE

No longer available

NATIONAL ENGINE LATHE

$19,500 (USD)

Description

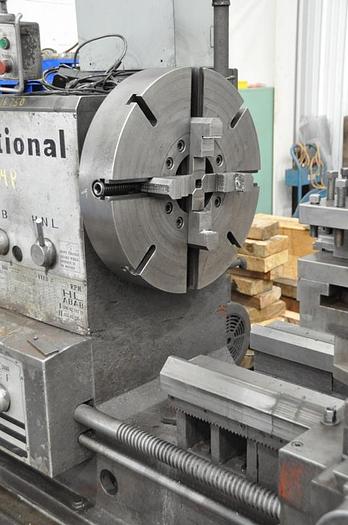

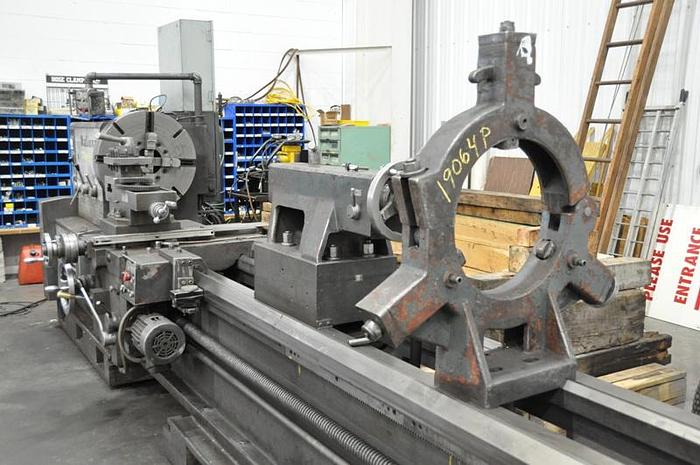

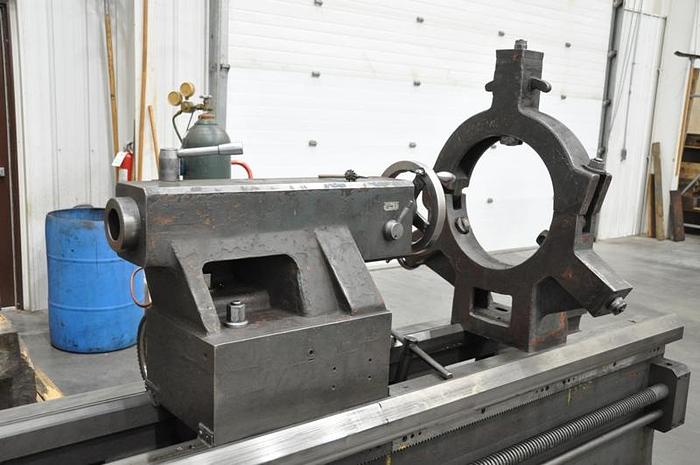

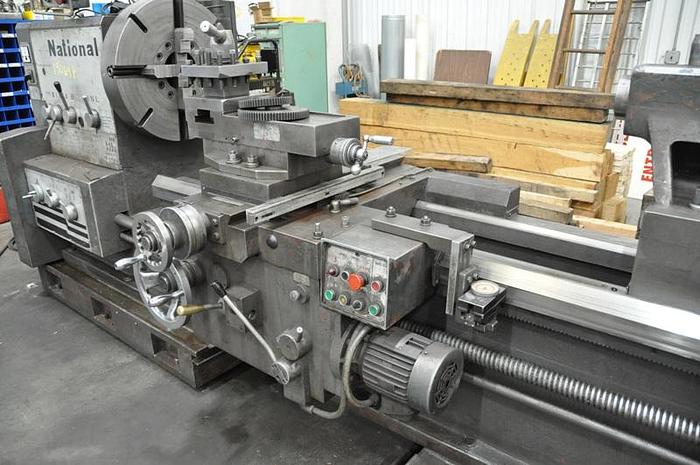

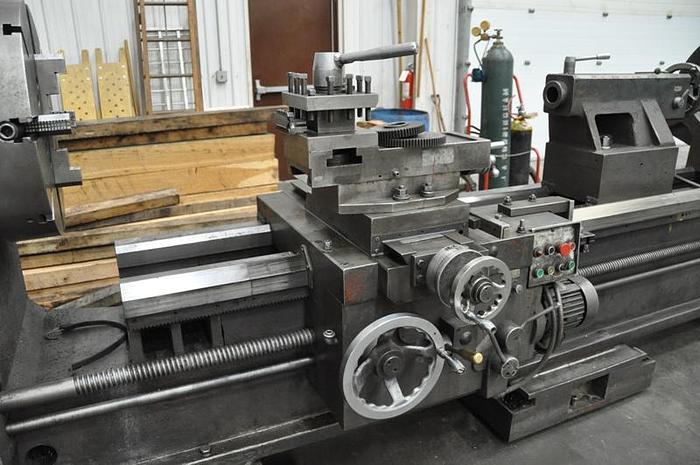

32" X 120" NATIONAL ENGINE LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00 HMC Stock No. 19064-P Machine Serial No. 12267 Machine Model No. LSP32120 New Date: 1982 Manufactured by SHYE Shing Machinery, Taiwan Luson International Distributors, Revenwood, WV Swing Over Bed Ways: 32" Swing Over Cross Slide: 22" Swing in Gap: 55" Swing x 15" Long from Chuck Face ASA Direct Spindle Nose Spindle Bore: 6-1/4" (12) Spindle Speeds: 9 to 600 RPM Square Turret Tool Post: 7-1/4" Quill Diameter: 4-1/4" with #6 Morse Taper Feeds: 0.0032 - 0.105 IPR Metric Threads: 0.5 - 14 MM Inch Threads: 1.25 - 27 TPI EQUIPPED WITH: Removable Gap Bed Inch/Metric Threading 24" 4 Jaw Chuck with 1 Piece Hard Reversible Jaws with 6-3/8" Thru Hole 4 Way Rapid Travers to Carriage and Cross Slide Trav-A-Dial Unit on Carriage 2-Axis Power Rapid Traverse Inch/Metric Graduated Cross Slide Dial and Compound Tailstock Quill has 2 Speed Manual Hand Crank 15" Roller Tip Steady Rest, NO Bed Clamp Piece Base Designed for Coolant but NO Coolant Pump, Piping or Chip Pans Hard Bed Ways in Good Condition End Guard Gears Needed for Full Set: 40,90,80,110,60,115,48,70,78,30,127,45,60 Have: 80, 60,?,?,?,? MISSING: Thread Chasing Dial and Chuck Wrench 25 HP Main Motor, Wired for 3 Phase 60 Hz 220 Volts Overall Size: 191" LR x 67" FB x 86" High x 14,500 Lbs.

Specifications

ModelLSP32120
ConditionUsed
Stock Number19064
Size32" X 120"
