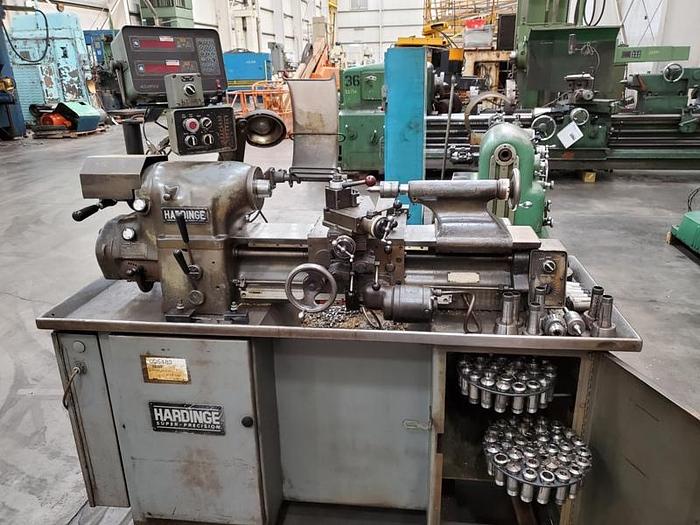

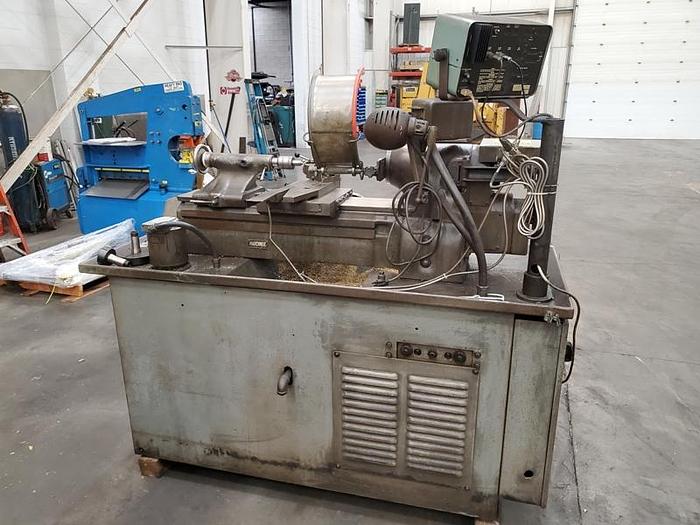

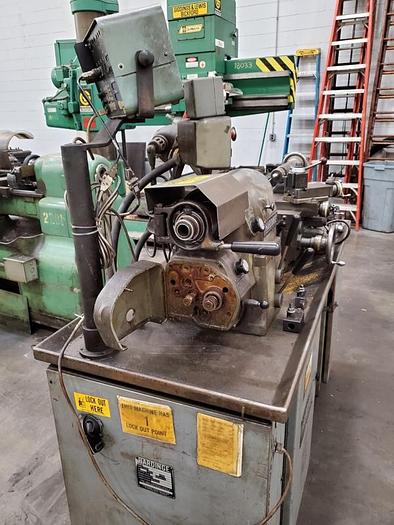

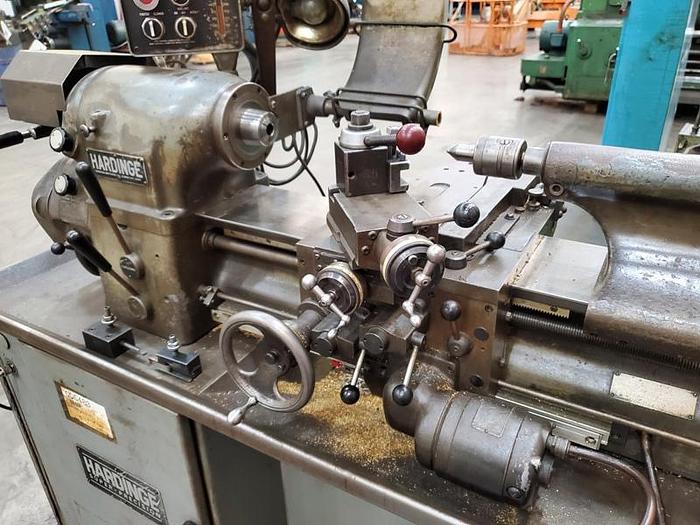

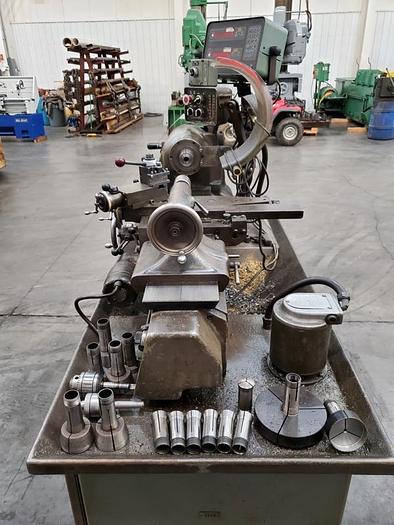

HARDINGE PRECISION TOOL ROOM LATHE
HARDINGE PRECISION TOOL ROOM LATHE
$8,950 (USD)
Description

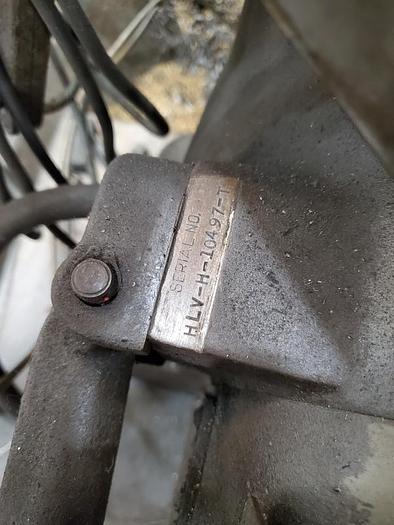

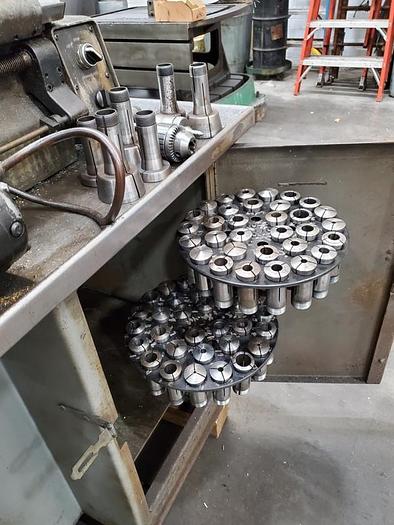

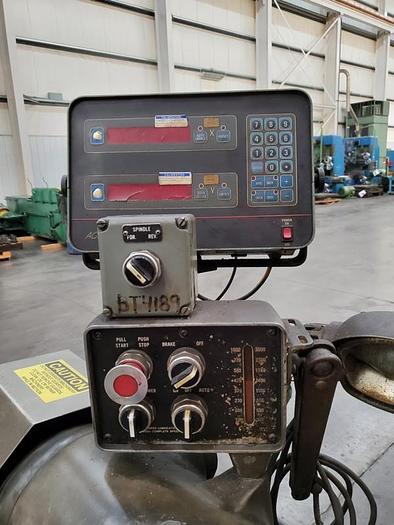

HARDINGE PRECISION TOOL ROOM LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ……… $8,950.00 HMC Stock # 22198-P Machine Serial No.: HLV-H-10497-T Machine Model No.: HLV-H New Date: 1982 Swing Over Bed: 11" Swing Over Carriage: 9" Swing Over Cross Slide: 7" Distance Between Centers: 20" Hole Thru Spindle: 1-3/8" Spindle Speeds: 125 to 3,000 RPM, Variable Spindle Nose: External Hardinge Taper Spindle Nose: 5C Internal Taper Compound Slide Travel: 3" Cross Slide Travel: 5-1/2" Feed Range: 1/4 to 7 IPM, Variable Collet Capacity: 1-1/16" Diameter, Round Tailstock Quill Taper: #2 Morse Tailstock Quill Travel: 3-3/4" (27) Threads: 11 to 108 TPI EQUIPPED WITH: Phase III Quick Change Tool Post with (3) Assorted Tool Holders NO Hardinge End Quad Gear Banjo or Gears Assorted Hardinge 5C Collets – Large Assortment Work Light Compound Quick Acting Lever Inch Graduated Dials on Carriage, Cross Slide, Compound and Tailstock Quill Hardinge Dovetail Hardened and Ground Bed Ways in Good Condition (2) Adjustable Carriage Feed Stops (2) Live Centers (1) Jacobs Key Type Drill Chuck, 0-1/2" Capacity with Key Acu-Rite III 2-Axis Digital Readout System Variable Power Feed to Carriage and Cross Slide Lever Type Collet System with Cover Guard Swing Down Plastic Work Guard Separate Spindle Brake Switch for On - Off One Shot Carriage Lubrication System ? HP Coolant Pump: Wired for 3 Phase, 60 Hz, 230 / 460 Volts 1.5 HP Main Motor: Wired for 3 Phase, 60 Hz, 460 Volts ONLY Overall Size: 72" L-R x 30" F-B x 64" H x 1,900 Lbs.
Specifications

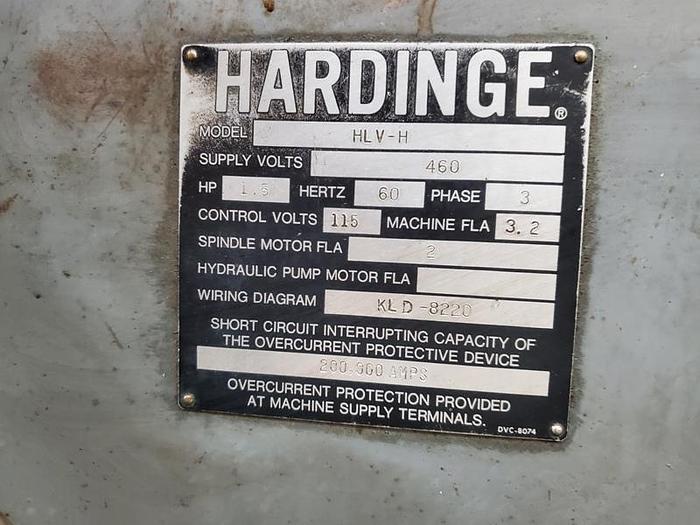

Model | HLV-H |
Condition | Used |
Stock Number | 22198 |
Size | 09" X 20" |
