No longer available


$12,500 (USD)

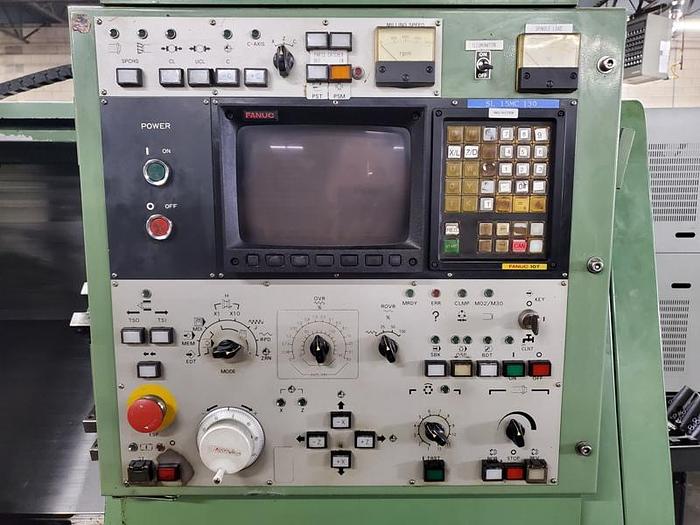

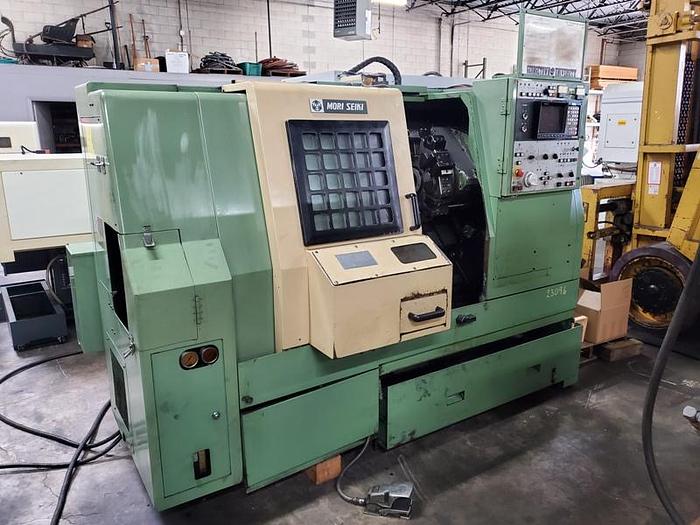

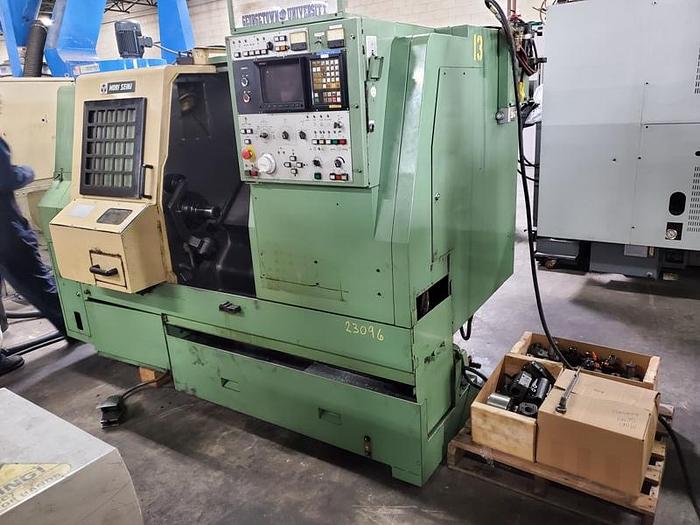

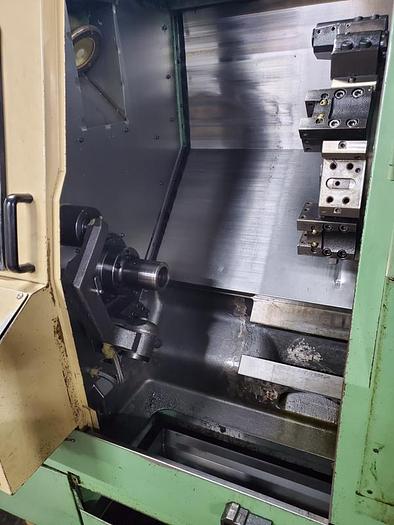

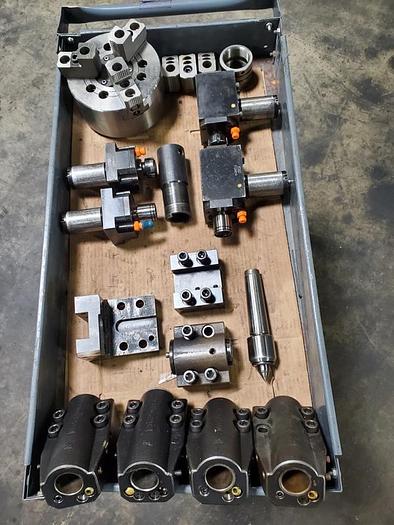

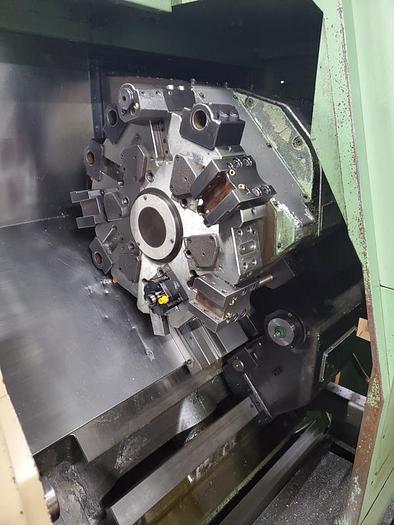

MORI SEIKI SL-15MC CNC LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA … $12,500.00 HMC Stock # 23096 Machine Serial No.: 130 Machine Model No.: SL-15MC New Date: 1989 Swing Over Bed: 17.716" Swing Over Cross Slide: 11.811" Distance Between Centers: 23.425" Standard Machining Diameter: 6.299" Maximum Machining Length: 20.669" Travels: X-Axis Travel: 5.314", Z-Axis Travel: 22.047" Spindle Speed Range Turning: 60 to 5000 RPM Spindle Nose: J1S*, A2-5 Direct Bolt on Mount Spindle Bore: 2.047" Turret Type: 12 Stations with 12 Tool Positions Tailstock Travel: 17.716" Tailstock Quill Diameter: 2.952" with #4 Morse Taper Tailstock Quill Stroke: 3.149" Live Tooling Speed Range: ? to 2000 RPM EQUIPPED WITH: Foot Pedal Chuck Actuator Control Bolt on Collet Chuck, Mfgr, Type, Size Unknown (no collect pads) Power Positioning of Tailstock Via Carriage, with Manual Clamping Tailstock Quill Control via CNC Programing Fanuc 10T 2 Axis CNC Control, NO Com or RS232 Port Hard Bed / Slide for Each Axis M and G Code Programming and Functions Thru the Door Parts Catcher System Swing Up Tool Probe Eye (1) 6-3/4" Dia. Kitagawa 3 Jaw Hydraulic Chuck, B-206 with 1-13/16" Thru Hole Chuck has Fine Serration Master Jaws with (2) Sets of Hard Bolt on Reversible Jaws Removeable Coolant Pan System with Pump Full Set of OEM Operation and Parts Manuals TURRET TOOLING: (5) Short Bar Holders, (5) Long Bar Holders, (5) Turning Tool Holders (1) Straight Live Tool Holder, KSC #T32028A (6) Straight Live Tool Holders, Collet Type, KSC #T32008A (1) Right Angle Live Tool Holder, KSC #T32009A (8) Right Angle Live Tool Holders, Collet Type, KSC #T32009A (1) Threaded Draw Tube Adapter (8) Round Cast Iron Machine Mounting Pads (1) Rohm Live Center, #4 Morse Taper Main Spindle Motor: 10 / 7 HP 30 Min./Cont. Option: 15 / 10 HP X-Axis Feed Servo Motor: F 0.9 AC, Y 0.85 AC Z-Axis Feed Servo Motor: 1.8 AC Hydraulic Pump Motor: 1 HP Coolant Pump Motor: 1/4 HP Hydraulic Unit Tank Capacity: 6.61 Gallons Lubrication Oil Tank Capacity: 0.53 Gallons Coolant Tank Capacity: 22.46 Gallons Overall Size of: Machine 103" Long x 65" FB x 83" High x 7,000 Lbs. Coolant System and Tooling 59" Long x 29" FB x 18" High x ?? Lbs. To See Information From the Manuals Click / Use this link: http://23096-moreinformation.pdf OPTIONAL ACCESSORY: LNS Hydro Bar Feeder, 6 Tube, 1/4" to 1-5/8", $3,950.00 HMC # 23117


Stock Number23096
Size17.7" X 23.4"
