ACER VERTICAL MILLING MACHINE

ACER VERTICAL MILLING MACHINE

$4,950 (USD)

orCall 717-846-2600

Description

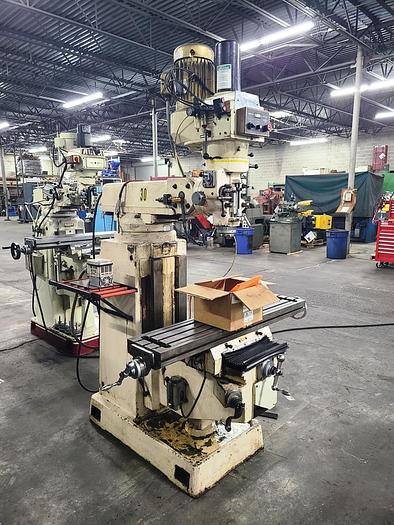

ACER VERTICAL MILLING MACHINE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $4,950.00 HMC Stock # 22157 Machine Serial No.: N/A Machine Model No.: 4VK New Date: Unknown This machine is an Acer Frame up to and including the lower part of the head. The original top portion was removed and fitted with a Speed-Rite variable speed head controlled by a Yaskawa V1000 VFD. No background is available for why or how the two heads were fit together. There is a portion of the lower head not totally enclosed because the two pieces are not an exact match. Table Size: 50" LR x 10" FB Longitudinal Travel: 34" Cross Travel: 16" Vertical Knee Travel: 16" Ram Travel: 20" (Travels may be less than shown above with the installation of a digital read-out and power feed.) Spindle Taper: 40 Spindle Speeds: Variable Range, RPMs Unknown at Present EQUIPPED WITH: Digital Read-Out Brand Unknown Power Table X Axis Feed (does not work properly) Power Draw Bar One Shot Lube Spindle Brake 5 HP Baldor Spindle Motor Wired for 3 Phase, 60 Cycle, 220/440 Volts Current Voltage Unknown Overall Size: 65" LR x 70" FB x 95" High

Specifications

Model4VK
ConditionUsed
Stock Number22157
Size#1.5
