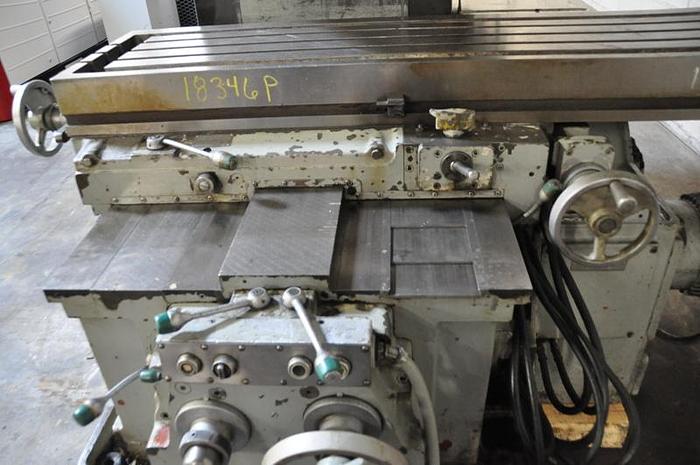

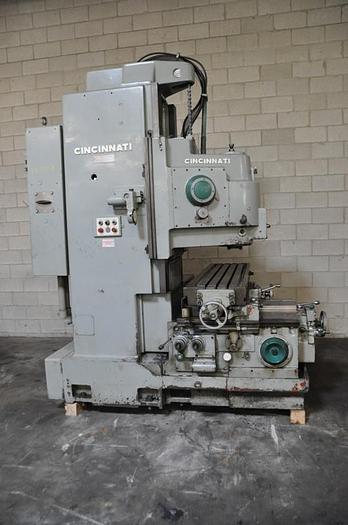

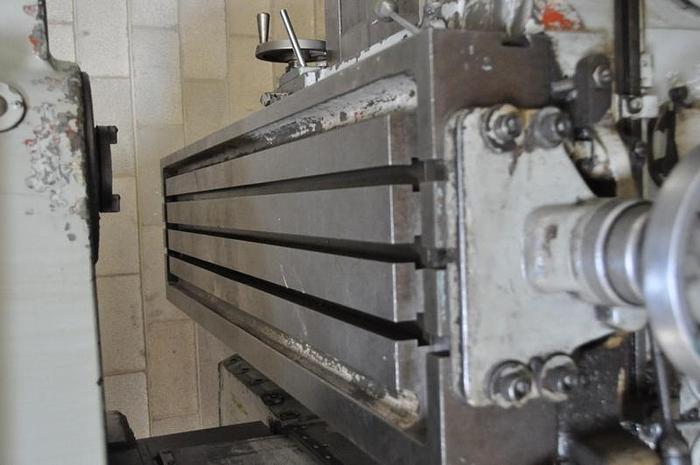

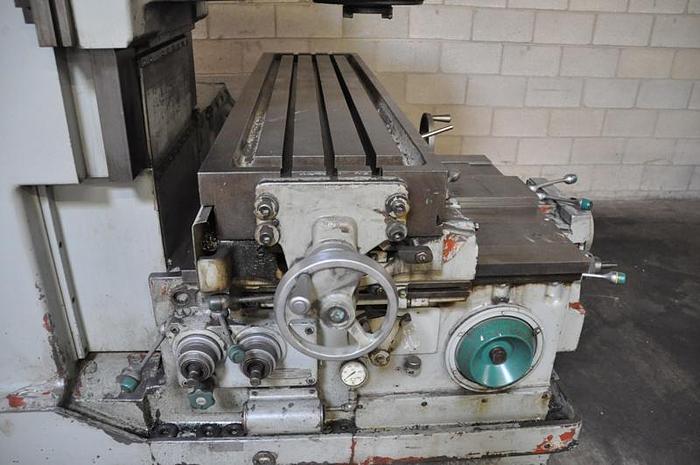

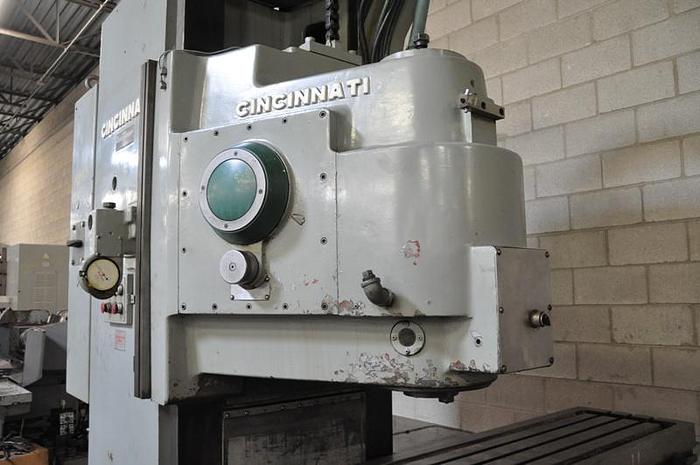

CINCINNATI 330-18 VERCIPOWER VERTICAL MILL

CINCINNATI 330-18 VERCIPOWER VERTICAL MILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00 HMC Stock No. 18346-P Machine Serial No. 311031V5W-3 Machine Model No. 330-18 VerciPower New Date: 1971 - Rebuilt Year 2000 Table Size: 18" x 72" with (3) 13/16" T-Slots on 3 1/4" Centers Spindle Taper: #50 NST in Horizontal Spindle & Vertical Head (24) Horizontal Spindle Speeds: 16 to 1600 RPM Power Feeds: 3/8 to 90 IPM Rapid Traverse: Up to 150 IPM Table Travel Longitudinal: 34" Table Travel Cross: 16" Vertical Head Travel: 24" EQUIPPED WITH: Hard Replaceable Saddle and Vertical Ways in Very Good Condition Automatic Table Cycle for Longitudinal Axis Front and Side Operation Controls Rapid Traverse to All Axises Table Climb Mill Feature Automatic Table Cycle Automatic and Continuous Cycles for Spindle Control (2) Adjustable Traverse Stops on All Axises Power Feeds and Speeds Selector Central Way Lubrication System All Table and Knee Crank Handles Designed For But No Coolant Pump or Piping Rebuilt by American Machine Tool Repair & Rebuilding Co, Randolph, NJ 30 HP Main Motor, 230/460 Volts 7-1/2 HP Feed Motor, 230/460 Volts Wired for 3 Phase, 60 Hz, 230/460 Volts Overall Size: 94" L-R x 101" F-B x 121" High (on 4" blocks) Weight: 21,400 Lbs.
