NEW DIMENSION POWER PINCH PLATE ROLLS

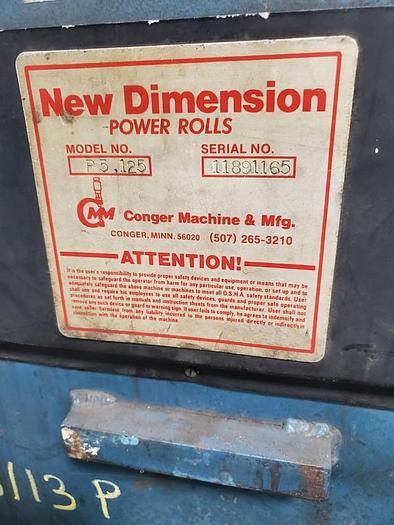

NEW DIMENSION POWER PINCH PLATE ROLLS PRICE: Loaded on Truck, Our Warehouse, York, PA … $6,500.00 AS IS HMC Stock # 23113-P Machine Serial No.: 11891165 Machine Model No.: P5-125 New Date: 1989

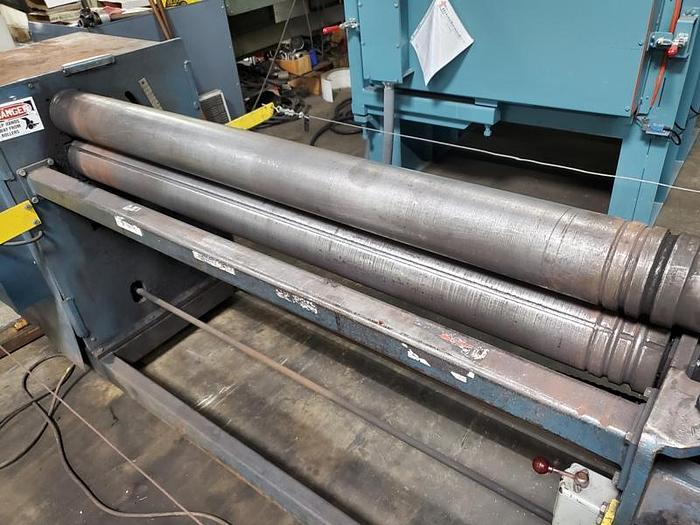

Note:  The lower front roll on this machine is bent on the end of the shaft approximately .200” TIR.  This causes the machine to move while in operation.  Having looked at the issue it could likely be fixed but it would require the machine to be completely taken apart and put back together.  The investment of time to do that is not possible with this machine.  That is the reason for the machine being offered in AS IS condition.

  Rated Capacity: 5' x 10 Ga. Mild Steel, Maximum with 40" Diameter Initial Pass Roll Size Each: 5" Diameter x 62" Long 3 Roll Design, All Rolls are Power Driven Rear Bottom Roll Adjusts for 6" of Travel EQUIPPED WITH: Power Rear Pinch Roll Adjustment Electric Foot Pedal Control for Forward and Reverse Operation Safety Stop Perimeter Cable for Work Area All Rolls Have 3 Grooves at Right End for Rod or Narrow Strips Lower Roll Has a Longitudinal Groove in It for Material Start Guide Single Speed Gear Box Drive with Chains and Sprockets Manual Roll Drop End Fixed Pinch Rolls 1/3 HP Roll Adjustment Motor 3 HP Main Motor All Motors Wired for 3 Phase, 60 Hz, 208-230-460 Volts Presently Wired for 220 Volt Operation Overall Size: 96" LR x 53" FB x 42" High
