$12,500 (USD)

orCall 717-846-2600

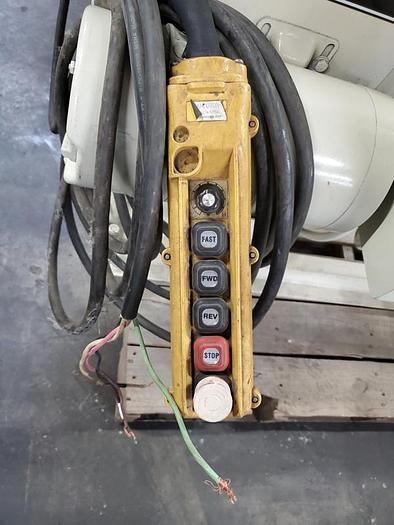

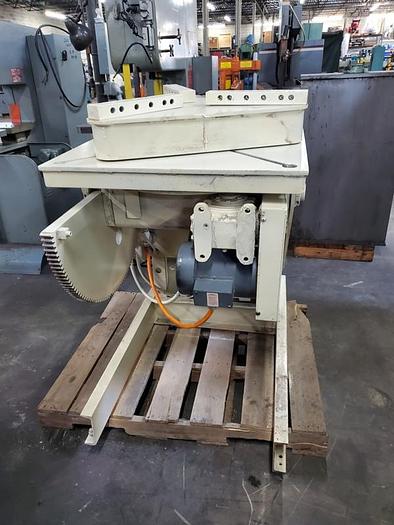

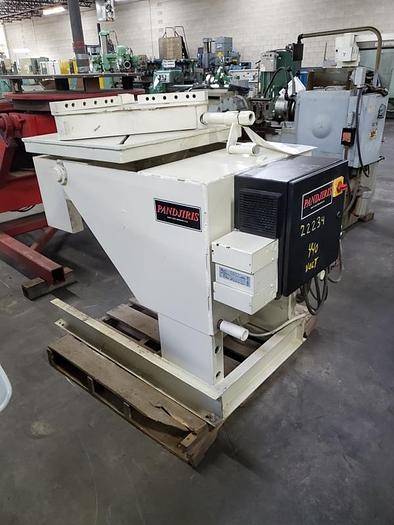

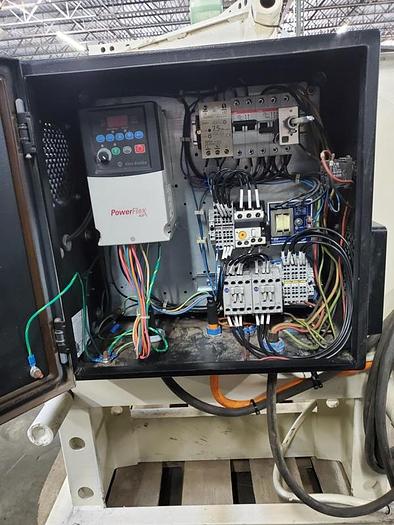

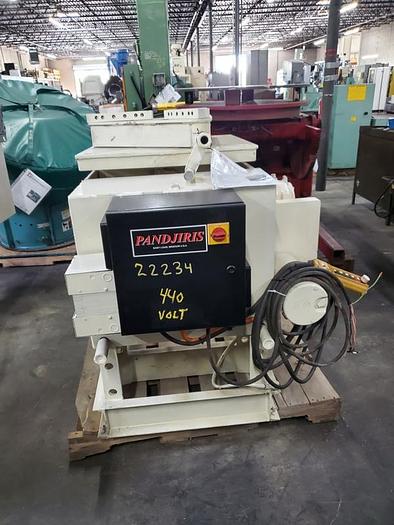

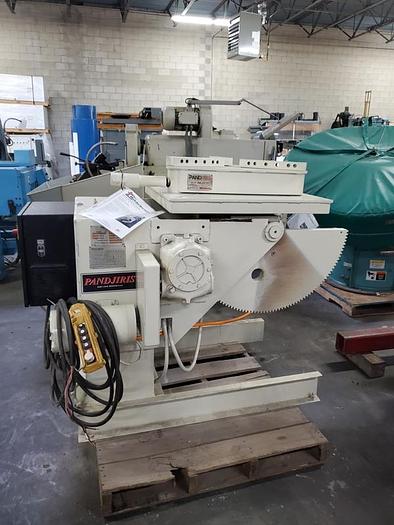

PANDJIRIS 3,000 LB WELDING POSITIONER PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00 HMC Stock # 22234 Machine Serial No.: 18309X 01-10 Machine Model No.: 30-6 New Date: 2011 The Model 30-6 Positioner has a 3,000 lb. weight capacity with a 6" overhung and eccentricity rating. These all welded steel construction positioners come with heavy plate tilt and rotation spur gears precisely machined. A high reduction worm gear reducer is used to enhance the smooth fluid movements of the rotation and tilt gears. Solid state controls and dynamic braking are provided. Unit comes with a pendant controller on a 25' heavy duty rubber covered cable. All wiring is to the National Electrical Code. Rated Capacity: 3000 Lbs. @ 6" From Table Face Table Size: 30" x 30" Square Push Button Pendant Control Variable Speed Power Table Rotation Power Tilt Tilt Range: 0° to 135° Variable Table Rotation Rate: .07 to 1.40 RPM Table Height: 33" to 53" Height Adjustment Method: Manual/Pins, 5 Positions Centerline Height, Table @ 90° : 31-1/4" to 51-1/4" Swing Radius, Table @ 90° : 28" to 47" Eccentricity: 6" Overhung: 6" Rotation Motor: 1 HP DC Tilt Motor: 3/4 HP AC Brake Unit Leg Length: 48-5/8" Each Side Width (Base | Overall): 30-1/2" | 39-1/4" Control: Pendant Control of Table Forward, Stop, Reverse, Speed and Weld Rapid Controls Operate on 115V Tilt UP/DN Control on Side of Control Panel LOAD CAPACITY INFORMATION: Rated Eccentric Torque: 18,000 Inch Pounds Max. Allowable Torque Resulting from Overhung Weight (From Tilt Centerline): 35,250 Inch Pounds Table Surface to Tilt Axis Distance: 5.75 Inches Allowable Workpiece Weight: Pounds (See Table Below) Distance from Table Surface to Workpiece CG: Inches (See Table Below) Distance: Allowable Workpiece Weight: 0 to 6 3,000 12 1,986 18 1,484 24 1,185 30 986 36 844 42 738 EQUIPPED WITH: Pandjiris Model A 3-Jaw Gripper Chuck with Bar Jaws and Wrench Pandjiris OEM Manual and New Schematics of the New Electrical Controls Electrical Pendant Control Wired for 3 Phase, 60 Hz, 440 Volts ONLY Note: Jan. 2023, the original electrical circuit board controls were replaced with new controls with Variable Frequency Drive unit. Overall Size: 38" LR x 58" FB x 56" High (Table Vertical) x 1,900 Lbs.


Stock Number22234
Size3,000 LB.
