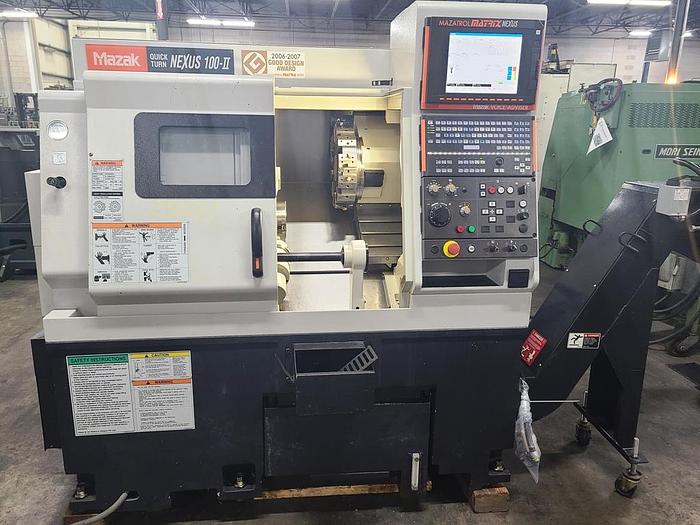

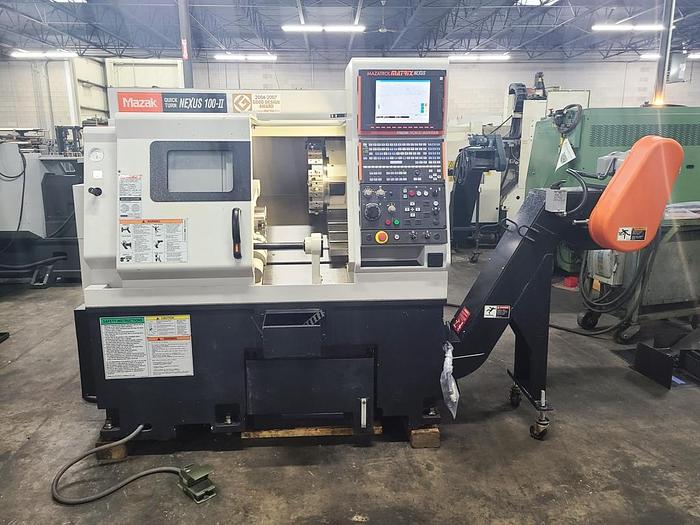

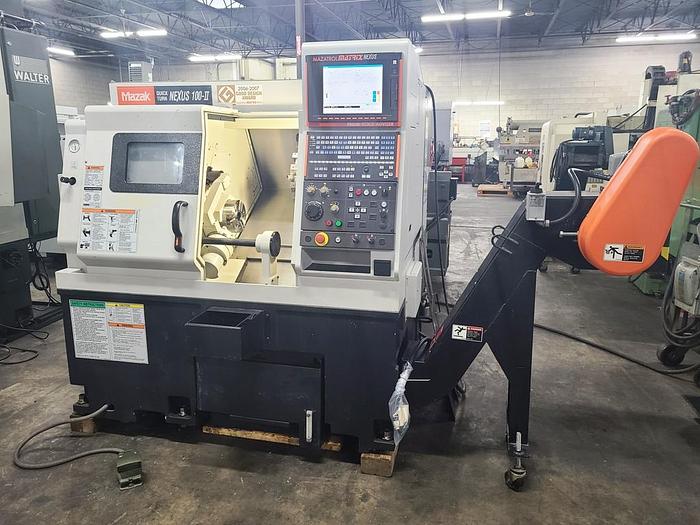

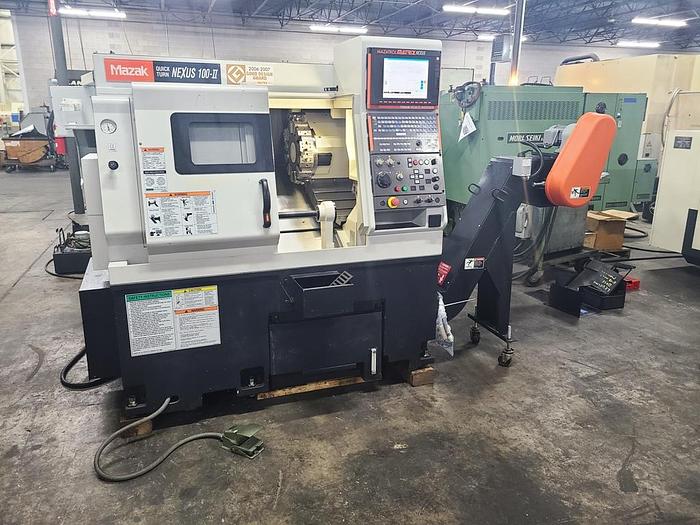

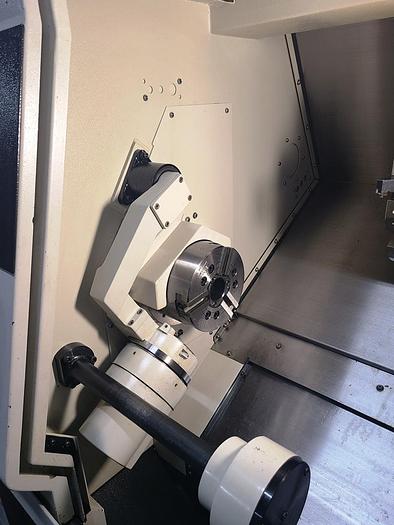

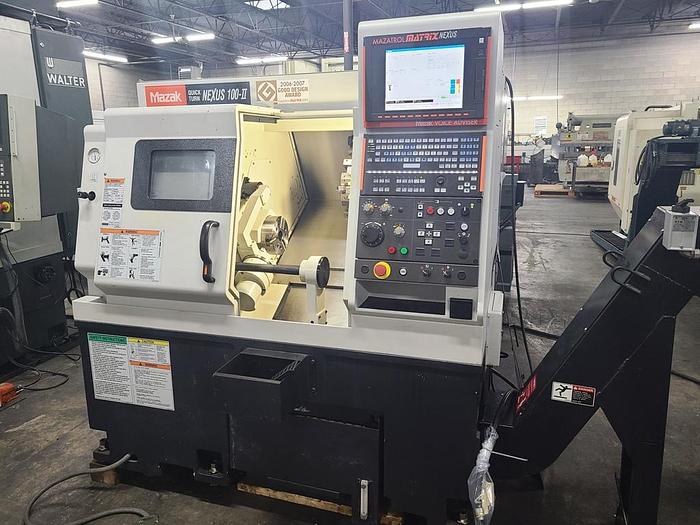

MAZAK QUICK TURN NEXUS CNC LATHE

MAZAK QUICK TURN NEXUS CNC LATHE

$49,500 (USD)

Available quantity: 1

orCall 717-846-2600

Description

MAZAK QUICK TURN NEXUS CNC LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …….. $49,500.00



HMC Stock # 23163-P

Machine Serial No.:  217019

Machine Model No.:  Nexus 100-II (300U)

New Date: 2009



SPECIFICATIONS:

Chuck Size:  6"

Maximum Swing:  21.65"

Standard Machining Diameter:  7.37"

Maximum Machining Diameter:  11.00"

Bar Capacity:  2.01"

Distance Between Spindle End and Turret Face:  4.29" to 17.09"

Maximum Supported Weight:  330 Lbs. (Chuck Work), 440 Lbs. (Shaft Work)

Spindle Speeds:  35 to 6,000 RPM

Spindle Mount:  A2-5

Through Hole:  2.40"

Tailstock Center:  #4 Morse Taper

Tailstock Travel:  13.75"

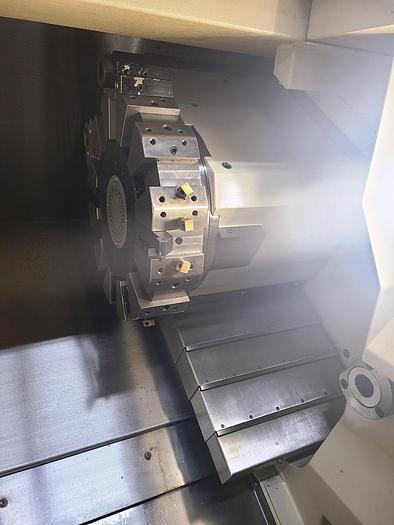

Turret Capacity:  12 Tools

Tool Size:  .79" (Outside Turning), 1.26" (Inside Turning)

Rapid Travers:  1181/1299 IPM (X/Z)

Travel X:  7.5"

Travel Z:  13"

Coolant Tank Capacity:  34.35 Gallons



EQUIPPED WITH:

Mazatrol Matrix Nexus Control

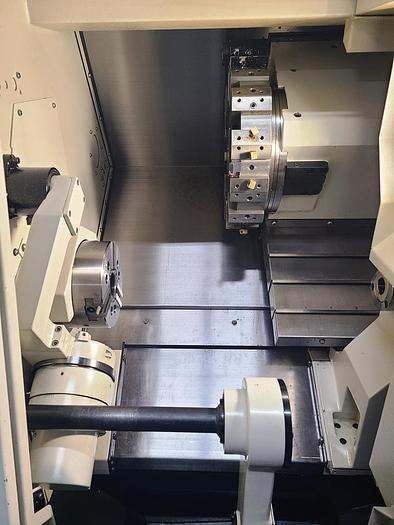

6" 3-Jaw Chuck

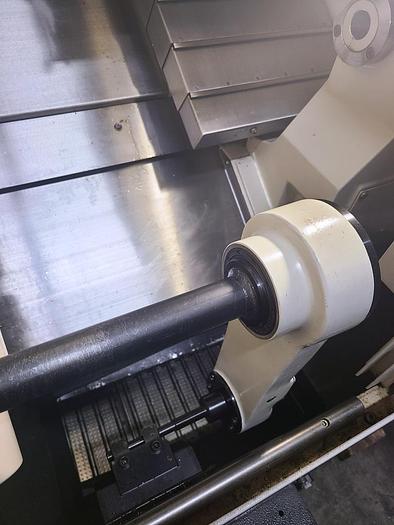

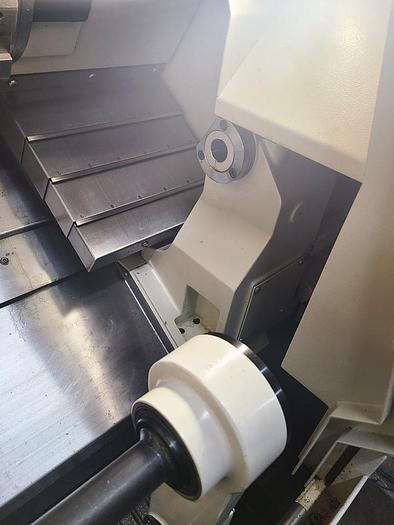

Tailstock

Parts Catcher

Tool Eye

Work Light

Side Exit Chip Conveyor

Assorted Tool Holders

Hard Copy Manuals

Mazak Tool Kit

10 HP Main Spindle Motor

HOURS AS OF 1/22/2024:

Power On:  2172

Auto Oper.:  138

Auto Cut:  88

Total Cut:  54

Total Time: 2235


DIMENSIONS:

Machine:  80" LR x 70" FB x 74" High x 7,500 Lbs.

Coolant Tank:  60" LR x 25" FB x 24" High

Chip Conveyor:  72" LR x 24" FB x 55" High



Specifications

ManufacturerMazak
ModelNexus 100-II (300U)
Year2009
ConditionUsed
Serial Number217019
Stock Number23163
