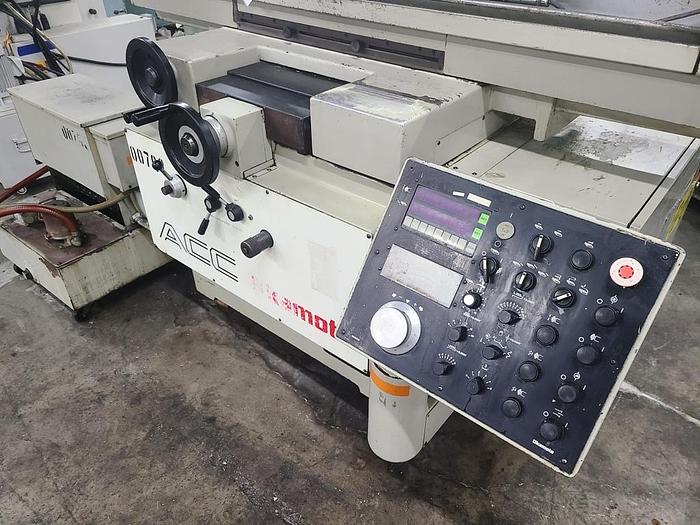

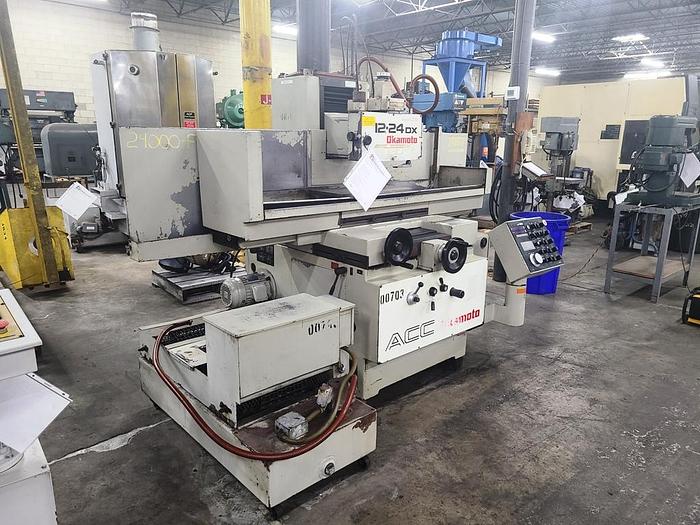

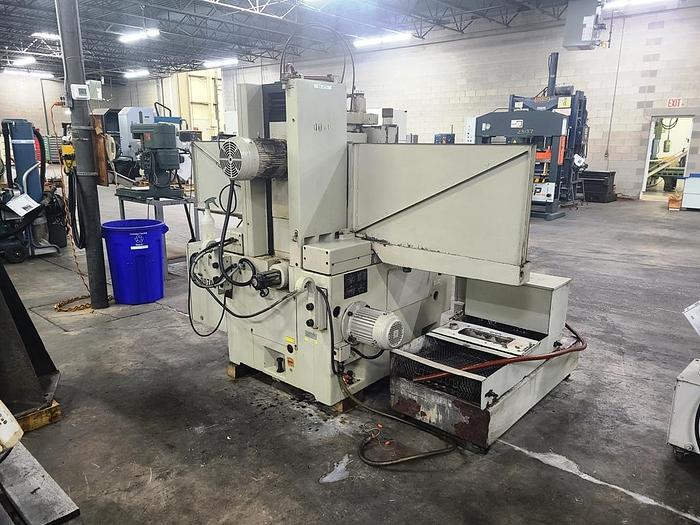

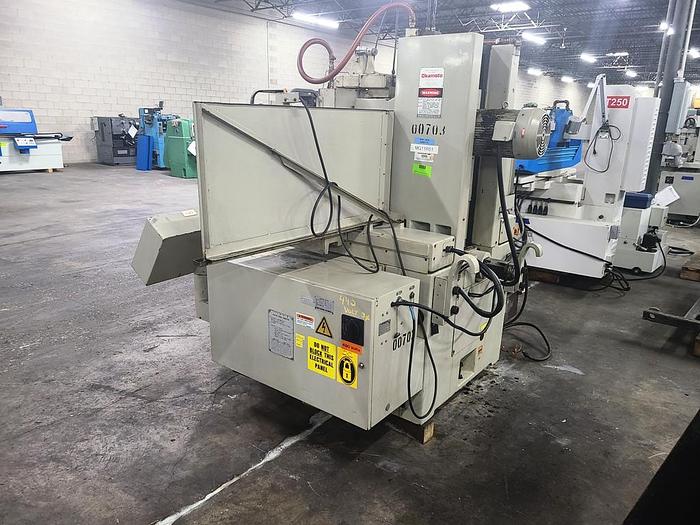

OKAMOTO 12" X 24" SURFACE GRINDER
OKAMOTO 12" X 24" SURFACE GRINDER
$19,500 (USD)
Available quantity:1
Description
12" X 24" OKAMOTO SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00
HMC Stock # 24000-P
Machine Serial No.: 64364
Machine Model No.: ACC-1224DX
New Date: 1996
Wheel Size: 12" x 1.5" x 5"
Maximum Height Under 12" Wheel: 13.7"
Table Speeds, Infinitely Variable: Up to 82 FPM
Max. Longitudinal Table Movement, Manual: 30"
Auto Cross Feed Increment: 0.002" to .80"
Auto Continuous Cross Feed: 4 to 40 FPM
Cross Feed, Manual, Hand Feed Per Rev.: 0.25"
Graduation of Hand Wheel: .001"
Max. Cross Feed, Manual: 14"
Auto Incremental Down Feed Increments: 0.00005" to .0015"
Power Rapid Wheel Positioning Rate: 16 IPM
EQUIPPED WITH:
Servo Driven Down Feed
Auto Incremental Down Feed for Both Surface & Plunge Operations
Dual Rate Auto Down Feed with Coarse & Fine Selections
Digital Display for Vertical Axis
Sparkout Passes (0 to 5)
Auto Table Park at Completion of Grind Cycle
Electronic Handwheel for Manual Vertical Movement with Each Graduation
Equivalent to .00001", .0001" or .001"
Power Rapid Wheel Positioning
Hydraulic Table Traverse
Automatic Cross Feed

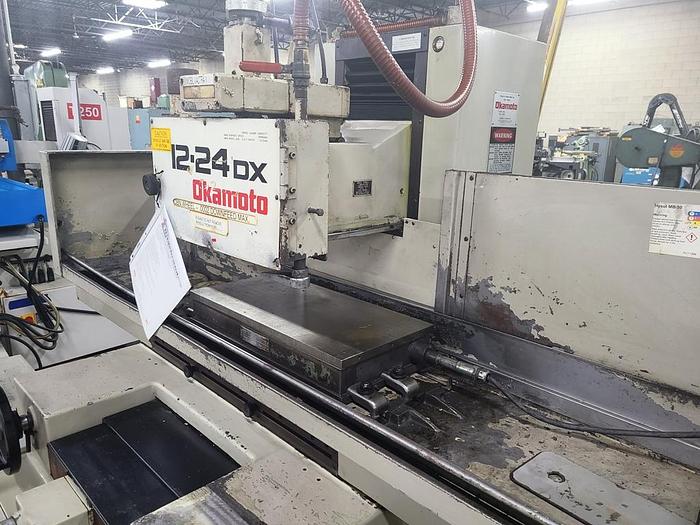

12" x 24" Electro Magnetic Chuck
Variable Hold Neutrofier Control & Demagnetizer
Power Over-the-Wheel Wheel Dresser (No Diamond)
Paper Bed Coolant Filter System
5 HP Spindle Motor, Wired 3 Phase, 60 Cycle, 230-460 Volts
(Presently Wired 440 Volts)
DIMENSIONS:
Overall Size Machine: 108" LR x 76" FB x 70" H x Approx. 5,280 Lbs.
Coolant System: 60" LR x 27" FB x 30" H
Specifications
Manufacturer | Okamoto |
Model | ACC-1224DX |
Year | 1996 |
Condition | Used |
Serial Number | 64364 |
Stock Number | 24000-P |
