17" X 60" CLAUSING COLCHESTER ENGINE LATHE

17" X 60" CLAUSING COLCHESTER ENGINE LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $7,500.00

HMC Stock # 24040-P

Machine Serial No.:  7/0015/11314

Machine Model No.:  17"

New Date:  Unknown

Swing Over Bed:  17-1/4"

Swing Over Cross Slide:  10-1/2"

Distance Between Centers:  60"

Hole Thru Spindle:  3-1/16"

Spindle Nose:  D1-8 Camlock

(16) Spindle Speeds:  20 to 1600 RPM

(38) Standard Threads:  2 to 72 TPI

(40) Metric Threads:  .4 to 14 MM

Longitudinal Feeds:  .002" to .032" Per Rev.

Cross Feeds:  .001" to .016" Per Rev.

Tailstock Diameter:  2-15/16"

Tailstock Taper:  #5 Morse

Tailstock Spindle Travel:  5-1/2"

EQUIPPED WITH:

12" 6-Jaw Buck Chuck

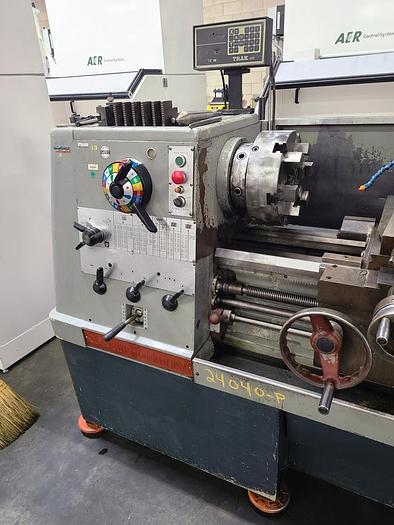

Trak 102 2-Axis DRO

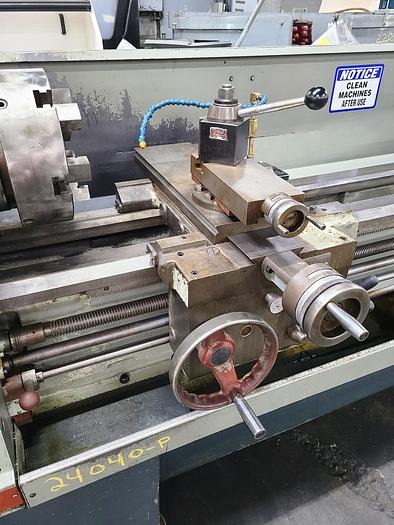

Aloris Tool Post

Work Light

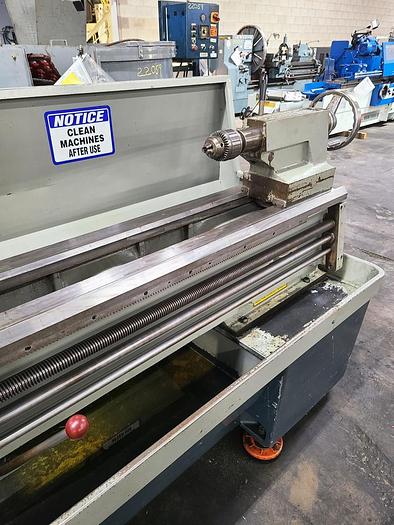

3/8" to 1" Key Type Drill Chuck with #5 Morse Taper

Inch Graduated Dial on Cross Slide, Top Compound and Tailstock

Hard Bedways in Good Condition

On-Off Levers at Headstock and Carriage Positions

End Quadrant Gear Set with Assorted Gears

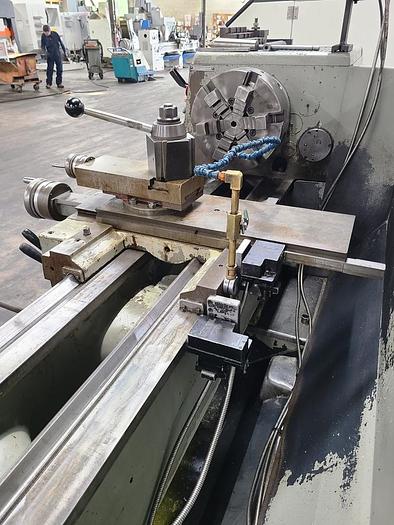

Coolant Pan with Pump and Piping

Full Length Rear Splash Guard

10 HP Main Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts

Presently Wired for 440 Volt Operation

Overall Size:  120" LR x 48" FB x 67" High
