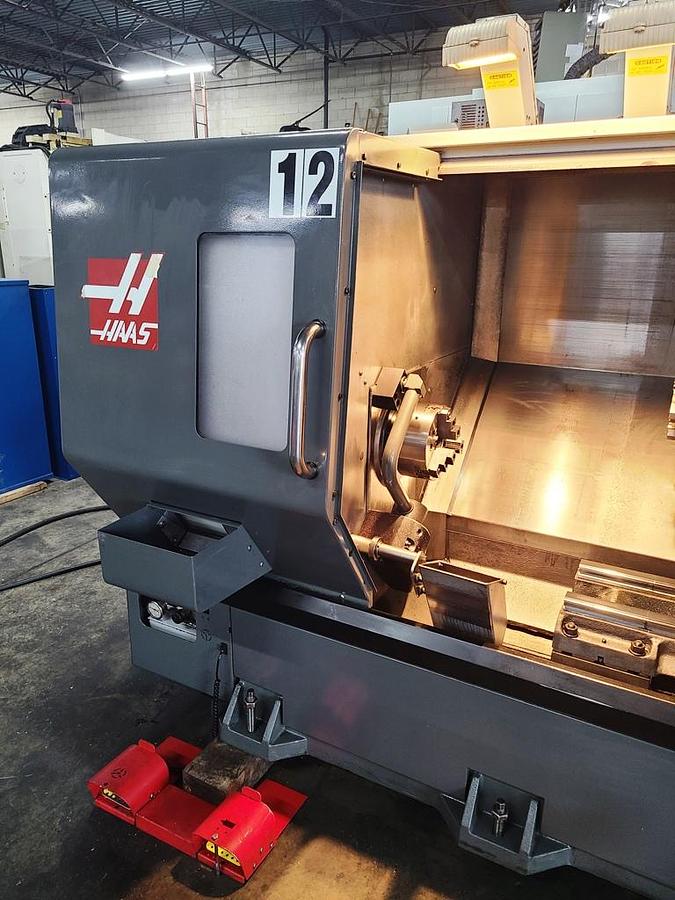

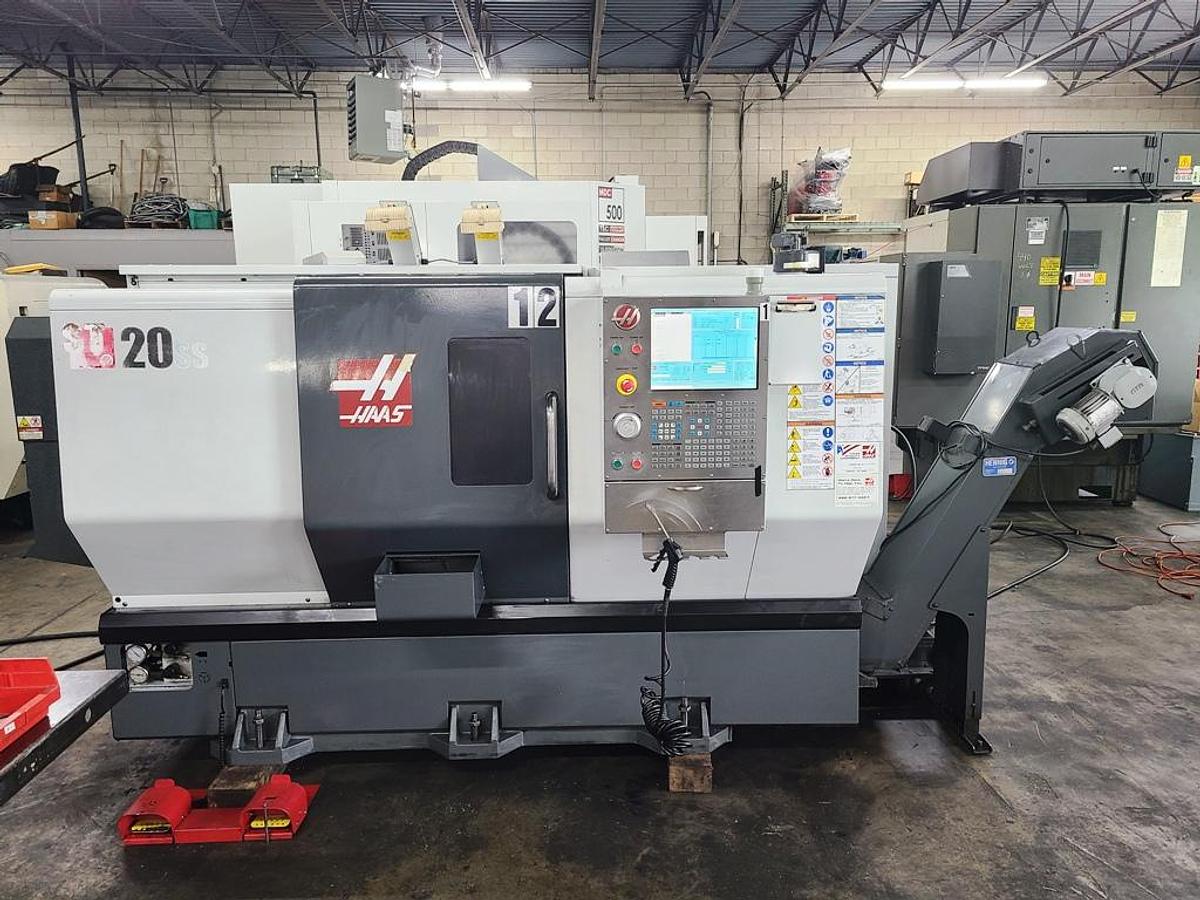

HAAS CNC TURNING CENTER

HAAS CNC TURNING CENTER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $32,500.00

HMC Stock # 25007

Serial No.: 3086480

Model: ST-20SS

Year: 2010

Maximum Swing: 31.75"

Center Distance: 24"

Maximum Turning Diameter: 10"

Maximum Turning Length: 21"

Bar Capacity: 2"

Spindle Nose: A2-6"

Spindle Bore: 3.5"

Spindle Speed: 5,000 RPM

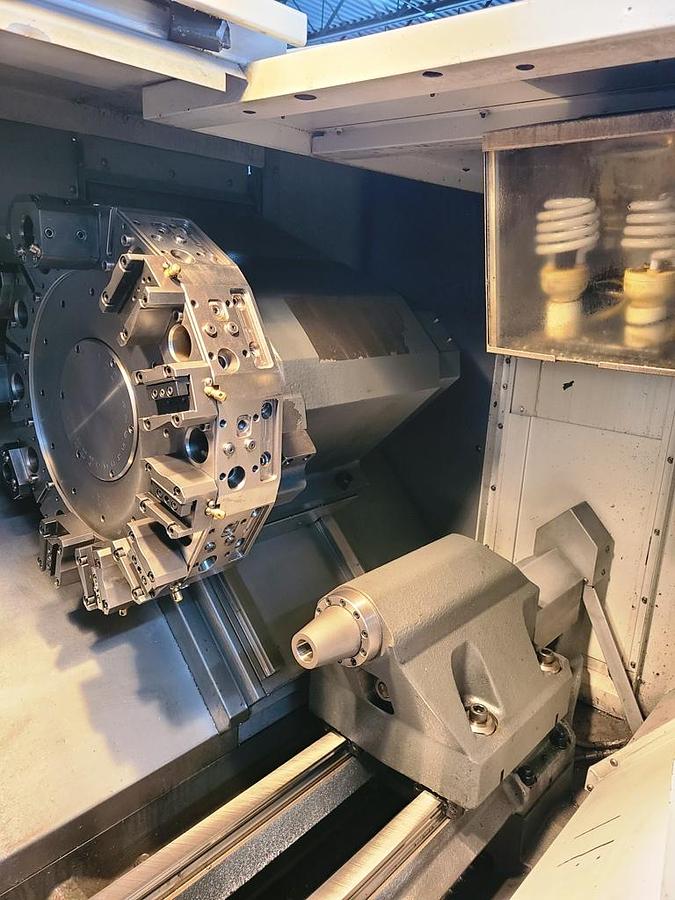

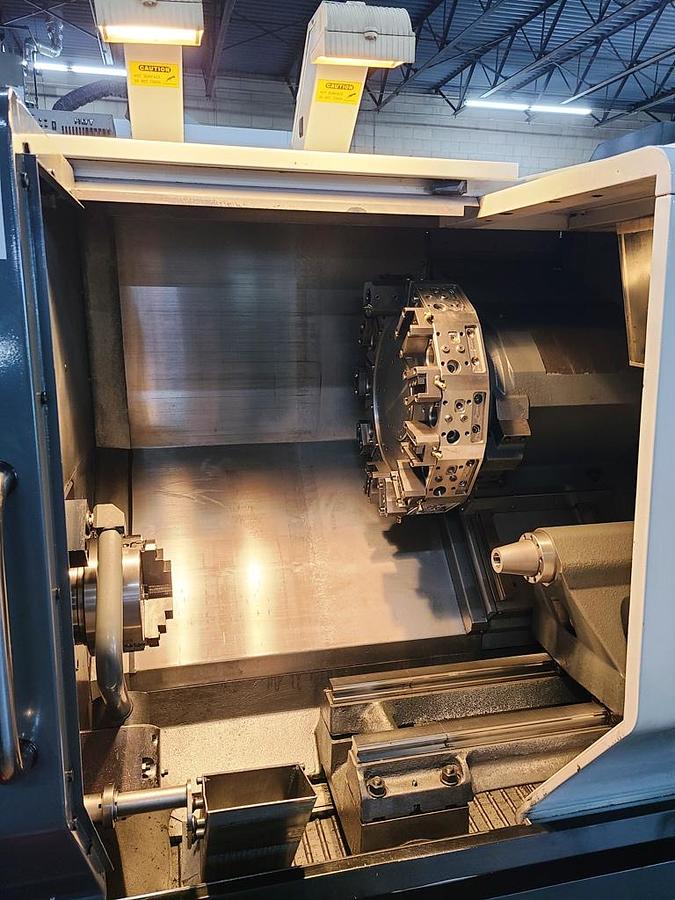

24 Position Hybrid Turret (VDI)

Rapids: 1200 IPM on Z and 945 IPM on X

Tailstock Taper: #4 Morse

Tailstock Travel: 20"

EQUIPPED WITH:

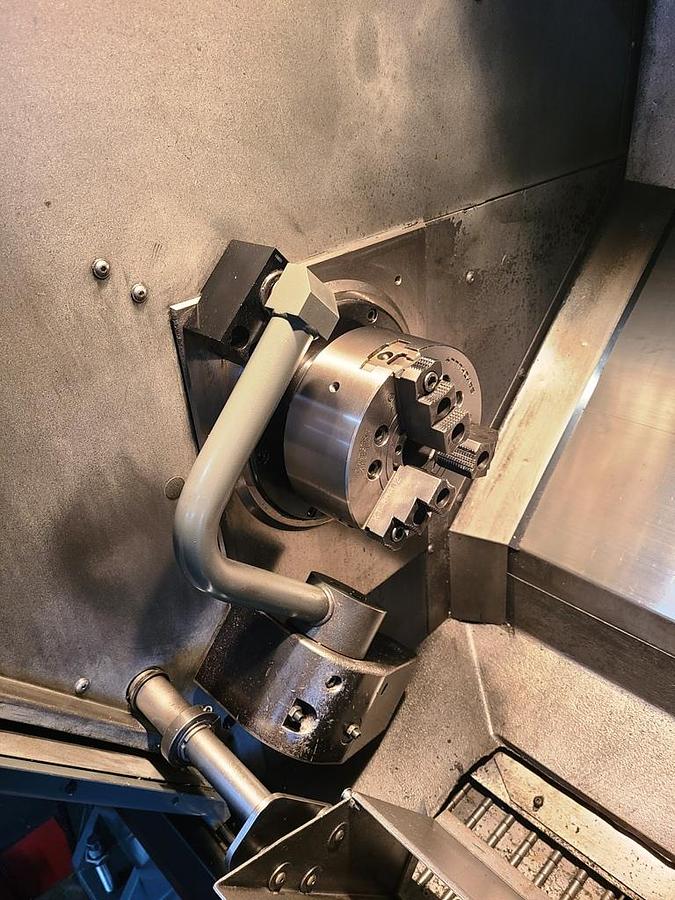

8" Samchully 3 Jaw Hydraulic Chuck

Auto Probe Arm

Rigid Tapping

Tailstock

High Intensity Lighting

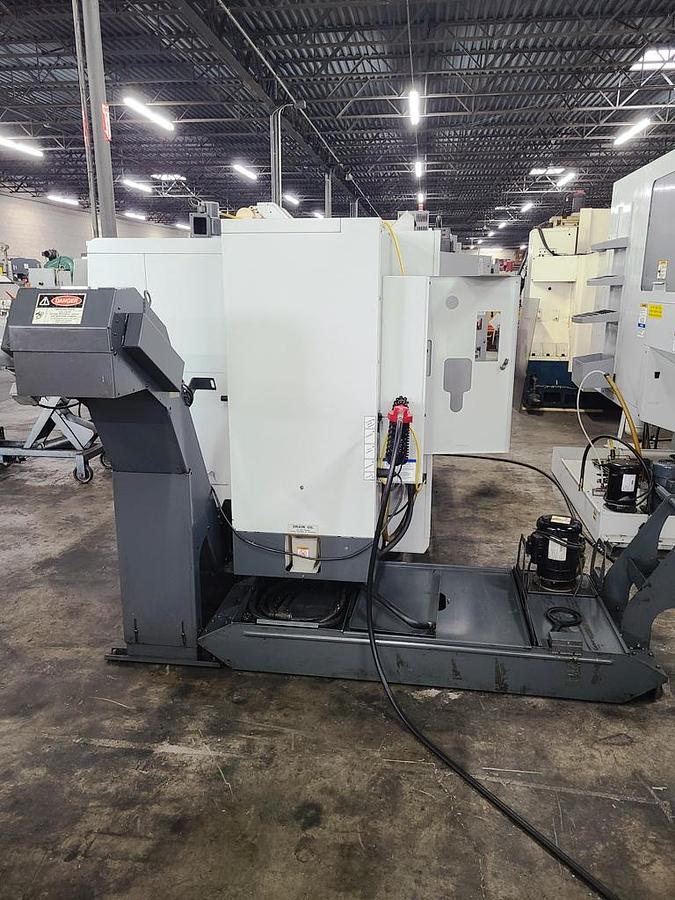

Chip Conveyor

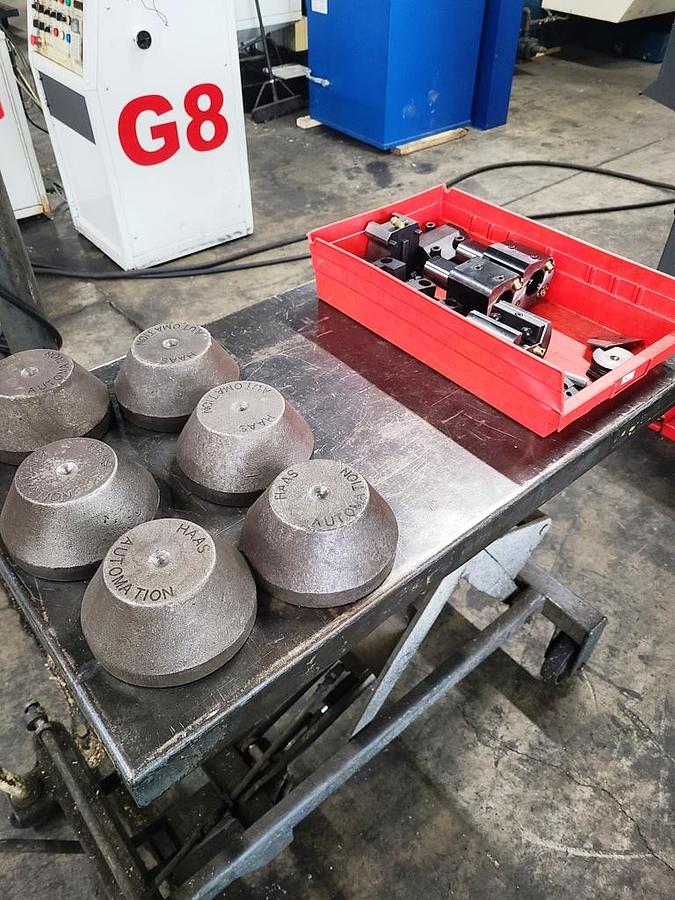

Assorted Turret Tooling

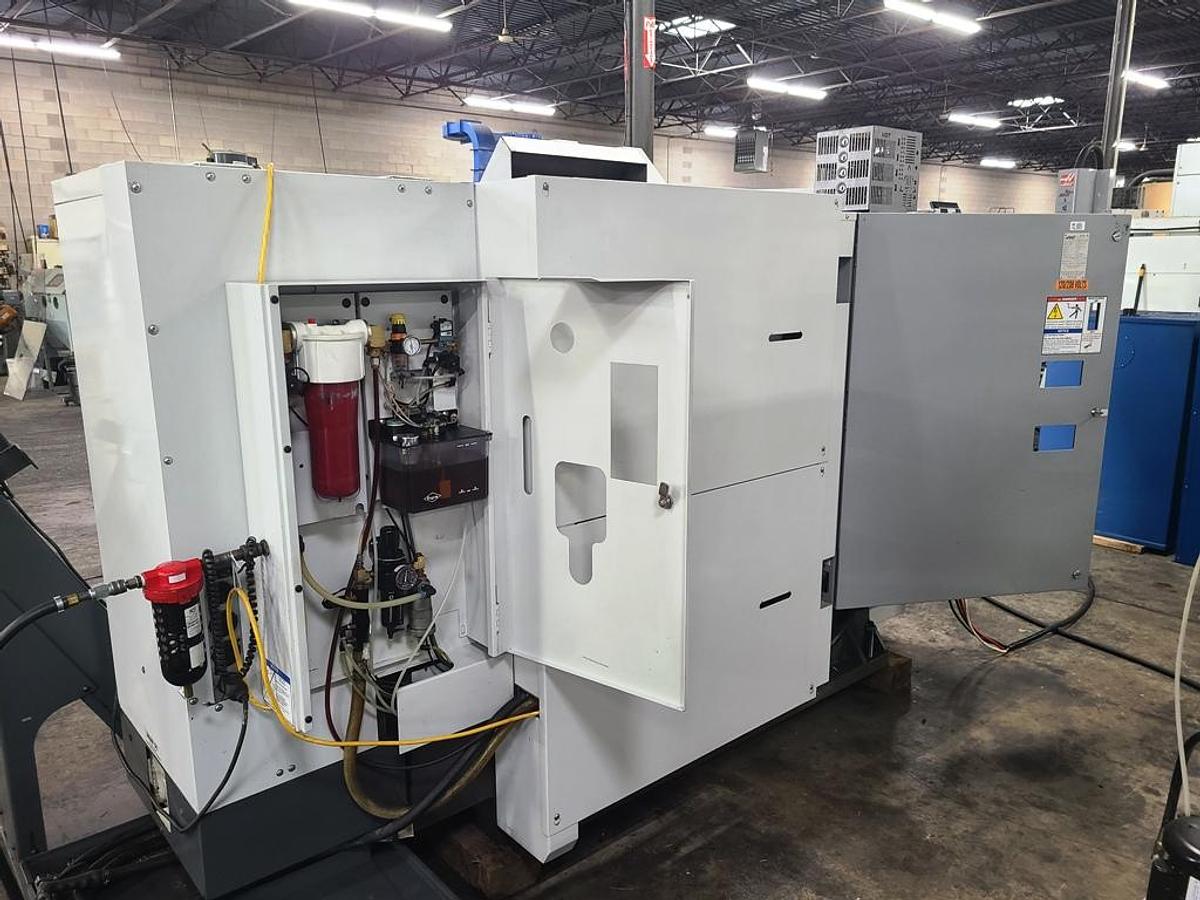

Lube System Grease Reservoir (Type 3)

30 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 152" LR (With Conveyor Installed) x 76" FB x 78" High x 9,000 Lbs.

Coolant Tank: 77" LR x 36" FB x 27" High
