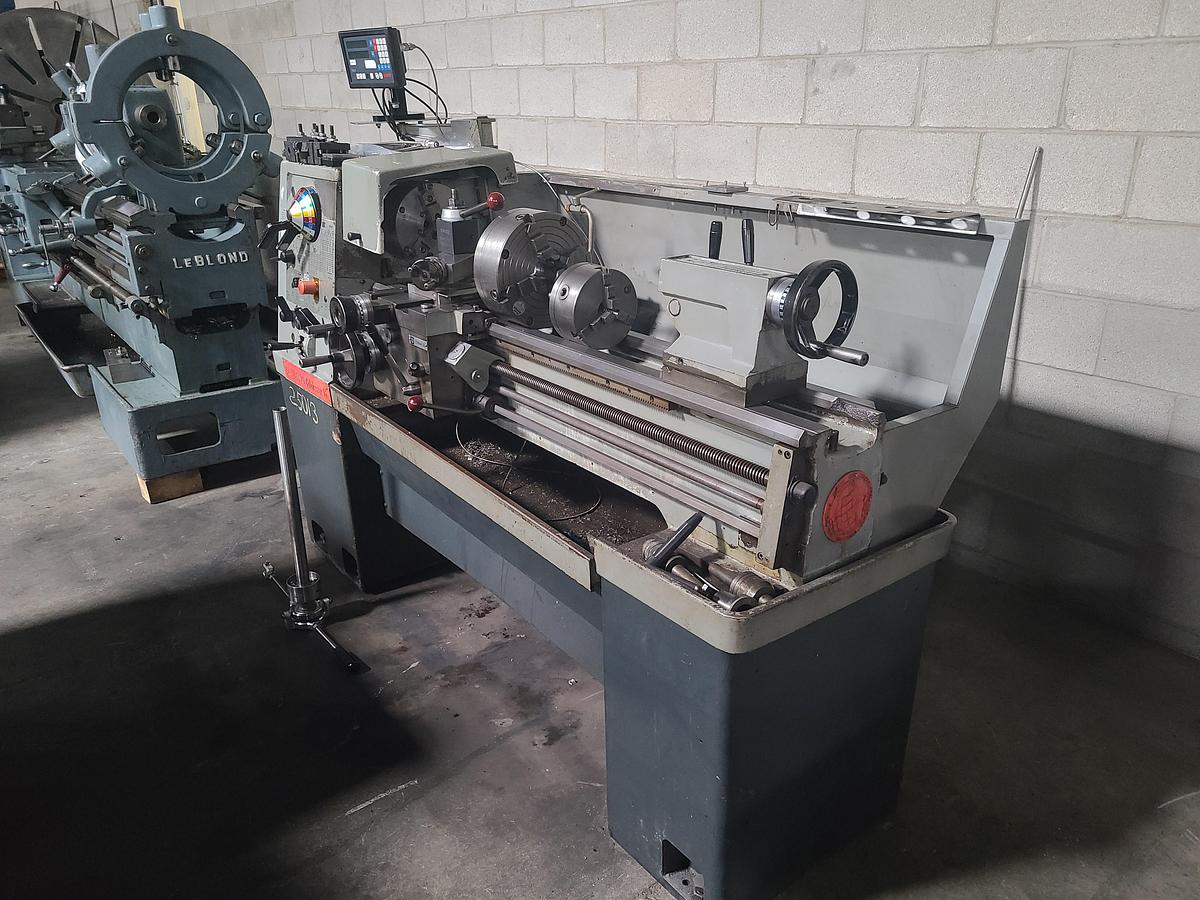

13" X 40" CLAUSING COLCHESTER ENGINE LATHE

13" X 40" CLAUSING COLCHESTER ENGINE LATHE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $6,950.00

HMC Stock # 25013

Serial No.: LMR40SILFV/13740

Model: 13"

Swing Over Bed Ways: 13-1/4"

Swing Over Cross Slide: 8-1/4"

Center Distance: 40"

(16) Spindle Speeds: 30 – 2500 RPM

Spindle Hole: 1-3/8"

Spindle Nose: 4" D1 Camlock

(45) Imperial: 2 to 72 TPI

(39) Metric Threads: 2 to 14 MM Pitch

(18) Modules: .3 to 3.5

(21) Diametral Pitches: 8 to 44 DP

(17) English/Metric Feeds: .001" to .040" & .03 to 1 MM

Tailstock Taper: #3 Morse

EQUIPPED WITH:

Newall Digital Read Out (Only X axis is functional. The longer Z axis would need a new scale and reader head.)

Hard Ways (Good Condition)

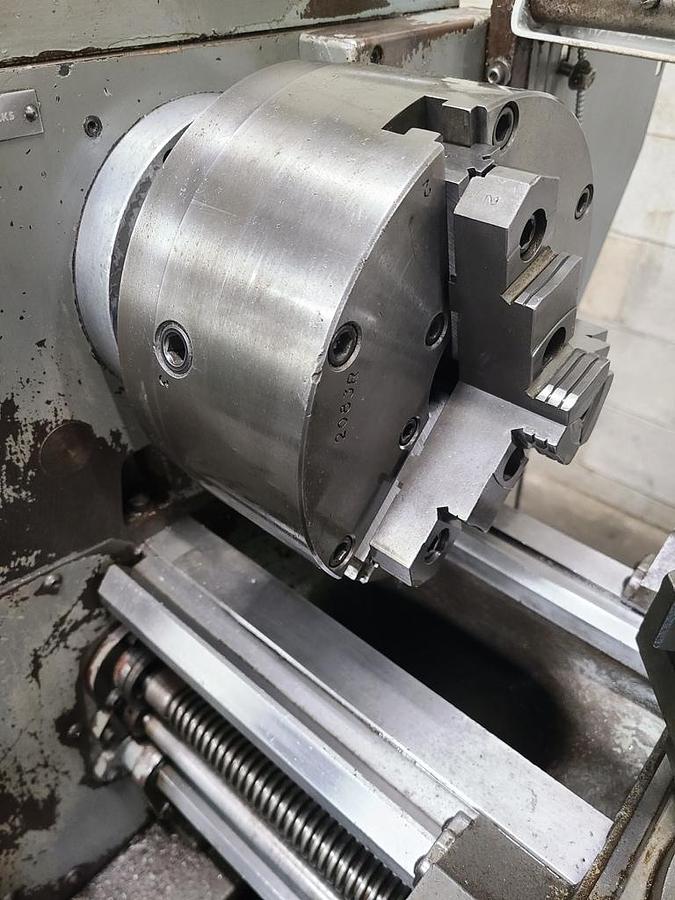

8" 3-Jaw Chuck

6" 3-Jaw Chuck

10" Pratt Burnerd 4-Jaw Chuck

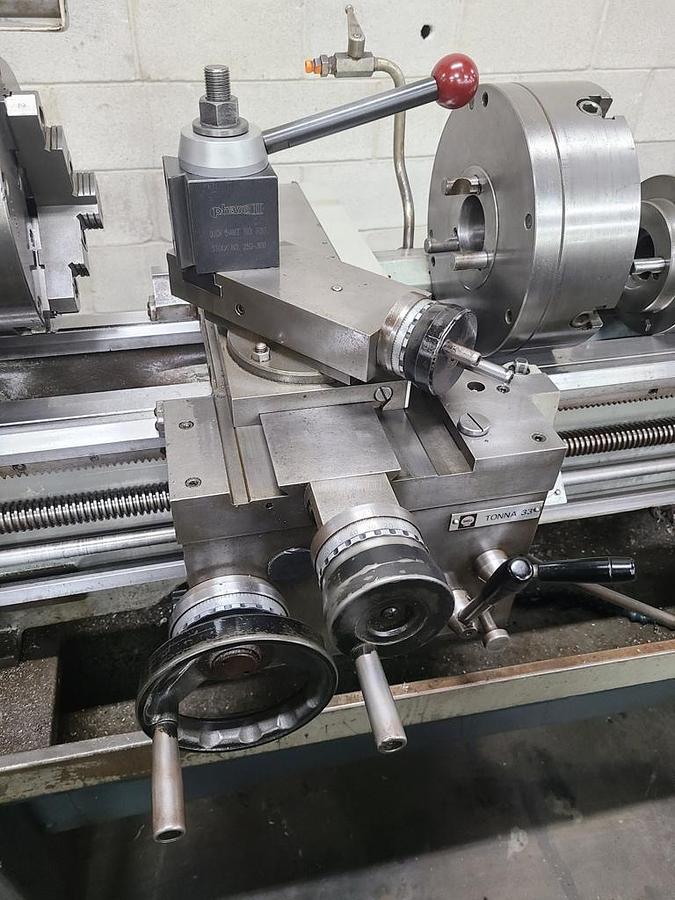

Phase II Tool Post and Assorted Holders

JFK Precision Collet Closure

Rear Splash Guard Panel

Removable Chip Pan

3 HP Main Motor, Dual Voltage Belt Drive Motor with Variable Speed Motor

Currently Wired for 220 Volts

Overall Dimensions: 84" L-R x 36" F-B x 60" High
